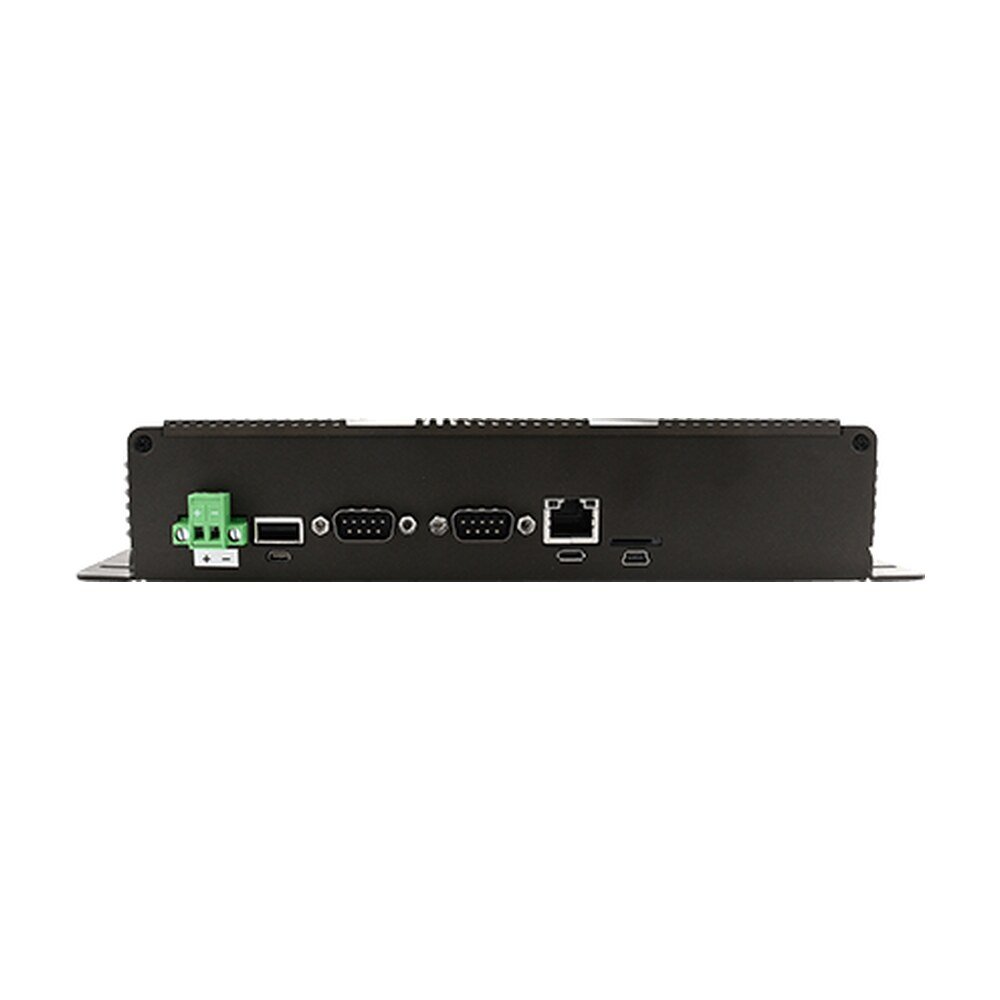

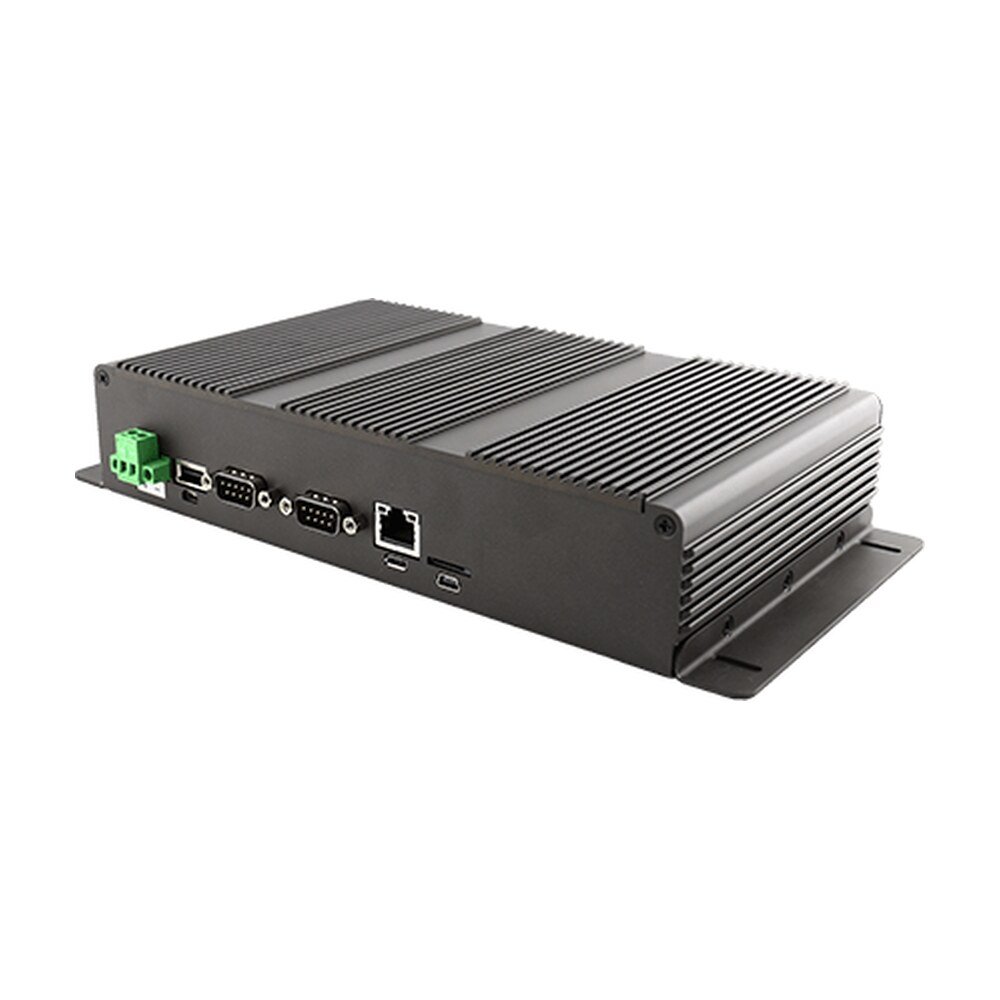

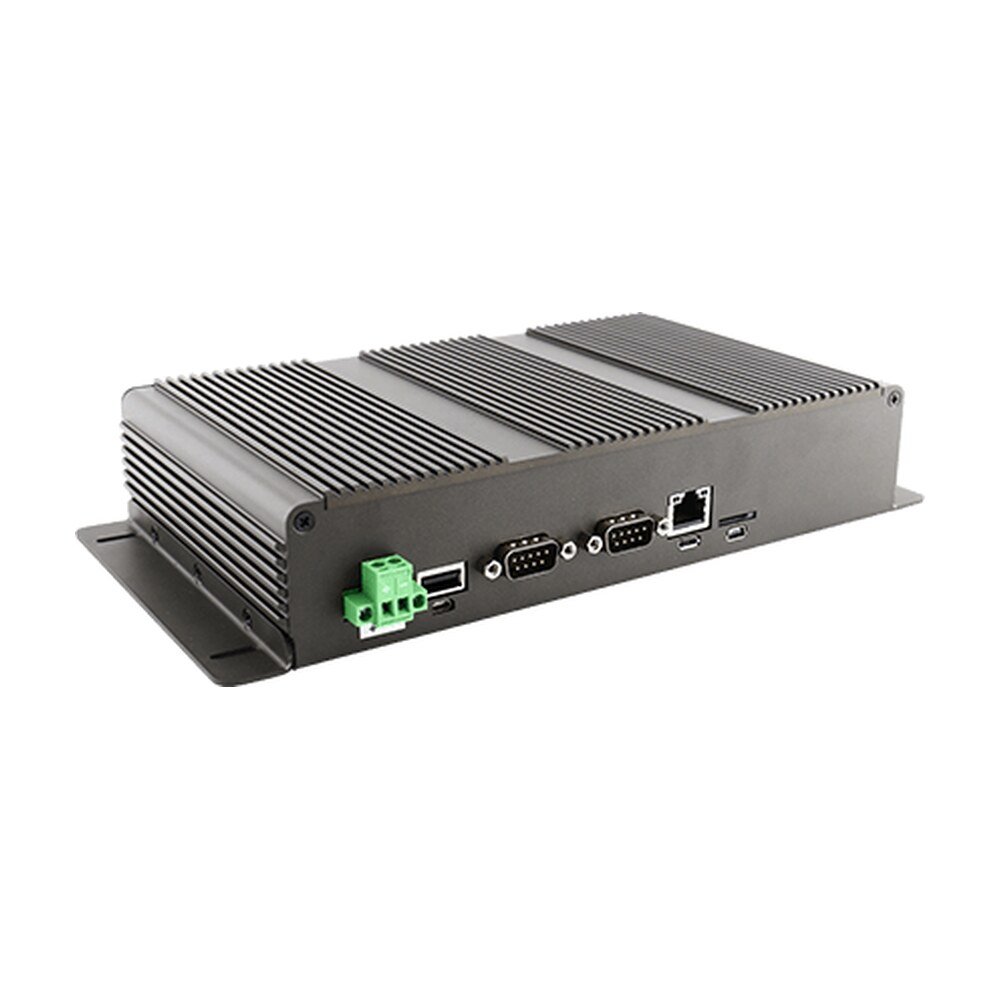

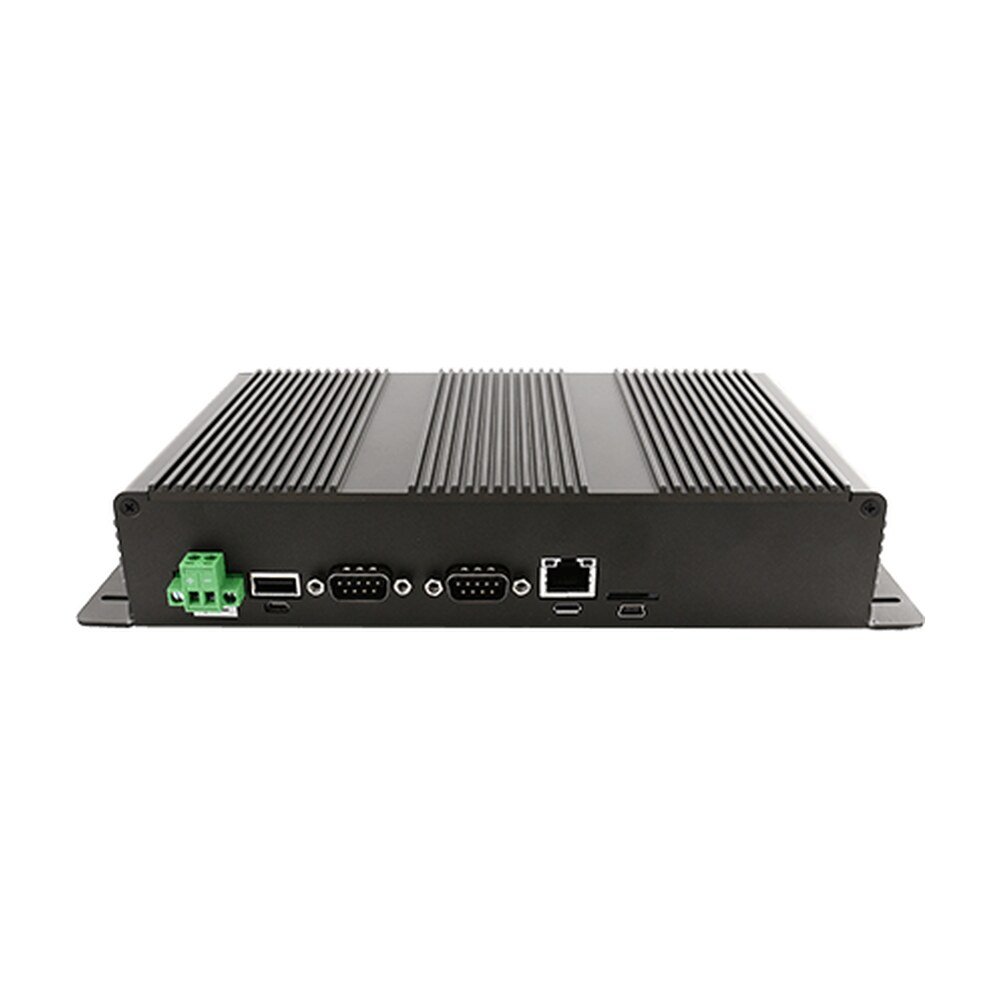

Explore Winmate FA30SB3-210, an industrial embedded computer featuring NXP i.MX6 for industrial automation and embedded systems.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate FA30SB3-210, an industrial embedded computer featuring NXP i.MX6 for industrial automation and embedded systems.
Unlike the x86 platform, which uses CISC (Complex Instruction Set Computing) architecture, ARM motherboards adopt RISC (Reduced Instruction Set Computing) architecture. RISC architecture's most significant features are ultra-low Power and Mobility, Ultra Small Form Factor Design, Low Cost, and Low Cost and Low Power does not equal Low Performance.
Winmate ARM computing solution provides an Open and Unified Development Platform to minimize the development effort and increase resource efficiency when enabling an ARM-based embedded application.
One USB OTG connector is added to BCM PPC10W-6MXQ ARM Panel PC external I/O ports enabling the system to perform the role of host or client. Communication is established whenever two USB devices are connected, and one of them is a USB OTG compatible. This feature is viral for low power mobile devices, primarily for the Android OS system.
| System Specification | |
|---|---|
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB (Default), 2GB (Optional) |
| Storage | eMMC: Onboard 16 GB (Default), eMMC: Onboard 32 GB (Optional) |
| Operating System | Linux Ubuntu 18.04 (Optional), Android 6.0 (Optional), Debian 7.0 (Optional), Linux 4.1.15 QT 5.5 (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 224 x 47 x 127 mm |
| Weight | 1.0 kg |
| Mounting | Desk Mount, Wall Mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB 2.0 (Type-A), 1 x USB OTG (Micro USB) |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Default), 2 x RS232/422/485 (Default RS232) (Optional) |
| LAN | 1 x LAN RJ45 Connector with PoE(PD, 802.3 at) |
| Video | 1 x Micro HDMI |
| SD Card Slot | 1 x Micro SD card Slot |
| Indicator | 1 x LED Indicator for power |
| DIDO | 1 x 8pin(1x8) for DIO (3 x DI, 3 x DO, GND, 3.3V) (Optional) |
| CANBUS | 1 x Mini PCIE |
| Power Input | 1 x 12V DC, 2-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button with LED Indicator (Optional) |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | FA30SB3-210 |
| Series | ARM Box PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | FA30SB3-210 |
|---|---|
| Category | Box PC / Waterproof Rugged PC IP65, Embedded Computing, Winmate |
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB (Default), 2GB (Optional) |
| Storage | eMMC: Onboard 16 GB (Default), eMMC: Onboard 32 GB (Optional) |
| Operating System | Linux Ubuntu 18.04 (Optional), Android 6.0 (Optional), Debian 7.0 (Optional), Linux 4.1.15 QT 5.5 (Optional) |
| BT | Support (Optional) |
| Dimension | 224 x 47 x 127 mm |
| Weight | 1.0 kg |
| Mounting | Desk Mount, Wall Mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Certification | CE, FCC |
| USB Port | 1 x USB 2.0 (Type-A), 1 x USB OTG (Micro USB) |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Default), 2 x RS232/422/485 (Default RS232) (Optional) |
| LAN | 1 x LAN RJ45 Connector with PoE(PD, 802.3 at) |
| Video | 1 x Micro HDMI |
| SD Card Slot | 1 x Micro SD card Slot |
| Indicator | 1 x LED Indicator for power |
| DIDO | 1 x 8pin(1x8) for DIO (3 x DI, 3 x DO, GND, 3.3V) (Optional) |
| CANBUS | 1 x Mini PCIE |
| Power Input | 1 x 12V DC, 2-Pin Terminal Block |
| Button | 1 x Power Button with LED Indicator (Optional) |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
| Brand | Winmate |
| Manufacturer part number | FA30SB3-210 |
| Series | ARM Box PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
