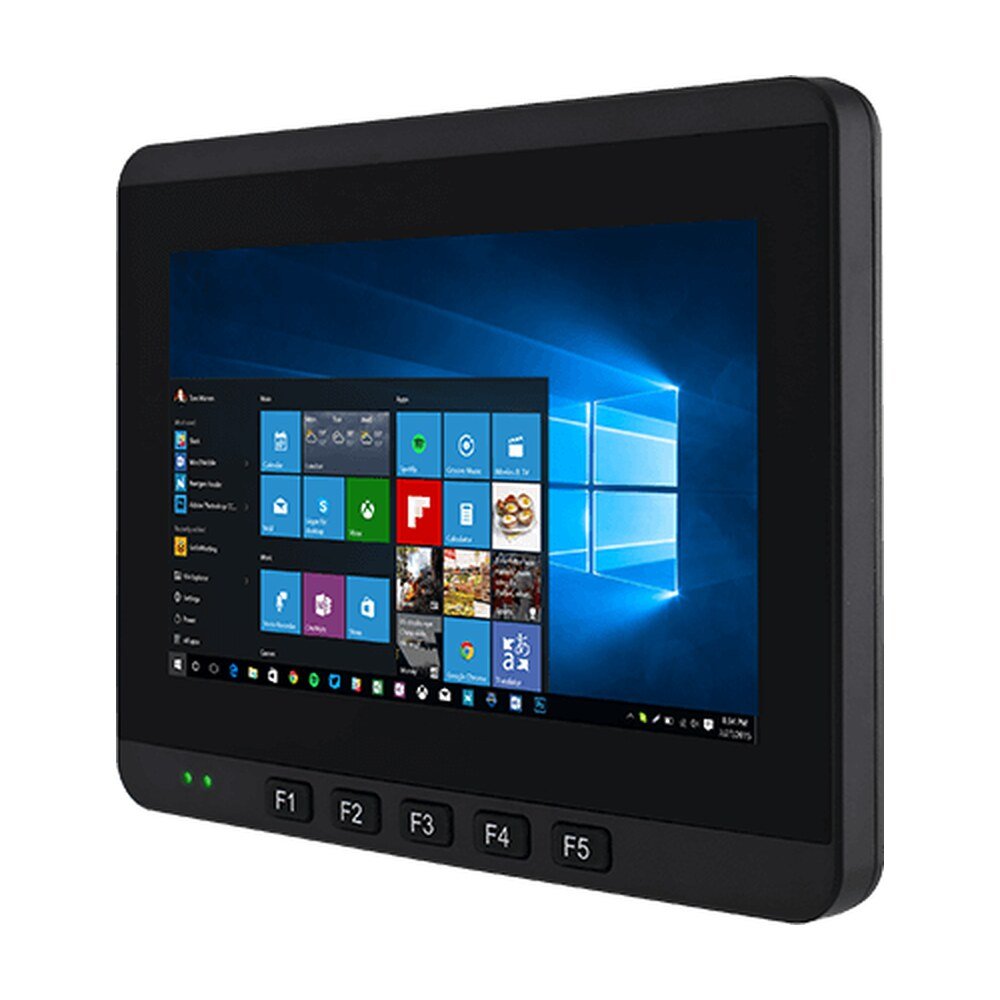

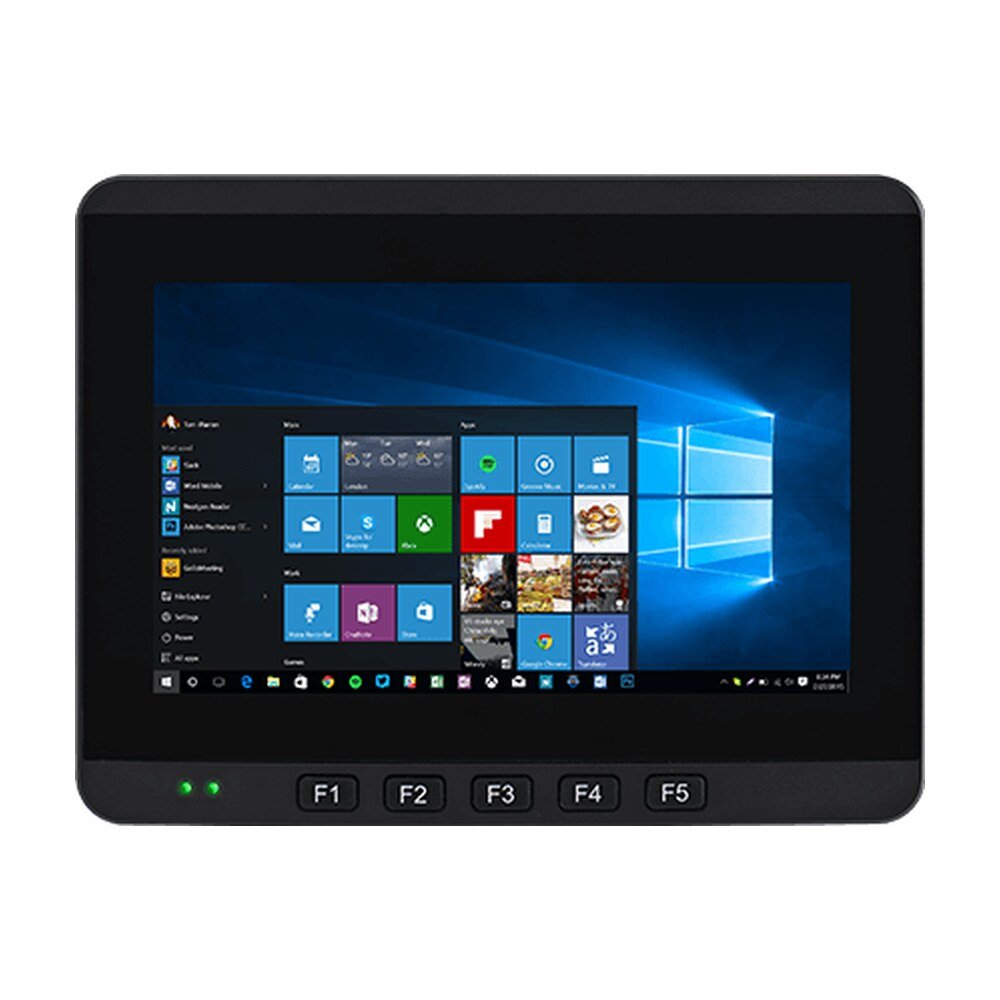

Explore Winmate FM07P, a vehicle-mounted computer featuring Intel® Celeron® N3350, 7-inch display with 1024x600 resolution, IP65…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate FM07P, a vehicle-mounted computer featuring Intel® Celeron® N3350, 7-inch display with 1024x600 resolution, IP65…
Winmate FM07 series supports both VESA mount and RAM mounts to help you save the time and ease installing the vehicle-mounted computer. The FM07 is easily mounted and fully-rugged, helps you to have higher work efficiency.
For more mounting information, please visit RAM Mount, VESA Mount
Wide power input with the ignition control feature detects the ignition signal status and allows users to control the on or off delay time setting through the customized software utility. Power input voltage varies by model.
Save time on finding your favored application on the screen by using 5 programmable function keys. Customize the function for your unique application.
The FM07 series vehicle-mounted computer features wireless connectivity WLAN, BT, and GPS to help you stay connected no matter where a task brings you. Add an optional WWAN feature for your in-vehicle IoT application.
The FM07 is a fixed mount computer built to survive the rigors of the road. Vibration and shock-resistant, the FM07 series is compliant with the MIL-STD-810G standard, IP65 water and dustproof with M12 waterproof connectors. Winmate’s FM07 Series is built to survive extreme weather, operates through temperature changes from -20°C to 60°C and is suitable for cold storage applications.
| Display | |
|---|---|
| Size | 7.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x600 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 700:1 |
| View Angles | 75,75,75,70 |
| Active Area | 153.6x90 mm |
| System Specification | |
| Processor | Intel Celeron N3350 1.1GHz (up to 2.4GHz) (Default), Intel Pentium N4200 1.1GHz (up to 2.5GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB (Default), 8GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Default), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS, GLONASS |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20°C~60°C |
| Storage Temperature | -20°C~60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB |
| Serial Port | 2 x COM Port |
| LAN | 1 x Gigabit Ethernet LAN 10/100/1000 Mbps (M12 type) |
| Audio | 1x Speaker |
| SIM Card Slot | 1 x SIM Card Slot |
| Front Control | 5 x Function Key |
| Indicator | Power, HD |
| DIDO | 1 x DIDO (3XDI ; 3XDO) |
| CANBUS | 2 x CANBUS |
| Control | |
| Button | 1 x Power Button, 5x Function Button, (Programmable Function Key Configured by Winset) |
| Mechanical | |
| Dimension | 189.93 x 145.93 x 39.8 mm |
| Weight | 1.2kg |
| Mounting | RAM mount (Default), VESA mount (Optional) |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | User Guide, CANBus and DIDO Cable, 1.8m, WLAN Antenna, Power Converter Cable, Power Adapter |
| Optional Accessory | WWAN Antenna x 2 (Optional), GPS Antenna (Optional) |
| Power | |
| Power Rating | 9V-36V, with ignition control |
| Consumption | Max: 35W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | FM07P |
| Series | FM-V Series Windows Vehicle Mounted Computer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | FM07P |
|---|---|
| Category | Vehicle Mounted Computer, Windows Vehicle Mounted Computers, Winmate |
| Size | 7.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x600 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 700:1 |
| View Angles | 75,75,75,70 |
| Active Area | 153.6x90 mm |
| Processor | Intel Celeron N3350 1.1GHz (up to 2.4GHz) (Default), Intel Pentium N4200 1.1GHz (up to 2.5GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB (Default), 8GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Default), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS, GLONASS |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20°C~60°C |
| Storage Temperature | -20°C~60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB |
| Serial Port | 2 x COM Port |
| LAN | 1 x Gigabit Ethernet LAN 10/100/1000 Mbps (M12 type) |
| Audio | 1x Speaker |
| SIM Card Slot | 1 x SIM Card Slot |
| Front Control | 5 x Function Key |
| Indicator | Power, HD |
| DIDO | 1 x DIDO (3XDI ; 3XDO) |
| CANBUS | 2 x CANBUS |
| Button | 1 x Power Button, 5x Function Button, (Programmable Function Key Configured by Winset) |
| Dimension | 189.93 x 145.93 x 39.8 mm |
| Weight | 1.2kg |
| Mounting | RAM mount (Default), VESA mount (Optional) |
| Cooling System | Fanless Design |
| Accessory | User Guide, CANBus and DIDO Cable, 1.8m, WLAN Antenna, Power Converter Cable, Power Adapter |
| Optional Accessory | WWAN Antenna x 2 (Optional), GPS Antenna (Optional) |
| Power Rating | 9V-36V, with ignition control |
| Consumption | Max: 35W |
| Brand | Winmate |
| Manufacturer part number | FM07P |
| Series | FM-V Series Windows Vehicle Mounted Computer |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
