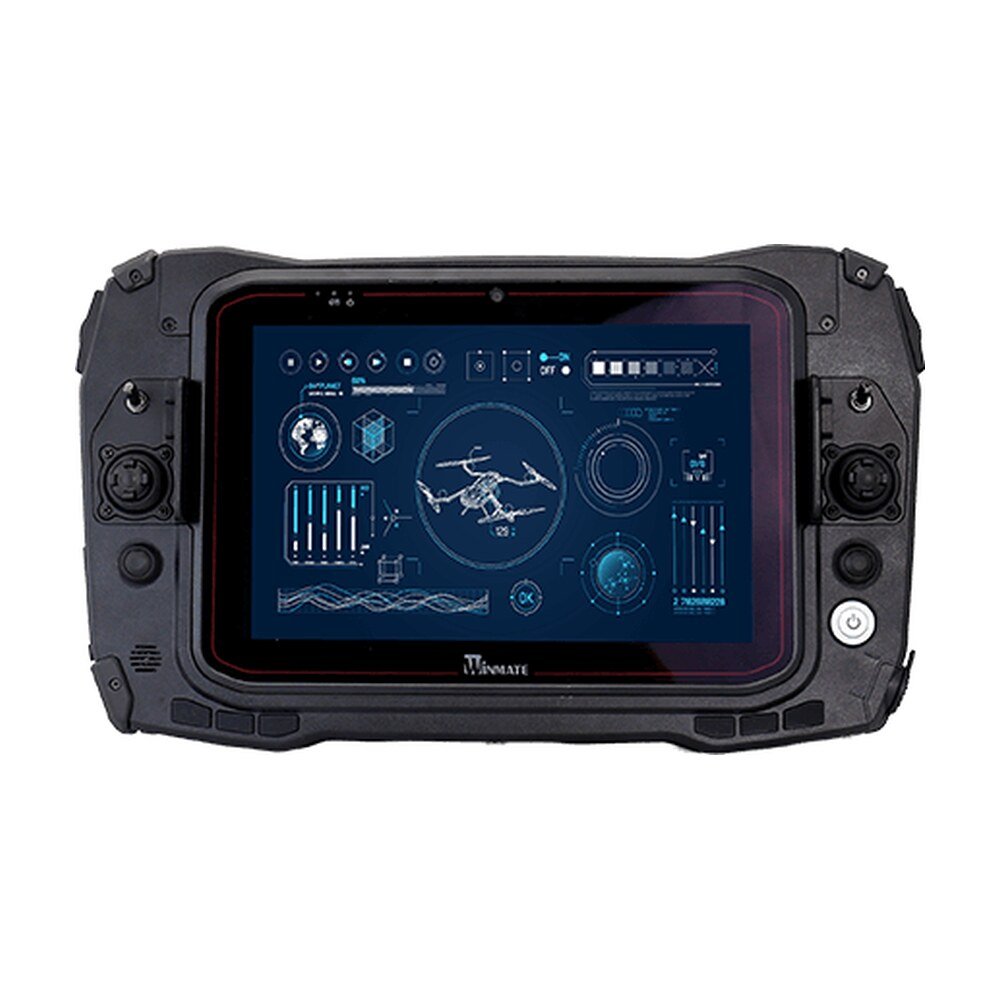

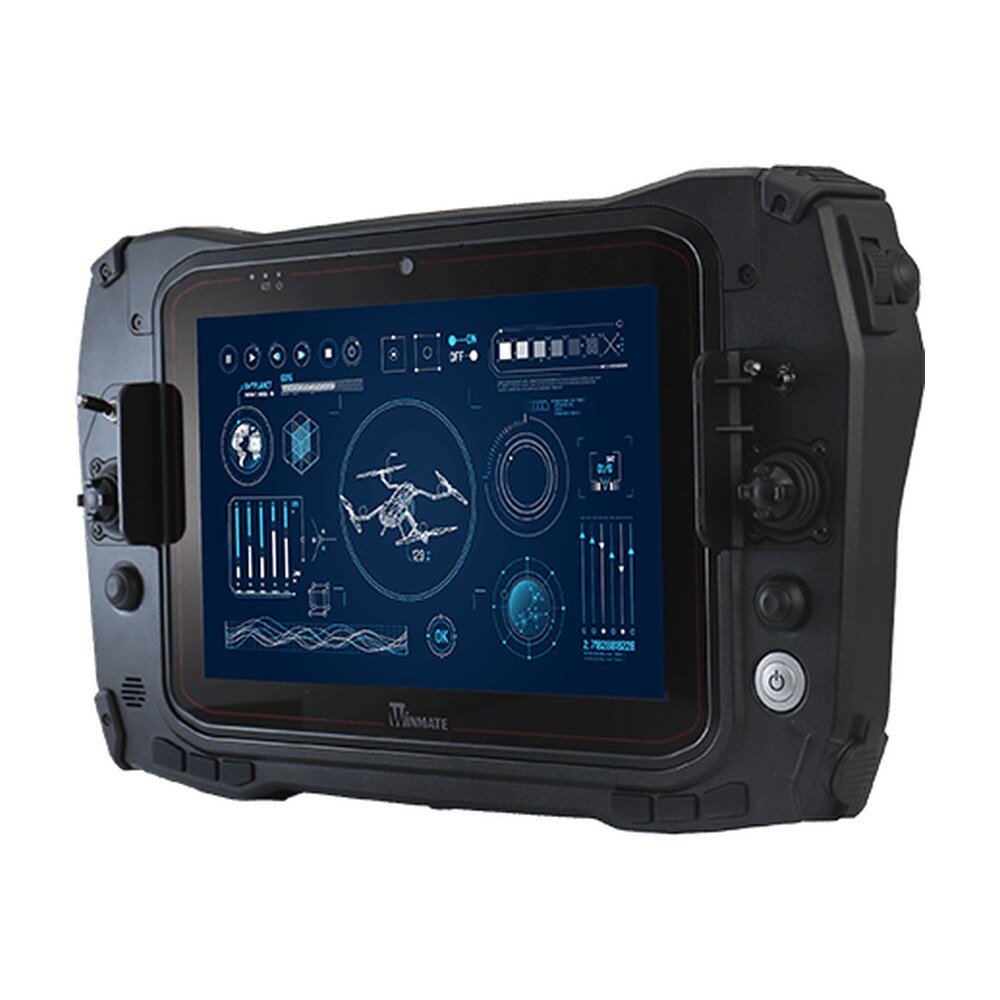

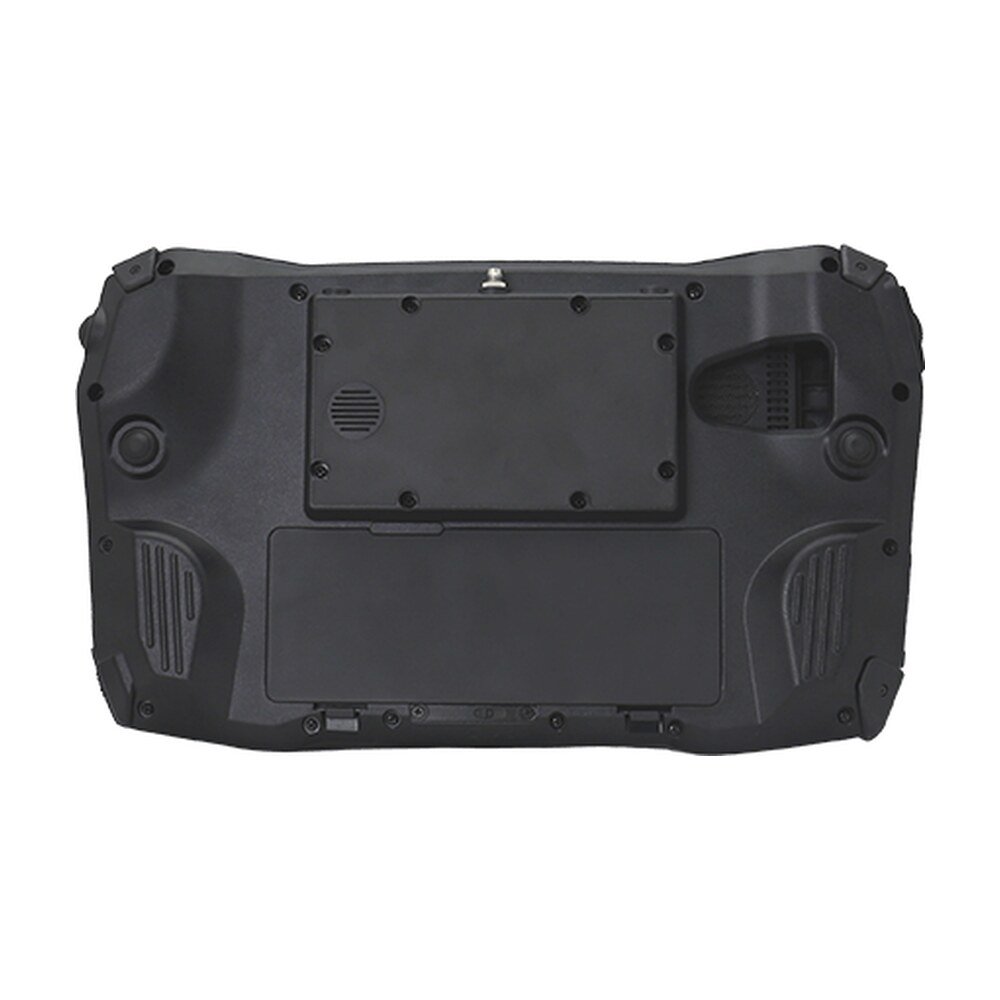

Explore Winmate G101G7, an industrial computer solution featuring 10.1-inch display with 1920x1200 resolution, IP65 for defense operations and field command.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate G101G7, an industrial computer solution featuring 10.1-inch display with 1920x1200 resolution, IP65 for defense operations and field command.
As part of Winmate’s robust robotics controller lineup, the G101G7 is designed to withstand harsh conditions. It complies with US defense standard MIL-STD 810H and is IP65-rated, making it perfect for remote vehicle control in demanding environments.
In addition to the embedded TPM IC in the Winmate rugged robotics controller series, the G101G7 controller offers optional OPAL SSD to safeguard sensitive data from unauthorized access. These security features are integrated into the device, ensuring it remains lightweight, compact, and user-friendly without compromising on security.
Winmate G101G7 Rugged Handheld Robotic Controller features a hot-swappable battery design, providing uninterrupted operation and increased efficiency during mission-critical or unmanned system tasks, even in the most demanding field environments.
At Winmate, we work closely with our customers to deliver rugged solutions tailored to industry demands and workforce needs. Our robotics controller solutions offer configurable wireless modules, joysticks, switches, and buttons, all in a modular design.
The robotics controller supports optional WIFI, BT, and 4G/5G connectivity, making it an essential tool for UAV enthusiasts. Its versatile connectivity options allow users to access live video feeds, control their robotics remotely, and stay connected to the internet while flying.
| Display | |
|---|---|
| Size | 10.1 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1920x1200 |
| Panel Brightness | 800 nits(Default), 1200 (Optional) |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand/Rain, Stylus, Glove Mode |
| System Specification | |
| Processor | Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB |
| Storage | 64GB eMMC |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Android 13.0, Linux Ubuntu 22.04 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional) |
| GNSS | GPS/GLONASS |
| Sensors | Light Sensor |
| Camera | |
| Front Camera | 2MP Front Camera |
| Mechanical | |
| Dimension | 369.35 x 221.5 x 67.3 mm |
| Weight | 2.4kg |
| Cooling System | Fan Design |
| IO Ports | |
| USB Port | 1 x USB 2.0 |
| LAN | 1 x M8 LAN Connector (10/100 Mbps , Max to 250 Mbps), 1 x M10 Push Pull Connector (optional), (Mutually exclusive with RF Module) |
| Video | 2 x micro HDMI output(Optional) |
| Audio | 1x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot (Max to 2TB) |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | Left Side:, 1x joystick, 2x roller switch, 1x 2 band toggle switch, 4x button (front side), 1x control button (rear side), Right Side:, 1x joystick, 1x roller switch, 5x button (front side), 1x power button, 1x 2 band toggle switch, 1x control button (rear side) |
| Power | |
| Battery | 11.4V, typ. 3500 mAh LiIon Rechargeable, Internal Battery (3S1P) , 11.4V, typ. 3500 mAh LiIon Rechargeable, Secondary Battery (3S1P) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | |
| Accessory | 1 x Adapter and Power Cord, 1 x M8 LAN external cable, 1 x M12 Power Adapter, 1 x Standard Battery |
| Optional Accessory | Battery Charger (Optional), Shoulder Strap(Optional), High Capacity Battery (optional), M10 Push Pull Connector (optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | G101G7 |
| Series | Android Rugged Handheld Controller |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | G101G7 |
|---|---|
| Category | Defence Grade, Ground Control Station, Winmate |
| Size | 10.1 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1920x1200 |
| Panel Brightness | 800 nits(Default), 1200 (Optional) |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand/Rain, Stylus, Glove Mode |
| Processor | Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB |
| Storage | 64GB eMMC |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Android 13.0, Linux Ubuntu 22.04 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional) |
| GNSS | GPS/GLONASS |
| Sensors | Light Sensor |
| Front Camera | 2MP Front Camera |
| Dimension | 369.35 x 221.5 x 67.3 mm |
| Weight | 2.4kg |
| Cooling System | Fan Design |
| USB Port | 1 x USB 2.0 |
| LAN | 1 x M8 LAN Connector (10/100 Mbps , Max to 250 Mbps), 1 x M10 Push Pull Connector (optional), (Mutually exclusive with RF Module) |
| Video | 2 x micro HDMI output(Optional) |
| Audio | 1x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot (Max to 2TB) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Certification | CE, FCC |
| Battery | 11.4V, typ. 3500 mAh LiIon Rechargeable, Internal Battery (3S1P) , 11.4V, typ. 3500 mAh LiIon Rechargeable, Secondary Battery (3S1P) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | 1 x Adapter and Power Cord, 1 x M8 LAN external cable, 1 x M12 Power Adapter, 1 x Standard Battery |
| Optional Accessory | Battery Charger (Optional), Shoulder Strap(Optional), High Capacity Battery (optional), M10 Push Pull Connector (optional) |
| Brand | Winmate |
| Manufacturer part number | G101G7 |
| Series | Android Rugged Handheld Controller |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
