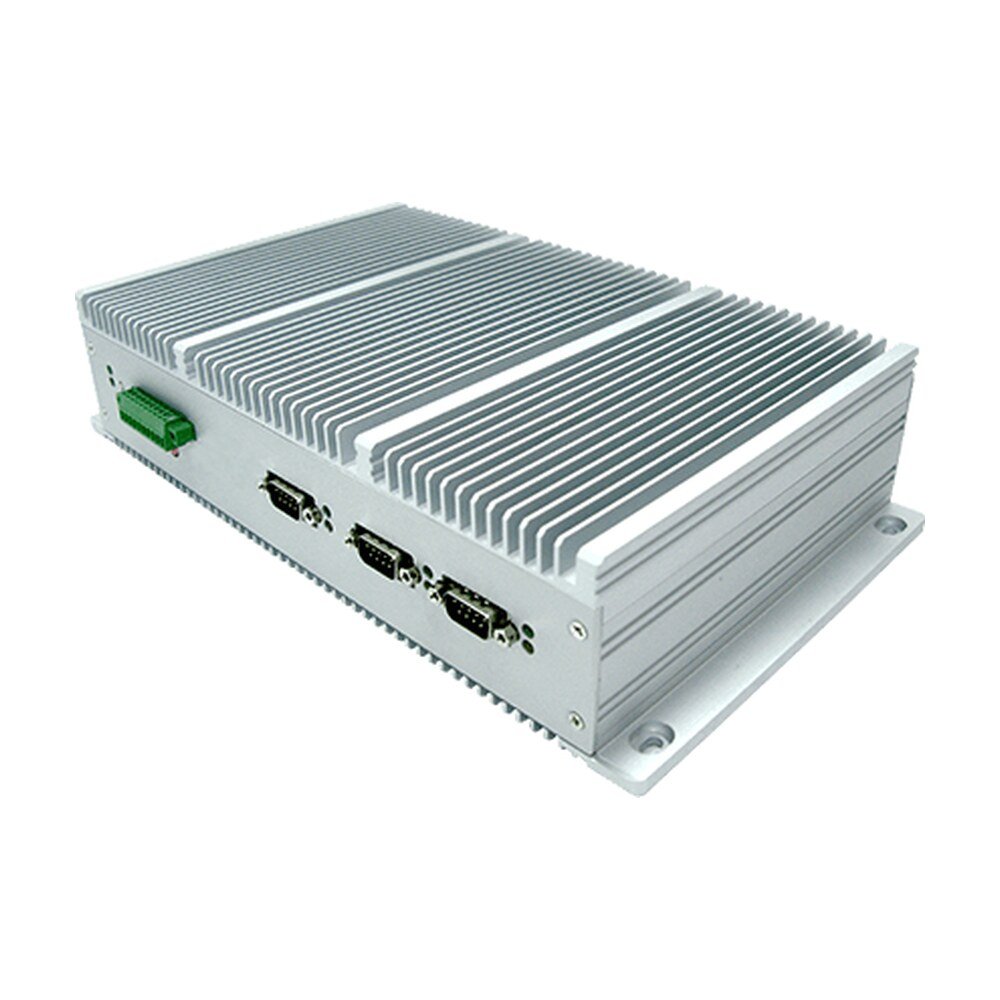

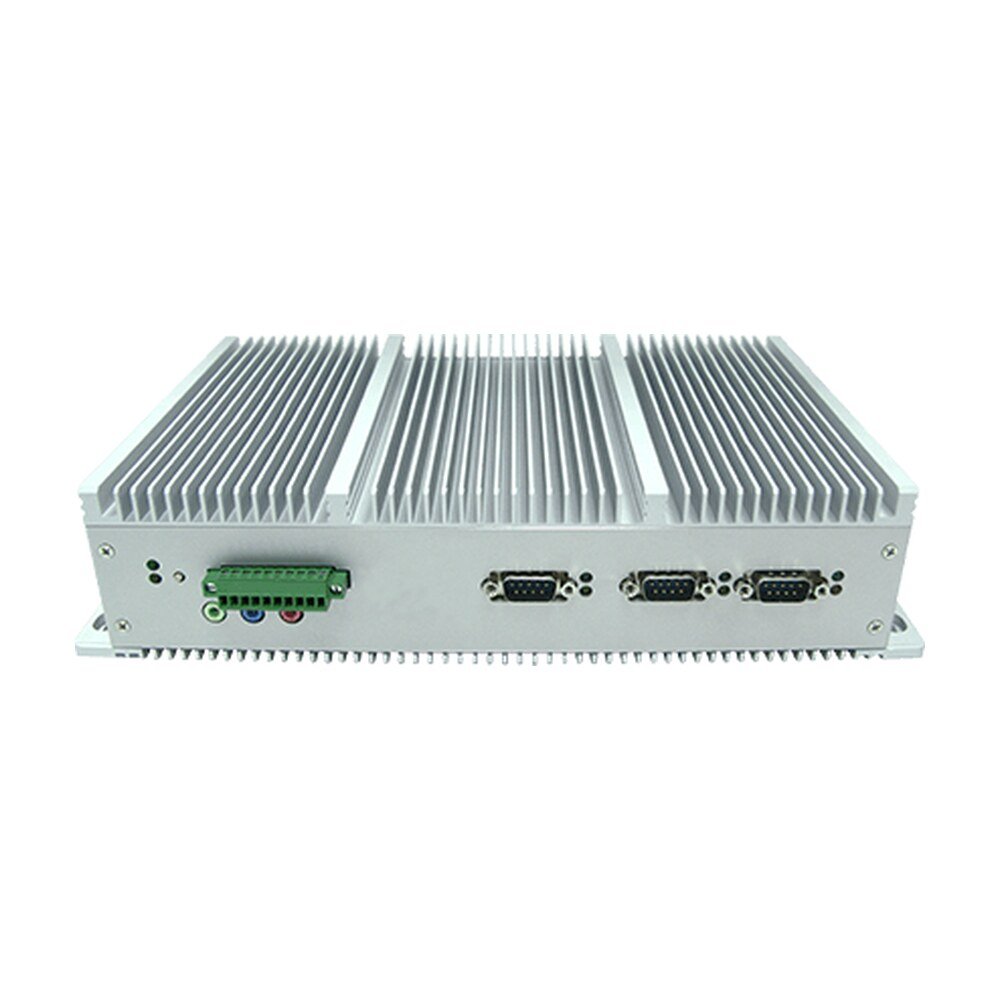

Explore Winmate I330EAC-IK3, an industrial embedded computer featuring Intel® Core™ i5-7200U, IEC 60945 for marine bridge systems and shipboard automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate I330EAC-IK3, an industrial embedded computer featuring Intel® Core™ i5-7200U, IEC 60945 for marine bridge systems and shipboard automation.
Industrial IoT embedded computers with power ignition control, 1 x M.2 2242 SSD 64GB storage.
We use well-defined thermal analysis procedures to verify IPC systems to meet the harsh environment applications. Especially in fanless cooling design, we develop a heat-sink or heat-pipe solution to conduct the heat and the airflow for the best thermal solution. In the fan cooling system, we will analyze the system's thermal profiles before designing it to ensure the most efficient heat convection.
Winmate's multi-port serial cards can be equipped with various high-performance peripheral devices in field devices that use RS-232/422/485 serial communication protocol. Each interface card requires only one PCI or ISA slot to provide independent serial channels.
| System Specification | |
|---|---|
| Processor | Intel Core i5-7300U 2.6GHz (up to 3.5GHz) |
| Memory | 1 x SO-DIMM, DDR4 2133 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB (Default), 256GB (Optional), 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Environment | |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232/422/485, 3 x RS422/485 (Isolation) |
| LAN | 2 x RJ45 (Giga Lan) |
| Video | 1 x VGA (Default), 1 x HDMI (Optional) |
| Audio | 1 x Audio In Jack, 1 x Audio Out Jack, 1 x Mic In |
| Front Control | 1 x Reset Button, 1 x Power Switch on/off |
| Indicator | 1 x PWR LED, 1 x HDD LED |
| GPIO | 8 Channel GPIO by Phoenix type Terminal Block, 5V/12mA |
| Mechanical | |
| Dimension | 296 x 169 x 66 mm |
| Weight | 3.1 kg |
| Mounting | Table mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Power | |
| Power Rating | 24V DC In (Approval by Certificate), 9~36V DC Input Acceptable |
| Consumption | 50W |
| Accessory | |
| Accessory | 1 x User Manual, 1 x Power Cord, 1 x Open Wire Cable, 1 x AC Adapter12V/ 84W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | I330EAC-IK3 |
| Series | Marine Computer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | I330EAC-IK3 |
|---|---|
| Category | Marine Embedded Computers, Marine Grade, Winmate |
| Processor | Intel Core i5-7300U 2.6GHz (up to 3.5GHz) |
| Memory | 1 x SO-DIMM, DDR4 2133 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB (Default), 256GB (Optional), 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| Certification | CE, FCC |
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232/422/485, 3 x RS422/485 (Isolation) |
| LAN | 2 x RJ45 (Giga Lan) |
| Video | 1 x VGA (Default), 1 x HDMI (Optional) |
| Audio | 1 x Audio In Jack, 1 x Audio Out Jack, 1 x Mic In |
| Front Control | 1 x Reset Button, 1 x Power Switch on/off |
| Indicator | 1 x PWR LED, 1 x HDD LED |
| GPIO | 8 Channel GPIO by Phoenix type Terminal Block, 5V/12mA |
| Dimension | 296 x 169 x 66 mm |
| Weight | 3.1 kg |
| Mounting | Table mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Power Rating | 24V DC In (Approval by Certificate), 9~36V DC Input Acceptable |
| Consumption | 50W |
| Accessory | 1 x User Manual, 1 x Power Cord, 1 x Open Wire Cable, 1 x AC Adapter12V/ 84W |
| Brand | Winmate |
| Manufacturer part number | I330EAC-IK3 |
| Series | Marine Computer |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
