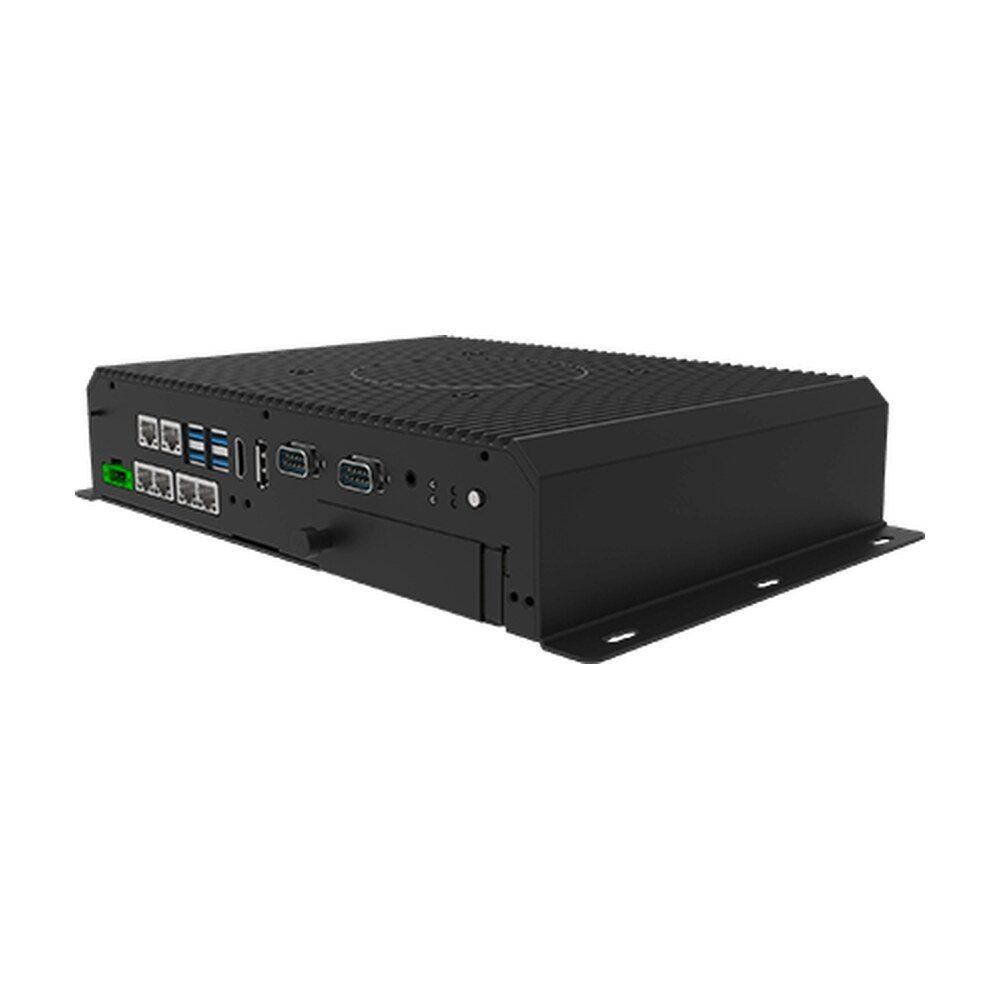

Explore Winmate I330EAC-ITW-6L, an industrial computer solution featuring Intel® Core™ i5-1135G7, IEC 60945, IACS-E10 for marine bridge systems and shipboard…
The I330EAC-ITW-6L marine fanless computer complies with international marine standards DNVGL-CG-0339 and IEC 60945. It is constructed with closed-design metal housing with anti-vibration, compression, and a wide range of temperature resistance.
I330EAC-ITW-6L marine fanless computer is designed with efficient heat dissipation and is fanless. Effectively prevents the accumulated dust and noise inside the machine caused by fan operation and forgoes vulnerable ventilation openings.
To fulfill the diverse needs of industrial IoT solutions, the resilient I330EAC-ITW-6L embedded appliance comes with rich I/O interfaces, supporting multi-video output, wide-range power input, expansion port, and six GbE LAN ports.
The I330EAC-ITW-6L computer module ensures easy integration with diverse platforms. The computer modules can be easily combined with Winmate’s display modules to provide comprehensive platform solutions for industrial monitor systems and fulfill various demands of diverse applications in port management, offshore, and maritime industries.
| System Specification | |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 M-Key 2280 NVMe SSD, 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | Intel® Ethernet Connection I219-LM, Intel® Ethernet Connection I225-LM |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional) |
| Environment | |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| Certification | |
| Certification | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
| IO Ports | |
| USB Port | 4 x USB 3.0 |
| Serial Port | 2 x RS232/422/485 |
| LAN | 6 x Giga LAN |
| Video | 1 x Display Port (Default), 1 x HDMI Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack |
| Expansion Port | 2 x 2.5" Removable SSD/HDD (Optional) |
| Mechanical | |
| Dimension | 316.44 x 206.8 x 62.1 mm, (With Mounting) |
| Weight | 3.9 kg |
| Mounting | Table mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Power | |
| Power Rating | 24V DC In (Approval by Certificate), 9~36V DC Input Acceptable |
| Consumption | 50W |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 1 x Quick Start Guide , 1 x Power Cord, 1 x Open Wire Cable, 1 x AC Adapter12V/ 120W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | I330EAC-ITW-6L |
| Series | Marine Computer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | I330EAC-ITW-6L |
|---|---|
| Category | Marine Embedded Computers, Marine Grade, Winmate |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 M-Key 2280 NVMe SSD, 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | Intel® Ethernet Connection I219-LM, Intel® Ethernet Connection I225-LM |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional) |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| Certification | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
| USB Port | 4 x USB 3.0 |
| Serial Port | 2 x RS232/422/485 |
| LAN | 6 x Giga LAN |
| Video | 1 x Display Port (Default), 1 x HDMI Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack |
| Expansion Port | 2 x 2.5" Removable SSD/HDD (Optional) |
| Dimension | 316.44 x 206.8 x 62.1 mm, (With Mounting) |
| Weight | 3.9 kg |
| Mounting | Table mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
| Power Rating | 24V DC In (Approval by Certificate), 9~36V DC Input Acceptable |
| Consumption | 50W |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 1 x Quick Start Guide , 1 x Power Cord, 1 x Open Wire Cable, 1 x AC Adapter12V/ 120W |
| Brand | Winmate |
| Manufacturer part number | I330EAC-ITW-6L |
| Series | Marine Computer |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
