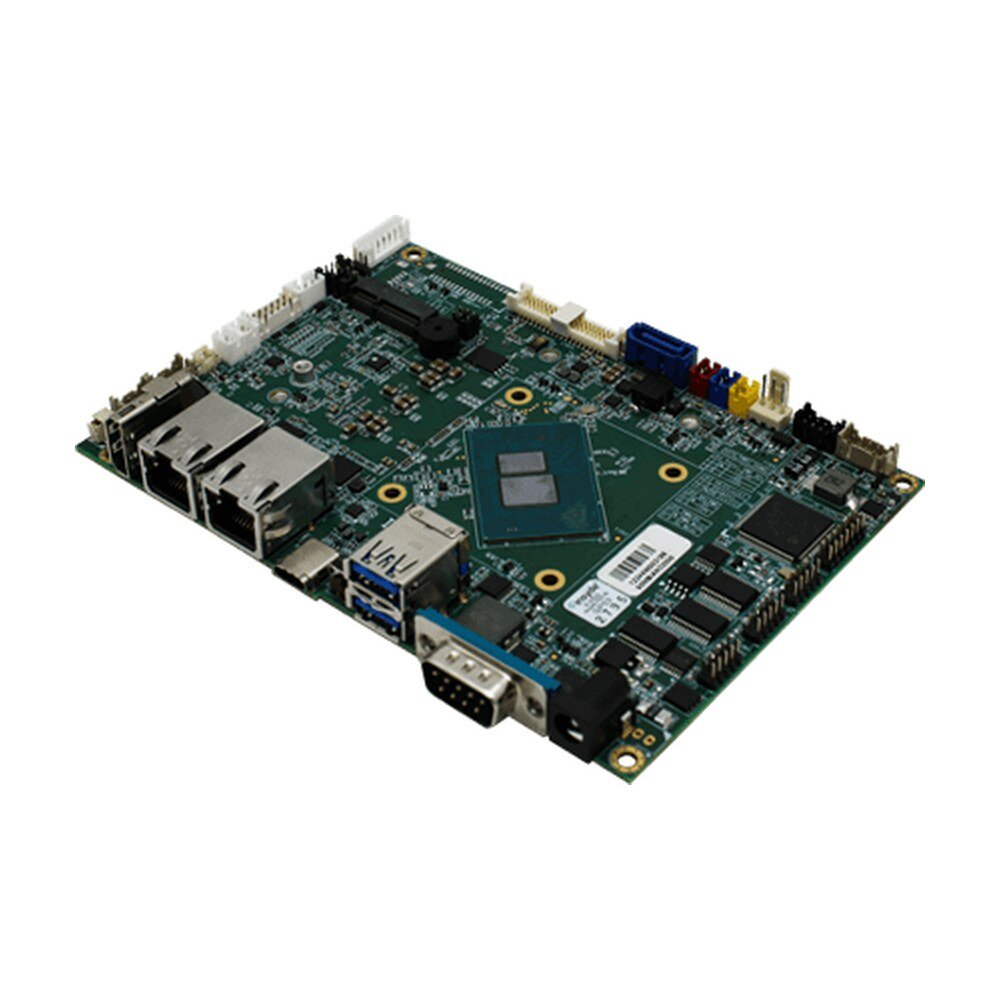

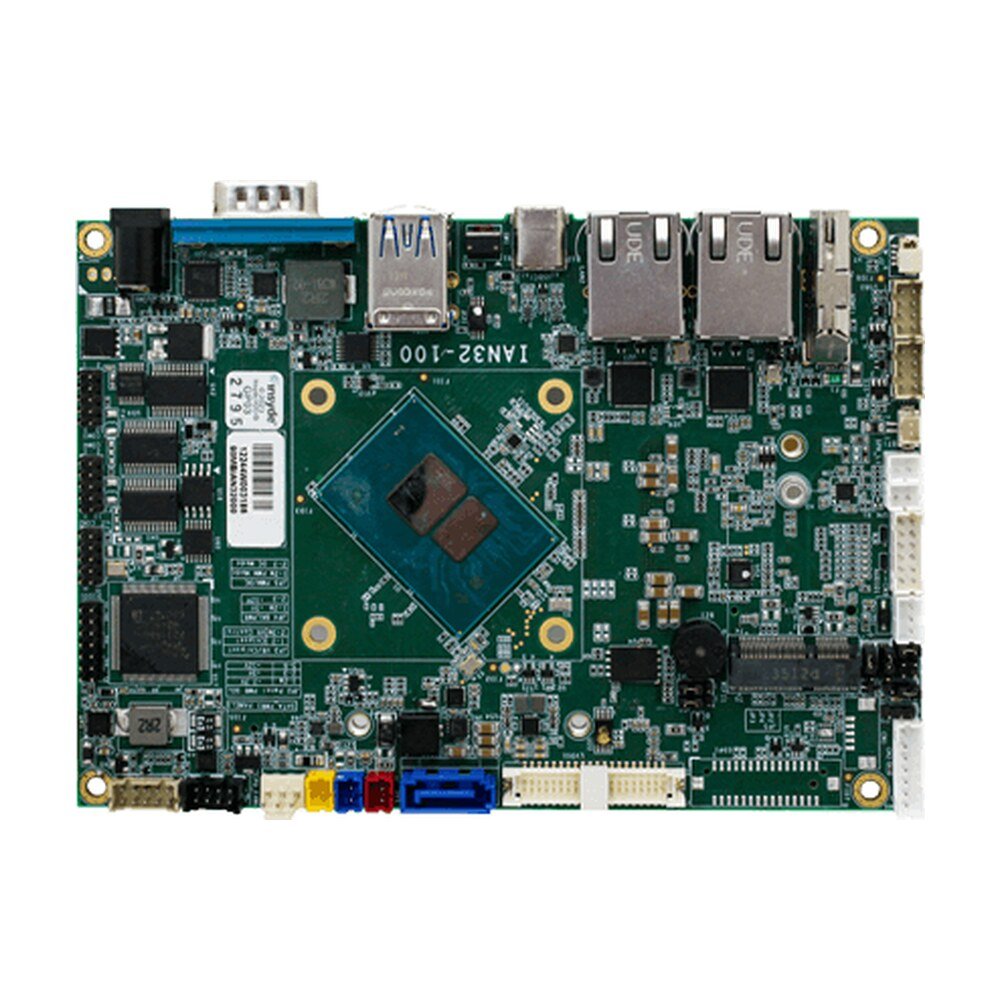

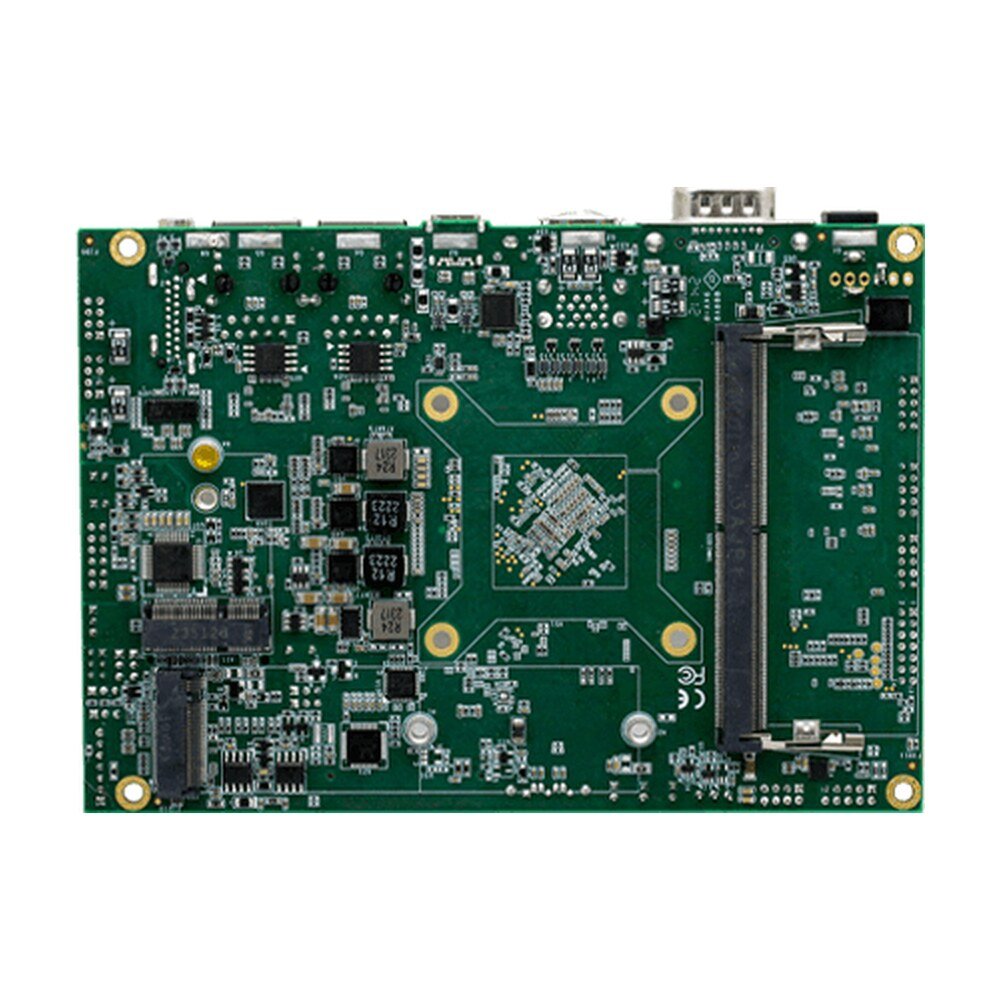

Explore Winmate IAN32, an industrial embedded board featuring Intel® Processor N150, 3.5-inch form factor for OEM equipment design and embedded control.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate IAN32, an industrial embedded board featuring Intel® Processor N150, 3.5-inch form factor for OEM equipment design and embedded control.
The Intel® Processor N100 offers an upgraded computing performance with low power efficiency, making it ideal for embedded applications. Integrated into the IAN32 x86 embedded motherboard, it provides a versatile and reliable platform with a rich set of IoT features for seamless connectivity. Designed for stability and long-term performance, the IAN32 ensures efficient operation in demanding industrial environments.
The IAN32 supports a wide 9-36V power input range, ensuring flexibility across various industrial applications. It also features a 12V single voltage power input, simplifying system integration. Built for harsh conditions, its extended temperature tolerance of -40 to +85°C guarantees stable and reliable performance in the most demanding environments.
Equipped with one SO-DIMM slot supporting DDR5 4800 MHz, this motherboard significantly boosts data processing efficiency. With up to 16GB capacity, it ensures smooth multitasking and enhanced system performance. High bandwidth and low latency make it ideal for real-time computing applications.
The IAN32 features integrated dual 2.5 Gigabit Ethernet ports, providing high-speed, low-latency networking for industrial automation, IoT, and edge computing. Compared to traditional 1G LAN, it offers faster data transmission and improved reliability. Ideal for applications requiring seamless connectivity and real-time communication.
Designed for fast and efficient data access, the IAN32 includes an M.2 Key M slot that supports M.2 2280 NVMe SSDs, ensuring high-performance storage. An optional M.2 2242 SATA III SSD offers flexibility for different storage needs. This configuration is perfect for AI processing, industrial control, and video analysis applications.
| System Specification | |
|---|---|
| Processor | Intel® Processor N150 6M Cache, up to 3.60 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 1 x SATA III for 2.5" SSD/HDD up to 2TB（Only available when NVME SSD is not present） (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |

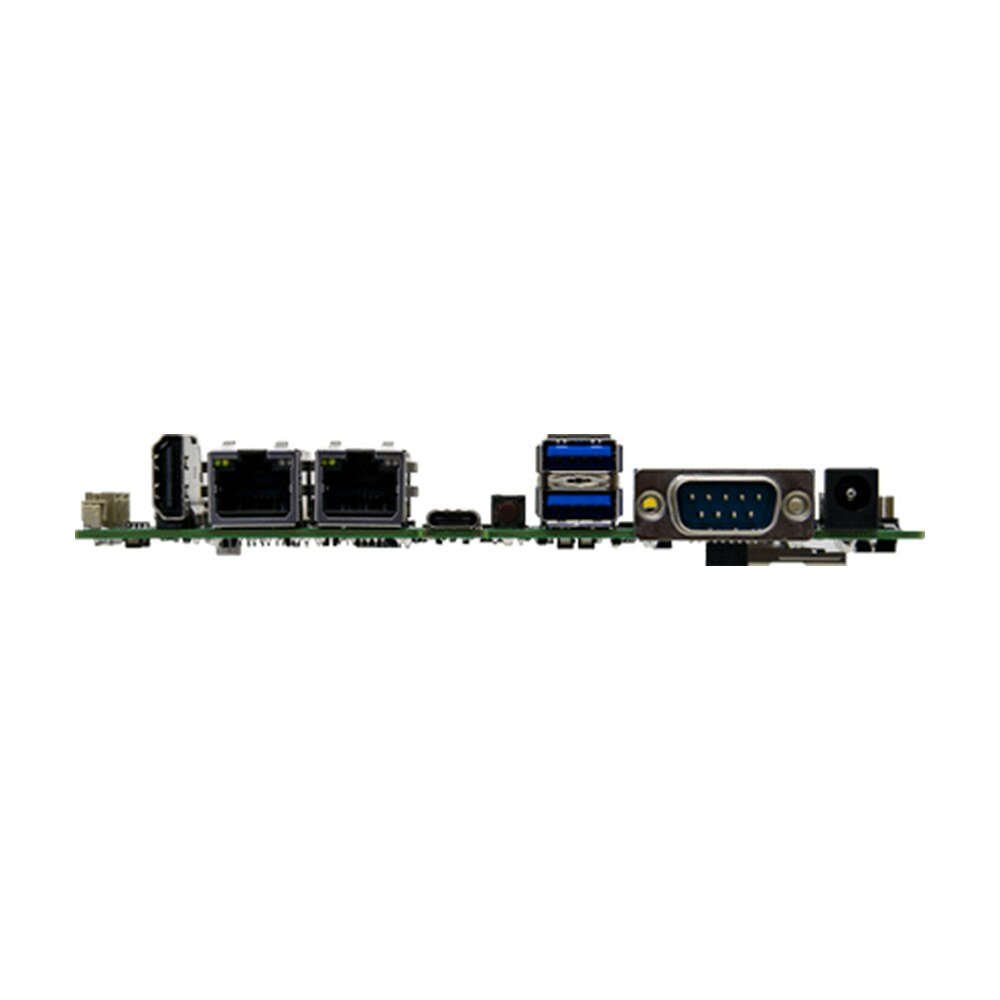

| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A), 1 x USB 3.2 Gen 2x1 Type C connector,support DP Alt. mode |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b, Max resolution up to, 4096x2160@60Hz (Optional) |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x M.2 2230 E-Key Slot (for AI Acceleration Card, Only available when NVME SSD is not present) |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Internal IO Ports | |
| Power input | 1 x 2pin(1x2) for 12V DC in |
| Power output | 1 x 2pin(1x2) blue wafer for 3.3V DC out, 1 x 2pin(1x2) red wafer for 5V DC out , 1 x 2pin(1x2) yellow wafer for 12V DC out |
| USB | 2 x 8pin(2x4) for 4 x USB 2.0 |
| Serial port | 3 x 10pin(2x5) for RS232 |
| Display | 1 x 40pin DF13 connector for LVDS (Default), 1 x 30pin DF13 connector for eDP 1.4a, Max resolution up to 4096x2304@60Hz（1 lane） (Optional) |
| Backlight | 1 x 7pin(1x7) for panel backlight |
| SATA | 1 x SATA III（Only available when NVME SSD is not present）, 1 x 8pin(2x4) for SATA power |
| DIDO | 1 x 14pin(2x7) for Digital input/output |
| VR | 1 x 3pin(1x3) for Digital panel backlight brightness control, 1 x 3pin(1x3) VR/Software brightness switch jumper, 1 x 3pin(1x3) PWM/DC brightness switch jumper, 1 x 3pin(1x3) 3.3V/5V PWM Level switch jumper |
| Fan | 1 x 3pin(1x3) for CPU Fan |
| OSD | 1 x 10pin(2x5) for OSD control |
| Speaker | 2 x 2pin(1x2) for Speaker |
| Backup battery | 1 x 2pin(1x2) for RTC battery |
| Audio | 1 x 12pin(2x6) for Line in/Line out/ Mic in |
| Certification | |
| Certification | CE, FCC |
| Mechanical | |
| Dimension | 146 x 102 mm |
| Environment | |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Accessory | |
| Accessory | 1 x Installation Guide |
| Optional Accessory | 1 x SATA cable (94H007Z070K0) (Optional), 1 x SATA Power cable (94HE08Z150E0) (Optional), 1 x COM cable (94G309E100E1) (Optional), 1 x 2-Port USB 2.0 Type A cable (94E808E080K0) (Optional), 1 x 12V 84W Adapter (922D084W12V1) (Optional), 1 x Power cord (Varies by country) (Optional), 1 x CPU Heatspreader (98K000A000N2) (Optional), 1 x Membrane (98K000A000N1) (Optional), 2 x Speaker (612620000007) (Optional) |
| Power | |
| Power Rating | 12V DC |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IAN32 |
| Series | x86 Embedded Board |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | IAN32 |
|---|---|
| Category | Embedded Board, Embedded Computing, Winmate |
| Processor | Intel® Processor N150 6M Cache, up to 3.60 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A), 1 x USB 3.2 Gen 2x1 Type C connector,support DP Alt. mode |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b, Max resolution up to, 4096x2160@60Hz (Optional) |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x M.2 2230 E-Key Slot (for AI Acceleration Card, Only available when NVME SSD is not present) |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Power output | 1 x 2pin(1x2) blue wafer for 3.3V DC out, 1 x 2pin(1x2) red wafer for 5V DC out , 1 x 2pin(1x2) yellow wafer for 12V DC out |
| USB | 2 x 8pin(2x4) for 4 x USB 2.0 |
| Display | 1 x 40pin DF13 connector for LVDS (Default), 1 x 30pin DF13 connector for eDP 1.4a, Max resolution up to 4096x2304@60Hz (1 lane) (Optional) |
| Backlight | 1 x 7pin(1x7) for panel backlight |
| SATA | 1 x SATA III (Only available when NVME SSD is not present) , 1 x 8pin(2x4) for SATA power |
| DIDO | 1 x 14pin(2x7) for Digital input/output |
| Fan | 1 x 3pin(1x3) for CPU Fan |
| OSD | 1 x 10pin(2x5) for OSD control |
| Speaker | 2 x 2pin(1x2) for Speaker |
| Backup battery | 1 x 2pin(1x2) for RTC battery |
| Audio | 1 x 12pin(2x6) for Line in/Line out/ Mic in |
| Certification | CE, FCC |
| Dimension | 146 x 102 mm |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Accessory | 1 x Installation Guide |
| Power Rating | 12V DC |
| Brand | Winmate |
| Manufacturer part number | IAN32 |
| Series | x86 Embedded Board |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
