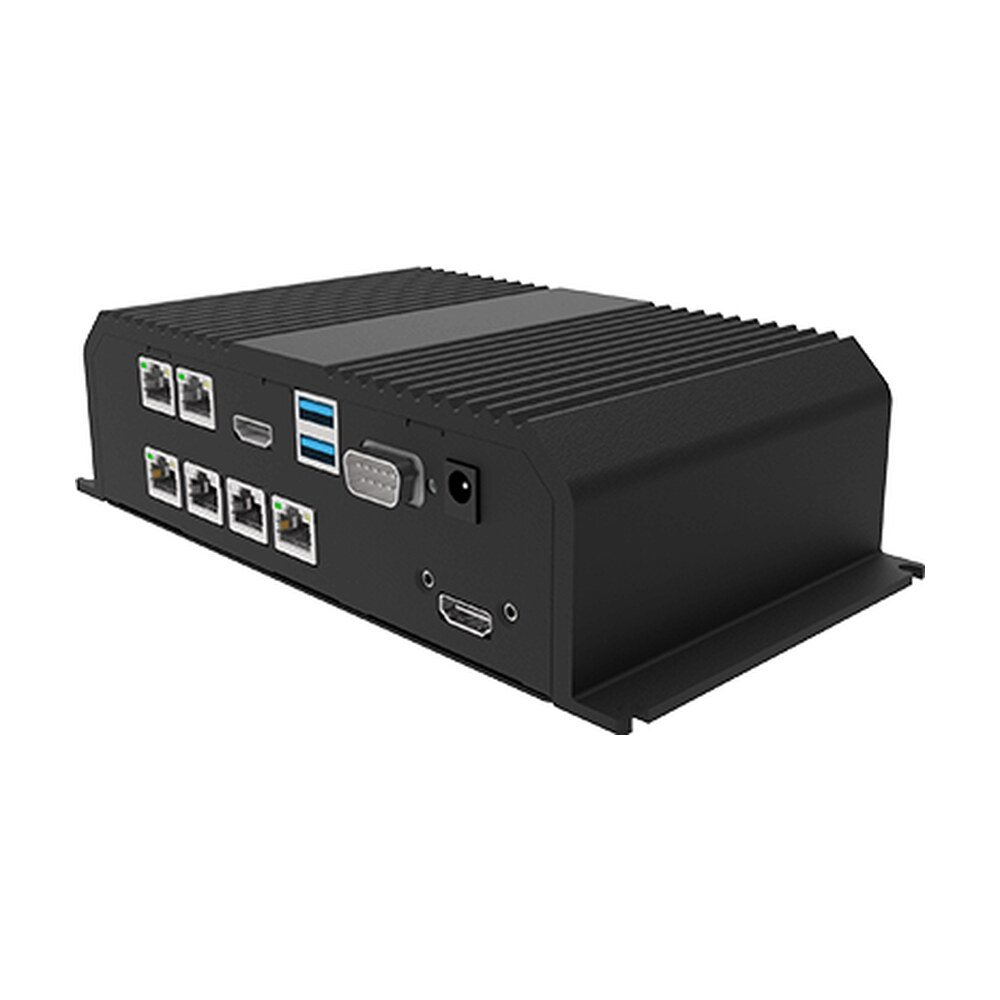

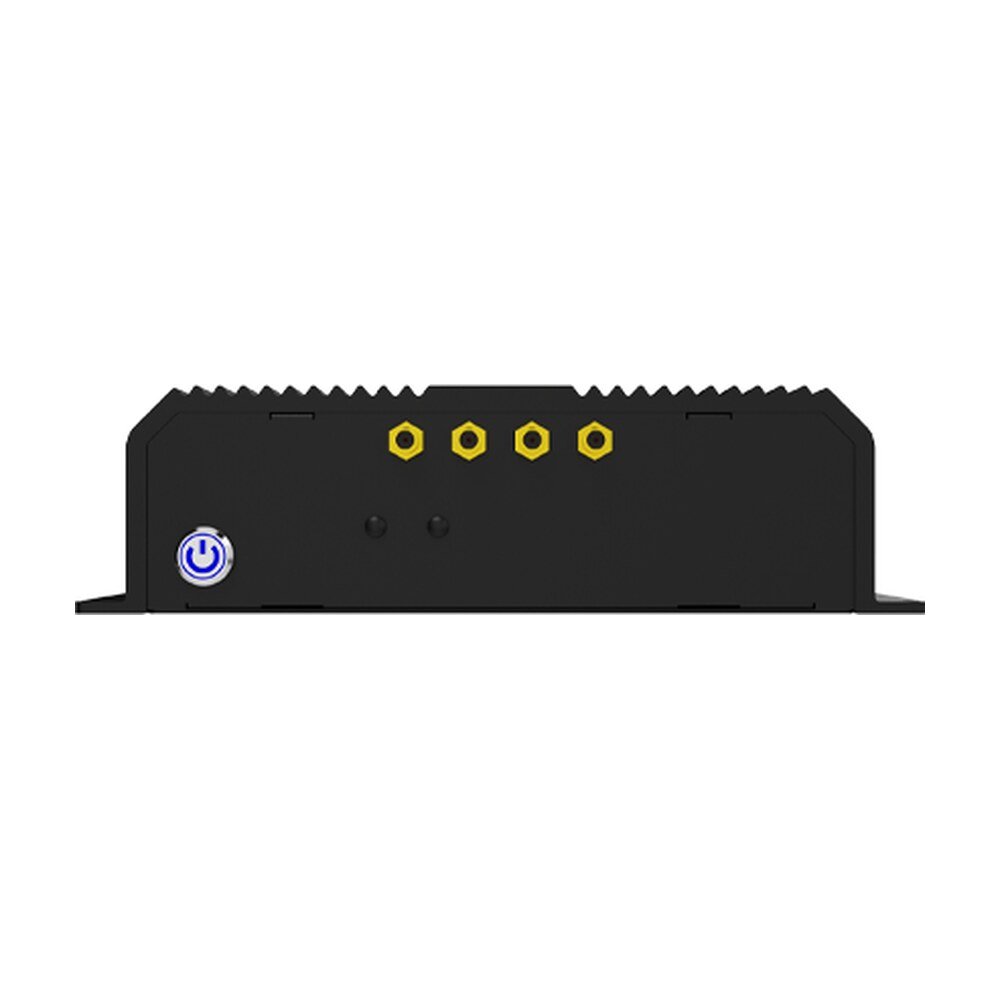

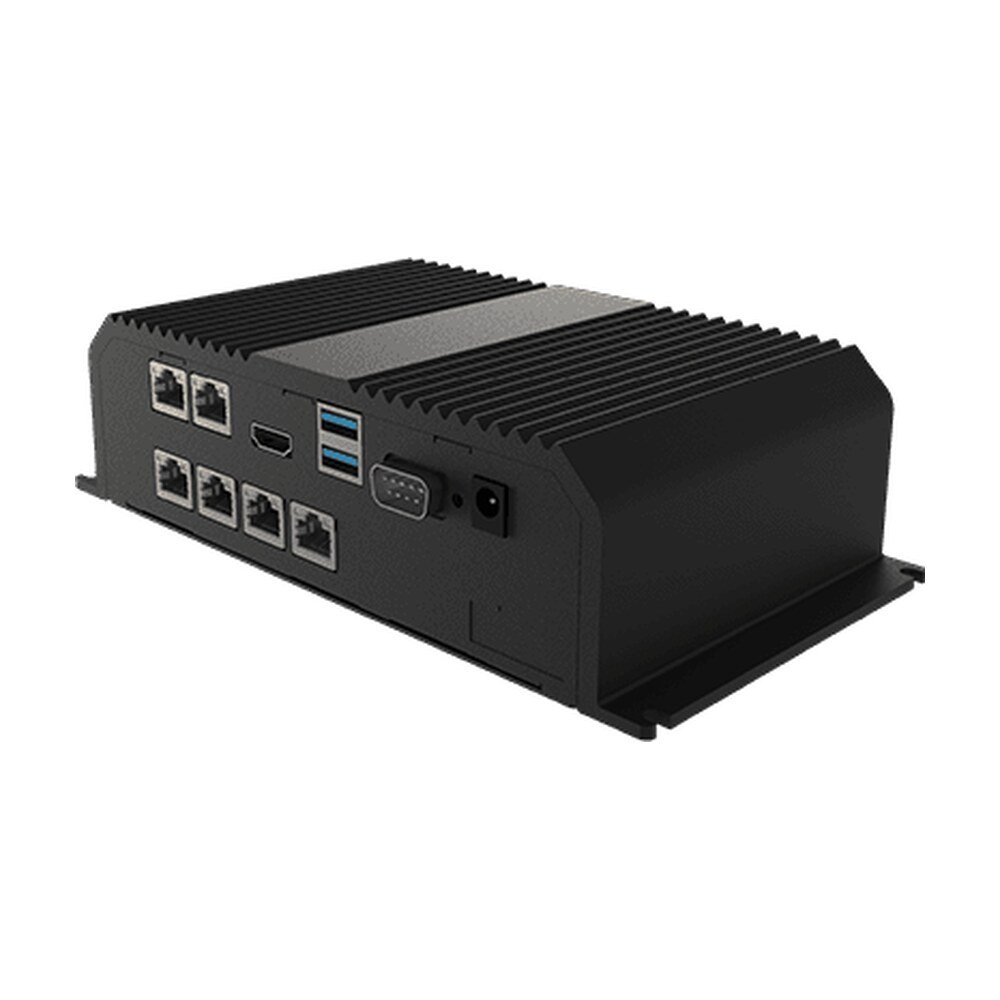

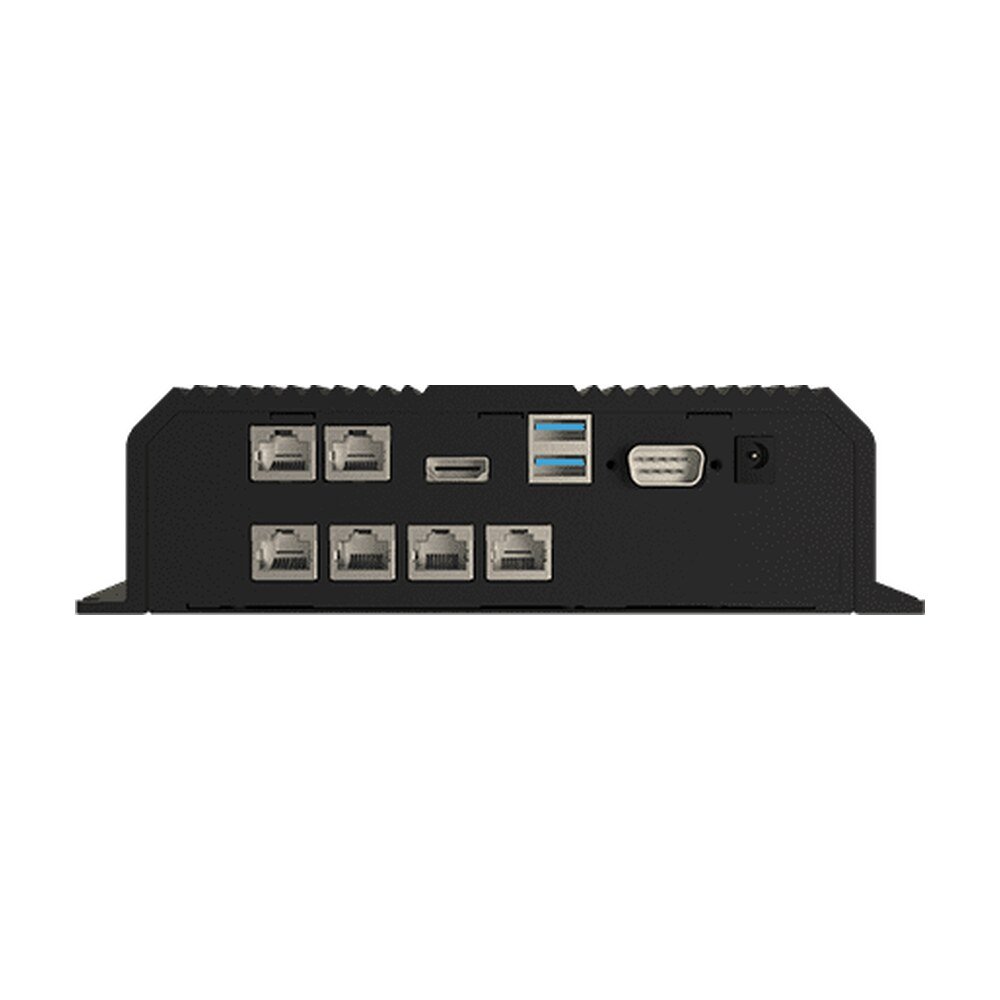

Explore Winmate IE32SB3-101-6L, an industrial embedded computer featuring Intel® Celeron® N6211 for industrial automation and embedded systems.
Powered by an Intel® processor, Winmate industrial compact PC offers stable performance for multi-tasks in rigorous conditions. It supports Windows® IoT Enterprise operating system to fulfill increasing industrial applications requirements. Built to be suitable for factory automation, robotics, smart retail, and various IoT/Industry 4.0 applications.
Winmate industrial compact PC is designed with efficient heat dissipation and is fanless. Effectively prevents the accumulated dust and noise inside the machine caused by fan operation and forgoes vulnerable ventilation openings.
To fulfill the diverse needs of industrial IoT solutions, the resilient industrial compact PC comes with rich I/O interfaces, supporting multi-communication and data transfer. Expand the industrial automation possibilities with six GbE LAN ports.
| System Specification | |
|---|---|
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 205 x 110 x 55 mm |
| Weight | 1.3 kg |
| Mounting | Desk mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector, 4 x Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Expansion Port | 1 x M.2 2242 Key B slot for SSD (Default), 1 x Capture Card for HDMI input or CVBS input (Optional) |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Control | |
| Button | 1 x Power Button |
| Accessory | |
| Accessory | 1 x 100~240V AC to DC Adapter, 1 x Power Cord, 1 x Quick Start Guide, 6 x M4*8 desk mount screws |
| Power | |
| Power Rating | 12V DC |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IE32SB3-101-6L |
| Series | M Series Box PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | IE32SB3-101-6L |
|---|---|
| Category | Box PC / Waterproof Rugged PC IP65, Embedded Computing, Winmate |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 205 x 110 x 55 mm |
| Weight | 1.3 kg |
| Mounting | Desk mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector, 4 x Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Expansion Port | 1 x M.2 2242 Key B slot for SSD (Default), 1 x Capture Card for HDMI input or CVBS input (Optional) |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Button | 1 x Power Button |
| Accessory | 1 x 100~240V AC to DC Adapter, 1 x Power Cord, 1 x Quick Start Guide, 6 x M4*8 desk mount screws |
| Power Rating | 12V DC |
| Brand | Winmate |
| Manufacturer part number | IE32SB3-101-6L |
| Series | M Series Box PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
