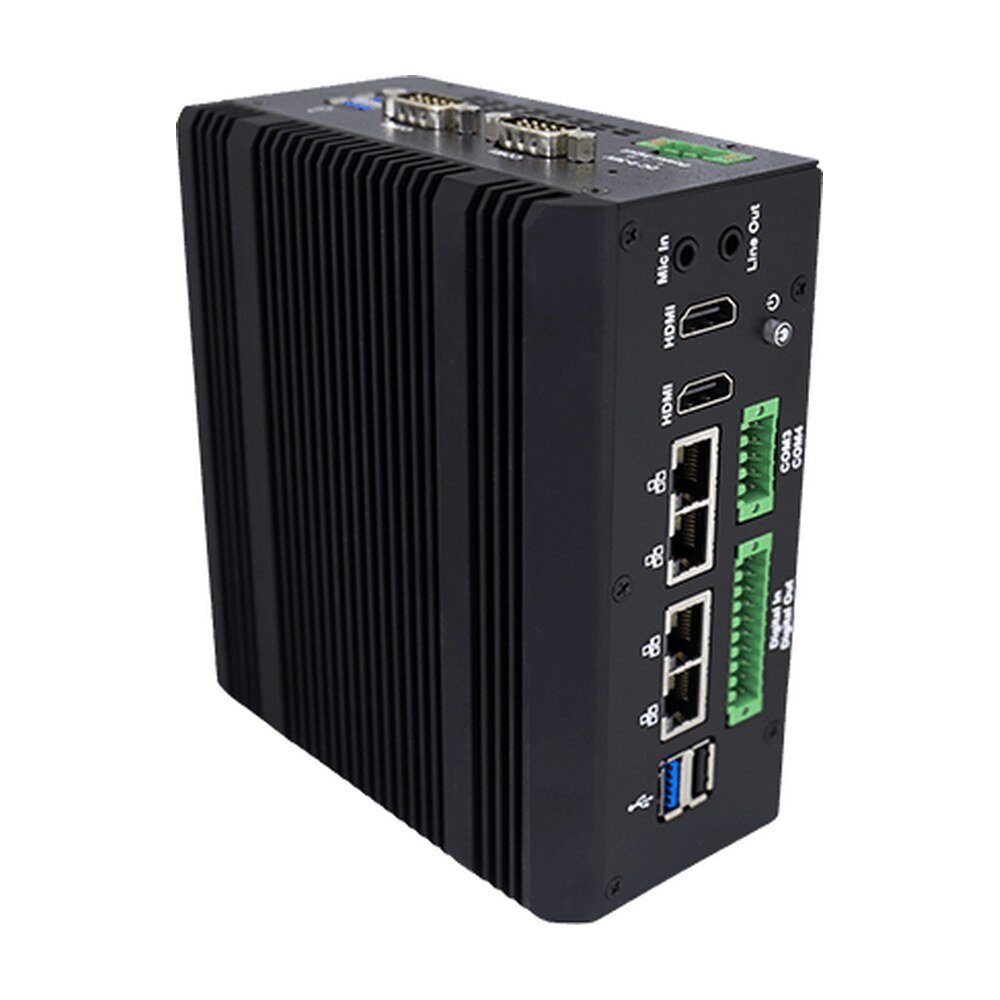

Explore Winmate IRDRW500, an edge AI computer featuring Intel® Core™ i5-1335U for machine vision and edge AI inference.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate IRDRW500, an edge AI computer featuring Intel® Core™ i5-1335U for machine vision and edge AI inference.
Experience the future of edge AI computing with Winmate's DIN-Rail Box PC, the first of its kind to integrate the Hailo-8™ AI Module. Tailored for machine learning, image recognition, and predictive maintenance applications, this DIN-Rail Box PC ensures real-time AI processing for smart factories, autonomous systems, and IIoT infrastructures.
Powered by Intel’s processors, the Winmate DIN-Rail Box PC brings high-performance edge computing to industrial automation environments. This DIN-Rail Box PC enables rapid data processing and analysis, perfect for machine vision, and industrial IoT (IIoT) applications. With seamless connectivity and low latency, it’s the ideal platform for real-time decision-making at the edge.
Winmate Box PC is designed to perform reliably in demanding industrial settings, operating effortlessly in extreme temperatures from -20°C to 60°C. With a 9-36 VDC power input, it ensures stable performance even under fluctuating power conditions. Equipped with an RTC (Real-Time Clock) battery, it maintains accurate timekeeping during power outages, supporting precise event logging and seamless system restarts. These features make it the perfect fit for edge computing, industrial automation, and IIoT application.
Designed for industrial versatility, this DIN-Rail Box PC supports multiple expansion options, including three M.2 slots for WLAN, 5G, and SSD integration. Whether integrating into edge computing networks, IIoT ecosystems, or robotics control systems, the DIN-rail mount design ensures effortless installation, providing scalability for growing industrial operations.
| System Specification | |
|---|---|
| Processor | Intel® Core™ i5-1335U 3.3GHz(up to 4.40 GHz) |
| Memory | 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional), Raid 0,1 support (Optional) |
| Ethernet controller | 4 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| WWAN | Support (Optional) |
| Expansion Port | 1 x M.2 2230 E-key Slot (for WiFi or Hailo8 AI Accelerator), 1 x M.2 3042/3052 B-key Slot (for 4G/5G) |
| AI Accelerator | Hailo 8™ AI accelerator module, up to 26 TOPS(When using this feature, WLAN will not be supported) (Optional) |
| Mechanical | |
| Dimension | 130 x 68 x 150 mm |
| Weight | 2.7 kg |
| Mounting | Din-Rail mount (Default), Mini Din-Rail Mount (Optional), Wall Mount (Optional) |
| Enclosure | Aluminum and Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I (Optional) |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (10Gbps, Type A), 1 x USB3.2 Gen1x1 (5Gbps,Type A), 1 x USB2.0 (Type A) |

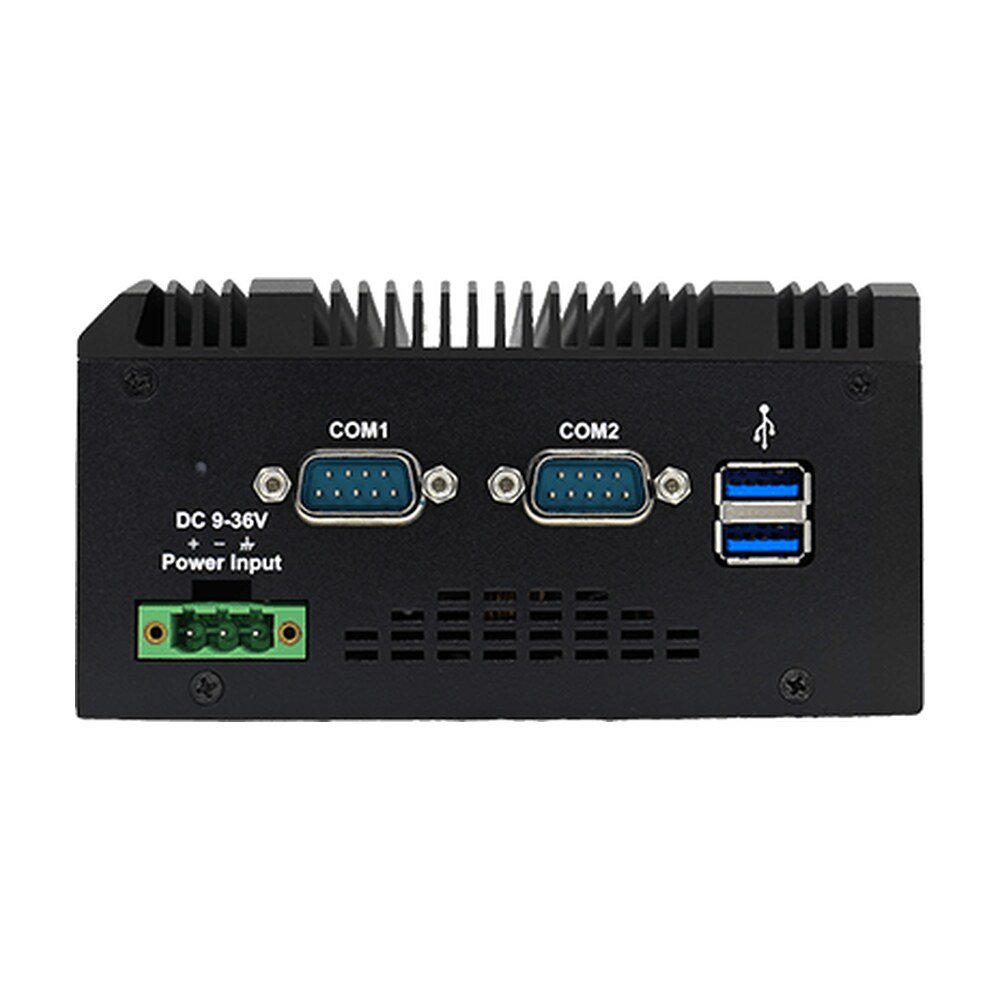

| Serial Port | 2 x Isolated RS-232/422/485 (1 x 10 Pin terminal block, select thru jumper) (Default RS232) , 2 x Isolated RS-232/422/485 (2 x DB9, select thru BIOS) (Default RS232) |

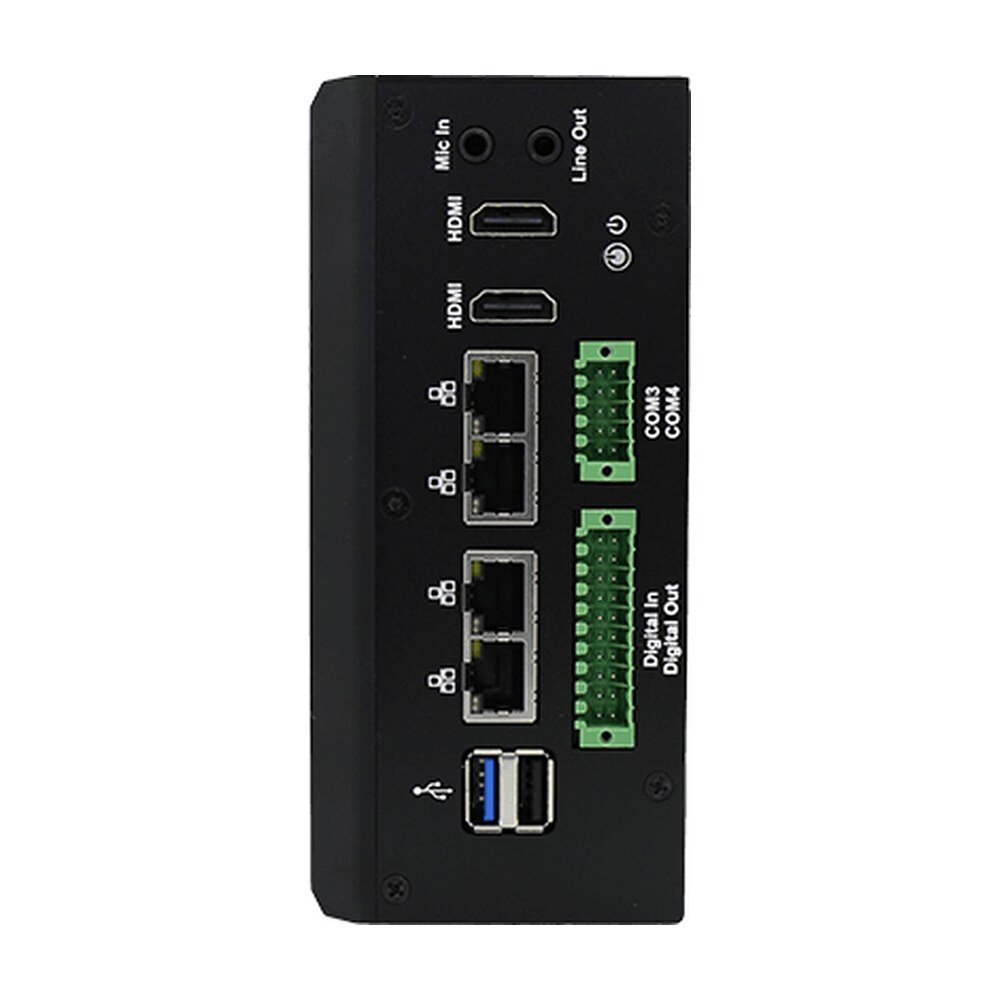

| LAN | 4 x 2.5 Giga LAN RJ45 Connector |
| Video | 2 x HDMI 2.0b , Max resolution up to 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| SIM Card Slot | 1 x nano SIM Card slot (Optional) |
| Expansion Port | 1 x M.2 2230 E-key Slot (for WiFi or Hailo8 AI Accelerator), 1 x M.2 2280 M-key Slot (for NVMe SSD), 1 x M.2 3042/3052 B-key Slot (for 4G/5G) |
| Indicator | 1 x LED Indicator for power |
| DIDO | 1 x Isolated 8in/8out DIO with 20-Pin, Terminal block ：, 8 x Digital input channels with 2500 VDC isolation protection, - Wet contact:, Logic 0: 10 ~ 30 VDC/ Logic 1: 0 ~ 3 VDC, - Dry contact:, Logic 0: Shorted to GND/ Logic 1: Open, 8 x Digital output channels, - Output voltage: 5 ~ 30 VDC, - Output capability sink: 500 mA ax./channel |
| Power Input | 1 x Isolated 9~36V DC with 3-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button with LED Indicator |
| Accessory | |
| Accessory | 1 x Terminal Block 20-pin connector for DIDO, 1 x Terminal Block 3-pin connector for Power, 1 x Terminal Block 10-pin connector for COM, 1 x Open Wire Cable, 1 x Terminal Block 3-pin to 2.5Ø Female Adapter Cable, 1 x Din Rail Mount kits |
| Optional Accessory | 1 x 100~240V AC to DC Adapter(12V, 120W), 1 x Power Cord, 1 x Mini Din Rail Mount kits, 1 x Wall Mount kits |
| Power | |
| Power Rating | 9V to 36V DC |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | IRDRW500 |
| Series | DIN Rail Box PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | IRDRW500 |
|---|---|
| Category | Box PC / Waterproof Rugged PC IP65, Embedded Computing, Winmate |
| Processor | Intel® Core™ i5-1335U 3.3GHz(up to 4.40 GHz) |
| Memory | 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional), Raid 0,1 support (Optional) |
| Ethernet controller | 4 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| WWAN | Support (Optional) |
| Expansion Port | 1 x M.2 2230 E-key Slot (for WiFi or Hailo8 AI Accelerator), 1 x M.2 3042/3052 B-key Slot (for 4G/5G) |
| AI Accelerator | Hailo 8™ AI accelerator module, up to 26 TOPS(When using this feature, WLAN will not be supported) (Optional) |
| Dimension | 130 x 68 x 150 mm |
| Weight | 2.7 kg |
| Mounting | Din-Rail mount (Default), Mini Din-Rail Mount (Optional), Wall Mount (Optional) |
| Enclosure | Aluminum and Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I (Optional) |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen2x1 (10Gbps, Type A), 1 x USB3.2 Gen1x1 (5Gbps,Type A), 1 x USB2.0 (Type A) |
| LAN | 4 x 2.5 Giga LAN RJ45 Connector |
| Video | 2 x HDMI 2.0b , Max resolution up to 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| SIM Card Slot | 1 x nano SIM Card slot (Optional) |
| Indicator | 1 x LED Indicator for power |
| Power Input | 1 x Isolated 9~36V DC with 3-Pin Terminal Block |
| Button | 1 x Power Button with LED Indicator |
| Optional Accessory | 1 x 100~240V AC to DC Adapter(12V, 120W), 1 x Power Cord, 1 x Mini Din Rail Mount kits, 1 x Wall Mount kits |
| Power Rating | 9V to 36V DC |
| Brand | Winmate |
| Manufacturer part number | IRDRW500 |
| Series | DIN Rail Box PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
