Explore Winmate ITMH100-6L, an industrial embedded computer featuring Intel® Core™ i5-1135G7 for industrial automation and embedded systems.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate ITMH100-6L, an industrial embedded computer featuring Intel® Core™ i5-1135G7 for industrial automation and embedded systems.

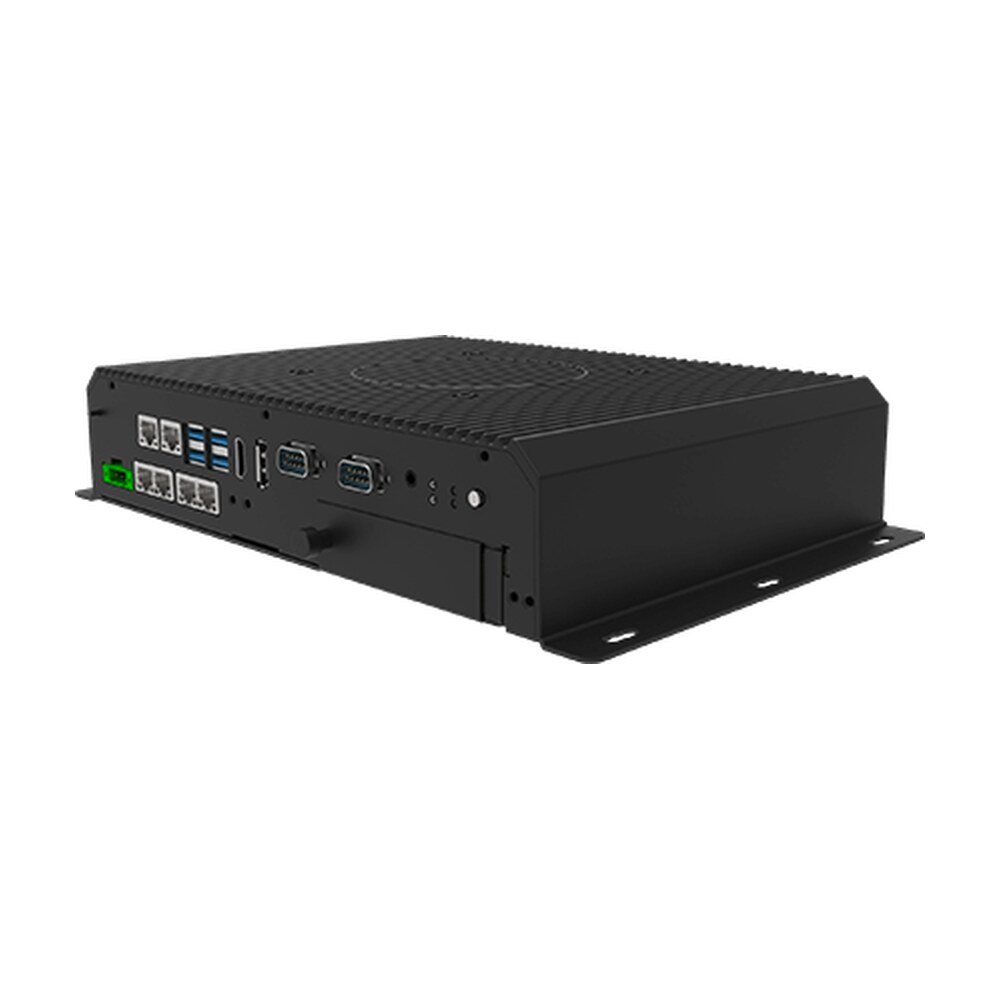

ITMH100-6L industrial box PC is designed with efficient heat dissipation and is fanless. Effectively prevents the accumulated dust and noise inside the machine caused by fan operation and forgoes vulnerable ventilation openings.

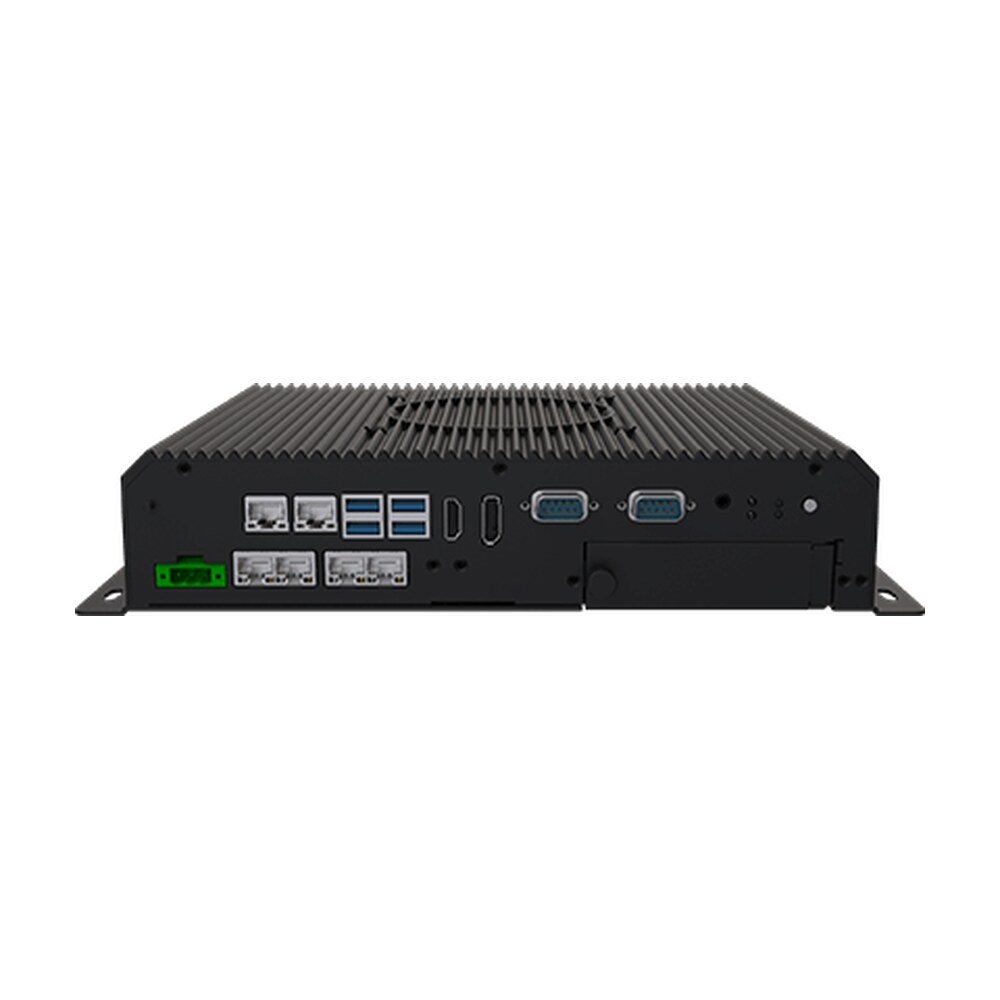

To fulfill the diverse needs of industrial IoT solutions, the resilient ITMH100-6L box PC comes with rich I/O interfaces, supporting multi-video output, wide-range power input, expansion modules, and six GbE LAN ports.
The ITMH100-6L support modular design to ensure easy integration with diverse platforms. The embedded industrial PC modules can be easily combined with Winmate’s display modules to provide comprehensive platform solutions for industrial monitor systems and fulfill various demands of diverse applications in liquefied natural gas, mining, renewable energy, and various other industries.
| System Specification | |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 2x, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 NVMe SSD, 128GB up to 512GB (Default), 2 x 2.5" Removable 256GB SSD up to 512GB (Optional) |
| Ethernet controller | Intel® Ethernet Controller I211-AT +, Intel® Ethernet Connection I219-LM |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | Modular Design for easy service in the field |
| Mechanical | |
| Dimension | 276 x 207 x 60 mm |
| Weight | 3.2 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB 3.2 Gen.1 (Type-A) |
| Serial Port | 2 x RS232/422/485 (Default RS232) |
| LAN | 6 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Combo Connector (Mic in / Line Out) |
| Expansion Port | 1 x mPCIe slot, 1 x PCIe x16 slot (x4 signal)(module max size:180x121mm), 1 x M.2 2230 Key E slot for WiFi , 1 x M.2 2280 Key M slot for NVMe SSD, 1 x Capture Card for HDMI input or CVBS input, Swappable 2.5” HDD/SSD Bay Slot |
| Indicator | 1 x LED Indicator for storage |
| Power Input | 1 x 9~29V DC, 3-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button with LED Indicator, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Open Wire Cable with terminal block connector, VESA screws |
| Power | |
| Power Rating | 9V~29V DC with protection fuse |
| Adapter | 12V 84W |
| Consumption | 45W~55W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | ITMH100-6L |
| Series | M Series Box PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | ITMH100-6L |
|---|---|
| Category | Box PC / Waterproof Rugged PC IP65, Embedded Computing, Winmate |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 2x, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 NVMe SSD, 128GB up to 512GB (Default), 2 x 2.5" Removable 256GB SSD up to 512GB (Optional) |
| Ethernet controller | Intel® Ethernet Controller I211-AT +, Intel® Ethernet Connection I219-LM |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | Modular Design for easy service in the field |
| Dimension | 276 x 207 x 60 mm |
| Weight | 3.2 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 4 x USB 3.2 Gen.1 (Type-A) |
| Serial Port | 2 x RS232/422/485 (Default RS232) |
| LAN | 6 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Combo Connector (Mic in / Line Out) |
| Indicator | 1 x LED Indicator for storage |
| Power Input | 1 x 9~29V DC, 3-Pin Terminal Block |
| Button | 1 x Power Button with LED Indicator, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Open Wire Cable with terminal block connector, VESA screws |
| Power Rating | 9V~29V DC with protection fuse |
| Adapter | 12V 84W |
| Consumption | 45W~55W |
| Brand | Winmate |
| Manufacturer part number | ITMH100-6L |
| Series | M Series Box PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
