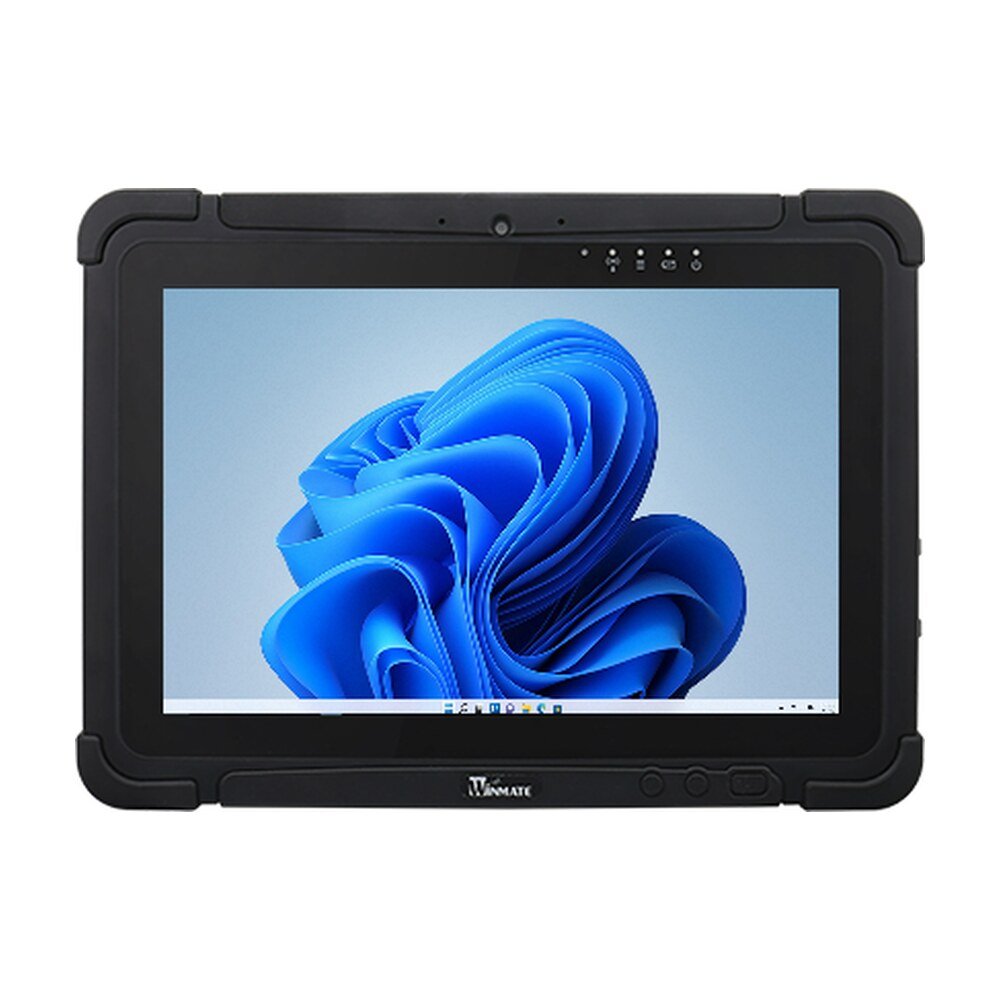

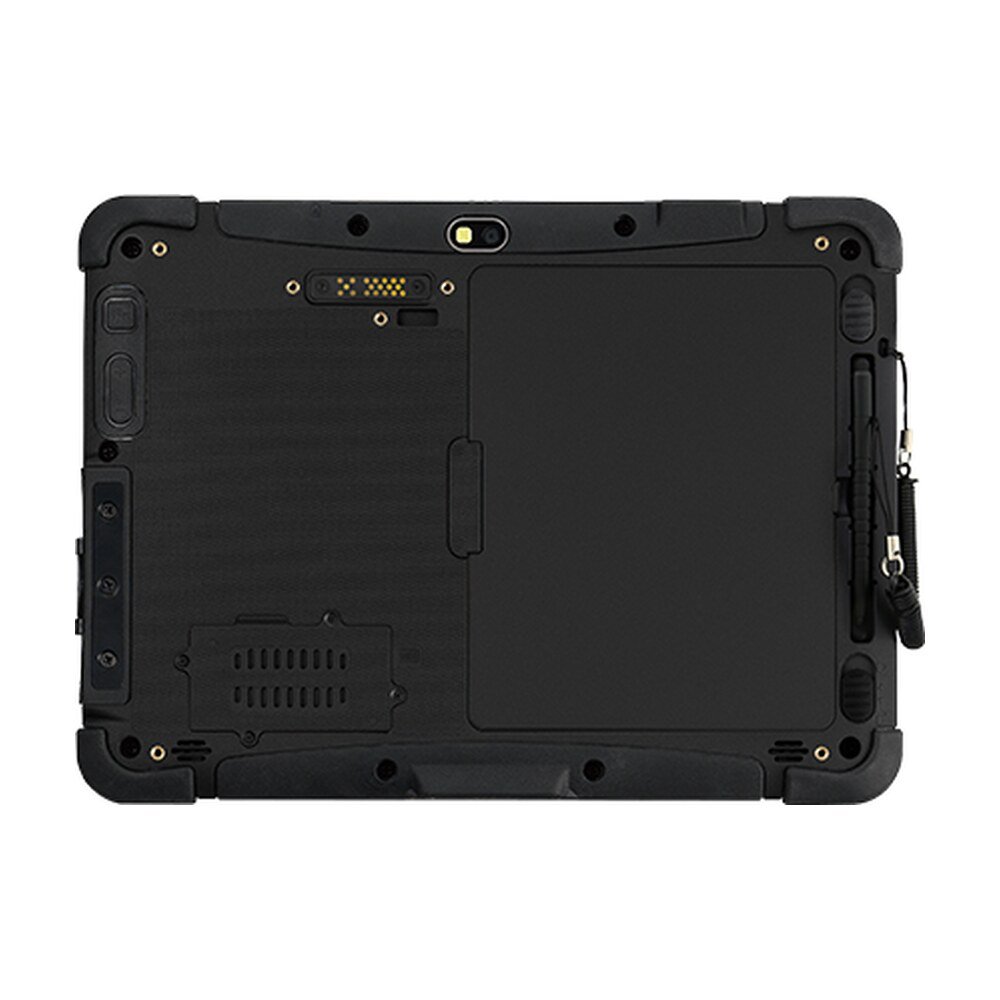

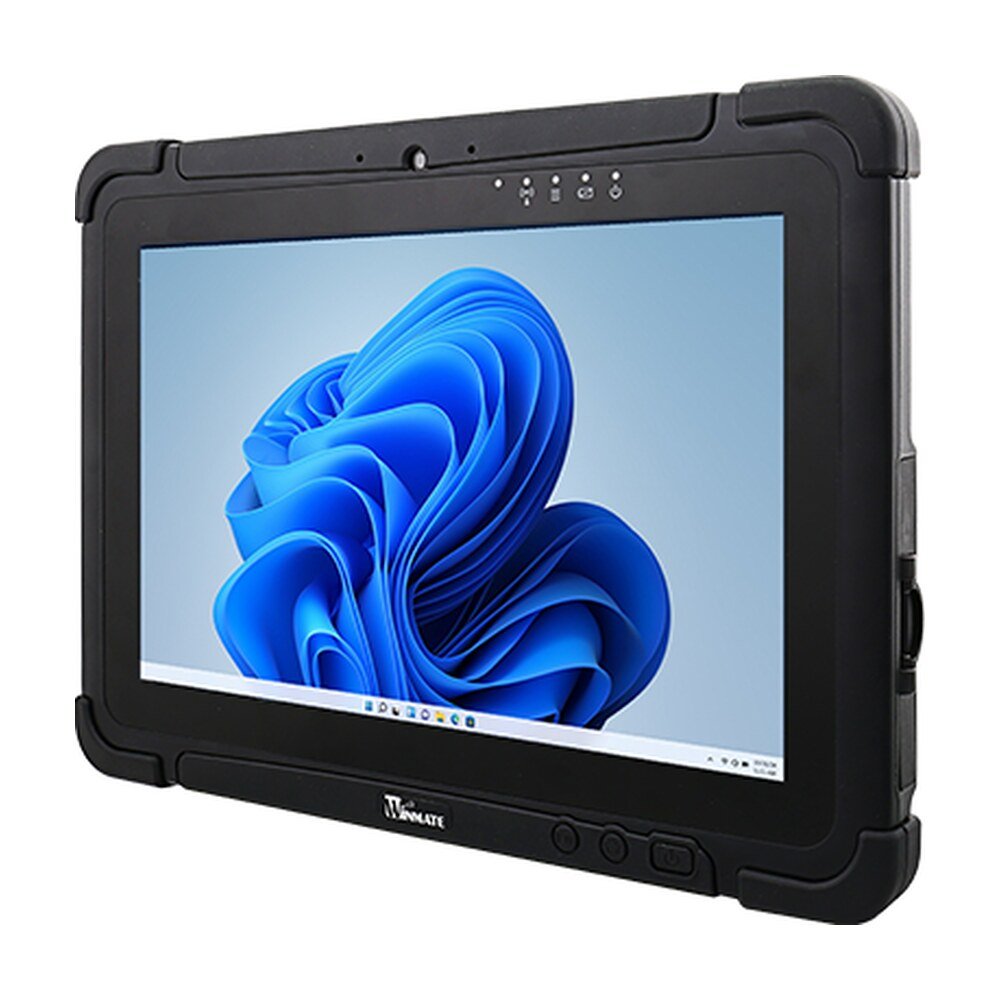

Explore Winmate M101AN, a rugged tablet PC featuring Intel® Processor N150, 10.1-inch display with 1920x1200 resolution, IP65…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate M101AN, a rugged tablet PC featuring Intel® Processor N150, 10.1-inch display with 1920x1200 resolution, IP65…
Equipped with the latest Intel® N150 Processor, the M101AN delivers snappy performance for multitasking, demanding enterprise applications, and real-time data entry while maintaining impressive battery longevity.
The M101AN lightweight tablet offers the latest wired and wireless connection options for faster and improved reliability in dense deployments. Bring a level-up communication with no delay.
M101AN rugged tablet is designed sleek, lightweight, IP65 waterproof sealed, and passed the Defence-standard protection to survive all challenging environmental conditions. M101AN is designed genuinely for mobile workers and keepers who always worry about accidental damage.
M101AN has 10.1 inches screen supported with the stylus, glove, and wet-touch modes, also integrated with an IPS 800-nits screen for clear visibility and operation comfort whatever the weather and locations are.
| Display | |
|---|---|
| Size | 10.1 inches |
| Resolution | 1920x1200 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| System Specification | |
| Processor | Intel N150 (up to 3.6 GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD, Additional storage available with micro SDXC card slot (Default), 256GB SSD (Optional), 512GB SSD (Optional) |
| Smart Card Reader | Add-on Smart Card Reader (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional), 5G (Optional) |
| GNSS | GPS, GLONASS |
| RFID | HF RFID 13.56 MHz reader (Optional), add-on UHF RFID Reader (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
| Camera | |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
| Mechanical | |
| Dimension | 271.9 x 197.3 x 19.5 mm |
| Weight | 1.2 kg (2.65 lbs) with standard battery,, 1.4 kg (3.1 lbs) with optional high capacity battery |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In) |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out), Dual Digital Mic With Noise Cancellation, Dual Speaker |
| SD Card Slot | 1 x Micro SD Card slot (Support SDXC) |
| SIM Card Slot | 1 x SIM card slot |
| Expansion Port | 1 x Expansion connector (Optional) |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.6 Procedure I |
| Vibration | MIL-STD-810H Method 514.6 Procedure I |
| Drop | MIL-STD-810H Method 516.6, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Power, 1 x Home, 2 x Volume,, 2 x Programmable Function Keys |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
| Accessory | |
| Accessory | Adapter and Power Cord , Capacitive Stylus, Standard Battery |
| Optional Accessory | Desk Dock (Optional), Vehicle Dock (without VGA output) (Optional), Vehicle Cradle (Optional), Battery Charger (Optional), Smart Card Reader (Optional), High Capacity Battery (Optional), Hand Strap (Optional), VESA Mount Kit (Optional), Shoulder Strap (Optional), Carry Bag (Optional), Vehicle Charger (Optional) |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Power | |
| Battery | Hot-swappable 7.7V, typ. 5900 mAh Li-Polymer Battery (2S1P) (Default), 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional) |
| Battery Operating Time | Standard. Battery: 9 hours, High Capacity Battery: 16 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M101AN |
| Series | M101 Series Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | M101AN |
|---|---|
| Category | Enterprise Mobility, Windows Rugged Tablets, Winmate |
| Size | 10.1 inches |
| Resolution | 1920x1200 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Processor | Intel N150 (up to 3.6 GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD, Additional storage available with micro SDXC card slot (Default), 256GB SSD (Optional), 512GB SSD (Optional) |
| Smart Card Reader | Add-on Smart Card Reader (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional), 5G (Optional) |
| GNSS | GPS, GLONASS |
| RFID | HF RFID 13.56 MHz reader (Optional), add-on UHF RFID Reader (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
| Dimension | 271.9 x 197.3 x 19.5 mm |
| Weight | 1.2 kg (2.65 lbs) with standard battery,, 1.4 kg (3.1 lbs) with optional high capacity battery |
| Cooling System | Fanless Design |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In) |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out), Dual Digital Mic With Noise Cancellation, Dual Speaker |
| SD Card Slot | 1 x Micro SD Card slot (Support SDXC) |
| SIM Card Slot | 1 x SIM card slot |
| Expansion Port | 1 x Expansion connector (Optional) |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.6 Procedure I |
| Vibration | MIL-STD-810H Method 514.6 Procedure I |
| Drop | MIL-STD-810H Method 516.6, 4 ft |
| IP rating | IP65 |
| Certification | CE, FCC |
| Button | 1 x Power, 1 x Home, 2 x Volume,, 2 x Programmable Function Keys |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
| Accessory | Adapter and Power Cord , Capacitive Stylus, Standard Battery |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Battery | Hot-swappable 7.7V, typ. 5900 mAh Li-Polymer Battery (2S1P) (Default), 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional) |
| Battery Operating Time | Standard. Battery: 9 hours, High Capacity Battery: 16 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Brand | Winmate |
| Manufacturer part number | M101AN |
| Series | M101 Series Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
