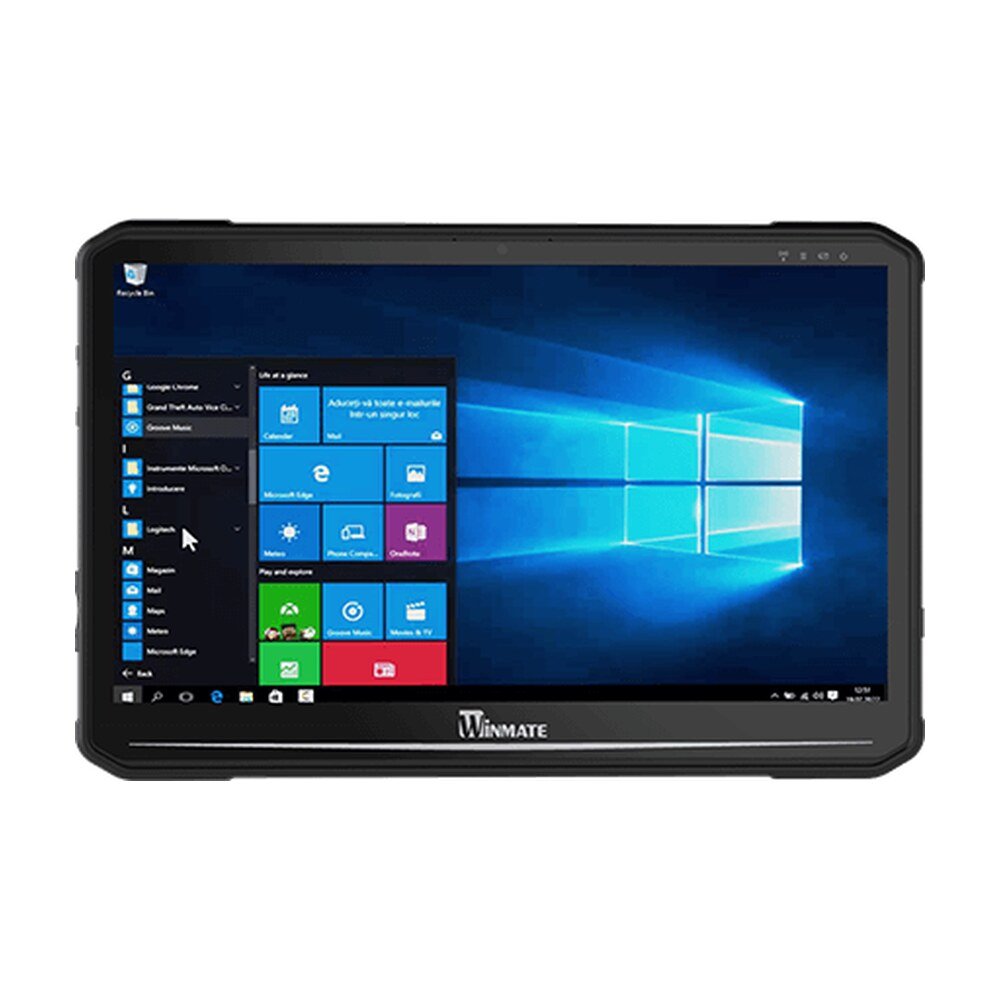

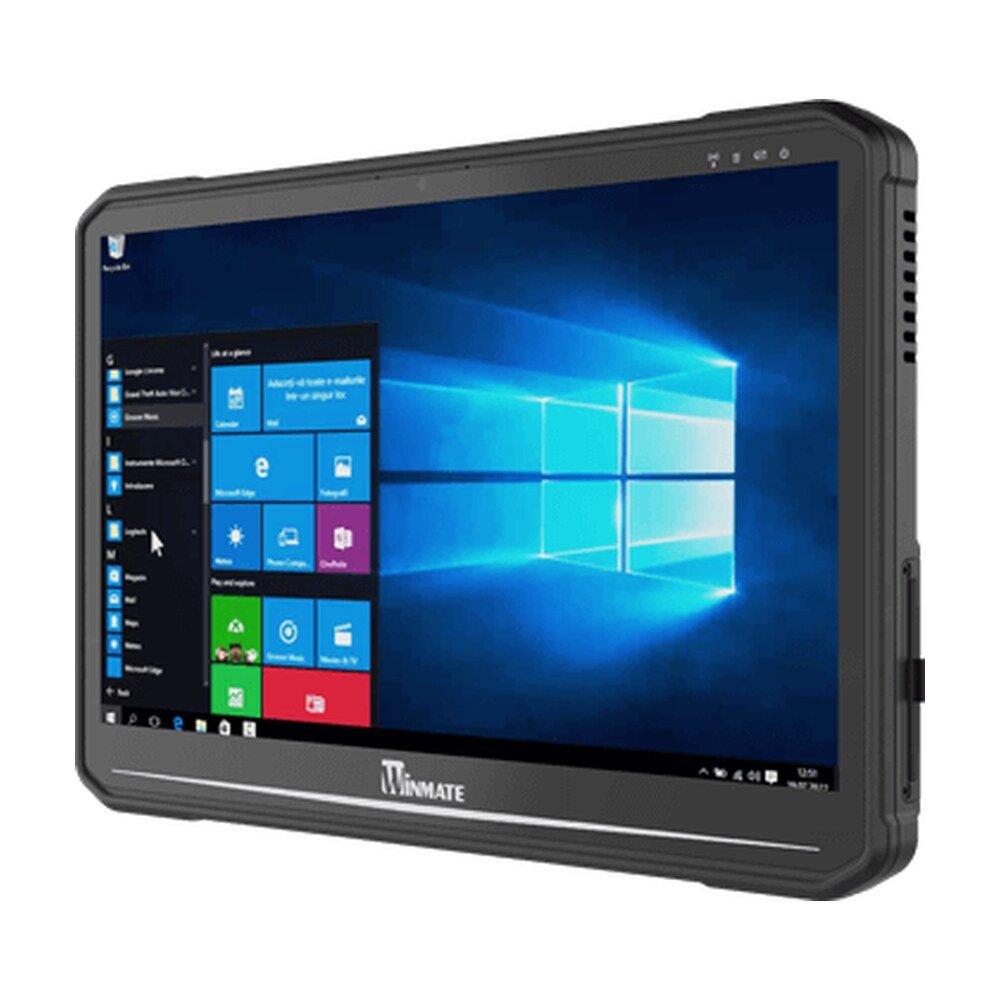

Explore Winmate M140TG, a rugged tablet PC featuring Intel® Core™ i5-1135G7, 14-inch display with 1920x1080 resolution, IP65…
M140TG features a bigger screen with optical bonding technology and an anti glare coating, making the display readable even under sunlight. It supports rain and glove touch capability, offering visibility and productivity in hostile environments and situations.
The M140TG industrial mobile PC can operate in temperatures ranging from -20 to 60 degrees Celsius (when charging) or -10 to 50 degrees Celsius (on battery). It offers the flexibility of use for a wide range of industrial sectors.
In a world where industrial mobile pc needs to work 24/7/365, power-up continuity is essential. The M140TG has an internal battery that ensures a hot swap capability to support the never power-down industrial mobile PC, making it ideal when the device is pooled between workers or required across multiple work shifts.

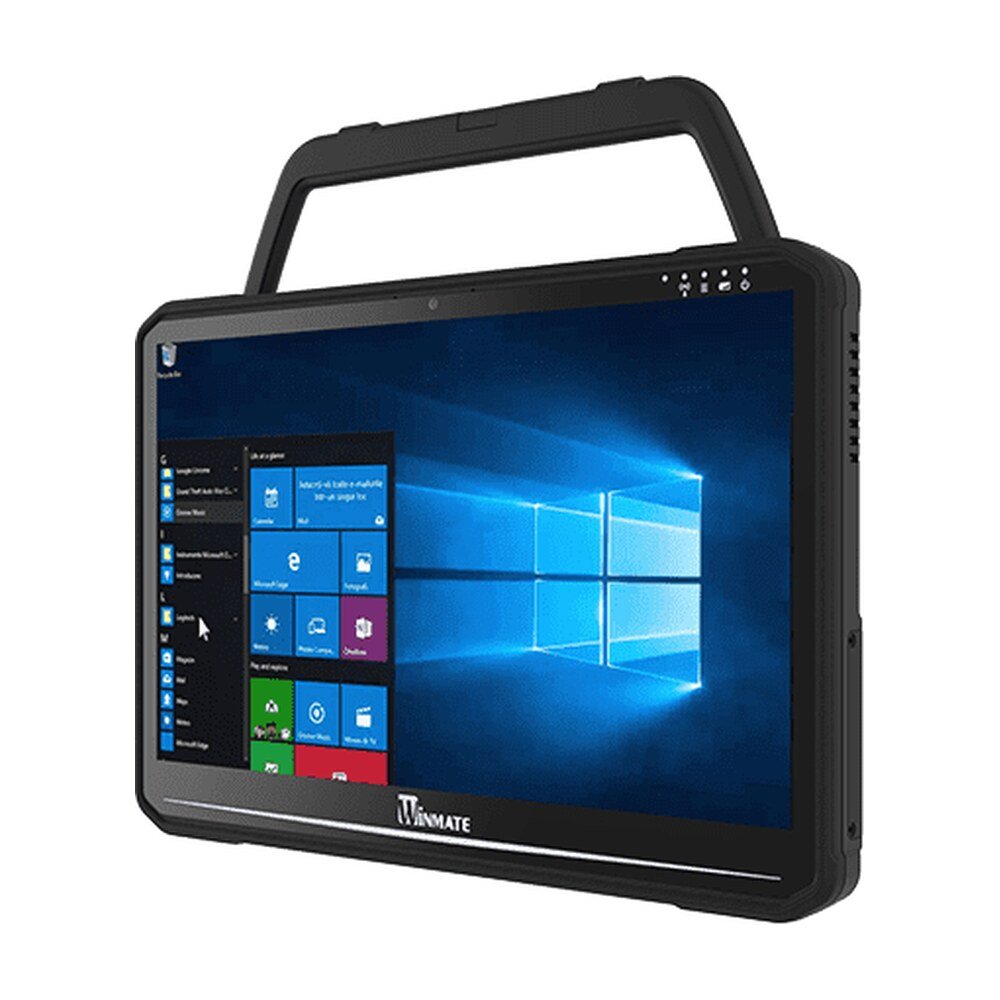

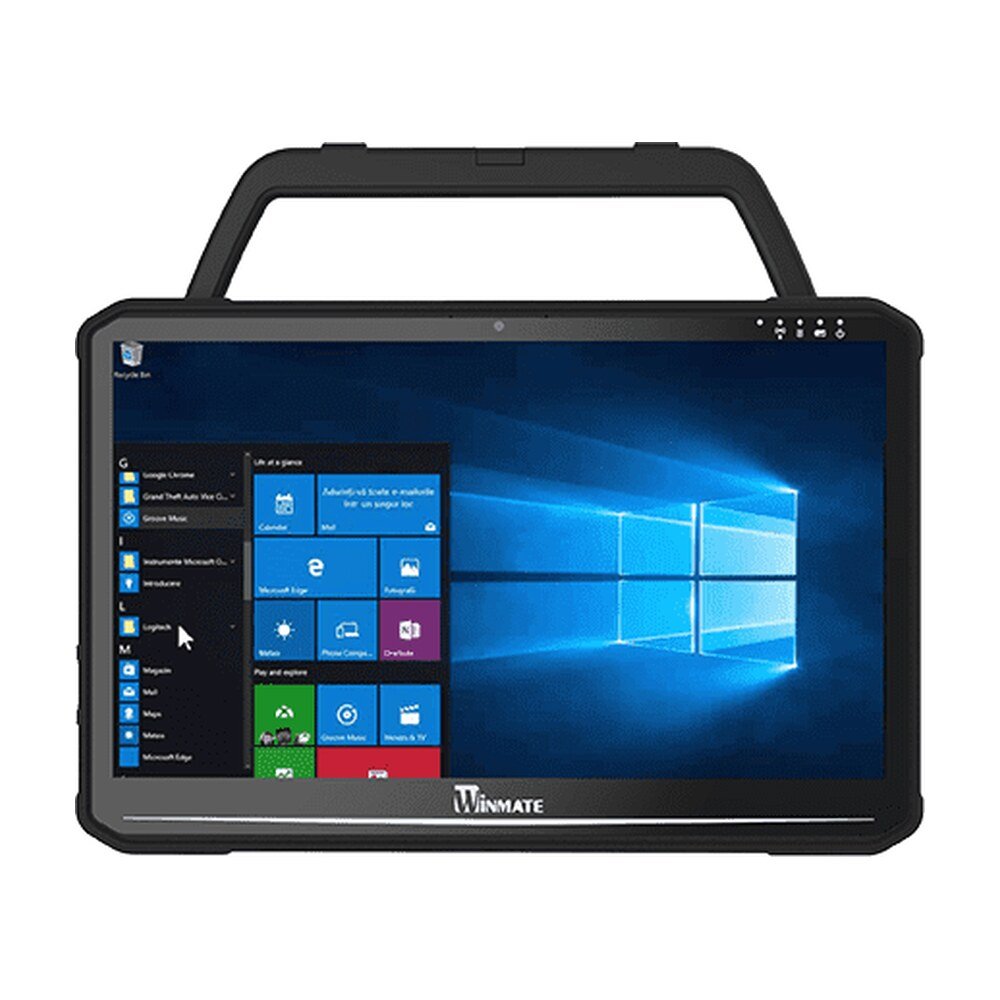

The M140TG's 14inch tablet comes with an optional kickstand/hard handle, and mounting choices make it very easy to carry. Rest assured that the device can withstand the impact, shock, vibration, liquid spills, and dust. The M140TG industrial mobile pc has been independently tested and meets the IP65 rating and MIL-STD-810H standard.
M140TG features an innovative docking connector, extensive connectivity possibilities, and many interfaces. Wireless LAN, BT, and optional cellular communications networks 4G/LTE to allow data to be exchanged in real-time.
| Display | |
|---|---|
| Size | 14.0 inches |
| Resolution | 1920x1080 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD, Additional storage available with micro SDXC card slot (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB SSD (Optional), 2TB SSD (Optional) |
| Smart Card Reader | Smart Card Reader, Comply with, ISO7816-1.2.3 T=1 and T=Ø protocol (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional), 5G (Optional) |
| GNSS | GPS, GLONASS (Optional) |
| RFID | HF RFID reader 13.56 MHz (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
| Camera | |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
| Mechanical | |
| Dimension | 341.91 x 224.67 x 25.4 mm |
| Weight | 1.7 kg |
| Cooling System | Fan Design |
| IO Ports | |
| USB Port | 2 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In) |
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Video | 1 x Micro HDMI (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack, Dual Digital Mic With Noise Cancellation, Dual Speaker |
| SD Card Slot | 1 x Micro SDXC slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
| Control | |
| Button | 1 x Power,3 x function keys |
| Power | |
| Battery | Internal Battery: 10.8V typ. 2400 mAh Li-Ion Battery, Hot-swappable 11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P), Hot-swappable 11.4V, typ. 4750 mAh Li-Ion Re-chargeable Battery (3S1P) (Optional) |
| Battery Operating Time | Standard. Battery: 8 hours, High Capacity Battery: 12 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | |
| Accessory | Adapter and Power Cord, Standard Battery, Capacitive Stylus |
| Optional Accessory | Kickstand (Optional), Vehicle Charger (Optional), Battery Charger (Optional), Desk Dock (Optional), Carry Bag (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M140TG |
| Series | M140 Series Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
