Over 40 years in businessYour quantities, your schedule — we manufacture to your requirement and release as you need it.

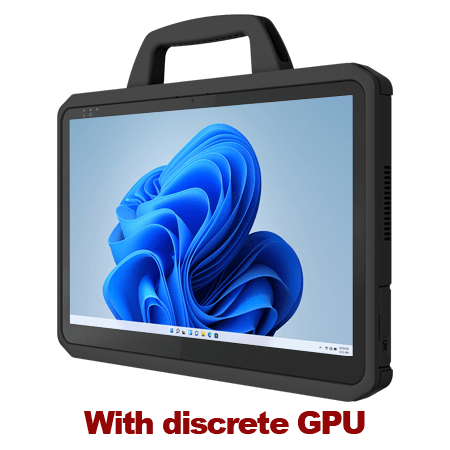

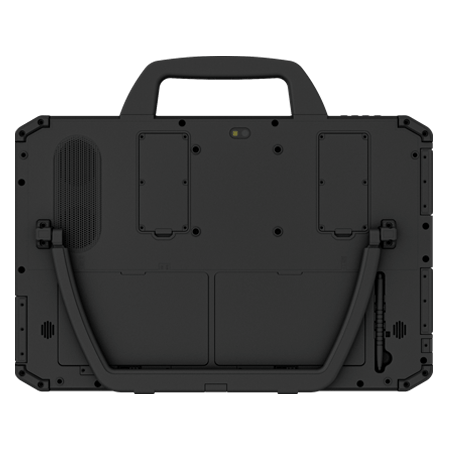

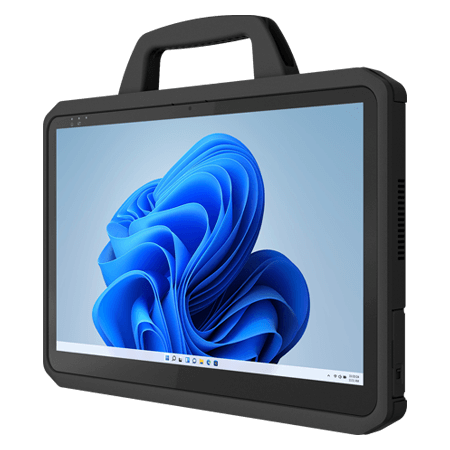

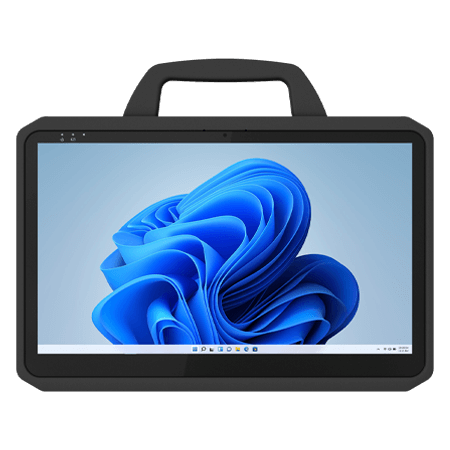

Explore Winmate M156AD, a rugged tablet PC featuring Intel® Core™ i5-1235U, 15.6-inch display, IP65, MIL-STD-810H for field service and inspection.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Please call for pricing and availability
Explore Winmate M156AD, a rugged tablet PC featuring Intel® Core™ i5-1235U, 15.6-inch display, IP65, MIL-STD-810H for field service and inspection.
The M156AD rugged tablet comes with a GigaLAN port, offering high-speed data and image transfers from 10 to 1000 Mbps. Ideal for factory automation and AIoT applications, it enhances productivity by minimizing latency and improving response times, ensuring swift and efficient connectivity for seamless task execution.
The M156AD rugged tablet undergoes MIL-STD-810H testing to ensure it can withstand shock, vibration, and drops, mimicking real-world conditions for durability assessment. Additionally, it undergoes MIL-STD-461G evaluation for electromagnetic compatibility, ensuring reliable operation in environments with electromagnetic interference while maintaining safe emission levels.
Winmate M156AD rugged tablet ensures prolonged usage with its dual battery setup and a hot-swappable design. It allows users to effortlessly swap batteries for uninterrupted productivity throughout the day. This design enhances convenience and reliability, catering to the demands of dynamic work environments.
The Winmate M156AD rugged tablet features 15.6” FHD panel resolution options to fulfill diverse applications. Its anti-glare technology ensures readability in direct sunlight, while the projective capacitive touch supports switchable rain, glove, and stylus modes for versatile interaction.
The M156AD rugged tablet, equipped with an IP65 rating, ensures resilience against dust and low-pressure water jets, guaranteeing reliability in demanding environments. These qualities render it ideal for diverse industries prioritizing durability and steadfast performance.
| Display | |
|---|---|
| Size | 15.6 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1920x1080 |
| Panel Brightness | 800 nits(Default), 1000 (Optional) |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | Intel Core i5-1235U (up to 4.4GHz) |
| Memory | 8GB (Default), 16GB (Optional), 32GB, 2nd Memory available with up to 32+32GB (Optional) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB SSD (Optional), 2TB SSD (Optional), 2nd storage available with up to 2TB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional), 5G (Optional) |
| GNSS | GPS, GLONASS |
| RFID | HF RFID reader 13.56 MHz (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
| Camera | |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
| Mechanical | |
| Dimension | 387.7 x 256.1 x 27.5 mm |
| Weight | 2.8kg |
| Cooling System | Fan Design |
| IO Ports | |
| USB Port | 3 x USB 3.0 (Type A), 1 x USB 3.0 (Type C) |
| LAN | 2 x RJ45-10/100/1000 GigaLAN port |
| Video | 2 x HDMI 4K Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack, Dual Digital Mic With Noise Cancellation, Dual Speaker |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Indicator | 2x LED Indicator for Power, Battery |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8 Procedure IV, 3 ft |
| IP rating | IP65 |
| EMC | MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default), MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional) |
| Certification | |
| Certification | CE, FCC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
| Control | |
| Button | 1 x Power,, 3 x Programmable Function Keys |
| Power | |
| Battery | Hotswappable 2 x 11.55V typ. 3220 mAh LiIon Battery (3S1P) |
| Battery Operating Time | Standard. Battery: 11 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz, 120W / 19.5V DC |
| Accessory | |
| Accessory | Adapter and Power Cord, Capacitive Stylus, Top Handle, Standard Battery |
| Optional Accessory | Spare Battery (Optional), High Capacity Battery (Optional), Battery Charger (Optional), Kick-stand (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M156AD |
| Series | M156 Series Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | M156AD |
|---|---|
| Category | Enterprise Mobility, Windows Rugged Tablets, Winmate |
| Size | 15.6 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1920x1080 |
| Panel Brightness | 800 nits(Default), 1000 (Optional) |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Processor | Intel Core i5-1235U (up to 4.4GHz) |
| Memory | 8GB (Default), 16GB (Optional), 32GB, 2nd Memory available with up to 32+32GB (Optional) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB SSD (Optional), 2TB SSD (Optional), 2nd storage available with up to 2TB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional), 5G (Optional) |
| GNSS | GPS, GLONASS |
| RFID | HF RFID reader 13.56 MHz (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
| Dimension | 387.7 x 256.1 x 27.5 mm |
| Weight | 2.8kg |
| Cooling System | Fan Design |
| USB Port | 3 x USB 3.0 (Type A), 1 x USB 3.0 (Type C) |
| LAN | 2 x RJ45-10/100/1000 GigaLAN port |
| Video | 2 x HDMI 4K Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack, Dual Digital Mic With Noise Cancellation, Dual Speaker |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Indicator | 2x LED Indicator for Power, Battery |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8 Procedure IV, 3 ft |
| IP rating | IP65 |
| EMC | MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default), MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional) |
| Certification | CE, FCC |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
| Button | 1 x Power,, 3 x Programmable Function Keys |
| Battery | Hotswappable 2 x 11.55V typ. 3220 mAh LiIon Battery (3S1P) |
| Battery Operating Time | Standard. Battery: 11 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz, 120W / 19.5V DC |
| Accessory | Adapter and Power Cord, Capacitive Stylus, Top Handle, Standard Battery |
| Optional Accessory | Spare Battery (Optional), High Capacity Battery (Optional), Battery Charger (Optional), Kick-stand (Optional) |
| Brand | Winmate |
| Manufacturer part number | M156AD |
| Series | M156 Series Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
