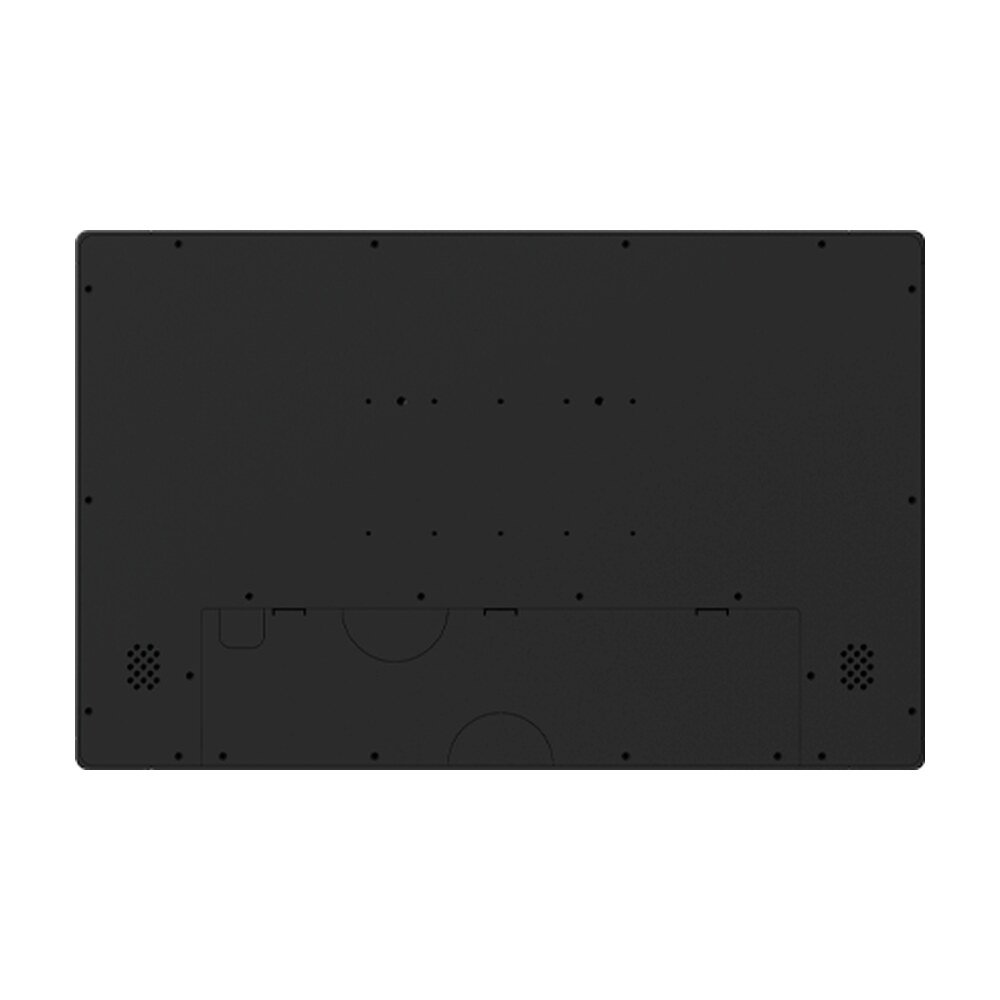

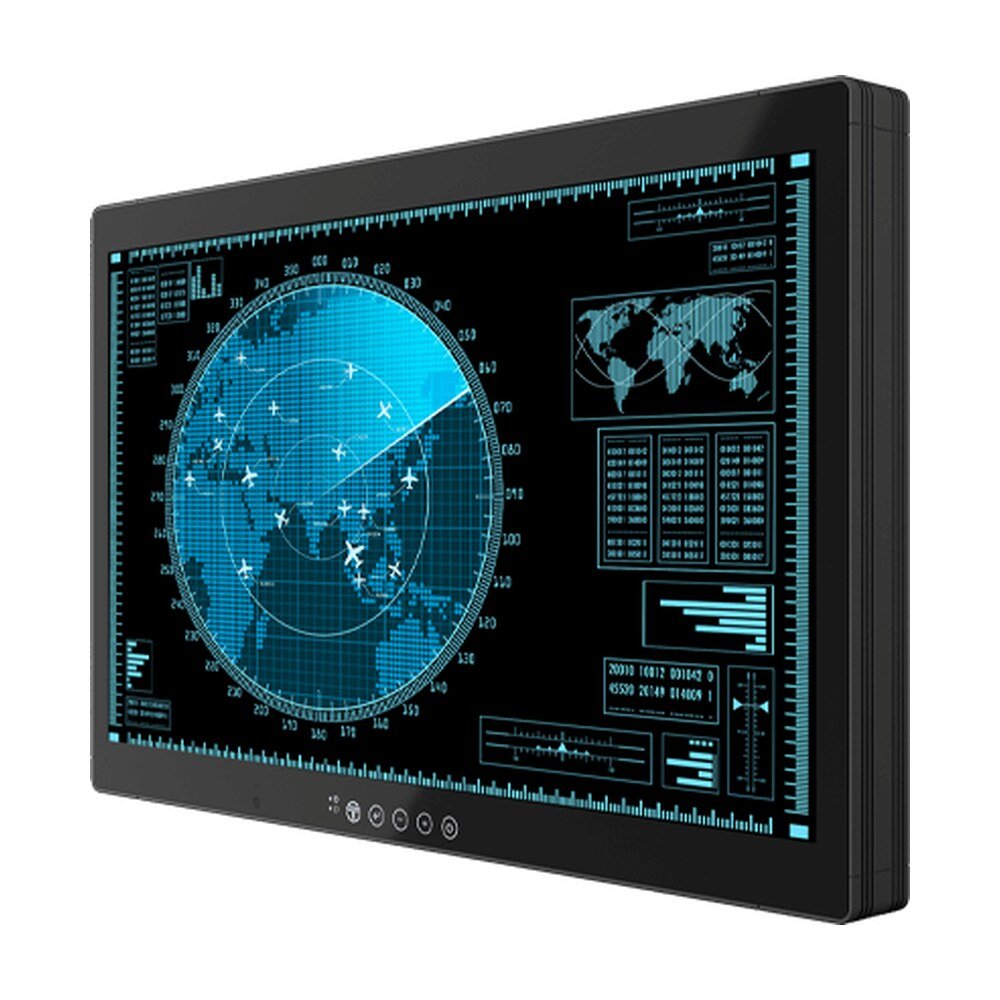

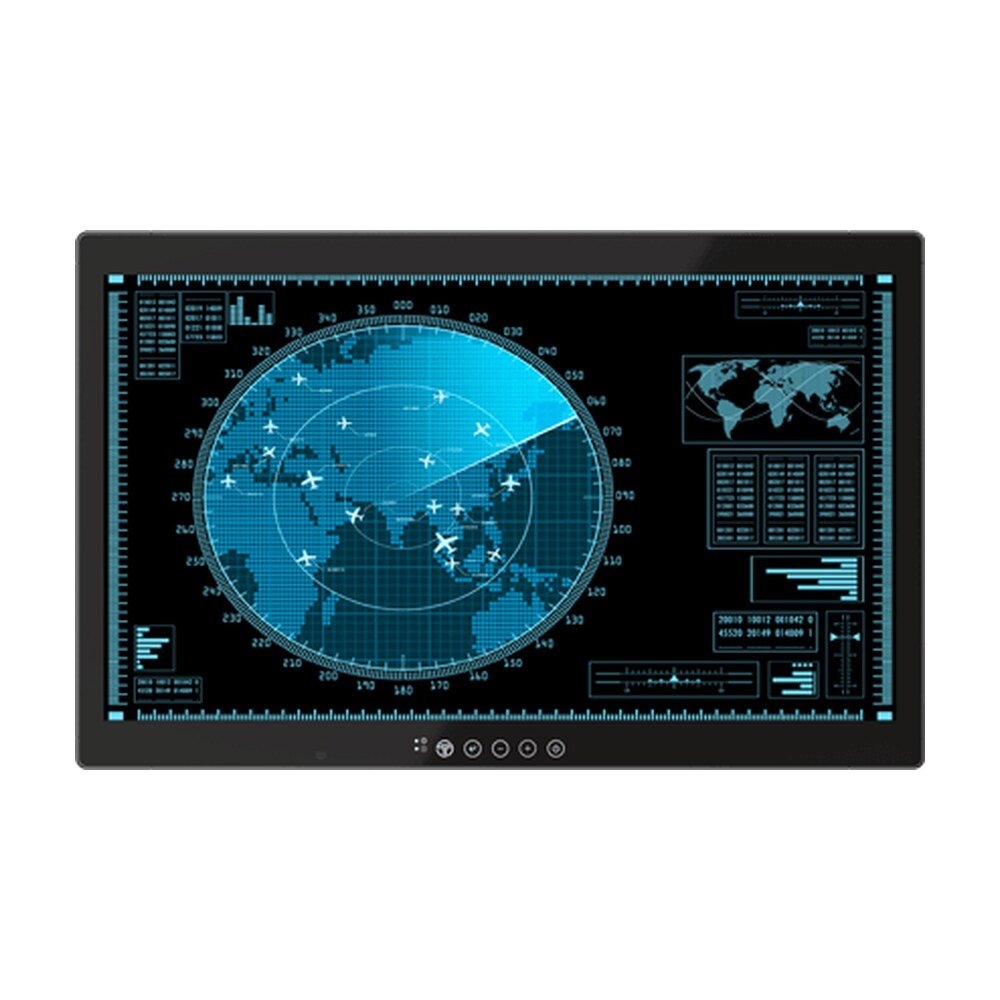

Explore Winmate M270TF-MIL, a chassis display featuring 27-inch display with 3840x2160 resolution for defense operations and field command.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate M270TF-MIL, a chassis display featuring 27-inch display with 3840x2160 resolution for defense operations and field command.
Winmate's MIL-STD-810H defence display feature an impressive screen resolution of UHD 4K (3840 x 2160), aimed at minimizing errors and improving operational efficiency. This ensures that every detail on the screen is presented with exceptional clarity and precision.
To comply with defence regulations, Winmate's 4K UHD defence display undergoes rigorous testing following MIL-STD-810H environmental and MIL-STD 461G standards. Additionally, Winmate conducts internal reliability tests to ensure peak performance in challenging defence conditions.
The 4K UHD defence display incorporates a highly responsive PCAP (Projected Capacitive) touchscreen, enabling users to effortlessly interact with the display interface. With its advanced touch technology, navigating through display settings and accessing vital information becomes intuitive and efficient, optimizing operational effectiveness in defence scenarios.
With a sleek, entirely flat front panel design, the M270TF-MIL displays offer not just a contemporary look, but also practical advantages for upholding hygiene in the workplace. The flat surface makes cleaning effortless, enabling quick and thorough sanitation procedures.
| Display | |
|---|---|
| Touch / Glass | AR Glass (Default), Projected Capacitive Multi Touch Screen (Optional), EMI Touch/Glass (Optional) |
| Size | 27.0 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 400 nits(Default), 700 (Optional) |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 596.73x335.66 mm |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10°C~60°C |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| Compliance | |
| MIL-STD 461G | USA MILSTD461G CE101, CE102, RE101, RE102, CS118 (Default) , MILSTD461G CS101, CS106, CS109, CS114, CS115, CS116, RS101, RS103 (Optional) , , NATO STANAG 4370/AECTP501 NCE01, NCE02, NRE01, NRE02, NCS12 (Default) , STANAG 4370/AECTP501 NCS01, NCS07, NCS08, NCS09, NRS01, NRS02 (Optional) |
| MIL-STD 810H | USA: MIL-STD-810H (default): Vibration Method 514.6, Humidity Method 507.6, Transit Drop Method516.6, , NATO (optional): Vibration Test STANAG 4370/AECTP-401, Shock STANAG 4370/AECTP-402 Procedure I, Drop and Topple Test STANAG 4370/AECTP-404 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen (Optional) |
| Serial Port | 1 x RS232 for Remote Control (Optional) |
| Video | 1 x VGA, 1 x DVI, 1 x Display Port 1.2 (Default), 2 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Line In (Optional) |
| Mechanical | |
| Dimension | 643.2 x 408.1 x 48 mm |
| Mounting | VESA mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | User Manual(Hardcopy), VESA Mounting Screws (M4 x10 /M4 x 12), Power Cord 1.8M, AC Adaptor, Power Convert Cable, VGA Cable 1.8M(Male to Male), Dual Link DVI Cable 1.8M (Male to Male), COM Cable 1.8M (Male to Female) |
| Optional Accessory | USB cable for Touch (Optional) |
| Power | |
| Power Rating | 24V DC in |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M270TF-MIL |
| Series | 4K UHD Chassis Defence Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | M270TF-MIL |
|---|---|
| Category | Defence Display / NVIS Display, Defence Grade, Winmate |
| Touch / Glass | AR Glass (Default), Projected Capacitive Multi Touch Screen (Optional), EMI Touch/Glass (Optional) |
| Size | 27.0 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 400 nits(Default), 700 (Optional) |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 596.73x335.66 mm |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10°C~60°C |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| Certification | CE, FCC |
| USB Port | 1 x USB for Touch Screen (Optional) |
| Serial Port | 1 x RS232 for Remote Control (Optional) |
| Video | 1 x VGA, 1 x DVI, 1 x Display Port 1.2 (Default), 2 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Line In (Optional) |
| Dimension | 643.2 x 408.1 x 48 mm |
| Mounting | VESA mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Optional Accessory | USB cable for Touch (Optional) |
| Power Rating | 24V DC in |
| Brand | Winmate |
| Manufacturer part number | M270TF-MIL |
| Series | 4K UHD Chassis Defence Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
