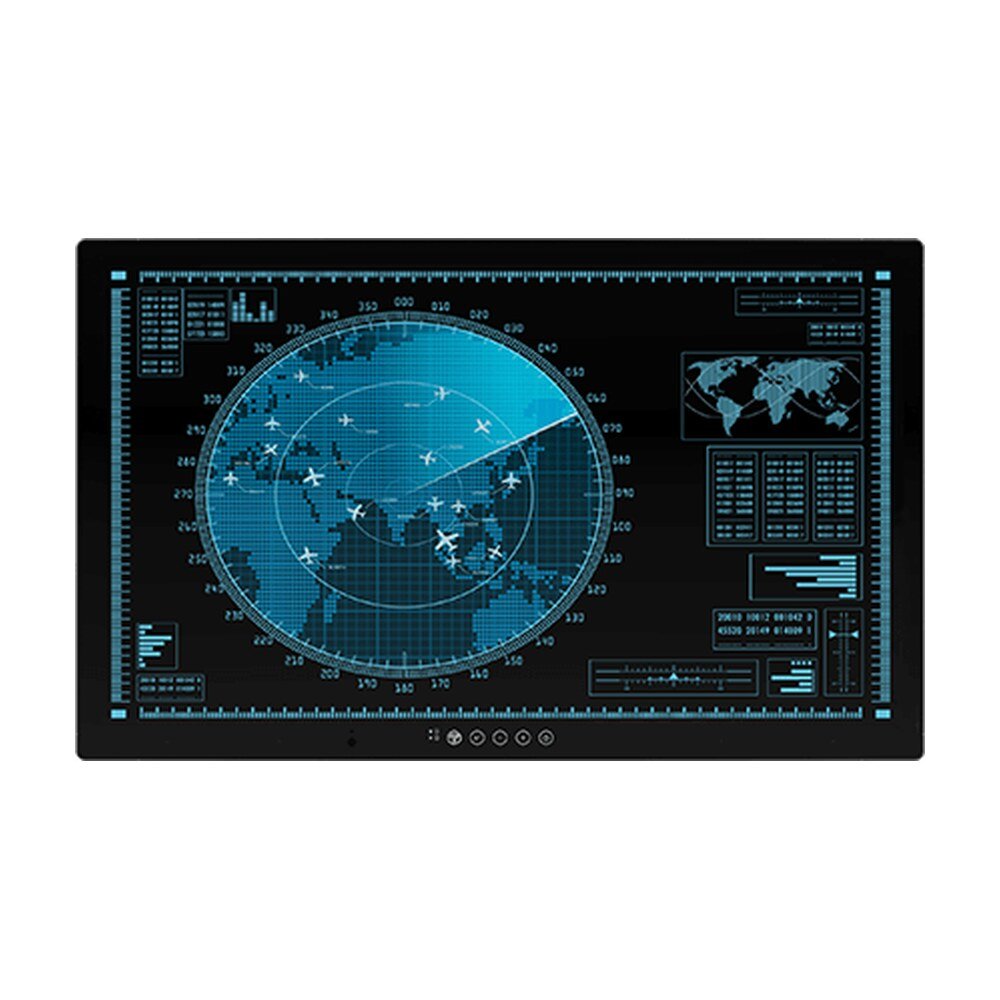

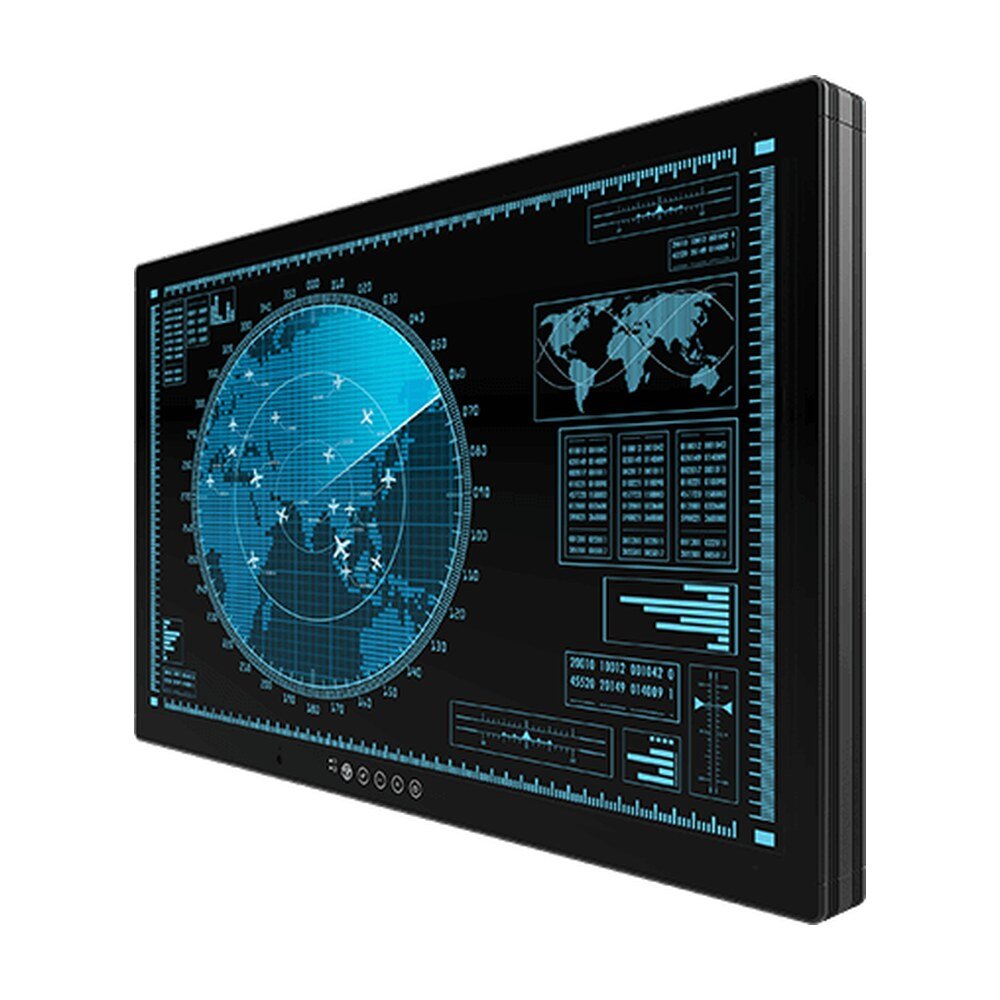

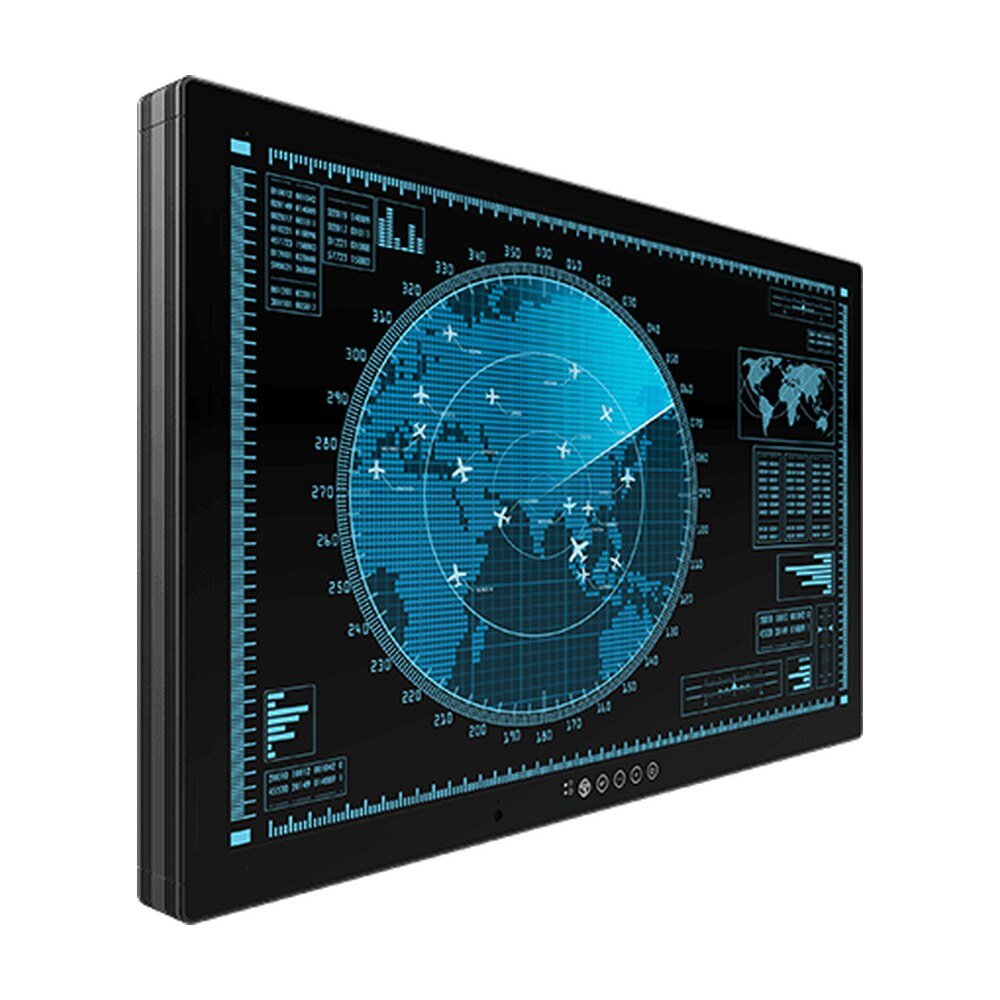

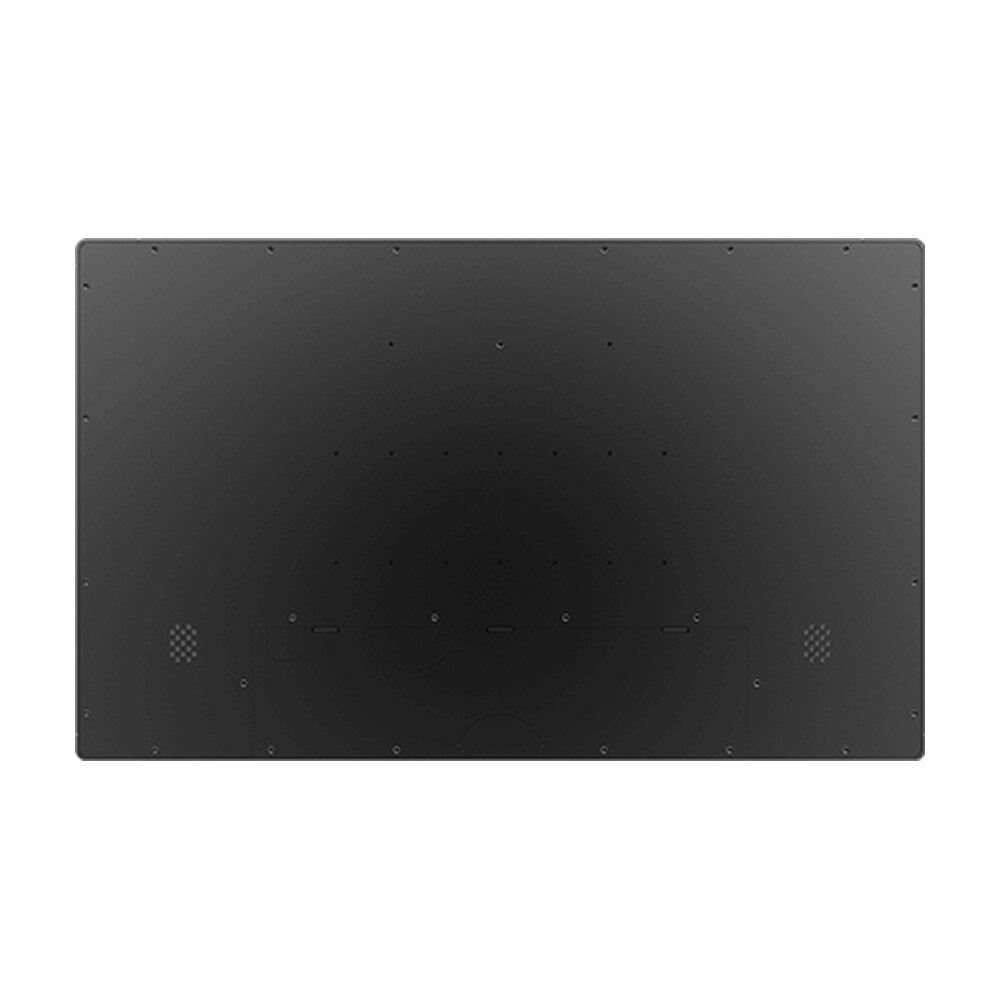

Explore Winmate M320TF-MIL, a chassis display featuring 31.5-inch display with 3840x2160 resolution for defense operations and field command.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate M320TF-MIL, a chassis display featuring 31.5-inch display with 3840x2160 resolution for defense operations and field command.
Winmate 4K UHD Defence Displays feature a brilliant screen with UHD 4K (3840 x 2160) resolution to help minimize errors and improve operational efficiencies. Now every detail on the screen displayed more detailed than ever.
To meet the defence and defense's regulatory requirements, all Winmate's 4K UHD Defence Display is built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standard. Winmate performs in-house reliability test to ensure optimal performance in harsh defence environments.
Increase the efficiency of the command center and control room personnel. Built your ergonomic command console that complies with defence and defense precise needs with Winmate 4K UHD Defence Display that offers a brilliant resolution and clear depiction of every detail.
The Winmate 4K UHD Defence Display features a user-friendly touchscreen and physical OSD buttons for fast access to the central control located on the front panel.
The 4K UHD Defence Displays feature a built-in light sensor for auto-brightness control. The screen brightness effortlessly changes with the lighting conditions throughout the day.
The 4K UHD Defence Displays features a truly flat front panel that could easily be cleaned to improved hygiene in the working environment.
| Display | |
|---|---|
| Touch / Glass | AR Glass (Default), Projected Capacitive Multi Touch Screen (Optional), EMI Touch/Glass (Optional) |
| Size | 31.5 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 350 nits(Default), 700 (Optional) |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 697.3056×392.2344 mm |
| Certification | |
| Certification | CE, FCC |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10°C~60°C |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| Compliance | |
| MIL-STD 461G | USA MILSTD461G CE101, CE102, RE101, RE102, CS118 (Default) , MILSTD461G CS101, CS106, CS109, CS114, CS115, CS116, RS101, RS103 (Optional) , , NATO STANAG 4370/AECTP501 NCE01, NCE02, NRE01, NRE02, NCS12 (Default) , STANAG 4370/AECTP501 NCS01, NCS07, NCS08, NCS09, NRS01, NRS02 (Optional) |
| MIL-STD 810H | USA: MIL-STD-810H (default): Vibration Method 514.6, Humidity Method 507.6, Transit Drop Method516.6, , NATO (optional): Vibration Test STANAG 4370/AECTP-401, Shock STANAG 4370/AECTP-402 Procedure I, Drop and Topple Test STANAG 4370/AECTP-404 |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen (Optional) |
| Serial Port | 1 x RS232 for Remote Control (Optional) |
| Video | 1 x VGA, 1 x DVI, 1 x Display Port 1.2 (Default), 2 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Line In (Optional) |
| Mechanical | |
| Dimension | 777.58 x 477.62 x 48 mm |
| Mounting | VESA mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | User Manual(Hardcopy), VESA Mounting Screws (M4 x10 /M4 x 12), Power Cord 1.8M, AC Adaptor, Power Convert Cable, VGA Cable 1.8M(Male to Male), Dual Link DVI Cable 1.8M (Male to Male), COM Cable 1.8M (Male to Female) |
| Optional Accessory | USB cable for Touch (Optional) |
| Power | |
| Power Rating | 24V DC in |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M320TF-MIL |
| Series | 4K UHD Chassis Defence Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | M320TF-MIL |
|---|---|
| Category | Defence Display / NVIS Display, Defence Grade, Winmate |
| Touch / Glass | AR Glass (Default), Projected Capacitive Multi Touch Screen (Optional), EMI Touch/Glass (Optional) |
| Size | 31.5 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 350 nits(Default), 700 (Optional) |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 697.3056×392.2344 mm |
| Certification | CE, FCC |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10°C~60°C |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| USB Port | 1 x USB for Touch Screen (Optional) |
| Serial Port | 1 x RS232 for Remote Control (Optional) |
| Video | 1 x VGA, 1 x DVI, 1 x Display Port 1.2 (Default), 2 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Line In (Optional) |
| Dimension | 777.58 x 477.62 x 48 mm |
| Mounting | VESA mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Optional Accessory | USB cable for Touch (Optional) |
| Power Rating | 24V DC in |
| Brand | Winmate |
| Manufacturer part number | M320TF-MIL |
| Series | 4K UHD Chassis Defence Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
