Explore Winmate M900EK, a rugged tablet PC featuring Intel® Celeron® N6211, 8-inch display with 1280x800 resolution, IP65 for field service and inspection.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate M900EK, a rugged tablet PC featuring Intel® Celeron® N6211, 8-inch display with 1280x800 resolution, IP65 for field service and inspection.

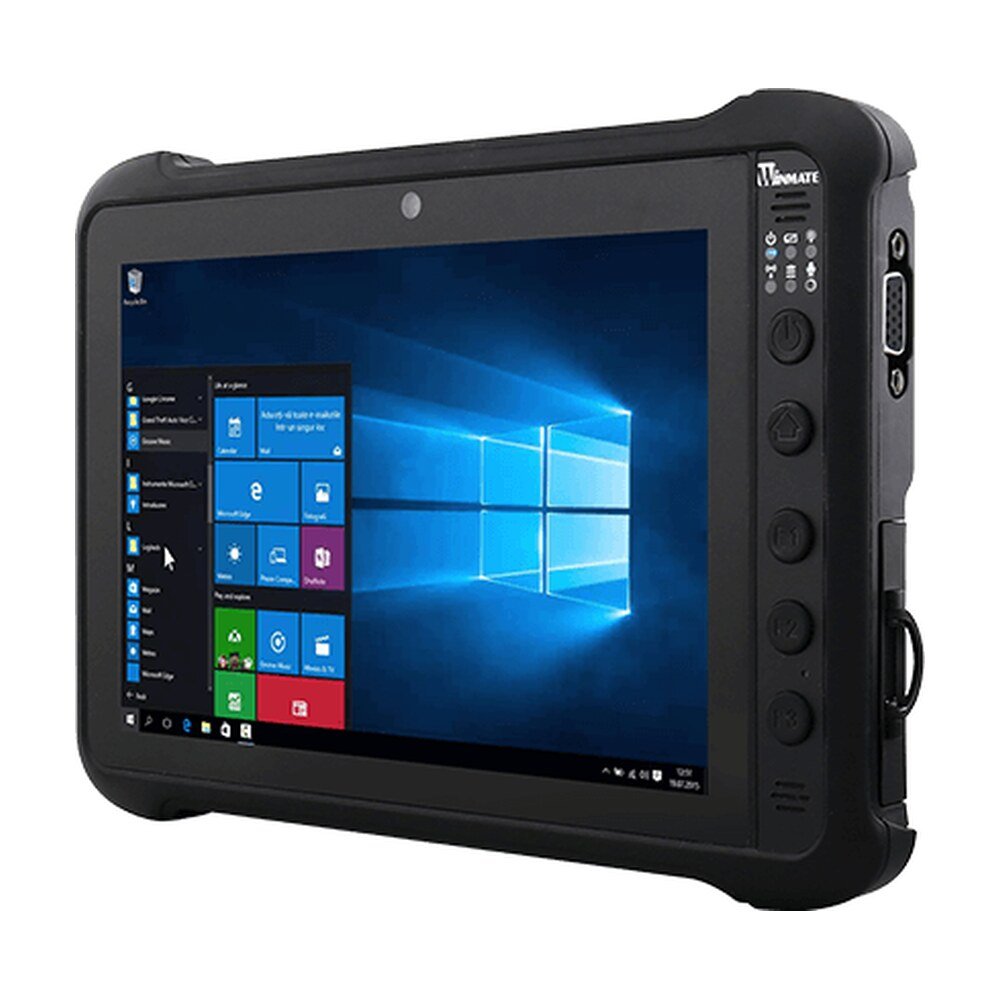

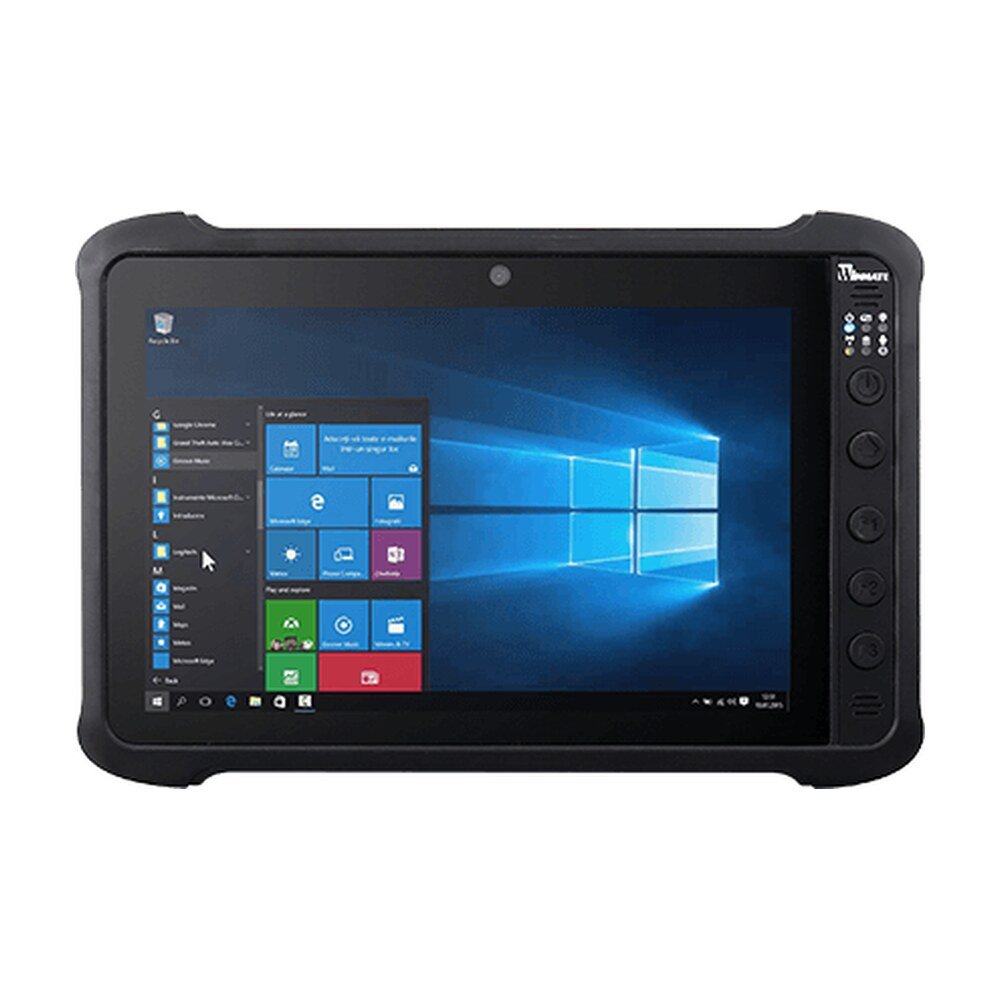

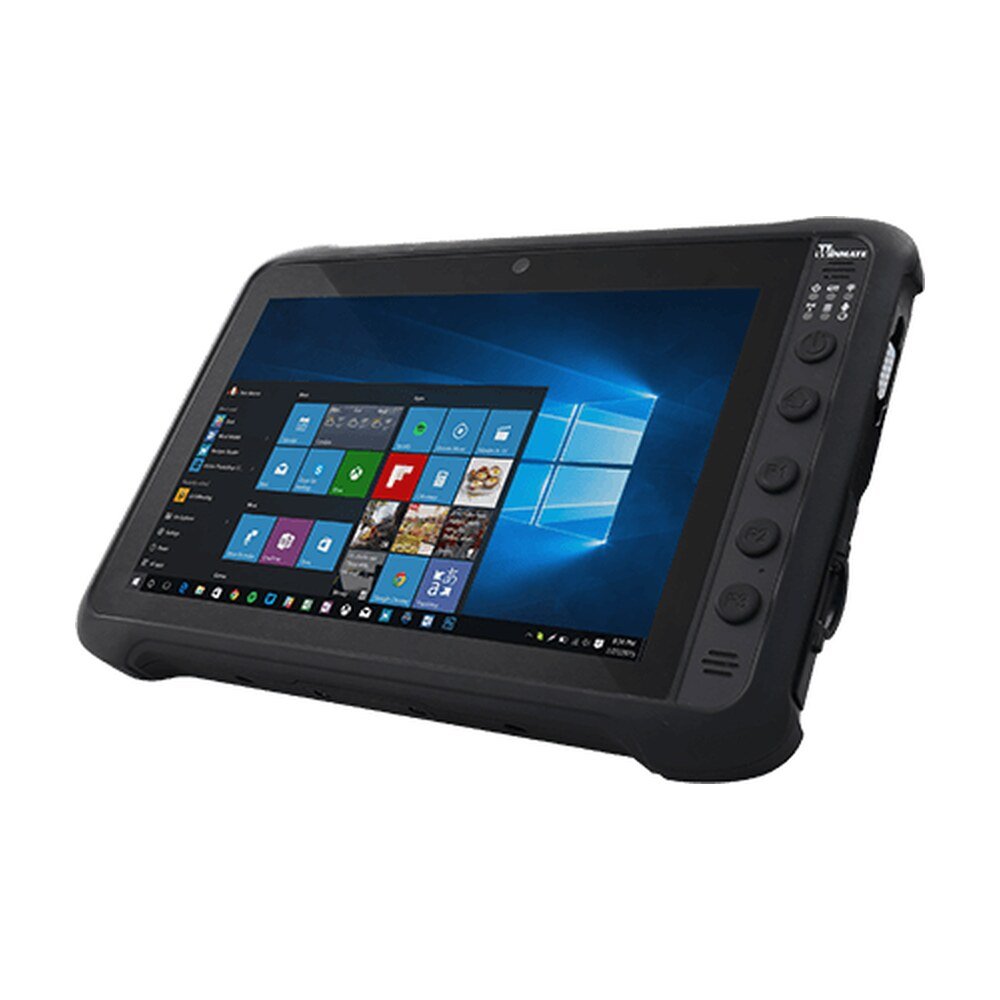

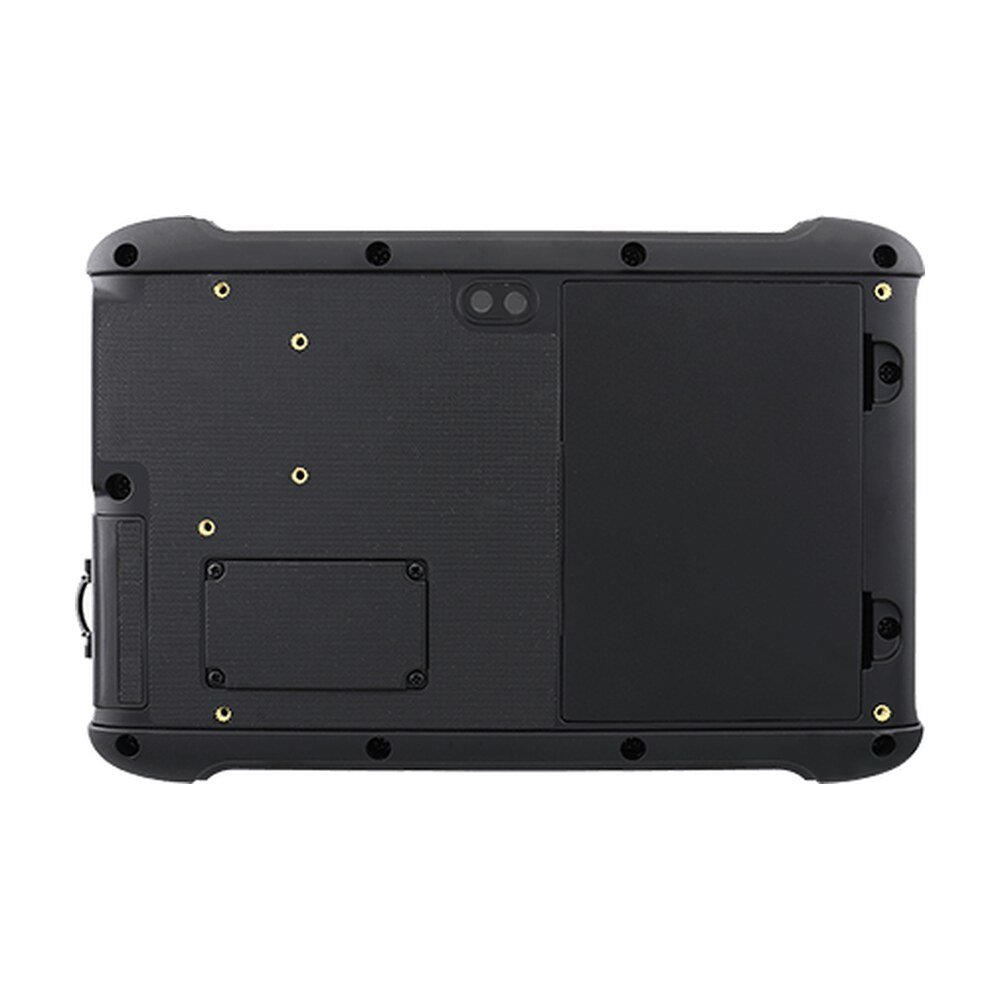

Introducing the Winmate M900EK, a rugged tablet PC equipped with an 8" 1280x800 IPS LED panel with direct optical bonding. This advanced display technology ensures superior image quality, enhanced visibility, and reduced glare, making it suitable for various outdoor applications. The direct optical bonding technique eliminates air gaps between the display panel and the cover glass, resulting in improved sunlight readability and increased durability. It minimizes the internal reflection and maximizes the transmission of light, allowing for clear and vivid visuals even in bright sunlight.
The Winmate M900EK is a rugged tablet that offers an optional Expansion Port DB15 Connector, providing versatile connectivity options for various peripherals. Designed with sunlight readability in mind, it features an antiglare solution that ensures clear visibility even in bright outdoor environments. This allows users to work efficiently and comfortably in challenging lighting conditions. The M900EK combines durability and functionality, making it a reliable choice for industries such as field service, logistics, and outdoor operations where readability and connectivity are essential.
The Winmate M900EK is built to withstand harsh environments with its IP65 rating, providing waterproof and dustproof protection. This rugged tablet is designed to endure challenging conditions, ensuring reliable performance in industries such as manufacturing, logistics, and field service. With its IP65 certification, the M900EK can resist water splashes, dust particles, and other environmental contaminants, safeguarding its internal components. Users can confidently use this tablet in outdoor or demanding settings, knowing that it is well-equipped to withstand the elements and continue delivering optimal performance.
The Winmate M900EK is equipped with both USB 3.0 Type A and USB 3.0 Type C connectors, allowing for high-speed data transfer and versatile connectivity. With USB 3.0 technology, users can enjoy faster file transfers and improved performance when connecting external devices. Whether it's transferring large files, connecting to peripherals, or charging devices, the M900EK's USB 3.0 ports provide seamless and efficient data transmission. This ensures that users can work efficiently and effectively, maximizing productivity in various industries and applications.
| Display | |
|---|---|
| Size | 8.0 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280x800 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 1500:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | Intel Celeron N6211 1.2 GHz (turbo boost up to 2.60 GHz) (Default), Intel Pentium N6415 1.2 GHz (turbo boost up to 3.00 GHz) (Optional) |
| Memory | 4GB (Default), 8GB (Optional) |
| Storage | 128GB SSD, Additional storage available with micro SDXC card slot (Default), 256GB SSD (Optional), 512GB SSD (Optional) |
| Smart Card Reader | Smart Card Reader, Comply with, ISO7816-1.2.3 T=1 and T=Ø protocol (Optional) |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS, GLONASS |
| RFID | Mutually Exclusive with Barcode Reader (Default), HF RFID Reader 13.56 MHz (Optional), LF RFID Reader 125 KHz (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
| Camera | |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with Autofocus and LED Light |
| Mechanical | |
| Dimension | 225 x 148 x 20.5 mm ( 10 x 7.76 x 0.8 inches) |
| Weight | 0.9 kg with battery |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C, support Power Delivery 20V In) |
| Audio | 1 x Audio combo 3.5mm audio combo jack, Dual Digital Mic With Noise Cancellation, Dual Speaker |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Micro SIM card slot |
| Expansion Port | 1 x 15pin D-sub connector |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8 Procedure IV, 5 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Control | |
| Button | 1 x Power,1 x menu,, 3 x Programmable Function Keys |
| Power | |
| Battery | 7.6V, typ. 4200 mAh Li Polymer Battery (2S2P) |
| Battery Operating Time | Standard. Battery: 6 hours |
| Power Rating | 20V DC |
| Adapter | 100-240V, 50-60Hz / 20V DC |
| Accessory | |
| Accessory | Adapter and Power Cord , Standard Battery Pack |
| Optional Accessory | Desk Dock (Optional), Vehicle Dock (Optional), USB-A Cable (Optional), Battery Charger (Optional), Vehicle Charger (Optional), Hand Strap (Optional), Vehicle Cradle (Optional), LAN Cable (Optional), Capacitive Stylus (Optional) |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | M900EK |
| Series | M900 Series Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | M900EK |
|---|---|
| Category | Enterprise Mobility, Windows Rugged Tablets, Winmate |
| Size | 8.0 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280x800 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 1500:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Processor | Intel Celeron N6211 1.2 GHz (turbo boost up to 2.60 GHz) (Default), Intel Pentium N6415 1.2 GHz (turbo boost up to 3.00 GHz) (Optional) |
| Memory | 4GB (Default), 8GB (Optional) |
| Storage | 128GB SSD, Additional storage available with micro SDXC card slot (Default), 256GB SSD (Optional), 512GB SSD (Optional) |
| Smart Card Reader | Smart Card Reader, Comply with, ISO7816-1.2.3 T=1 and T=Ø protocol (Optional) |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS, GLONASS |
| RFID | Mutually Exclusive with Barcode Reader (Default), HF RFID Reader 13.56 MHz (Optional), LF RFID Reader 125 KHz (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with Autofocus and LED Light |
| Dimension | 225 x 148 x 20.5 mm ( 10 x 7.76 x 0.8 inches) |
| Weight | 0.9 kg with battery |
| Cooling System | Fanless Design |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C, support Power Delivery 20V In) |
| Audio | 1 x Audio combo 3.5mm audio combo jack, Dual Digital Mic With Noise Cancellation, Dual Speaker |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Micro SIM card slot |
| Expansion Port | 1 x 15pin D-sub connector |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8 Procedure IV, 5 ft |
| IP rating | IP65 |
| Certification | CE, FCC |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Button | 1 x Power,1 x menu,, 3 x Programmable Function Keys |
| Battery | 7.6V, typ. 4200 mAh Li Polymer Battery (2S2P) |
| Battery Operating Time | Standard. Battery: 6 hours |
| Power Rating | 20V DC |
| Adapter | 100-240V, 50-60Hz / 20V DC |
| Accessory | Adapter and Power Cord , Standard Battery Pack |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Brand | Winmate |
| Manufacturer part number | M900EK |
| Series | M900 Series Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
