Explore Winmate ML-1280, a DC-DC converter module featuring Compliant with MIL-STD-1275E standard, High-efficiency DC-DC for industrial power integration and…

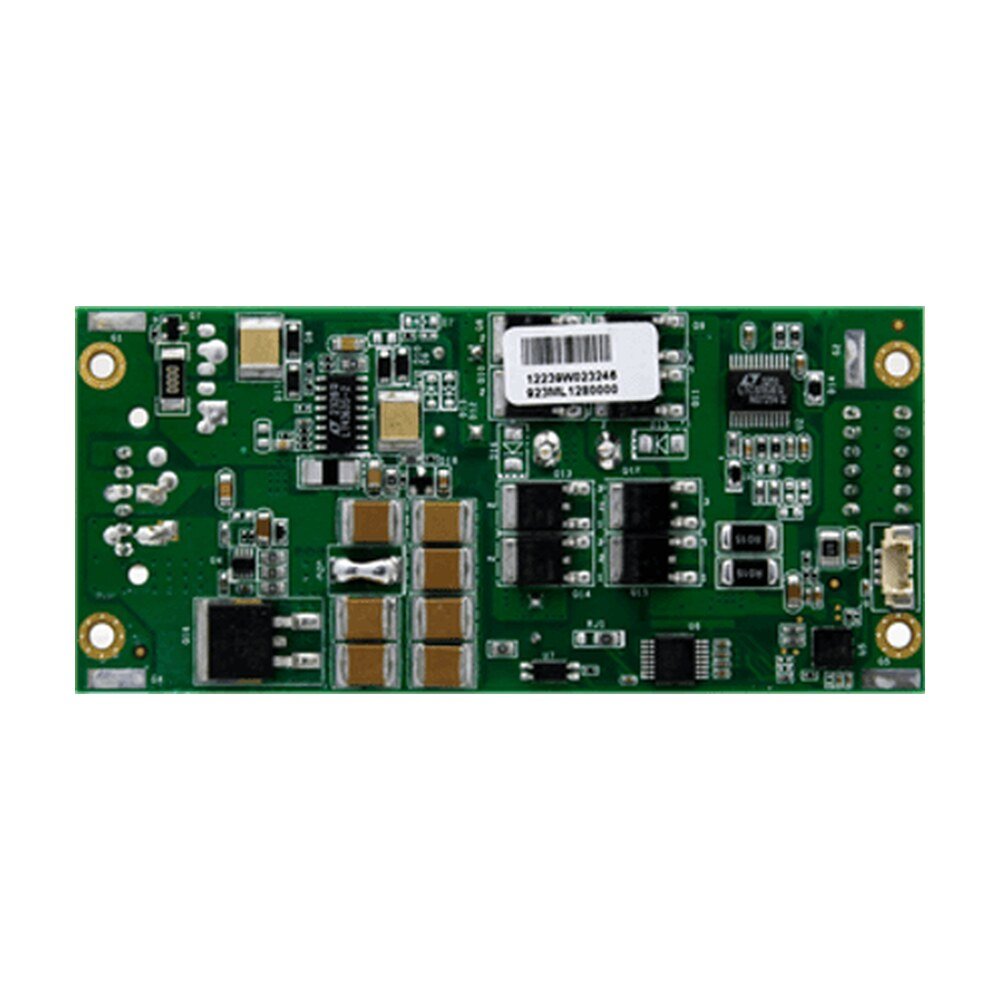

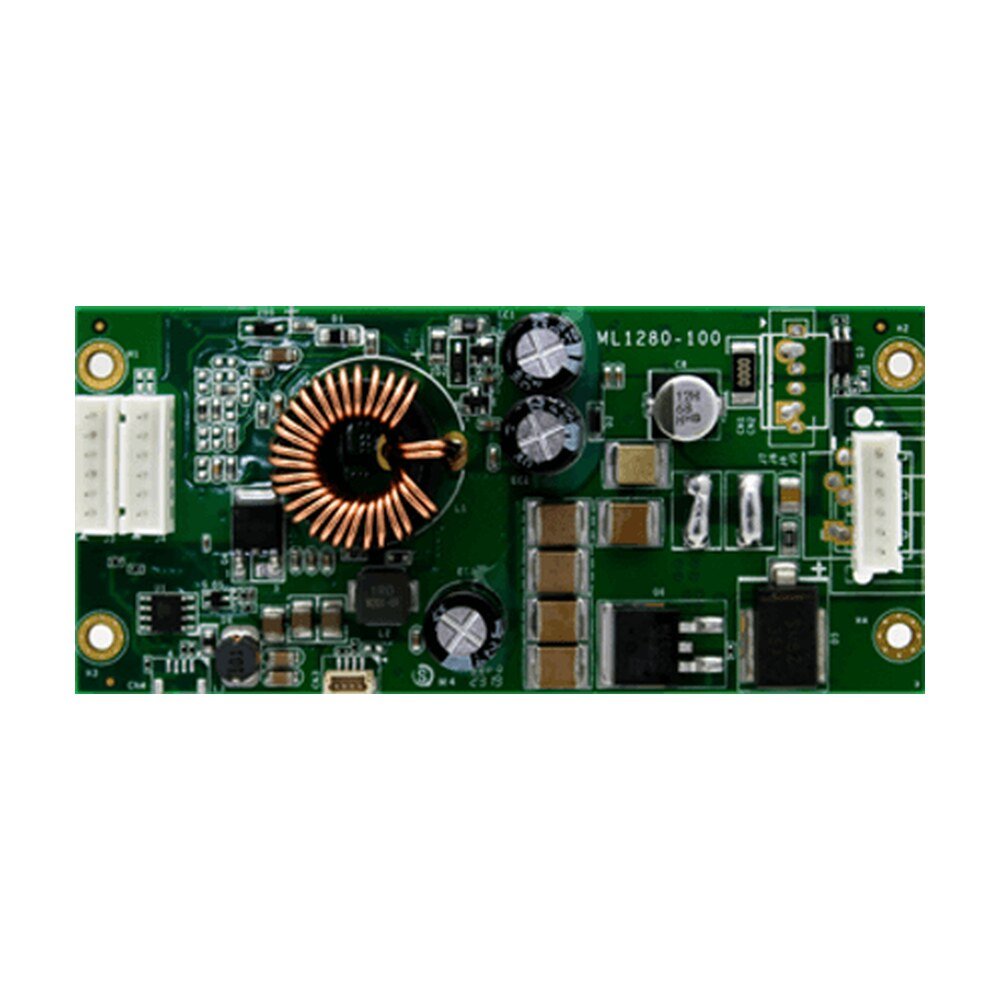

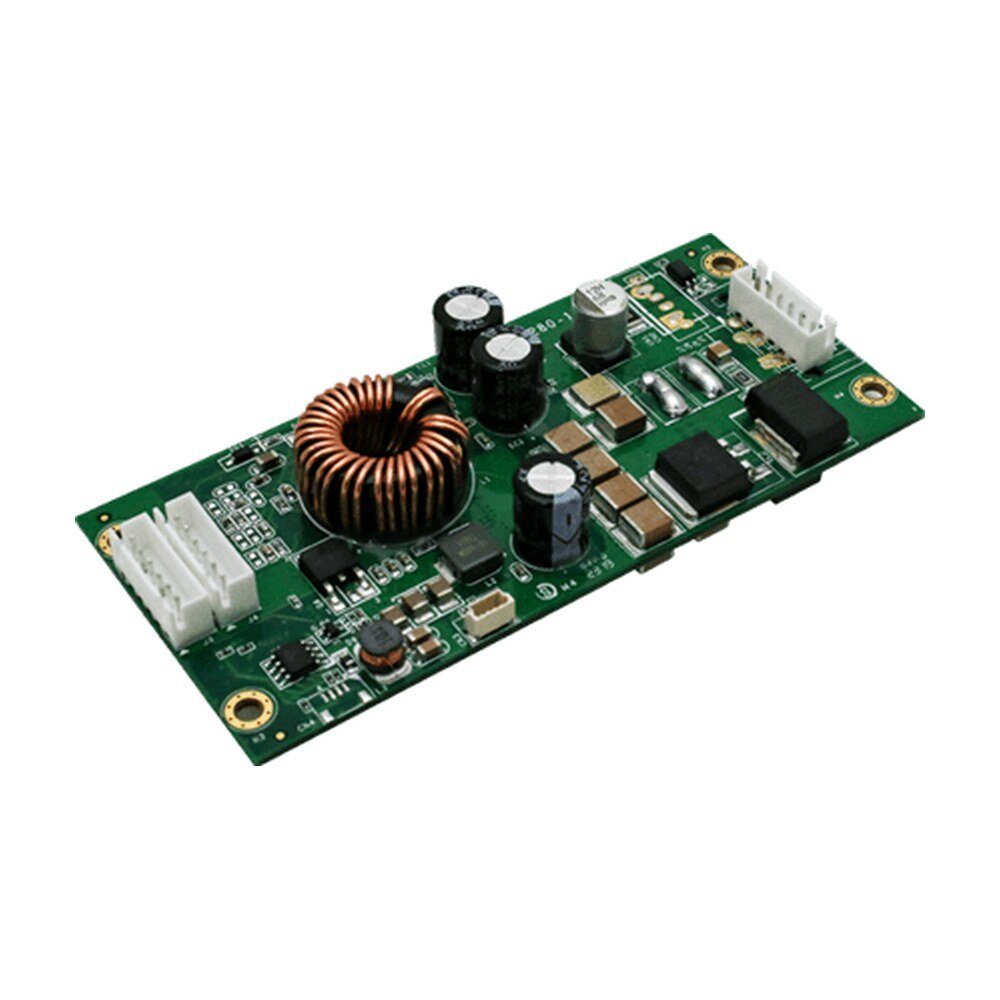

Winmate’s ML-1280 PCB advanced power converter board meticulously engineered to comply with the MIL-STD-1275E standard, ensuring unparalleled performance in military applications. With a surge stopper circuit, this technology swiftly intercepts and neutralizes voltage spikes and surges, guaranteeing the safety and longevity of electronic components.
With the 6600W capacity, Winmate ML-1280 PCB serves as the ultimate safeguard, ensuring the safety and reliability of electronic circuits. This enhanced protection ensures the longevity and reliability of sensitive devices, reducing the risk of malfunctions or failures.
Winmate’s ML-1280 PCB features a comprehensive eFuse protection for unparalleled reliability. Designed with meticulous precision, this advanced power converter board ensures the safeguarding of electronic components through a comprehensive eFuse system.
Winmate ML-1280 PCB supports a wide voltage range of 9-36V. This adaptability to various power inputs provides flexibility and convenience for a range of applications while excelling in robust performance across diverse environmental conditions, from -20 to 70 degrees Celsius.
Winmate’s ML-1280 PCB sets a new standard in power converter technology with its integral Reverse Polarity Safeguard for Input Power, ensuring the secure operation of electronic systems by preventing potential damage caused by reversed power connections.
| System Specification | |
|---|---|
| Input Voltage | 9V to 36V DC |
| Load Range | 12V 6.67A |
| Power Consumption | 80W |
| Ripple And Noise | Less than 120mV |
| Line Regulation | Less than ±1% at rated 9~36V input voltage |
| Load Regulation | Less than ±5% |
| Efficiency | Up to 90% (Full loading) |
| Protection | OCP protection, OVP protection |
| Certification | |
| Certification | CE, FCC |
| Compliance | |
| Compliance | Compliant with MIL-STD-1275E |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Altitude | 0 to 10000ft |
| Mechanical | |
| Dimension | 110 x 50 x 18.1 mm |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | ML-1280 |
| Series | Wide Voltage Input DC Converter |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | ML-1280 |
|---|---|
| Category | Embedded Computing, Power Converter Board, Winmate |
| Input Voltage | 9V to 36V DC |
| Load Range | 12V 6.67A |
| Power Consumption | 80W |
| Ripple And Noise | Less than 120mV |
| Line Regulation | Less than ±1% at rated 9~36V input voltage |
| Load Regulation | Less than ±5% |
| Efficiency | Up to 90% (Full loading) |
| Protection | OCP protection, OVP protection |
| Certification | CE, FCC |
| Compliance | Compliant with MIL-STD-1275E |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Altitude | 0 to 10000ft |
| Dimension | 110 x 50 x 18.1 mm |
| Brand | Winmate |
| Manufacturer part number | ML-1280 |
| Series | Wide Voltage Input DC Converter |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
