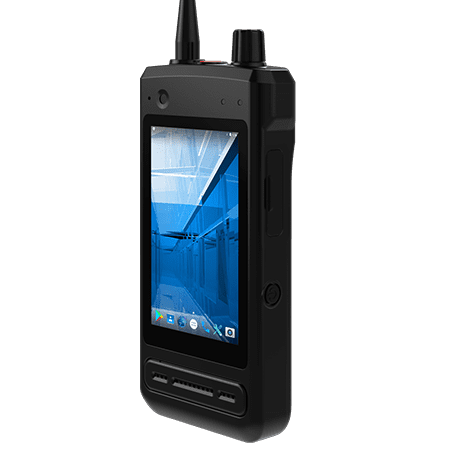

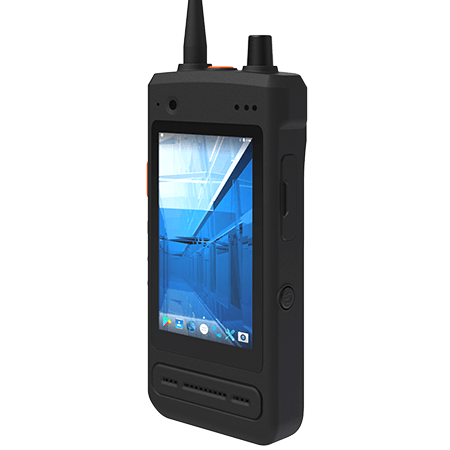

Explore Winmate P400M9, a rugged handheld computer featuring 4-inch display with 800x480 resolution for field service and warehouse data capture.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate P400M9, a rugged handheld computer featuring 4-inch display with 800x480 resolution for field service and warehouse data capture.
With a compact and ergonomic design, the Winmate handheld tablet is easy for one-handed use. Winmate PoC handheld solutions provide an intuitive and familiar Android interface with programmable buttons, a loud and clear speaker, and long hours of battery life.
The Winmate handheld tablet offers a robust and accurate touch sensitivity with projected capacitive multi-touch. Its 4-inch color LCD comes with direct optical bonding to enhance the user experience of reading the screen with ease and comfort. Easily use the Winmate handheld tablet in wet conditions or while wearing gloves in a variety of scenarios.
Winmate handheld tablet features high compatibility and security performance with rear HD and front cameras for real-time image service and video monitoring. With SOTIMobiControl compliance and support third-party applications for developing customized applications. Suitable for many industries, such as transportation and logistics, retail, security, energy and utilities, construction, councils and local government organizations, hospitality, manufacturing, and others.
Certified with IP65 and MIL-STD-810G standards, the Winmate handheld tablet is made to withstand splash, dust, shock, drop, and a wide range of temperatures. The built-in 1W speaker provides loud and clear audio quality for versatile voice service.
| Display | |
|---|---|
| Size | 4.0 inches |
| Resolution | 480x800 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 550.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) |
| Memory | 4GB |
| Storage | 64GB |
| Operating System | Android 11.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Camera | |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Mechanical | |
| Dimension | 156.56 x 75 x 26 mm |
| Weight | 330g |
| IO Ports | |
| USB Port | 1 x USB Type C OTG, (support PD 2.0 charging) |
| Audio | 1 x Kenwood Audio Combo connector (Mic in or Line Out), 1 x Built-in Mic, 1 x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Indicator | 1 x LED Indicators, (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Environment | |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Power Button, 3 x Function Button, 1 x PTT Button, 1 x SOS Button |
| Power | |
| Battery | 7.6V 2700mAh |
| Battery Operating Time | 8Hr |
| Power Rating | 15V |
| Adapter | 15V PD Adapter with USB TypeC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | |
| Accessory | Universal Adapter, Battery |
| Optional Accessory | USB Type-C Cable, Micro SD Card, Charging Dock 2 bay, Charging Dock 6 bay |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | P400M9 |
| Series | P400 Handheld Computer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | P400M9 |
|---|---|
| Category | Enterprise Mobility, Handheld Computers, Winmate |
| Size | 4.0 inches |
| Resolution | 480x800 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 550.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Processor | ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) |
| Memory | 4GB |
| Storage | 64GB |
| Operating System | Android 11.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Dimension | 156.56 x 75 x 26 mm |
| Weight | 330g |
| USB Port | 1 x USB Type C OTG, (support PD 2.0 charging) |
| Audio | 1 x Kenwood Audio Combo connector (Mic in or Line Out), 1 x Built-in Mic, 1 x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Indicator | 1 x LED Indicators, (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | CE, FCC |
| Button | 1 x Power Button, 3 x Function Button, 1 x PTT Button, 1 x SOS Button |
| Battery | 7.6V 2700mAh |
| Battery Operating Time | 8Hr |
| Power Rating | 15V |
| Adapter | 15V PD Adapter with USB TypeC |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | Universal Adapter, Battery |
| Optional Accessory | USB Type-C Cable, Micro SD Card, Charging Dock 2 bay, Charging Dock 6 bay |
| Brand | Winmate |
| Manufacturer part number | P400M9 |
| Series | P400 Handheld Computer |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
