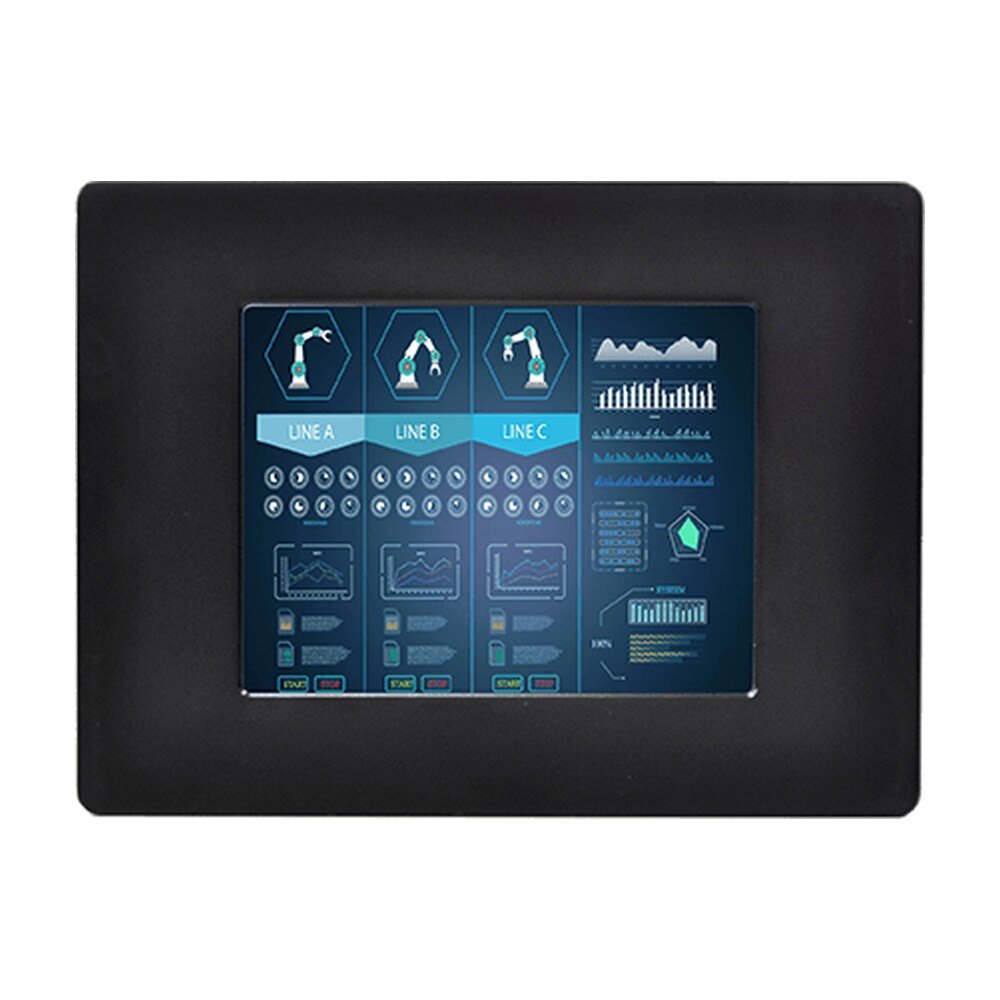

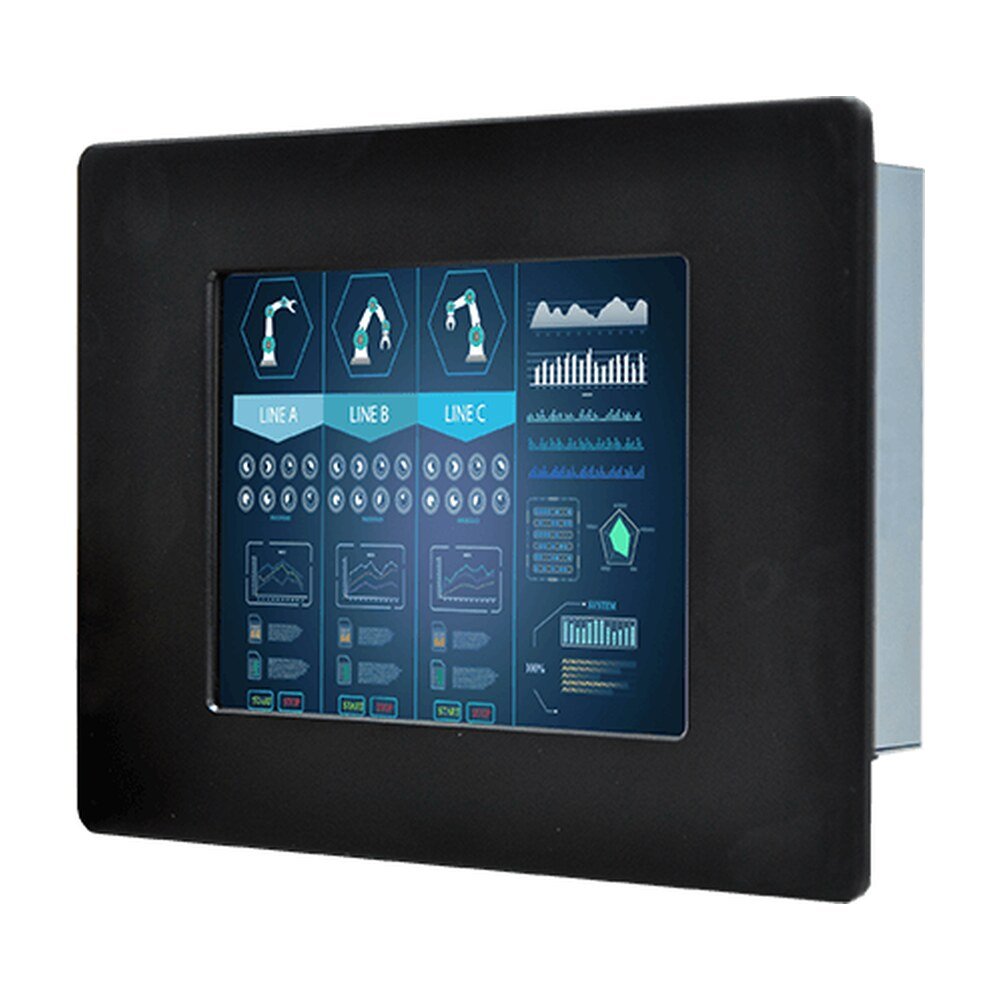

Explore Winmate R05T100-IPD1HB, an industrial display featuring 5.7-inch display with 640x480 resolution, IP65 for industrial visualization and control rooms.
Winmate's Front IP65 Series Display built for wet and dusty applications; it is rated to IP65 and supports water and dust resistance while keeping a compact and narrow bezel design, suitable for use in wet and dusty environments such as factory automation, outdoor kiosks, swimming pool and SPA kiosk, and others.
For the convenience of the operators working in the industrial environment, the Front IP65 Display Series offers flexible surface options such as cover glass (when touch is not required) and resistive touch screen to meet different specifications.
For easy integration to all embedded boards and systems, the Front IP65 Series Display comes with VGA, HDMI signal interfaces. Both interfaces are easy to use and support most of the industrial and commercial applications.
The Front IP65 Series Display has a unique rubber (O-ring) on the front bezel's rear. This design allows sealing the front bezel and the customer's fixture to prevent water and dust from entering the enclosure. Moreover, the display is easy to install inside a cabinet or a rack for various applications.
When embedded in an enclosure, the Front IP65 Series Display is suitable for use in wet and dusty industrial environments. When installed correctly, the display rated IP65 from the front side withstands rigors of outdoors - water, humidity, cold, heat, sunlight, airborne particles – making it suitable for outdoor kiosks in parking, gas stations, swimming pools, and other locations.
Winmate High brightness displays provide trustworthy 24/7 operation in virtually any scenario. Protective anti-reflective glass that is glued with an optical-grade adhesive to the front of the display to enhance its readability under direct sunlight or in high humidity outdoor environments. This method eliminates the air gap and bubbles between the cover glass and the display and significantly reduces reflections. At the same time, the contrast ratio increases as reflections are reduced.
| Display | |
|---|---|
| Size | 5.7 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass w/o Touch Function (Optional) |
| Resolution | 640x480 |
| Panel Brightness | 900.0 nits |
| Contrast Ratio | 300:1 |
| View Angles | 70,70,40,60 |
| Display Color | 262K Colors |
| Active Area | 115.2x86.4 mm |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen (Optional) |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Mechanical | |
| Dimension | 198 x 162 x 41 mm |
| Cut out | 170 x 138mm |
| Mounting | Panel mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power | |
| Power Rating | 12V DC in |
| Optional function | High brightness Panel for sunlight readable (Optional) |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R05T100-IPD1HB |
| Series | Front IP65 Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R05T100-IPD1HB |
|---|---|
| Category | Front IP65, Industrial Display, Winmate |
| Size | 5.7 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass w/o Touch Function (Optional) |
| Resolution | 640x480 |
| Panel Brightness | 900.0 nits |
| Contrast Ratio | 300:1 |
| View Angles | 70,70,40,60 |
| Display Color | 262K Colors |
| Active Area | 115.2x86.4 mm |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 1 x USB for Touch Screen (Optional) |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Dimension | 198 x 162 x 41 mm |
| Cut out | 170 x 138mm |
| Mounting | Panel mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power Rating | 12V DC in |
| Optional function | High brightness Panel for sunlight readable (Optional) |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | R05T100-IPD1HB |
| Series | Front IP65 Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
