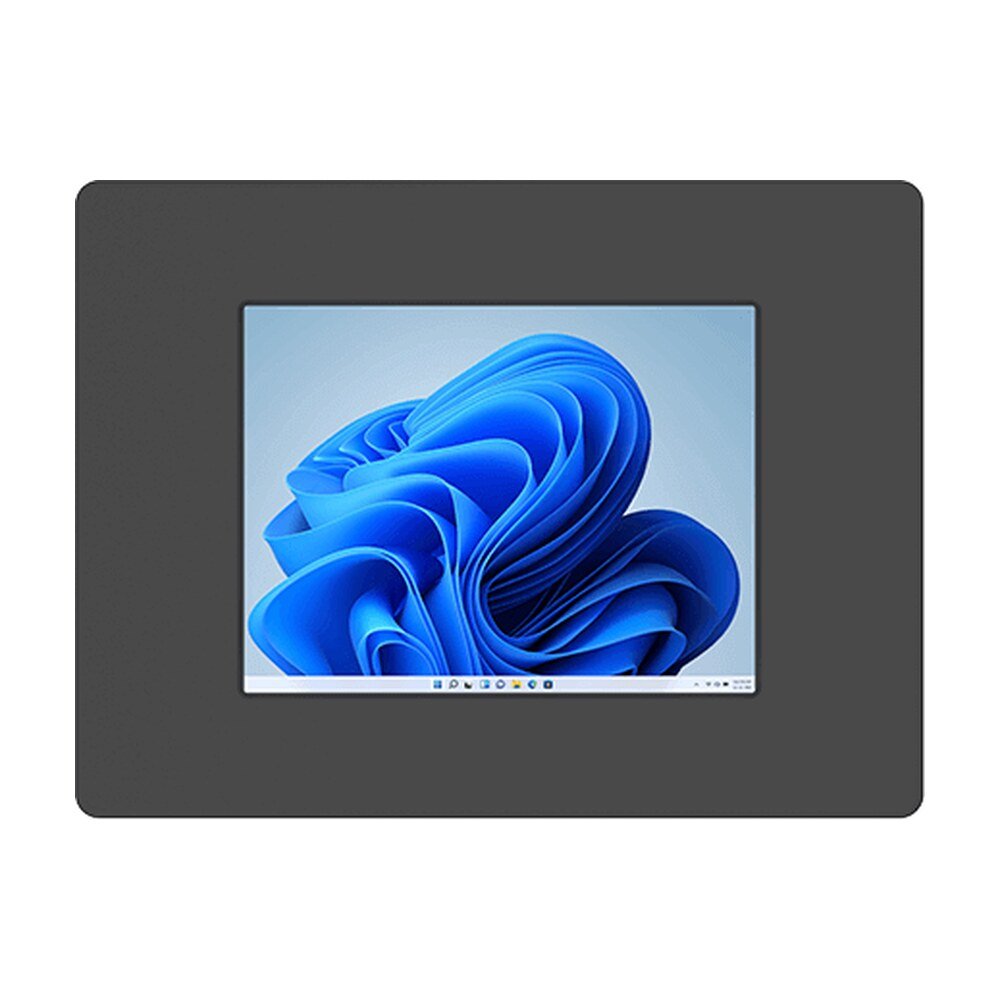

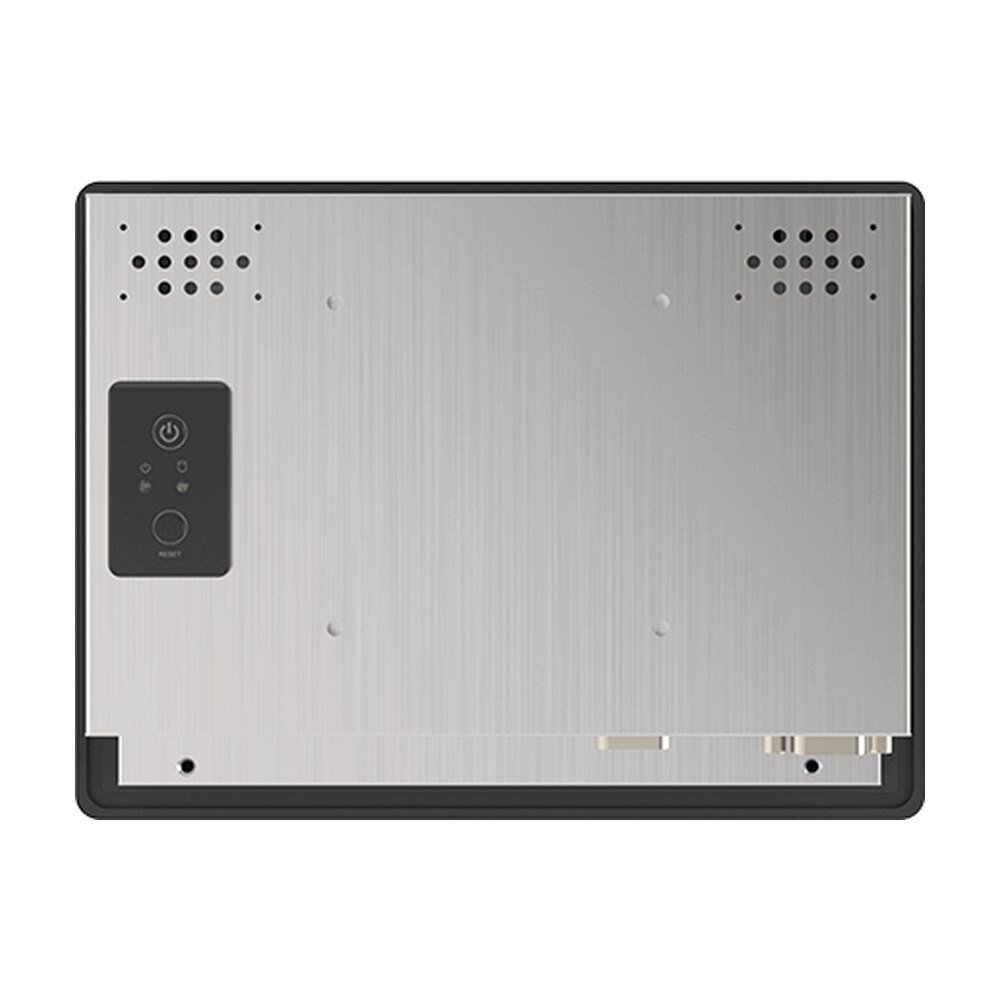

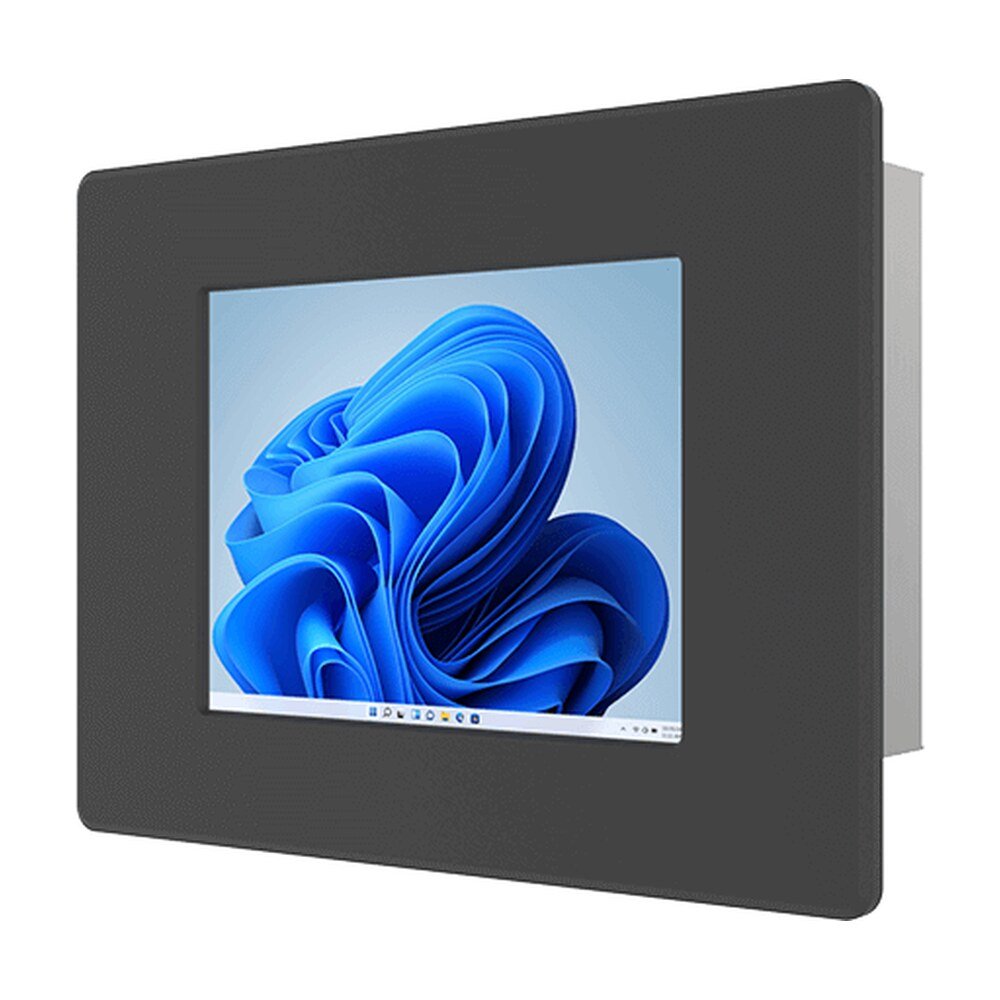

Explore Winmate R06IAN3S-IPA1, an industrial panel PC featuring 6.5-inch display, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R06IAN3S-IPA1, an industrial panel PC featuring 6.5-inch display, IP65 for machine control and factory automation.
The Winmate Front IP65 Panel PC, built with the Intel® Processor N100 featuring integrated UHD Graphics, delivers dependable computing and visual performance for automation and monitoring applications. It supports precise control, real-time data processing, and smooth graphics rendering, ensuring stable and efficient system operation in industrial environments.
The Winmate Front IP65 Panel PC features a SVGA TFT LCD that delivers crisp and reliable visuals. Designed for industrial automation and embedded applications, it ensures excellent readability and intuitive operation even in compact environments.
Designed for flexibility, the Winmate Front IP65 Panel PC offers comprehensive I/O connectivity, including HDMI, USB 3.2 Type-C with DP-Alt, multiple COM ports, and USB interfaces. It easily integrates into diverse industrial and embedded environments.
The Winmate Front IP65 Panel PC comes with dual 2.5 Gigabit Ethernet ports for stable, high-speed communication between networks and devices. This enables seamless data exchange, boosts operational efficiency, and supports real-time industrial processes.
| Display | |
|---|---|
| Size | 6.5 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Resolution | 640x480 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 600:1 |
| View Angles | 80,80,70,70 |
| Active Area | 132.48x99.36 mm |
| System Specification | |
| Processor | Intel® Processor N150 6M Cache, up to 3.60 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 1 x SATA III for 2.5" SSD/HDD up to 2TB（Only available when NVME SSD is not present） (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| Mechanical | |
| Dimension | 218 x 164 x 55.6 mm |
| Cut out | 192 x 144 mm |
| Weight | 1.4 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A), 1 x USB 3.2 Gen 2x1 Type C connector,support DP Alt. mode |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R06IAN3S-IPA1 |
| Series | Front IP65 Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R06IAN3S-IPA1 |
|---|---|
| Category | Industrial Panel PC and HMI, Industrial Panel PCs (Resistive Touch), Winmate |
| Size | 6.5 inches |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass Without Touch Function (Optional) |
| Resolution | 640x480 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 600:1 |
| View Angles | 80,80,70,70 |
| Active Area | 132.48x99.36 mm |
| Processor | Intel® Processor N150 6M Cache, up to 3.60 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| Dimension | 218 x 164 x 55.6 mm |
| Cut out | 192 x 144 mm |
| Weight | 1.4 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A), 1 x USB 3.2 Gen 2x1 Type C connector,support DP Alt. mode |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| Brand | Winmate |
| Manufacturer part number | R06IAN3S-IPA1 |
| Series | Front IP65 Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
