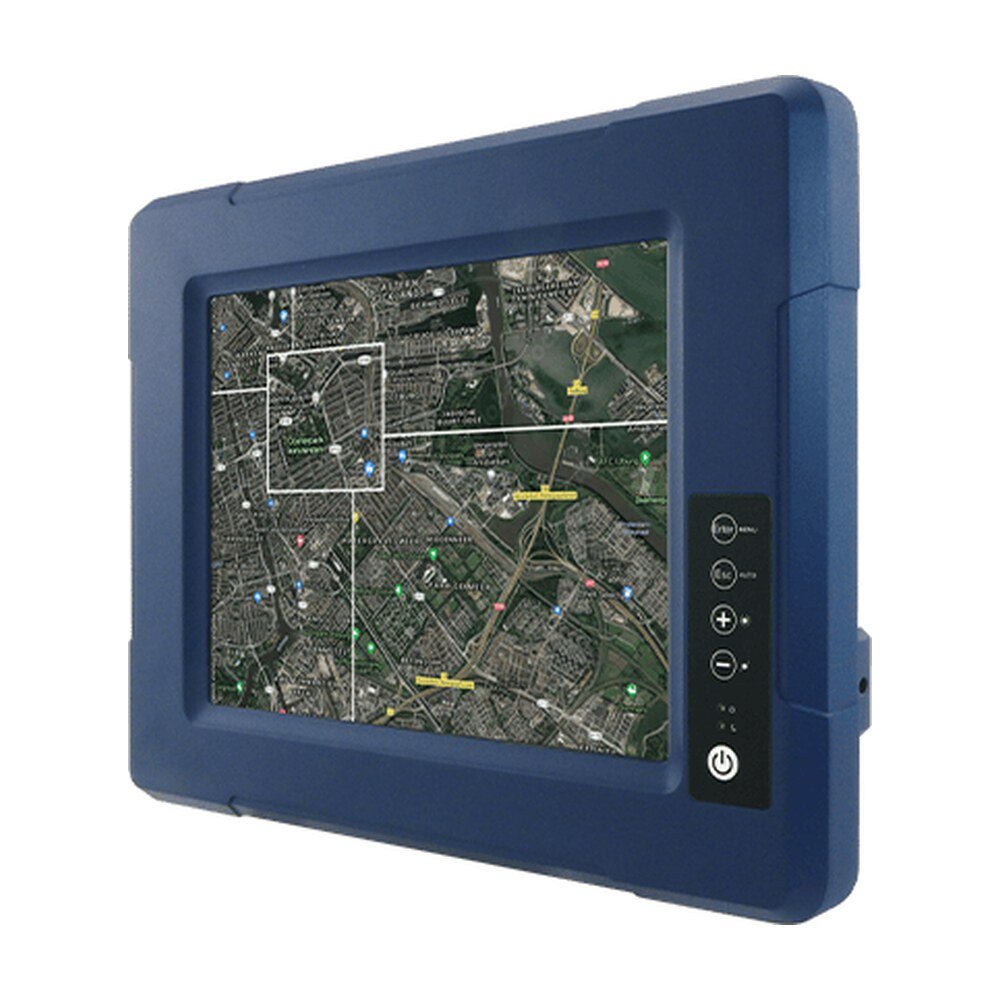

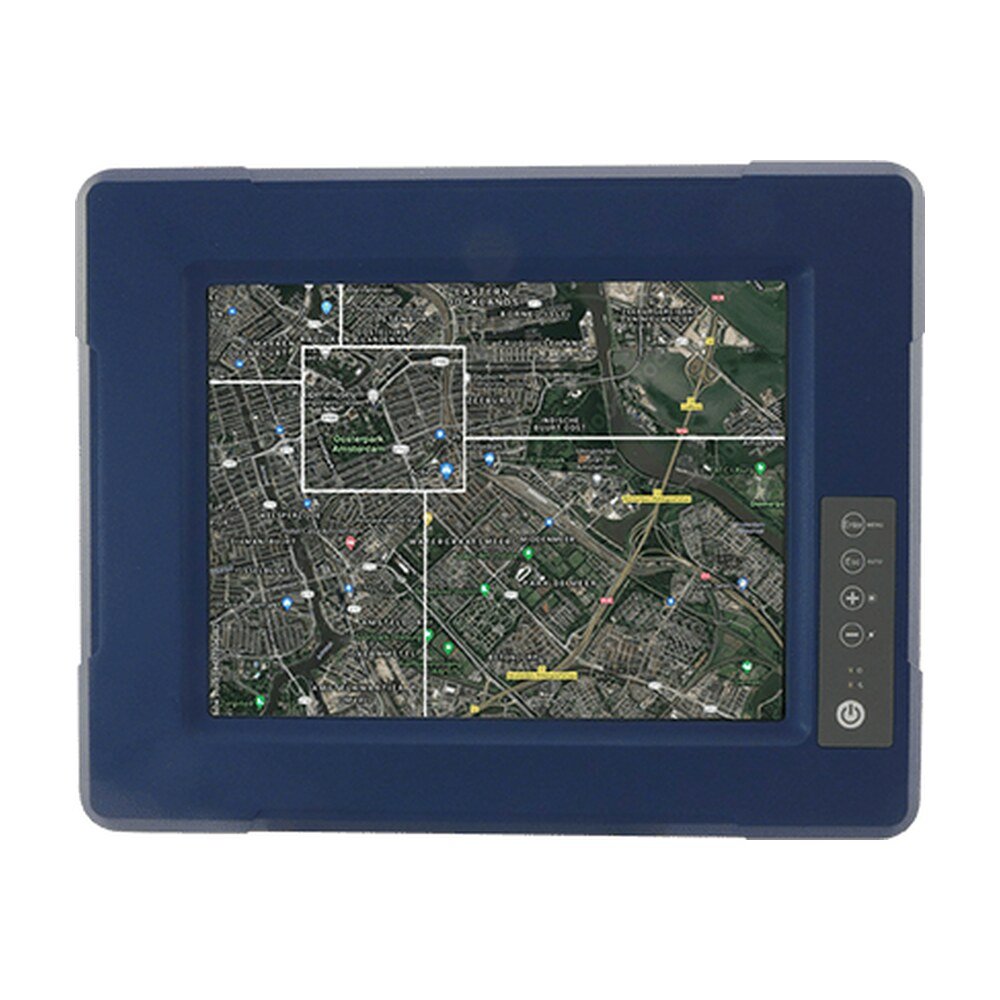

Explore Winmate R08L100-VMN1-NI, an industrial display featuring 8.4-inch display with 800x600 resolution, IP65, IP67 for defense operations and field command.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R08L100-VMN1-NI, an industrial display featuring 8.4-inch display with 800x600 resolution, IP65, IP67 for defense operations and field command.
Winmate’s G-WIN Resistive Touch NVIS Display is designed to operate dependably in outdoor and field environments. With a tested operating range of -20°C to 60°C, it supports consistent functionality in both cold and hot climates. This makes it suitable for use in mobile military units, field installations, and outdoor tactical systems.
Winmate’s G-WIN Resistive Touch NVIS Display features a 9–36V DC isolated wide-range power input to support diverse installation needs. Built for mobile and in-vehicle applications, it offers stable voltage protection and enhanced reliability. The optional ignition on/off control function ensures smooth startup and shutdown in vehicle systems, making it a smart fit for automotive and military platforms.
This NVIS display supports both Day Mode and NVIS Mode, making it highly adaptable to changing light conditions. Whether used under direct sunlight or in low-light tactical environments, it ensures clear, readable visuals at all times. Its resistive touch functionality adds precision control, even with gloves or in challenging conditions.
Fully compliant with MIL-STD-3009, the G-WIN Resistive Touch NVIS Display meets strict military standards for night vision compatibility. Designed by Winmate for military field environments. It provides safe, non-disruptive backlighting that supports NVG-equipped missions. Designed for rugged mobility and tactical precision, Winmate’s solution is trusted in defense-grade applications.
| Display | |
|---|---|
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass w/o Touch Function (Optional) |
| Size | 8.4 inches |
| Resolution | 800x600 |
| Panel Brightness | 1000/NVIS nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 170.4x127.8 mm |
| Mechanical | |
| Dimension | 277 x 219.5 x 59.6 mm |
| Weight | 2.2 kg |
| Mounting | VESA mount (Default), Yoke mount (Optional) |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1x USB type-A for touch screen control (Optional) |
| Serial Port | 1 x RS232 D-sub9 for touch screen control (Optional) |
| Video | 1x VGA input (Default), 1x HDMI input (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Control | |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x Menu button |
| Accessory | |
| Accessory | Open Wire Cable with terminal block connector, External VGA cable, VESA screws |
| Optional Accessory | Yoke mount stand (Optional), 100~240V AC to DC 50W Adapter with power cord (Optional), External USB/COM cable for touchscreen control (Optional), External HDMI cable (Optional) |
| Power | |
| Power Rating | 9V~36V DC In Terminal Block |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R08L100-VMN1-NI |
| Series | NVIS Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R08L100-VMN1-NI |
|---|---|
| Category | Defence Display / NVIS Display, Defence Grade, Winmate |
| Touch / Glass | Resistive Touch Screen (Optional), Protection Glass w/o Touch Function (Optional) |
| Size | 8.4 inches |
| Resolution | 800x600 |
| Panel Brightness | 1000/NVIS nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 170.4x127.8 mm |
| Dimension | 277 x 219.5 x 59.6 mm |
| Weight | 2.2 kg |
| Mounting | VESA mount (Default), Yoke mount (Optional) |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 1x USB type-A for touch screen control (Optional) |
| Serial Port | 1 x RS232 D-sub9 for touch screen control (Optional) |
| Video | 1x VGA input (Default), 1x HDMI input (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x Menu button |
| Accessory | Open Wire Cable with terminal block connector, External VGA cable, VESA screws |
| Power Rating | 9V~36V DC In Terminal Block |
| Brand | Winmate |
| Manufacturer part number | R08L100-VMN1-NI |
| Series | NVIS Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
