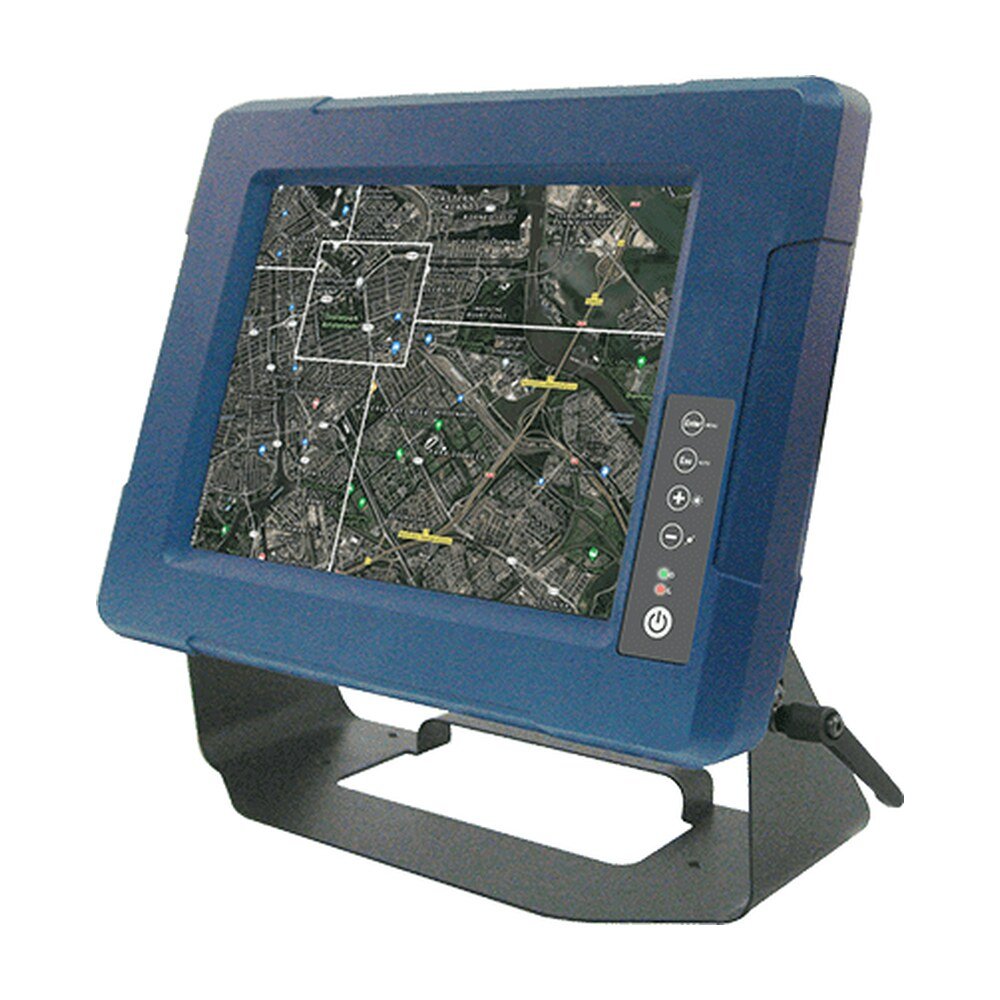

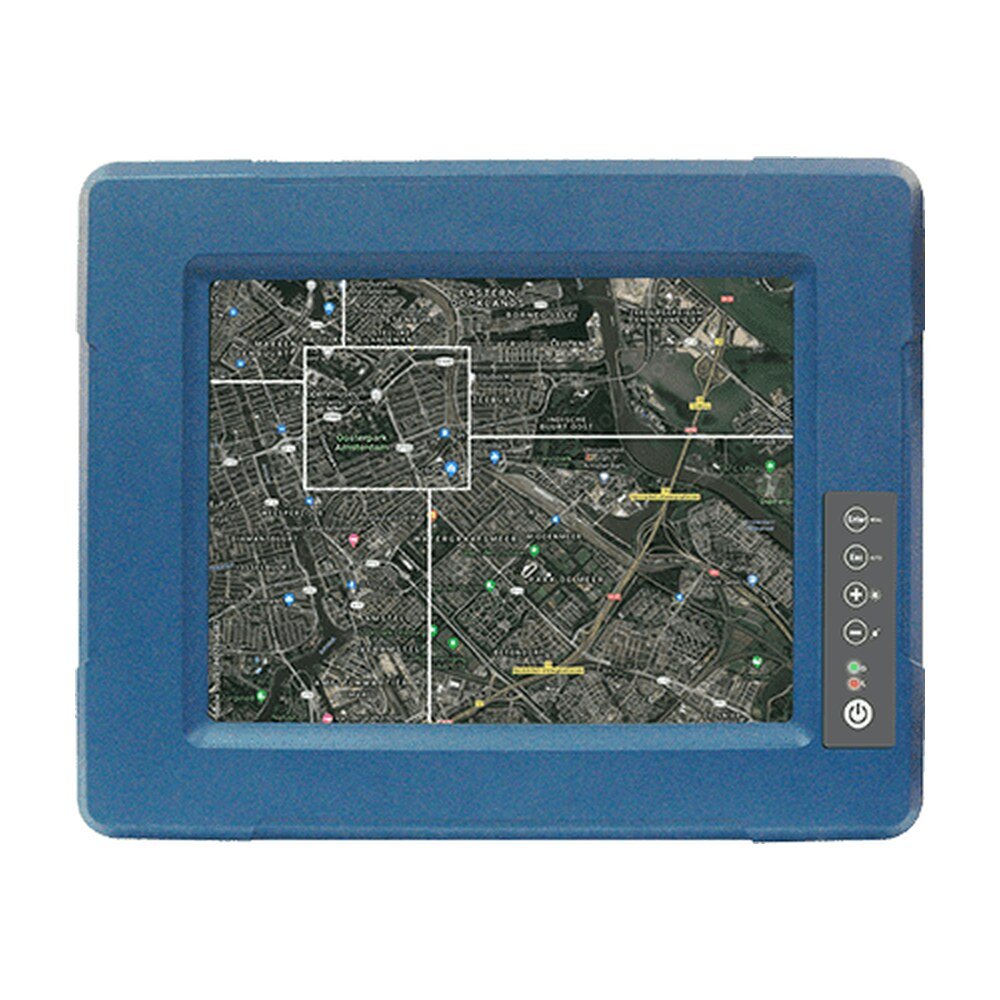

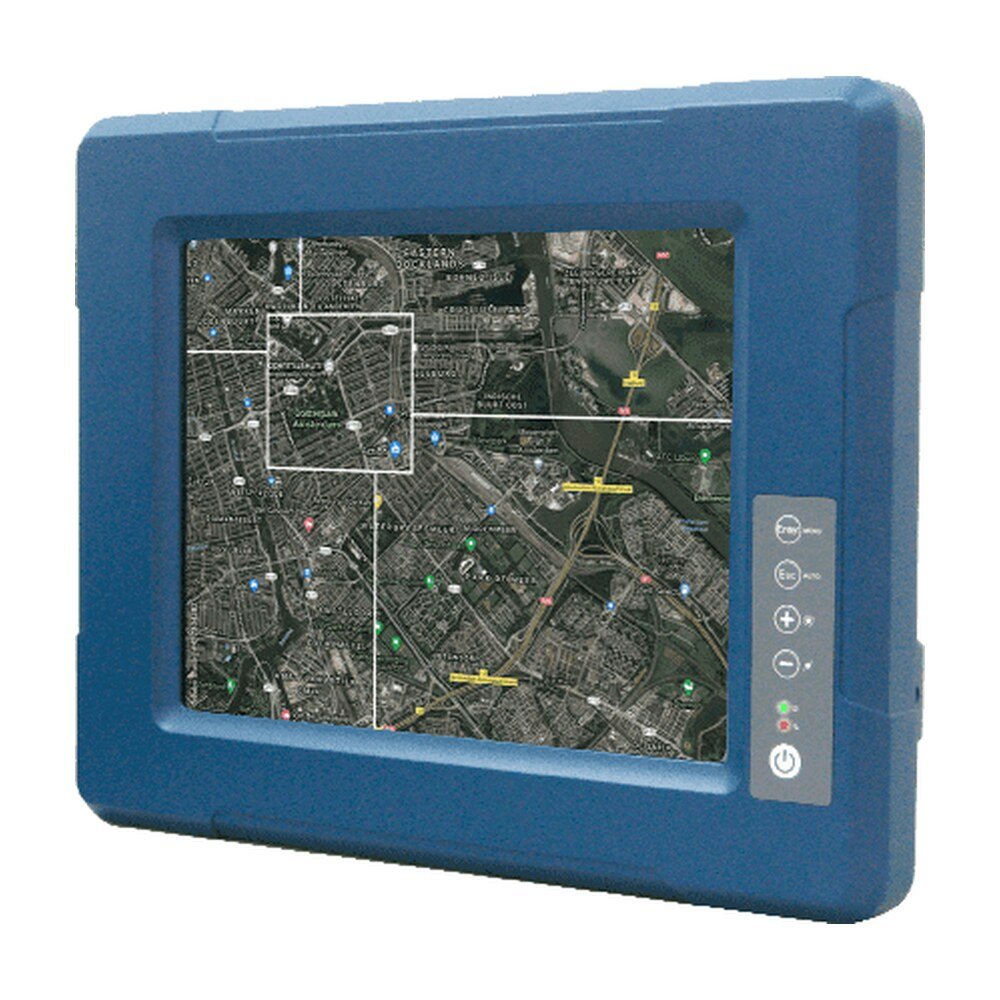

Explore Winmate R10L100-MLT2, an industrial display featuring 10.4-inch display with 1024x768 resolution, IP65, MIL-STD-810G for defense operations and field…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R10L100-MLT2, an industrial display featuring 10.4-inch display with 1024x768 resolution, IP65, MIL-STD-810G for defense operations and field…
To meet the Defence and defense's regulatory requirements, all Winmate's G-WIN Defence Displays are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standards. Winmate performs in-house reliability tests to ensure optimal performance in harsh defence environments.
The G-WIN Defence Displays offer robust, rugged computing solutions for armored and defence vehicles - vibration resistant MIL-STD-810G, water, and dustproof IP6x fixed-mount or mobile with vehicle docking solution for vehicle navigation, location tracking, and real-time communications between the vehicle and control center.
The G-WIN Defence Displays are finished with an IP65-rated housing against water and dust and withstand extreme temperatures. Suitable for both cold and hot weather conditions.
The G-WIN Defence Displays come with defence-grade lockable MIL-DTL-38999 type I high power connector that accepts a wide power input range 9 to 36V DC. Suits the increased need for power carrying capability, safety, and defence requirements. Compatible with existing defence vehicle systems.
The G-WIN Defence Displays feature a user-friendly touchscreen and physical OSD buttons on the front panel for fast access to the central control.
| Display | |
|---|---|
| Size | 10.4 inches |
| Touch / Glass | AR Protection Glass (Default), 5 Wires Resistive Touch (Optional), 5 Wire Resistive with EMI Mesh Filter (Optional), EMI Glass (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 210.4x157.8 mm |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Shock | USA: MIL-STD-810H Method 516.8 – Procedure I, Operating:30g for 18ms, , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 402–Procedure I (optional) |
| Vibration | USA: MIL-STD-810H Method 514.8 – Procedure I, Operating: 1.60/1.96/2.18 g rms for XYZ / 5-500Hz, , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP, 401–Procedure I (optional) |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| Compliance | |
| MIL-STD 461G | USA MILSTD461G CE101, CE102, RE101, RE102, CS118 (Default) , MILSTD461G CS101, CS106, CS109, CS114, CS115, CS116, RS101, RS103 (Optional) , , NATO STANAG 4370/AECTP501 NCE01, NCE02, NRE01, NRE02, NCS12 (Default) , STANAG 4370/AECTP501 NCS01, NCS07, NCS08, NCS09, NRS01, NRS02 (Optional) |
| MIL-STD 810H | USA: MIL-STD-810H (default): Vibration Method 514.6, Humidity Method 507.6, Transit Drop Method516.6, , NATO (optional): Vibration Test STANAG 4370/AECTP-401, Shock STANAG 4370/AECTP-402 Procedure I, Drop and Topple Test STANAG 4370/AECTP-404 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| Serial Port | 1x RS232 for Touch Screen (Optional) |
| Video | 1 x VGA (Default), HDMI (Optional) |
| Mechanical | |
| Dimension | 315.9 x 250.9 x 67 mm |
| Mounting | VESA mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | User Manual, Touch Driver CD, Open Wire Cable |
| Optional Accessory | Mounting Bracket (Optional) |
| Power | |
| Power Rating | 12V DC (MIL-DTL-38999/1 connector) (Default), 9V to 36V wide range (Optional) |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R10L100-MLT2 |
| Series | G-WIN Defence Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R10L100-MLT2 |
|---|---|
| Category | Defence Display / NVIS Display, Defence Grade, Winmate |
| Size | 10.4 inches |
| Touch / Glass | AR Protection Glass (Default), 5 Wires Resistive Touch (Optional), 5 Wire Resistive with EMI Mesh Filter (Optional), EMI Glass (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 210.4x157.8 mm |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Shock | USA: MIL-STD-810H Method 516.8 – Procedure I, Operating:30g for 18ms, , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 402–Procedure I (optional) |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| Certification | CE, FCC |
| Serial Port | 1x RS232 for Touch Screen (Optional) |
| Video | 1 x VGA (Default), HDMI (Optional) |
| Dimension | 315.9 x 250.9 x 67 mm |
| Mounting | VESA mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | User Manual, Touch Driver CD, Open Wire Cable |
| Optional Accessory | Mounting Bracket (Optional) |
| Power Rating | 12V DC (MIL-DTL-38999/1 connector) (Default), 9V to 36V wide range (Optional) |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | R10L100-MLT2 |
| Series | G-WIN Defence Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
