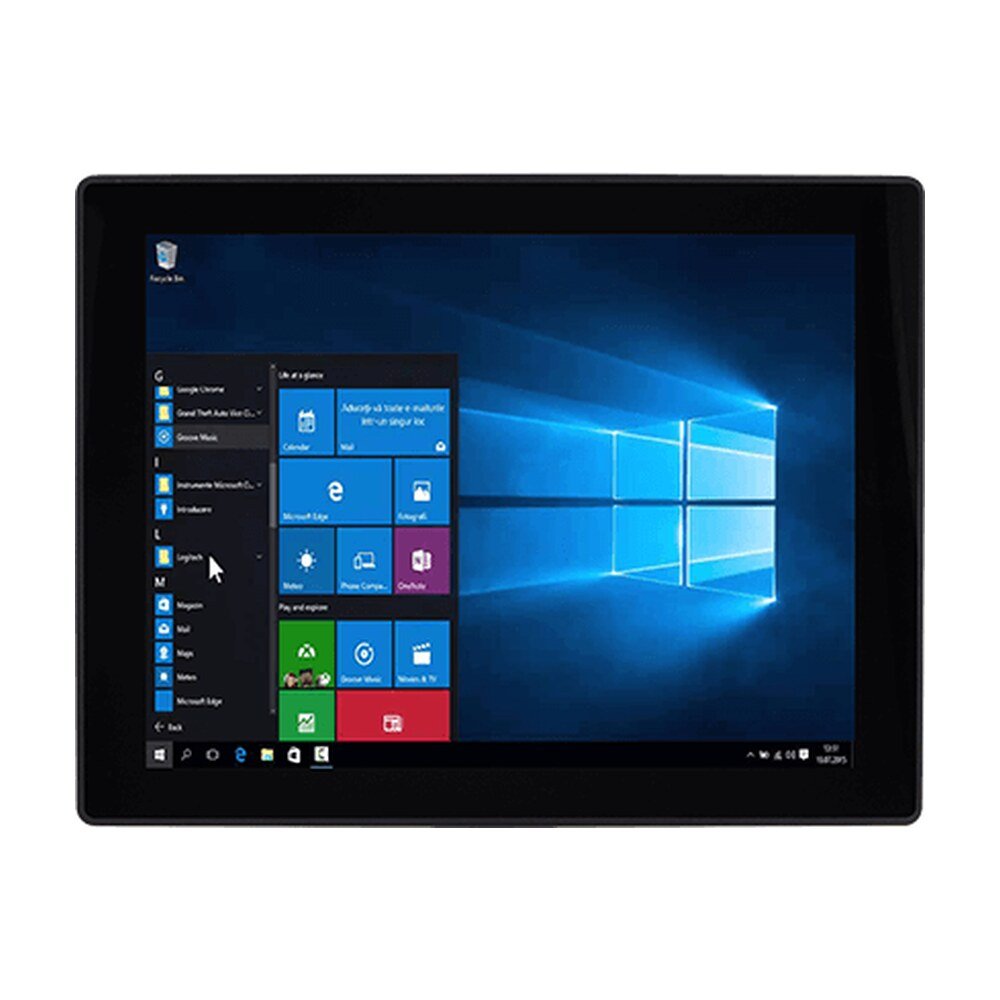

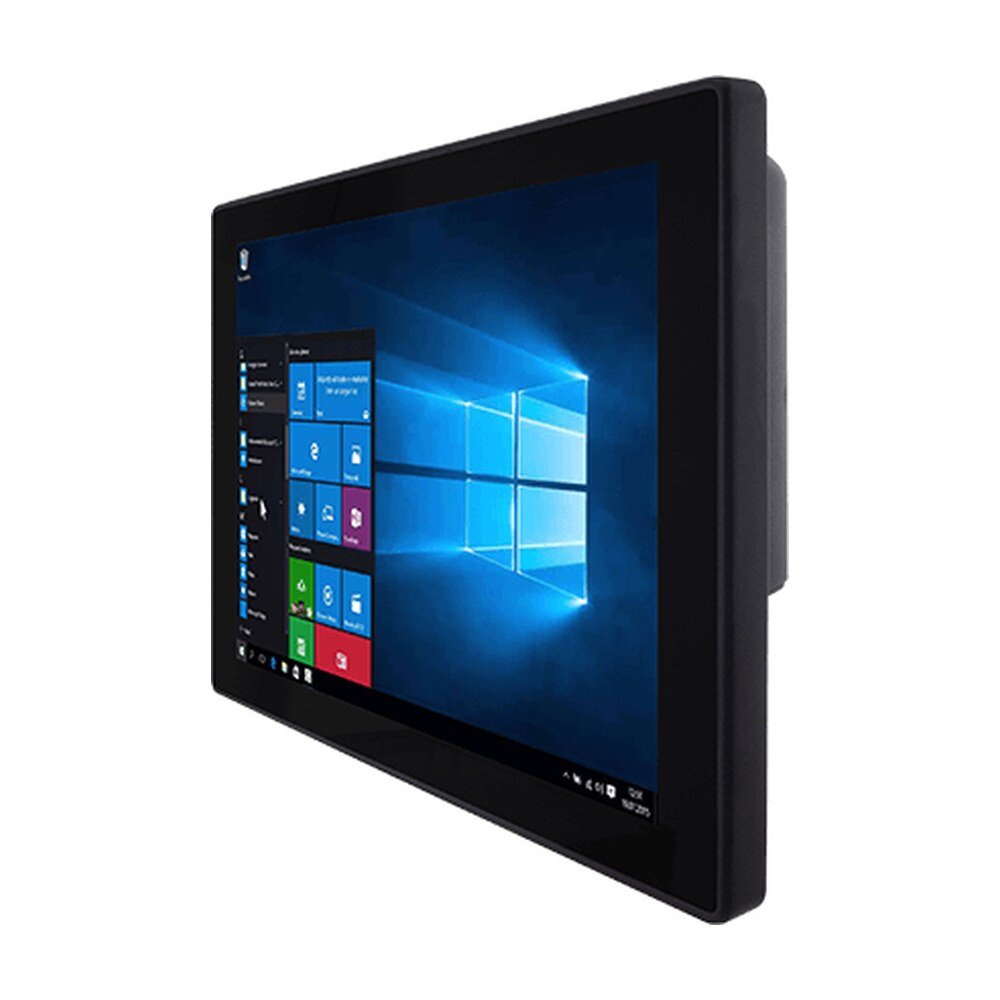

Explore Winmate R12IAD3S-GCM2(HB), an HMI panel PC featuring Intel® Core™ i5-1235U, 12.1-inch display with 1024x768 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R12IAD3S-GCM2(HB), an HMI panel PC featuring Intel® Core™ i5-1235U, 12.1-inch display with 1024x768 resolution…
Featuring a glass cover lens, the GC Series Panel PC offers exceptional scratch resistance. Its P-Cap Touch capability supports up to four touch points, ensuring smoother interaction and simplifying device operation, significantly improving the overall user experience.
The Winmate GC Series utilizes fanless cooling technology, employing heat sinks and vapor chambers for efficient temperature regulation without noisy fans, ideal for panel PCs and industrial settings, ensuring high performance with minimal noise.The Winmate GC Series utilizes fanless cooling technology, employing heat sinks and vapor chambers for efficient temperature regulation without noisy fans, ideal for panel PCs and industrial settings, ensuring high performance with minimal noise.
The G-WIN GC series panel PC boasts a front IP65 rating, ensuring robustness against water and dust in harsh environments. This shielding protects it from water splashes, dust, and other contaminants, preserving operational integrity. Operators can confidently deploy this HMI in challenging industrial conditions, assured of its reliability and longevity, which is vital for supporting critical industrial operations effectively.
Experience a dust-free setting with the true flat surface of the GC series panel PC. Its sleek aesthetic, characterized by a fully flat surface and edge-to-edge bezel, ensures effortless maintenance and cleaning. The easy-to-clean feature not only enhances convenience but also helps prevent water or liquid from seeping into device crevices.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 12.1 inches |
| Resolution | 1024x768 |
| Panel Brightness | 500 nits(Default), 1000 (Optional) |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 245.76x184.32 mm |
| System Specification | |
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 8GB(Default), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Default), 1 x RS232 (Optional) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Audio | 2 x Speaker |
| Mechanical | |
| Dimension | 296.2 x 226.7 x 47.5 mm |
| Mounting | VESA mount, Panel mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter , Power Cable |
| Power | |
| Power Rating | 12V DC input (Default), 9~36V DC input (Optional) |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R12IAD3S-GCM2(HB) |
| Series | Standalone Panel PC (HMI) |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R12IAD3S-GCM2(HB) |
|---|---|
| Category | Industrial Panel PC and HMI, Industrial Panel PCs (P-CAP Touch), Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 12.1 inches |
| Resolution | 1024x768 |
| Panel Brightness | 500 nits(Default), 1000 (Optional) |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 245.76x184.32 mm |
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 8GB(Default), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Default), 1 x RS232 (Optional) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Audio | 2 x Speaker |
| Dimension | 296.2 x 226.7 x 47.5 mm |
| Mounting | VESA mount, Panel mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter , Power Cable |
| Power Rating | 12V DC input (Default), 9~36V DC input (Optional) |
| Button | 1 x Power Button, 1 x Reset Button |
| Brand | Winmate |
| Manufacturer part number | R12IAD3S-GCM2(HB) |
| Series | Standalone Panel PC (HMI) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
