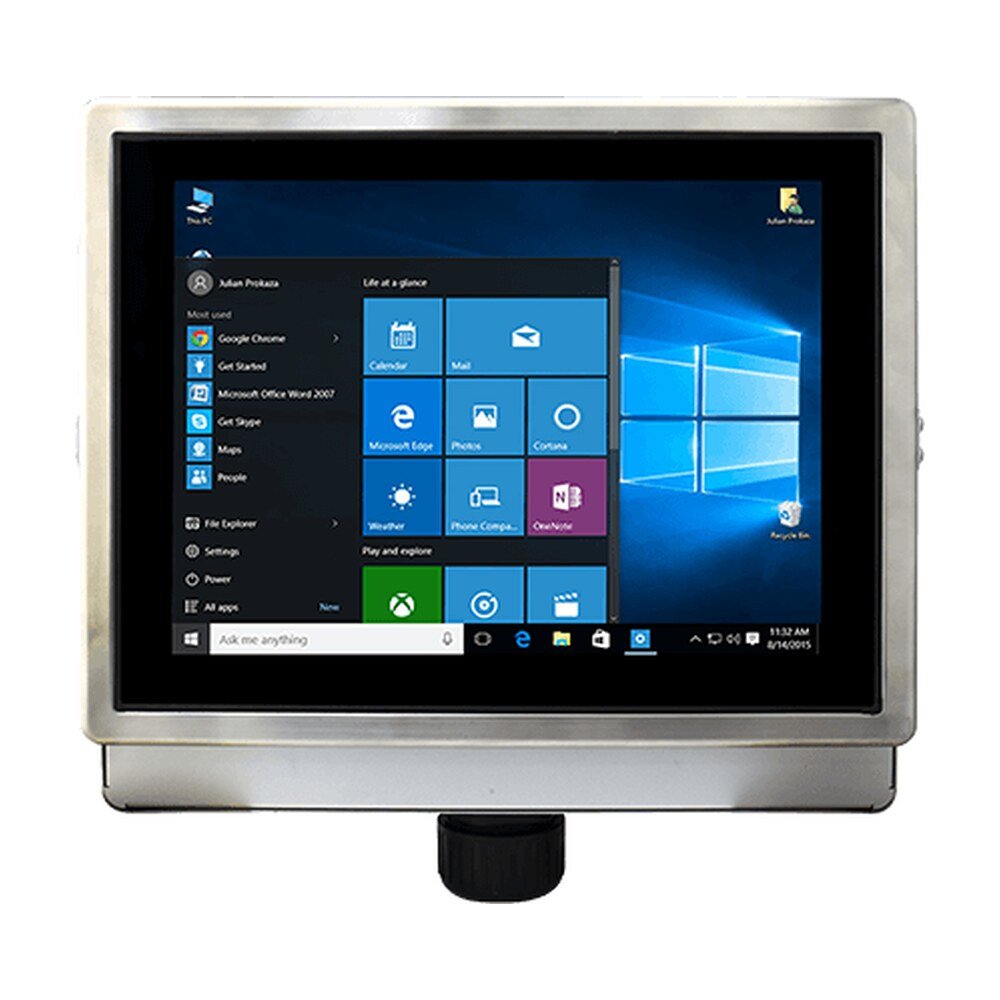

Explore Winmate R15IB3S-65EX, a hazardous-area rugged computer featuring Intel® Celeron® N2930, 15-inch display with 1024x768 resolution, IP65…
The R15IB3S-65EX is ATEX Zone 2 certified computers for remote data collection, process visualization, and control. Suitable for the deployment in ATEX Zone, where safety is the priority.

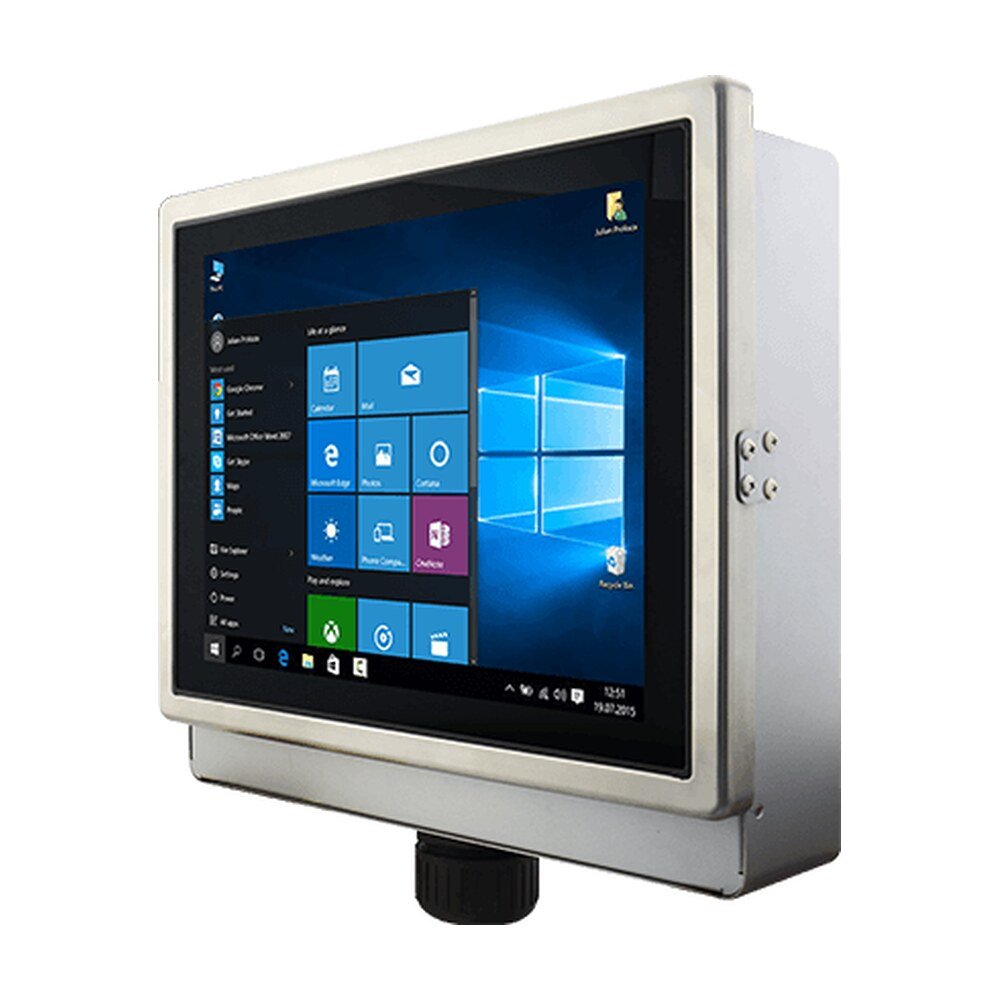

Take production control to the next level with real-time data monitoring and visualization. The R15IB3S-65EX is a stainless ATEX panel PC with a set of features designed to withstand industrial use in hazardous locations and extreme temperatures while providing high tech solutions that increase productivity, improve safety, and reduce operational costs.
The processing power comes from Intel® Celeron® N2930 processor paired with genuine Intel graphics for stable computing performance and ultra-low power consumption. Fanless, streamlined enclosure for highly efficient heat dissipation.
Enhance customer experience with PCAP touch that supports multi-touch and can easily be controlled by fingers. Enjoy every touch and convenience when using the R15IB3S-65EX, and experience the ultimate durability in some of the most demanding applications, such as a control panel of a drilling rig.
The R15IB3S-65EX ATEX panel PC is rated for a wide temperature use -20˚C to 50˚C and suitable for operating in outdoor or hazardous environments, whether there are blistering hot or cold temperatures.
| System Specification | |
|---|---|
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 4GB(Default), 8GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| Display | |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 550 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Mechanical | |
| Dimension | 396 x 310 x 49 mm (Without Box Cover), 396 x 346.4 x 101.7 mm (With Box Cover) |
| Weight | 5.7 kg (Without Box Cover), 10.2 Kg (With Box Cover) |

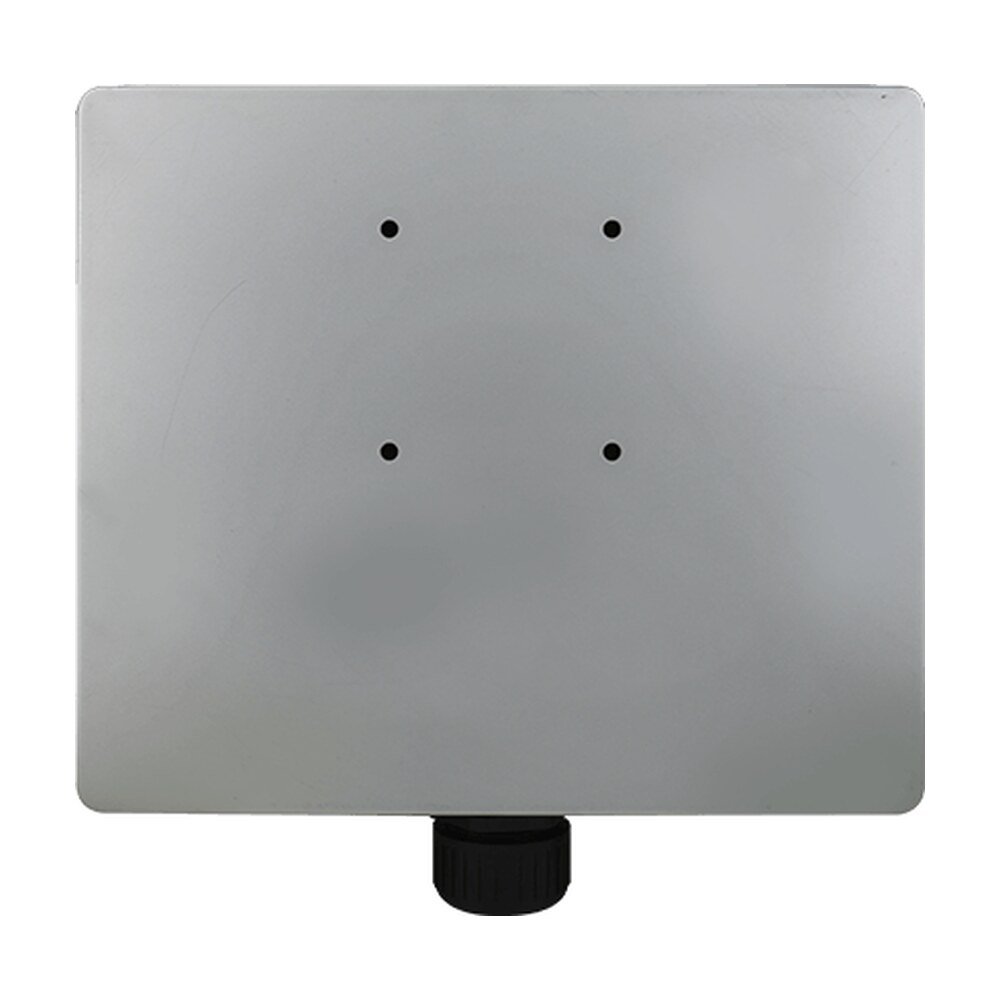

| Mounting | VESA mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6 Procedure IV |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC, , UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, EN 62368-1, , Class I, Div.2, Groups A,B,C,D T4, -20 <= Tamb <= 50, Meet Standards, ANSI/ISA-12.12.01-2012, CSA/CSA C22.2 No. 213-M1987, , ATEX II 3G Ex ic nA IIC T4 Gc, -20 <= Tamb <= 50, Meet Standards, EN 60079-0, EN 60079-11, EN 60079-15, , IECEx Ex nA IIC T4 Gc, -20 <= Tamb <= 50, Meet Standards, IEC 60079-0, IEC 60079-15 |
| IO Ports | |
| USB Port | 1x M12 type connector for 2 x USB2.0 |
| Serial Port | 1 x M12 connector for RS232/422/485 (Default RS232) |
| LAN | 1 x M12 type connecctor for Giga LAN |
| Expansion Port | 1 x mPCIe slot(for SATA III SSD), 1 x mPCIe slot(for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 9~36V DC, M12 Type connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | For Non-Ex Environment Use:, 100~240V AC to DC Power Adapter with M12 Connector, Power Cord, M12 Type Power Cable, M12 Type RS232 Male Cable, M12 Type USB Female Cable, M12 Type LAN Cable, RJ45 female-female converter, USB Adapter (USB type A to type B), VESA screws |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15IB3S-65EX |
| Series | ATEX Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15IB3S-65EX |
|---|---|
| Category | ATEX Grade Panel PC, Industrial Panel PC and HMI, Winmate |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 4GB(Default), 8GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 550 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Dimension | 396 x 310 x 49 mm (Without Box Cover), 396 x 346.4 x 101.7 mm (With Box Cover) |
| Weight | 5.7 kg (Without Box Cover), 10.2 Kg (With Box Cover) |
| Mounting | VESA mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6 Procedure IV |
| IP rating | IP65 |
| USB Port | 1x M12 type connector for 2 x USB2.0 |
| Serial Port | 1 x M12 connector for RS232/422/485 (Default RS232) |
| LAN | 1 x M12 type connecctor for Giga LAN |
| Expansion Port | 1 x mPCIe slot(for SATA III SSD), 1 x mPCIe slot(for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 9~36V DC, M12 Type connector |
| Button | 1 x Power Button, 1 x Reset Button |
| Brand | Winmate |
| Manufacturer part number | R15IB3S-65EX |
| Series | ATEX Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
