Explore Winmate R15IE3S-65EX, a hazardous-area rugged computer featuring Intel® Atom® x6413E, 15-inch display with 1024x768 resolution, IP65…

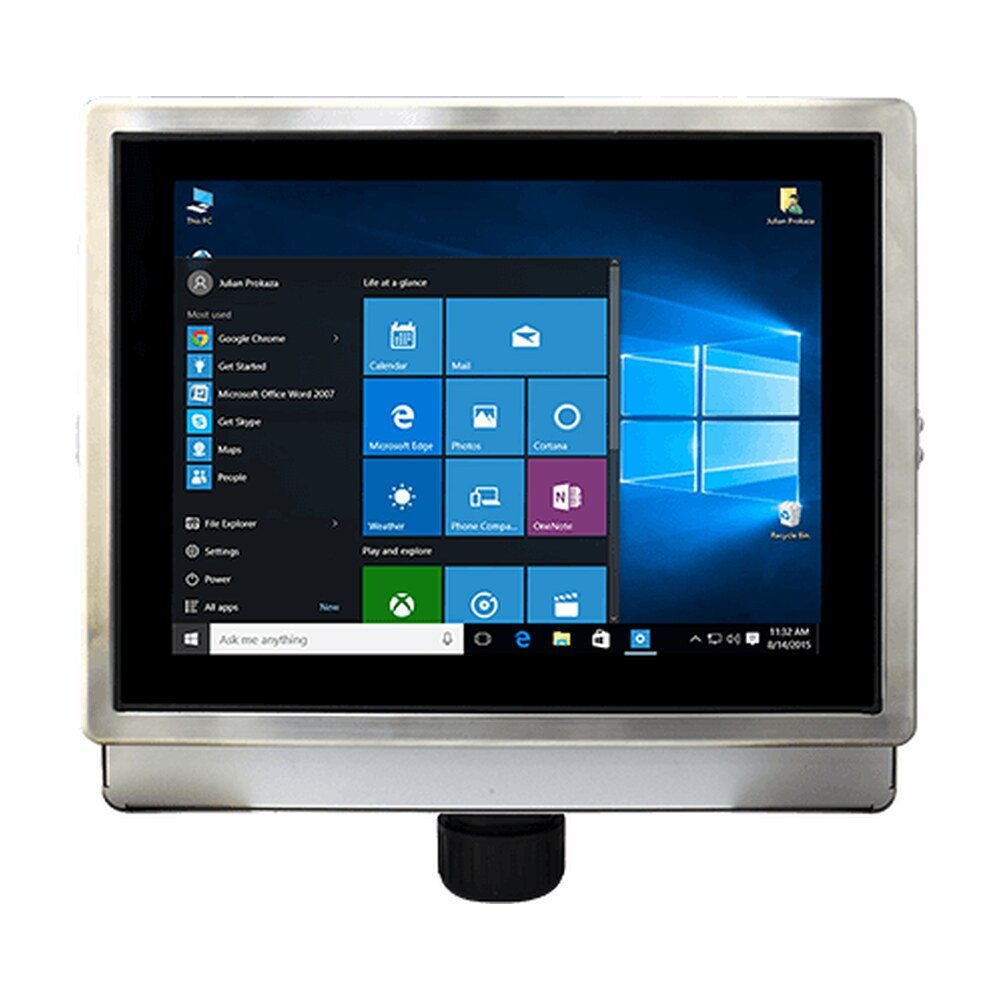

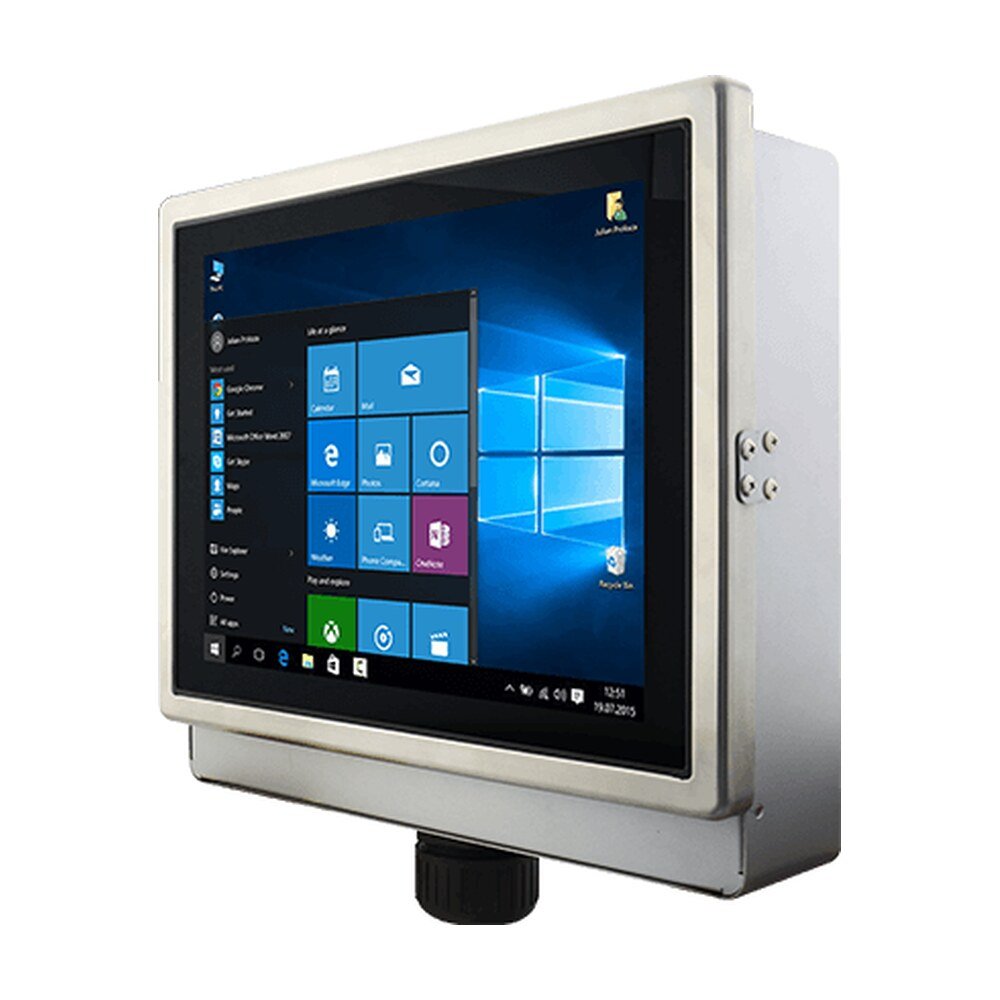

Winmate R15IE3S-65EX ATEX Panel PC provide a reliable and safe computing solution for industries operating in hazardous environments, helping to improve operational efficiency while ensuring compliance with regulatory standards.
The Winmate R15IE3S-65EX ATEX Panel PC explosion-proof panel pc is driven by an Intel® CPU, boasting a fanless thermal design and sleek enclosure. This combination not only provides effective heat dissipation and top-tier performance for challenging tasks but also ensuring low power consumption and cost-effectiveness.
The R15IE3S-65EX ATEX Panel PC provides comprehensive IP65 protection against dust and water, making it suitable for use in potentially explosive and challenging environments. Equipped with EX-type brass cable glands featuring M12 ports, it ensures utmost protection in wet and dusty operating conditions.
The R15IE3S-65EX ATEX Panel PC is engineered to function effectively across a wide temperature spectrum, spanning from -20˚C to 60˚C. This versatility enables its deployment in outdoor settings or hazardous environments, ensuring reliable operation even in extreme hot or cold climates.
Improve customer interaction with PCAP touch technology, enabling multi-touch control with effortless finger manipulation. Delight in seamless touch functionality and ease of use with the R15IE3S-65EX, offering unparalleled durability for demanding applications like controlling a drilling rig's panel.
| System Specification | |
|---|---|
| Processor | Intel Atom® x6413E ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| Display | |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 550 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Mechanical | |
| Dimension | 396 x 310 x 49 mm (Without Box Cover), 396 x 346.4 x 101.7 mm (With Box Cover) |
| Weight | 5.7 kg (Without Box Cover), 10.2 Kg (With Box Cover) |

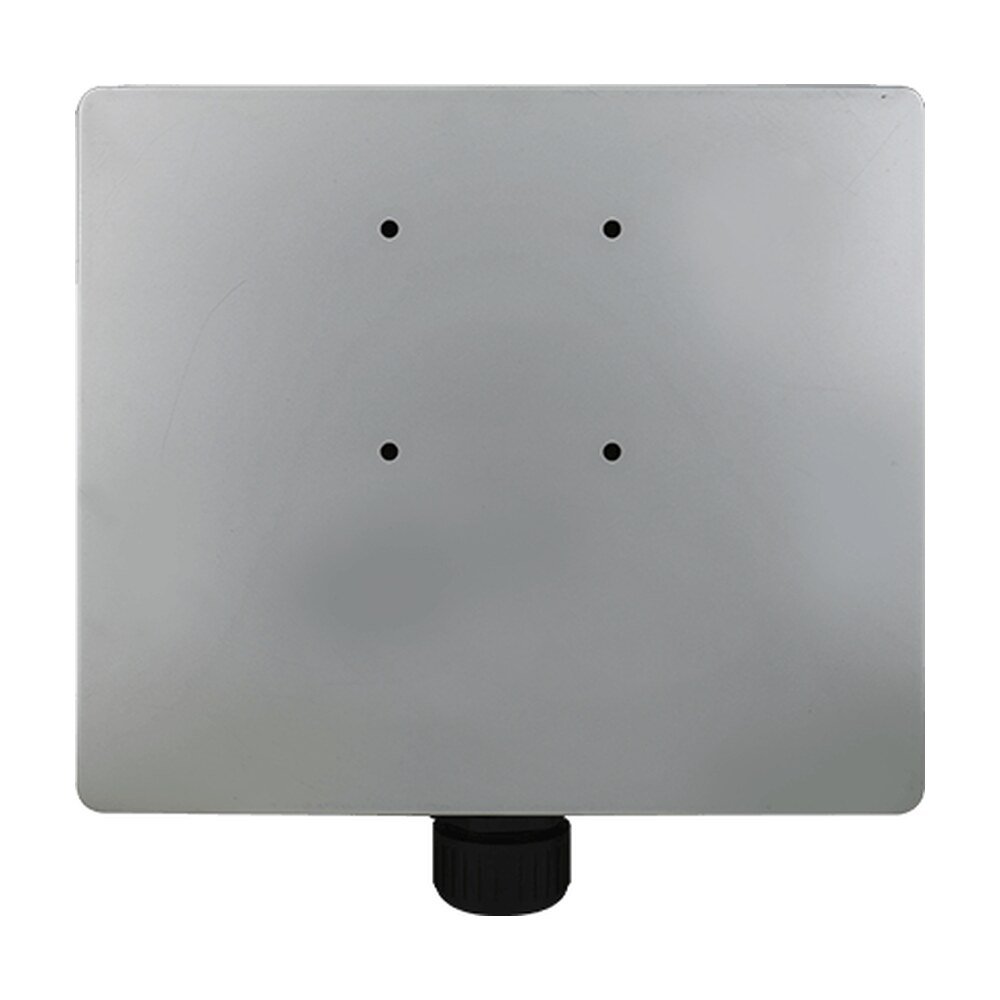

| Mounting | VESA mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6 Procedure IV |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC, IC, Compliance with ATEX / IECEx / CID2 Design |
| IO Ports | |
| USB Port | 1x M12 type connector for 2 x USB2.0 |
| Serial Port | 1 x M12 connector for RS232/422/485 (Default RS232) |
| LAN | 1 x M12 type connecctor for Giga LAN |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 9~36V DC, M12 Type connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | For Non-Ex Environment Use:, 100~240V AC to DC Power Adapter with M12 Connector, Power Cord, M12 Type Power Cable, M12 Type RS232 Male Cable, M12 Type USB Female Cable, M12 Type LAN Cable, RJ45 female-female converter, USB Adapter (USB type A to type B), VESA screws |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15IE3S-65EX |
| Series | ATEX Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15IE3S-65EX |
|---|---|
| Category | ATEX Grade Panel PC, Industrial Panel PC and HMI, Winmate |
| Processor | Intel Atom® x6413E ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 550 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Dimension | 396 x 310 x 49 mm (Without Box Cover), 396 x 346.4 x 101.7 mm (With Box Cover) |
| Weight | 5.7 kg (Without Box Cover), 10.2 Kg (With Box Cover) |
| Mounting | VESA mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6 Procedure IV |
| IP rating | IP65 |
| Certification | CE, FCC, IC, Compliance with ATEX / IECEx / CID2 Design |
| USB Port | 1x M12 type connector for 2 x USB2.0 |
| Serial Port | 1 x M12 connector for RS232/422/485 (Default RS232) |
| LAN | 1 x M12 type connecctor for Giga LAN |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 9~36V DC, M12 Type connector |
| Button | 1 x Power Button, 1 x Reset Button |
| Brand | Winmate |
| Manufacturer part number | R15IE3S-65EX |
| Series | ATEX Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
