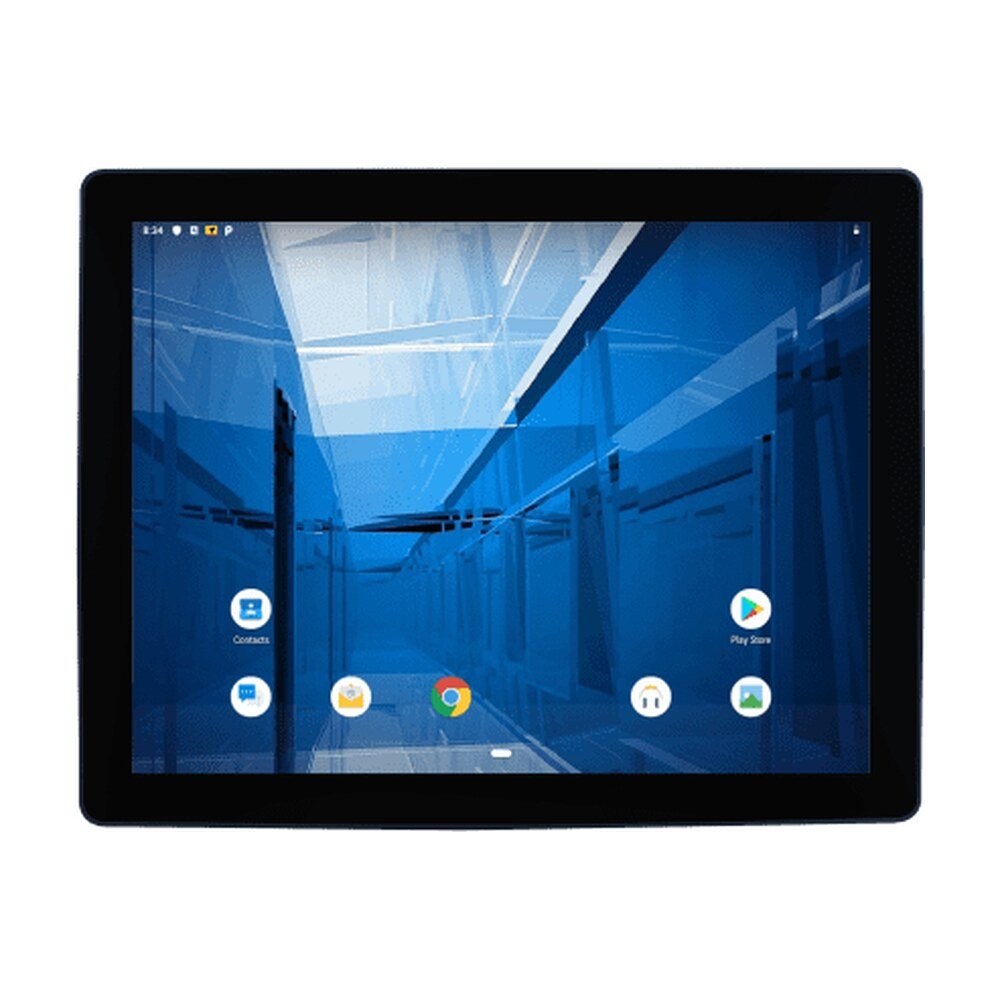

Explore Winmate R15IM3S-PTC3, an HMI panel PC featuring 15-inch display with 1024x768 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15IM3S-PTC3, an HMI panel PC featuring 15-inch display with 1024x768 resolution, IP65 for machine control and factory automation.
Winmate Panel PCs adopt ARM Processors to provide high computing performance with energy-efficient solutions. Top up with the Android operating system, it offers easy software integration and opens vast possibilities for customization.

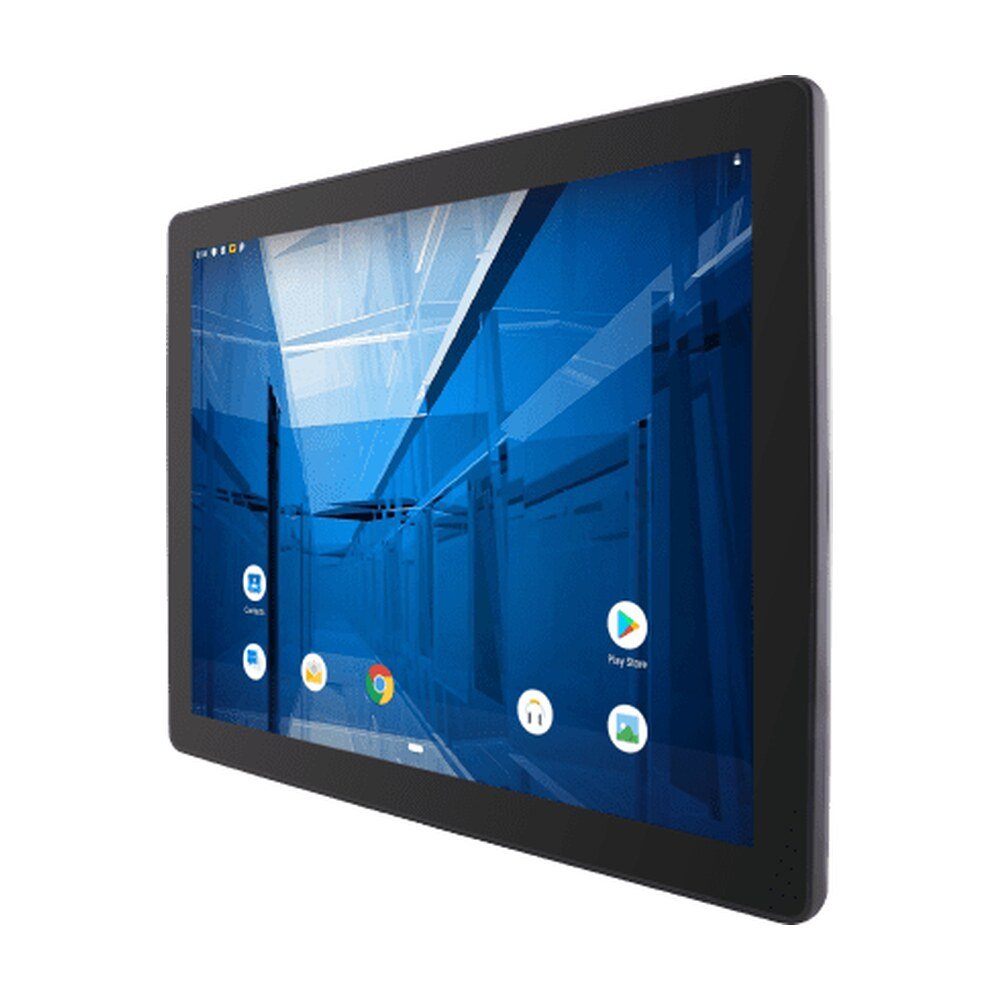

Winmate signature true flat surface design offers a stylish, elegant, aesthetically pleasing look that fits modern interiors and exteriors. It is easy to maintain, clean, and reduce clogged dust on the edges.

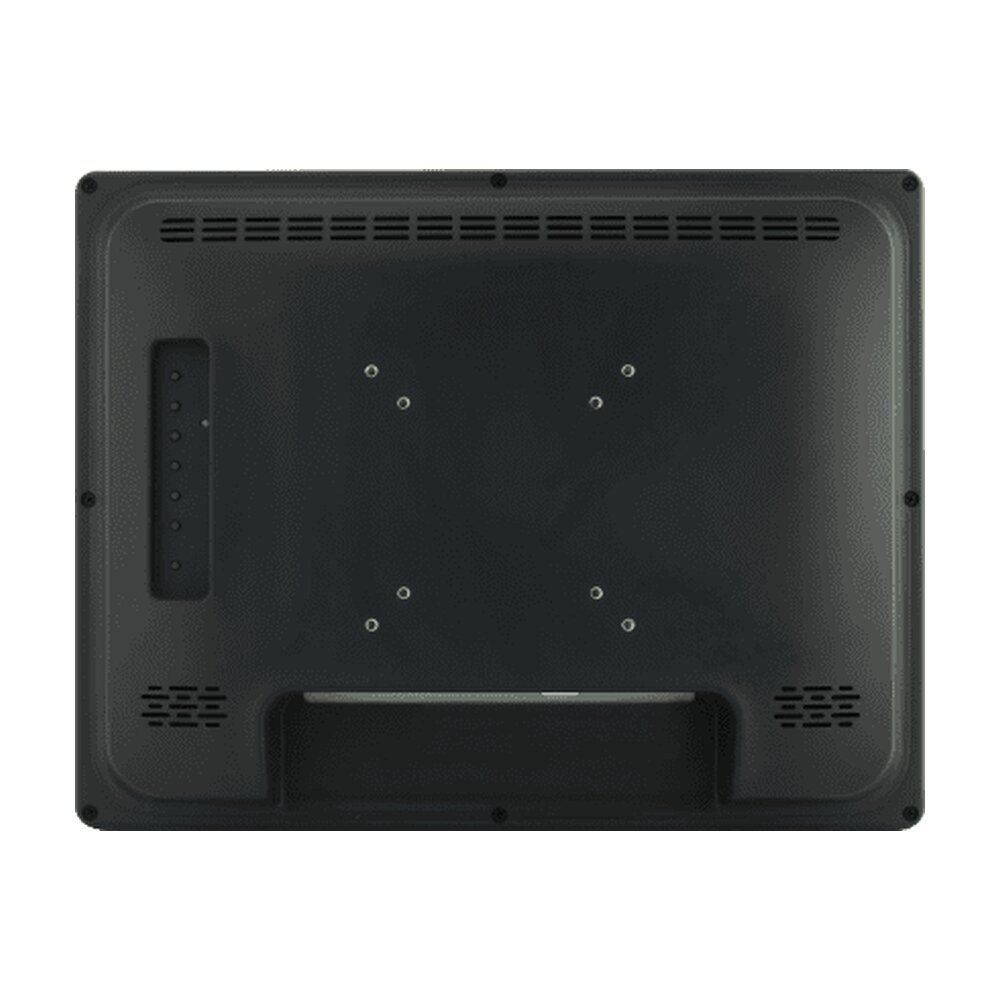

PT-Series HMIs support universal mounting options, such as a VESA mount for a wall, desk, and in-vehicle installation. Suitable for most industrial scenarios.
The glass cover provides excellent protection from scratches. P-Cap Touch supports multi-touch and can easily be controlled by fingers, improving the device’s convenience.
Winmate PT series HMI is sealed with IP65 on the front side to protect the device against possible damage from outer dust and water splash.
| Display | |
|---|---|
| Size | 15.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,70,80 |
| Active Area | 304.128x228.096 mm |
| System Specification | |
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Upgradeable to Android 13) (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu Server 22.04 (Optional) |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| Mechanical | |
| Dimension | 352.5 x 276.7 x 45.45 mm |
| Mounting | VESA mount |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 2 x USB 2.0, 1 x USB OTG |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 1 x RJ45, Optional PoE(PD, 802.3AT) |
| Audio | 2 x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot (Max to 32GB) |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/50W, Power Cord, 3 Pin Terminal Block to DC Jack |
| Power | |
| Power Rating | 12V DC with Terminal Block |
| POE | Power Device (PD), follows IEEE 802.3at (25 W) |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15IM3S-PTC3 |
| Series | PT Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15IM3S-PTC3 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 15.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,70,80 |
| Active Area | 304.128x228.096 mm |
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Upgradeable to Android 13) (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu Server 22.04 (Optional) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| Dimension | 352.5 x 276.7 x 45.45 mm |
| Mounting | VESA mount |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
| USB Port | 2 x USB 2.0, 1 x USB OTG |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 1 x RJ45, Optional PoE(PD, 802.3AT) |
| Audio | 2 x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot (Max to 32GB) |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/50W, Power Cord, 3 Pin Terminal Block to DC Jack |
| Power Rating | 12V DC with Terminal Block |
| POE | Power Device (PD), follows IEEE 802.3at (25 W) |
| Button | 1 x Power Button, 1 x Reset Button |
| Brand | Winmate |
| Manufacturer part number | R15IM3S-PTC3 |
| Series | PT Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
