Over 40 years in businessYour quantities, your schedule — we manufacture to your requirement and release as you need it.

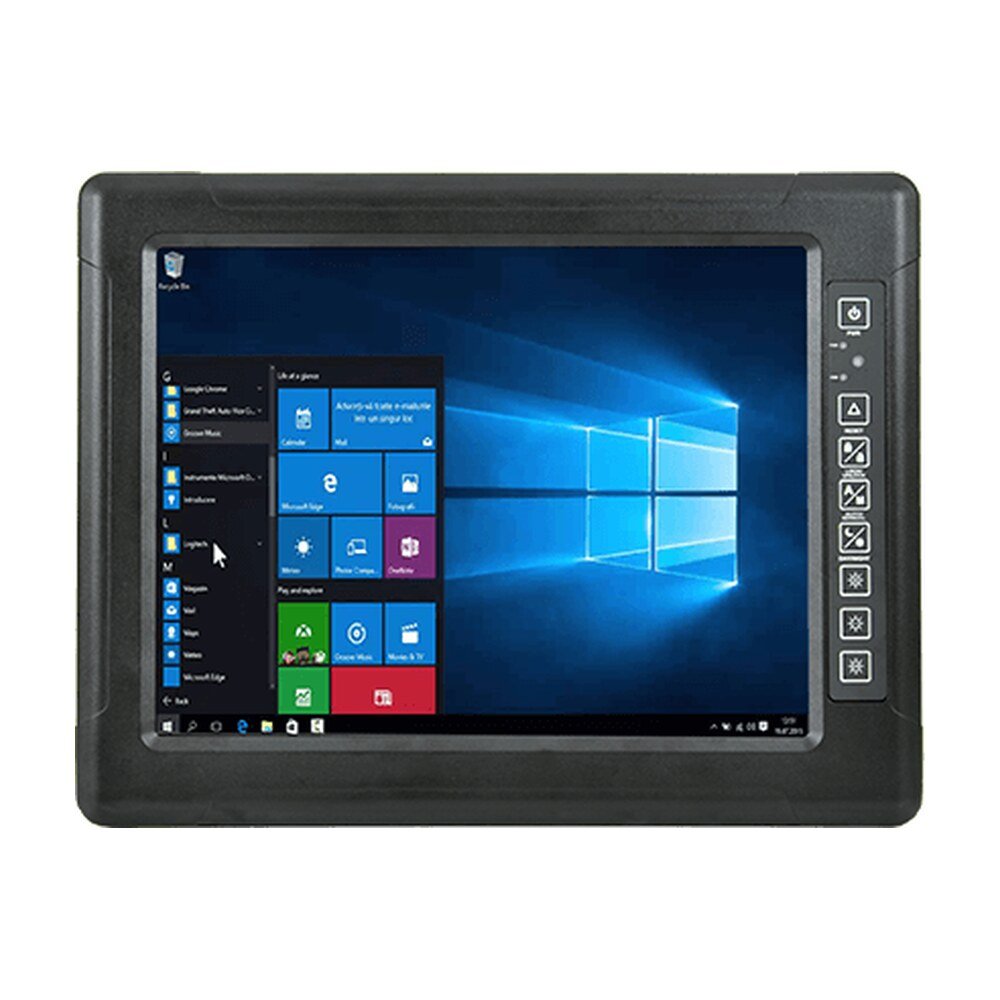

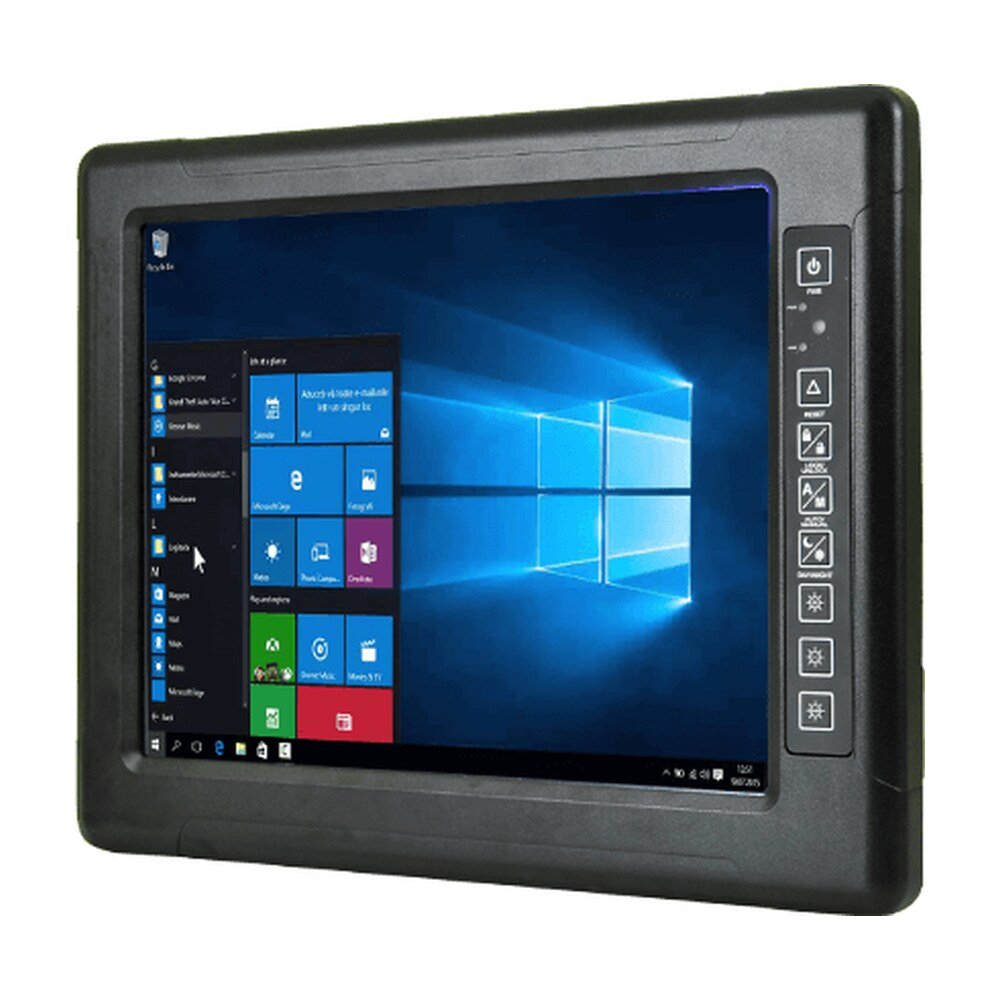

Explore Winmate R15IT3S-67C3(HB), an industrial panel PC featuring Intel® Core™ i5-1135G7, 15-inch display with 1024x768 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15IT3S-67C3(HB), an industrial panel PC featuring Intel® Core™ i5-1135G7, 15-inch display with 1024x768 resolution…
Winmate's Flat aluminum P-Cap panel PCs and display go beyond standard industrial panel computers with an elegant, edge-to-edge design. Easy to maintain and clean to prevent water or liquid droplets penetrates every opening in the device.
Winmate G-WIN IP67 panel PC is dust and waterproof, and ideal for harsh environments.
G-WIN series adopts a fanless design with passive cooling fins. Reduce noise, and power consumption, boost reliability, and extend the life cycle.
Winmate offers rugged and reliable industrial computing solutions. To meet various industrial applications, Winmate Panel PCs offer various IO interfaces.
Winmate's G-WIN series panel PCs are designed and pass the US Defence standards environment tests. The overall construction of the G-WIN panel is inherently rugged with the aluminum die-cast housing and anti-corrosion to hold up even in exposed settings.
| System Specification | |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Display | |
| Size | 15.0 inches |
| Touch / Glass | Resistive Touch Screen Bonding With Panel (Default), Protection Glass Without touch function (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Mechanical | |
| Dimension | 398 x 308 x 58 mm |
| Weight | 4.2 kg |
| Mounting | VESA mount (Default), Yoke mount (Optional) |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C, -40°C to 55°C (with intelligent heater) |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0 |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| Control | |
| Button | 1 x "Power" key to power on the device., 1 x "+" key to increase screen brightness., 1 x "-" key to decrease screen brightness., 1 x "Menu" key can Automatically or manually adjusts brightness of the display screen, 1 x Day / Night Mode button, 1 x LED indicator brightness adjustment button, 1 x Ambient Light sensor |
| Accessory | |
| Accessory | External open wire Power cable with waterproof connector, External USB cable with waterproof connector, External COM cable with waterproof connector, External LAN cable with waterproof connector, Waterproof caps, RJ45 female-female converter, VESA screws |
| Optional Accessory | Yoke mount stand (Optional), 100~240V AC to DC 120W Adapter with power cord (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15IT3S-67C3(HB) |
| Series | G-WIN IP67 Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15IT3S-67C3(HB) |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Size | 15.0 inches |
| Touch / Glass | Resistive Touch Screen Bonding With Panel (Default), Protection Glass Without touch function (Optional) |
| Resolution | 1024x768 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Dimension | 398 x 308 x 58 mm |
| Weight | 4.2 kg |
| Mounting | VESA mount (Default), Yoke mount (Optional) |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C, -40°C to 55°C (with intelligent heater) |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67 |
| Certification | CE, FCC |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0 |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| Optional Accessory | Yoke mount stand (Optional), 100~240V AC to DC 120W Adapter with power cord (Optional) |
| Brand | Winmate |
| Manufacturer part number | R15IT3S-67C3(HB) |
| Series | G-WIN IP67 Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Parts we build to your requirement ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
