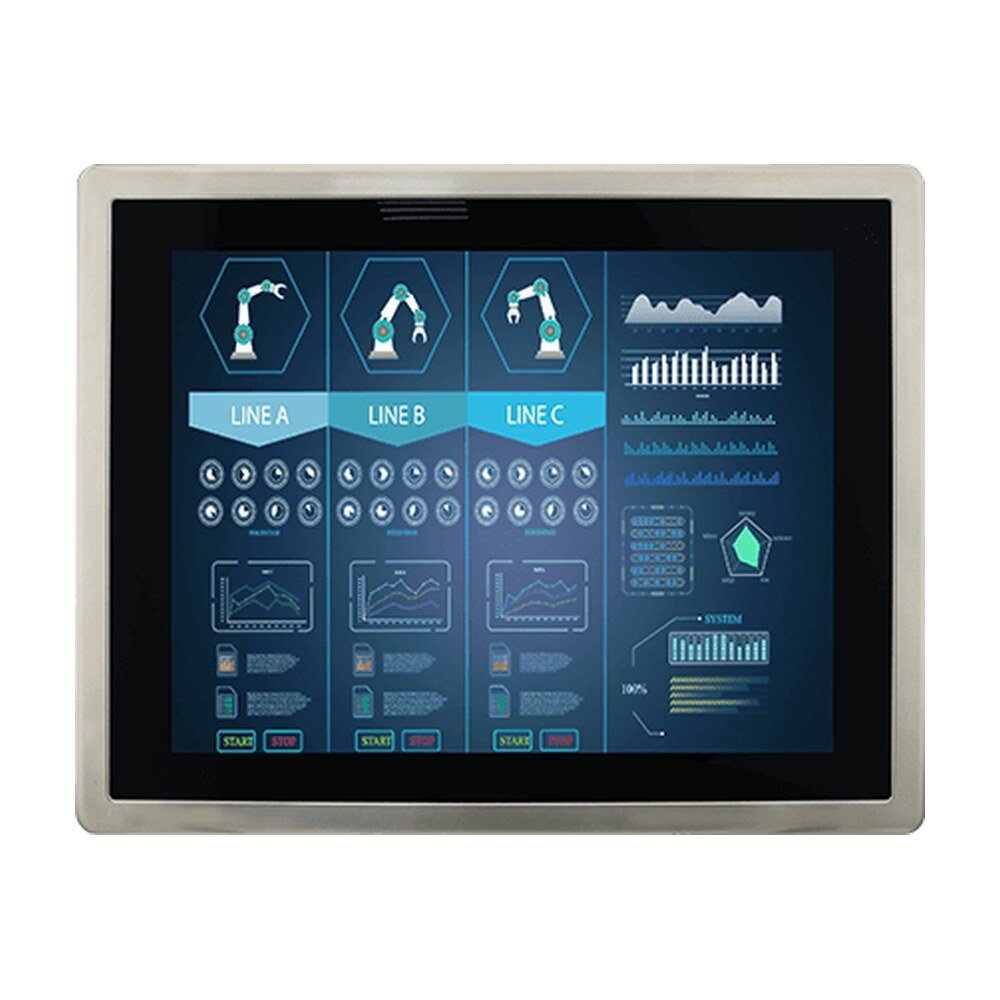

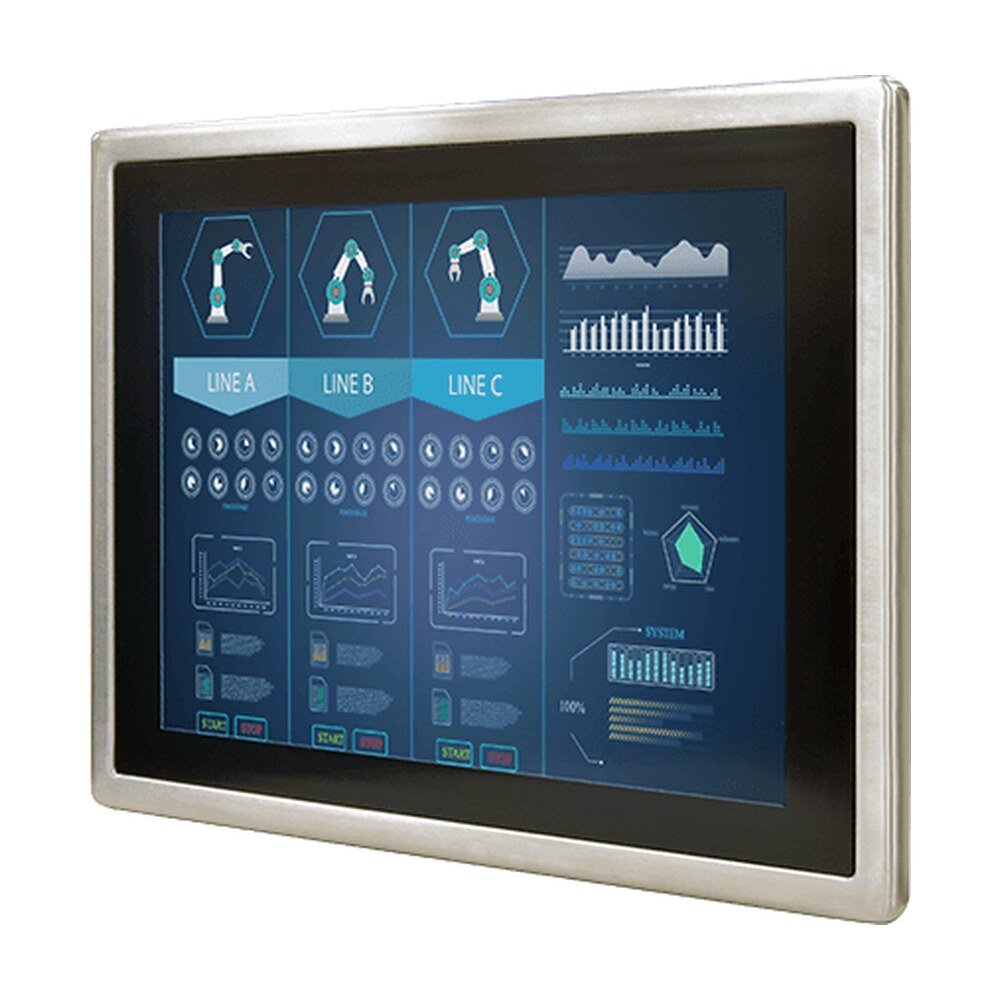

Explore Winmate R15L600-65EX, a hazardous-area rugged computer featuring 15-inch display with 1024x768 resolution, IP65, ATEX for oil and gas and chemical…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15L600-65EX, a hazardous-area rugged computer featuring 15-inch display with 1024x768 resolution, IP65, ATEX for oil and gas and chemical…
The R15L600-65EX is ATEX Zone 2 certified computers for remote data collection, process visualization, and control. Suitable for the deployment in ATEX Zone, where safety is the priority.
Take production control to the next level with real-time data monitoring and visualization. The R15L600-65EX is a stainless ATEX display with a set of features designed to withstand industrial use in hazardous locations and extreme temperatures while providing high tech solutions that increase productivity, improve safety, and reduce operational costs.

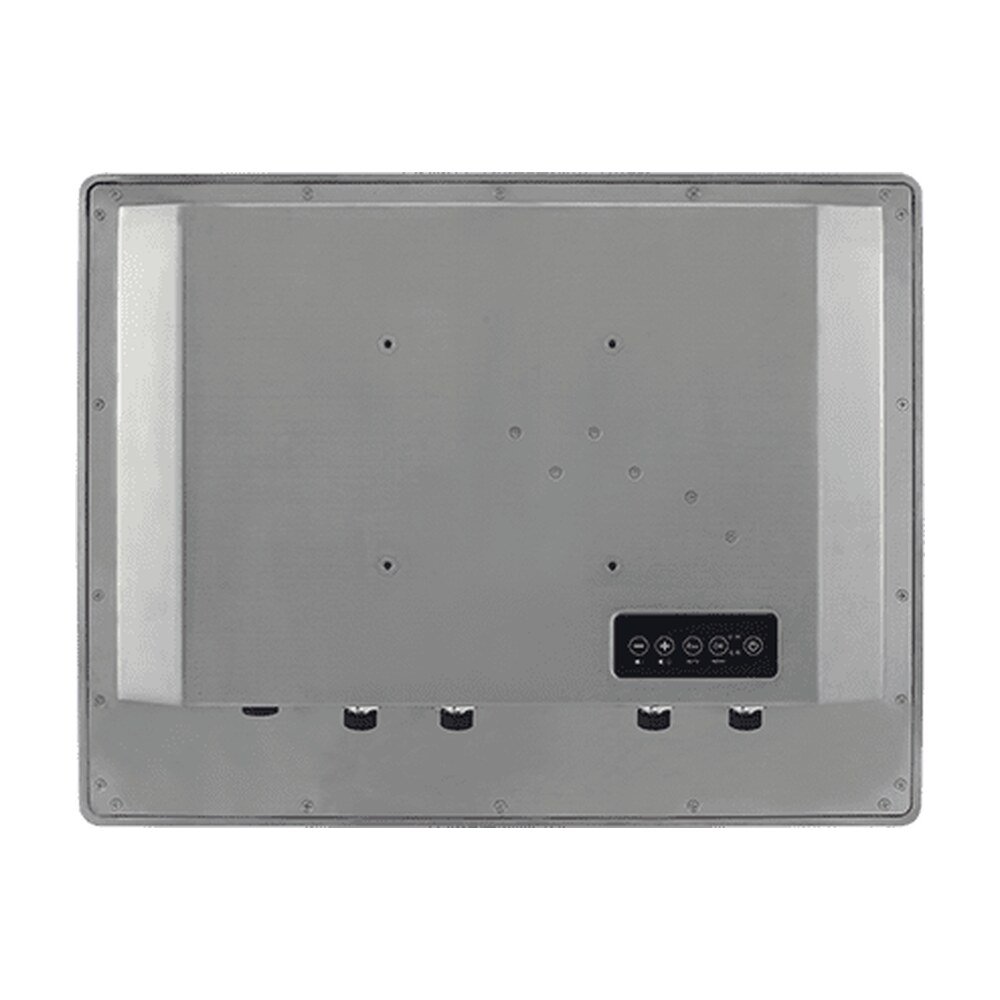

The R15L600-65EX supports standardized VESA 100 x 100 mm mount for the simple installation of the chassis at the operation location, compatible with swing arm mounting kits. The R15L600-EX ATEX display also supports a rear mount for installation inside a panel or console.
The R15L600-65EX features explosion-proof ELO 5W resistive touch or ELO 5W projected capacitive PCAP multi-touch. Easy user controls and durability for some of the most demanding applications, such as control panel on a drilling rig.
The R15L600-65EX ATEX display offers full IP65 protection against dust and water, withstands vibration, and compliant with MIL-STD-810F standard requirements. Resists vibration that often occurs on the industrial site and in potentially explosive environments. All the I/O ports are feature waterproof connectors M12 type for maximum protection in wet and dusty operation conditions.
| Display | |
|---|---|
| Touch / Glass | Resistive Touch Screen Bonding With Panel, (Explosion-Proof) |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 550 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 304.1x228.1 mm |
| Mechanical | |
| Dimension | 396 x 310 x 49 mm |
| Cut out | 365 x 270 mm |
| Weight | 5.7 kg |
| Mounting | VESA Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6 Procedure IV |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC, , UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, EN 62368-1, , Class I, Div.2, Groups A,B,C,D T4, -20 <= Tamb <= 50, Meet Standards, ANSI/ISA-12.12.01-2012, CSA/CSA C22.2 No. 213-M1987, , ATEX II 3G Ex ic nA IIC T4 Gc, -20 <= Tamb <= 50, Meet Standards, EN 60079-0, EN 60079-11, EN 60079-15, , IECEx Ex nA IIC T4 Gc, -20 <= Tamb <= 50, Meet Standards, IEC 60079-0, IEC 60079-15 |
| IO Ports | |
| USB Port | 1x M12 type connector for Touchscreen |
| Serial Port | , 1 x M12 type connector for RS232 remote control |
| Video | 1x M12 type connector for VGA input |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for standby |
| Power Input | 1 x 9~36V DC, M12 Type connector |
| Control | |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x OK (Menu) button |
| Accessory | |
| Accessory | 100~240V AC to DC Power Adapter with M12 Connector, Power Cord, M12 Type Power Cable, M12 Type RS232 Male Cable for remote control, M12 Type USB Male Cable for Touch, M12 Type VGA Cable, Manual, VESA screws |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15L600-65EX |
| Series | ATEX Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15L600-65EX |
|---|---|
| Category | ATEX Grade, Industrial Display, Winmate |
| Touch / Glass | Resistive Touch Screen Bonding With Panel, (Explosion-Proof) |
| Size | 15.0 inches |
| Resolution | 1024x768 |
| Panel Brightness | 550 nits(Default), 1000 (Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Display Color | 16.2M Colors |
| Active Area | 304.1x228.1 mm |
| Dimension | 396 x 310 x 49 mm |
| Cut out | 365 x 270 mm |
| Weight | 5.7 kg |
| Mounting | VESA Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6 Procedure IV |
| IP rating | IP65 |
| USB Port | 1x M12 type connector for Touchscreen |
| Serial Port | , 1 x M12 type connector for RS232 remote control |
| Video | 1x M12 type connector for VGA input |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for standby |
| Power Input | 1 x 9~36V DC, M12 Type connector |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x OK (Menu) button |
| Brand | Winmate |
| Manufacturer part number | R15L600-65EX |
| Series | ATEX Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
