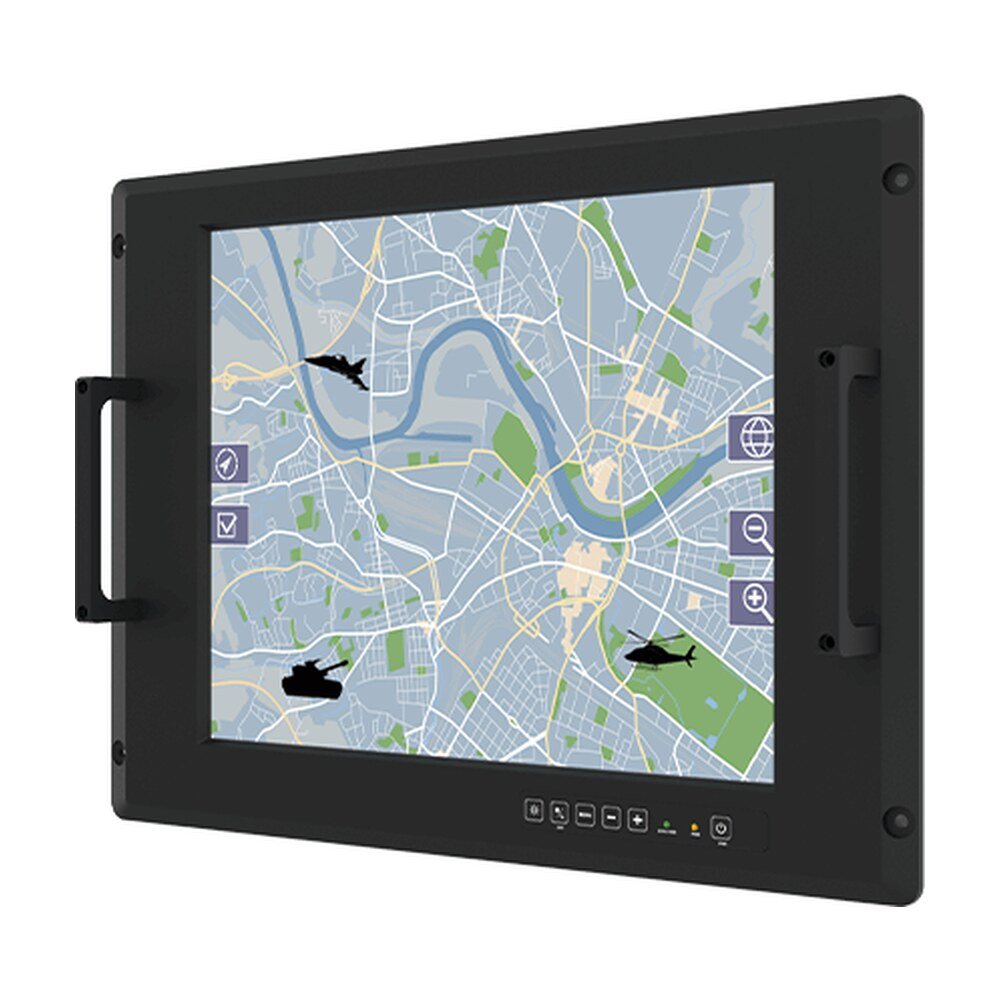

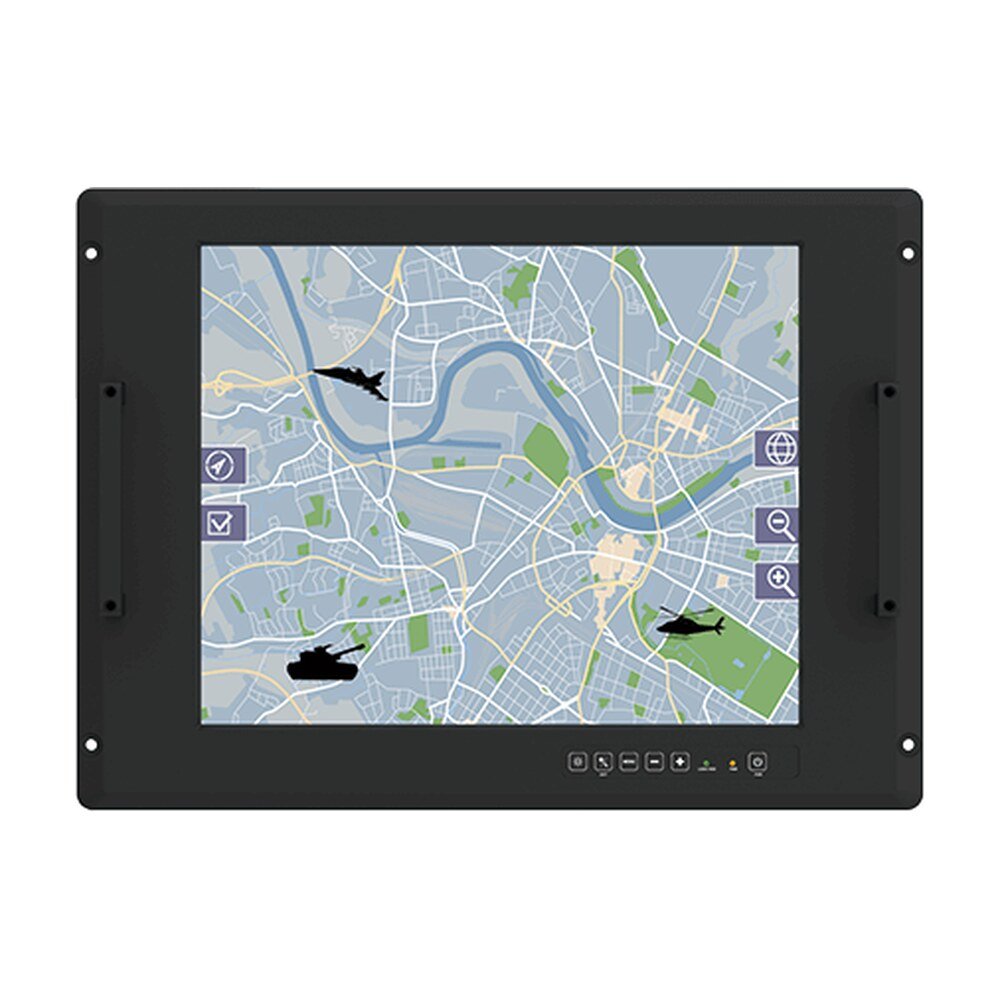

17-inch console rack Panel PC R17IAD3S-RKA1ML. The R17IAD3S-RKA1ML console rack panel pc are durable PCs that have undergone rigorous testing to ensure safety and performance that goes beyond standard military compliance.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
17-inch console rack Panel PC R17IAD3S-RKA1ML. The R17IAD3S-RKA1ML console rack panel pc are durable PCs that have undergone rigorous testing to ensure safety and performance that goes beyond standard military compliance.
To meet the defence and defense regulatory requirements, all Winmate's Defence Console Rack Panel PCs are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standards. Winmate performs in-house reliability tests to ensure optimal performance in harsh defence environments.
Increase the efficiency of the command center and control room personnel. Built your ergonomic command console that complies with defence and defense precise needs with Defence Console Rack Panel PCs that feature rack mount mechanical design (8U).
The Defence Console Rack Panel PCs come with a MIL-DTL-38999 type I power input connector. For selected models, MIL-DTL-38999 type III input/ output connectors – high-performance cylindrical connector for cable-to-panel applications in the defence, air traffic control, or other mission-critical situations. Compatible with existing defence systems.
The Defence Console Rack Panel PCs feature a user-friendly touchscreen and physical OSD buttons for fast access to the central control located on the front panel.
The Defence Console Rack Panel PCs feature a built-in light sensor for auto-brightness control. The screen brightness effortlessly changes with the lighting conditions throughout the day.
| Display | |
|---|---|
| Size | 17.0 inches |
| Touch / Glass | AR Protection Glass (Default), 5 Wires Resistive Touch (Optional), 5 Wire Resistive with EMI Mesh Filter (Optional), EMI Glass (Optional) |
| Resolution | 1280x1024 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Active Area | 337.920x270.336 mm |
| System Specification | |
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 256GB, up to 2TB |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20~60°C |
| Storage Temperature | -30°C~70°C |
| Vibration | USA: MIL-STD-810H Method 514.8 – Procedure I, , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP, 401–Procedure I (optional) |
| Drop | USA: MILSTD810H Method 516.8 , , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 404– Procedure II (Optional) |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| Compliance | |
| MIL-STD 461G | USA: MIL-STD-461G: CE101, CE102, RE101, RE102, CS118 (default), CS101, CS114, CS115, CS116, RS101, RS103 (optional), , , NATO: STANAG 4370/AECTP-501: NCE01, NCE02, NRE01, NRE02, NCS12 (default), NCS01, NCS07, NCS08, NCS09, NRS01, NRS02 (optional) |
| MIL-STD 810H | USA: MIL-STD-810H (default): Vibration Method 514.8, Humidity Method 507.6, Transit Drop Method516.8, , NATO (optional): Vibration Test STANAG 4370/AECTP-401, Shock STANAG 4370/AECTP-402 Procedure I, Drop and Topple Test STANAG 4370/AECTP-404 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 (optional) |
| LAN | 2 x Intel® Ethernet Controller |
| Video | 1 x HDMI (optional) |
| Mechanical | |
| Dimension | 482 x 354 x 80 mm |
| Mounting | VESA mount/Panel mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | User Manual (Hardcopy), CD-ROM with Driver Utility, Power Cord MIL-DTL-38999/1 |
| Power | |
| Power Rating | AC 100~240V, Universal, ±10% (Default), DC 9~36V, ±10% (Optional) |
| Control | |
| Button | 6 Key OSD Control Pad:, Power/ Brightness DOWN, Brightness UP/, Night, Day/ Exit, Auto/ Menu |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R17IAD3S-RKA1ML |
| Series | Defence Console Rack Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R17IAD3S-RKA1ML |
|---|---|
| Category | Defence Grade, Defence Panel PCs, Winmate |
| Size | 17.0 inches |
| Touch / Glass | AR Protection Glass (Default), 5 Wires Resistive Touch (Optional), 5 Wire Resistive with EMI Mesh Filter (Optional), EMI Glass (Optional) |
| Resolution | 1280x1024 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Active Area | 337.920x270.336 mm |
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 256GB, up to 2TB |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20~60°C |
| Storage Temperature | -30°C~70°C |
| Vibration | USA: MIL-STD-810H Method 514.8 – Procedure I, , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP, 401–Procedure I (optional) |
| Drop | USA: MILSTD810H Method 516.8 , , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 404– Procedure II (Optional) |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 (optional) |
| LAN | 2 x Intel® Ethernet Controller |
| Video | 1 x HDMI (optional) |
| Dimension | 482 x 354 x 80 mm |
| Mounting | VESA mount/Panel mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | User Manual (Hardcopy), CD-ROM with Driver Utility, Power Cord MIL-DTL-38999/1 |
| Power Rating | AC 100~240V, Universal, ±10% (Default), DC 9~36V, ±10% (Optional) |
| Button | 6 Key OSD Control Pad:, Power/ Brightness DOWN, Brightness UP/, Night, Day/ Exit, Auto/ Menu |
| Brand | Winmate |
| Manufacturer part number | R17IAD3S-RKA1ML |
| Series | Defence Console Rack Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
