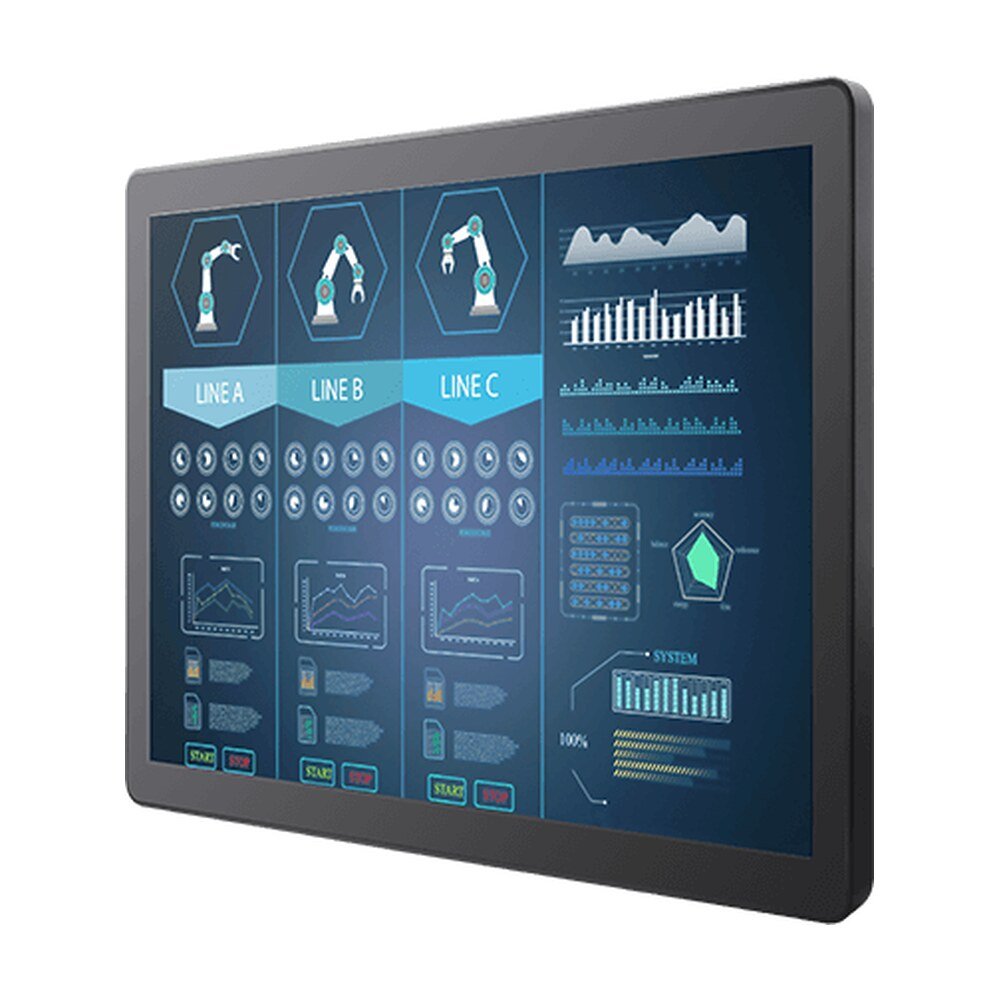

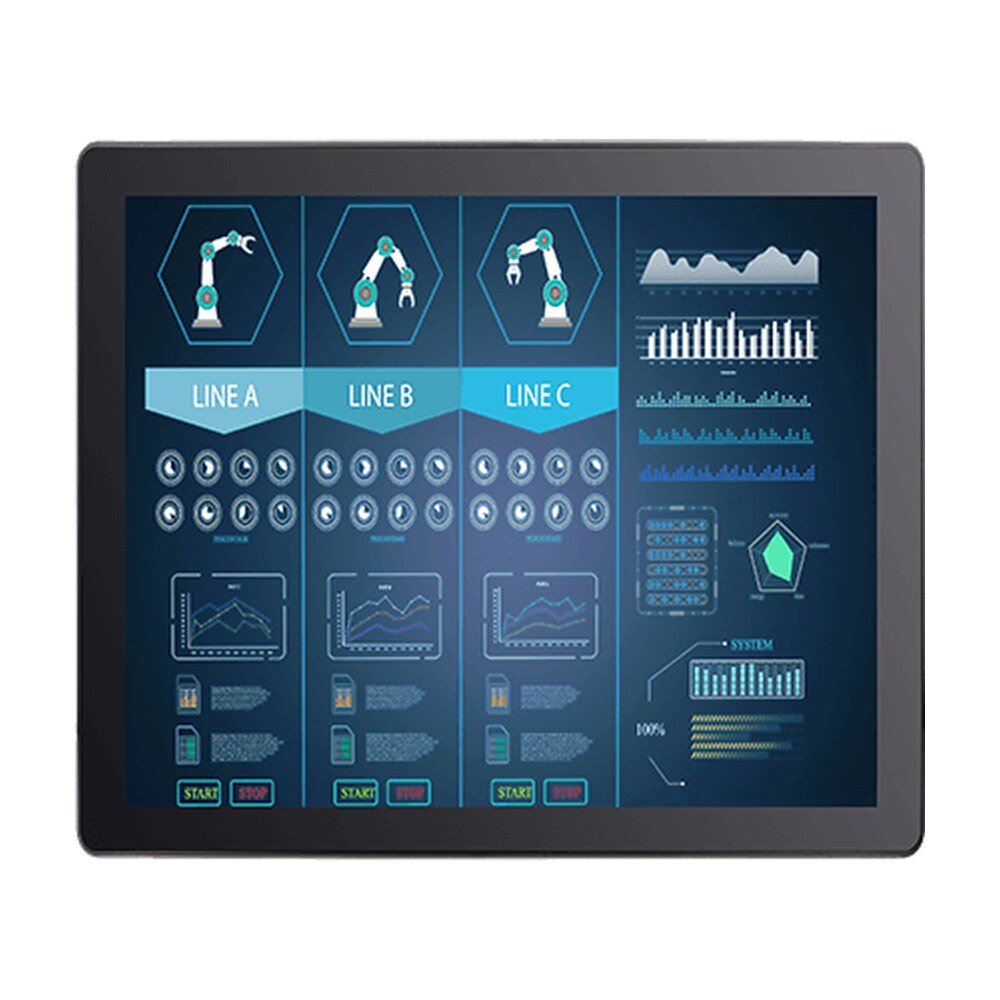

Explore Winmate R19L100-GCM1, an industrial display featuring 19-inch display with 1920x1080 resolution, IP65 for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R19L100-GCM1, an industrial display featuring 19-inch display with 1920x1080 resolution, IP65 for industrial visualization and control rooms.
Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The display is easy to clean, plus the screen is resistant to water and liquid droplets.
The dust and waterproof display comply with IP65 standards. Plus, the M12 connectors are waterproof for varying industrial environments.
The fanless design eliminates dust circulation for improved product longevity – especially in heavy-duty applications where dusty conditions are prevalent.
Combining ruggedness with a range of I/O ports makes this device highly usable for heavy-duty industrial applications. Plus, the waterproof connectors come with screw-on caps for added protection.
The G-Win series is as tough as it gets. The displays are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensures the screen and housing are both rugged to the max.
| Display | |
|---|---|
| Size | 19.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen, |
| Resolution | 1280x1024 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Display Color | 16.7M Colors |
| Active Area | 376.32x301.06 mm |
| Environment | |
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20°C~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Mechanical | |
| Dimension | 445 x 370 x 51 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Plastic Bezel & Metal back cover |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power | |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R19L100-GCM1 |
| Series | G-WIN GC Series Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R19L100-GCM1 |
|---|---|
| Category | G-WIN Series / IP67, Industrial Display, Winmate |
| Size | 19.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen, |
| Resolution | 1280x1024 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Display Color | 16.7M Colors |
| Active Area | 376.32x301.06 mm |
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20°C~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Dimension | 445 x 370 x 51 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Plastic Bezel & Metal back cover |
| Cooling System | Fanless Design |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | R19L100-GCM1 |
| Series | G-WIN GC Series Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
