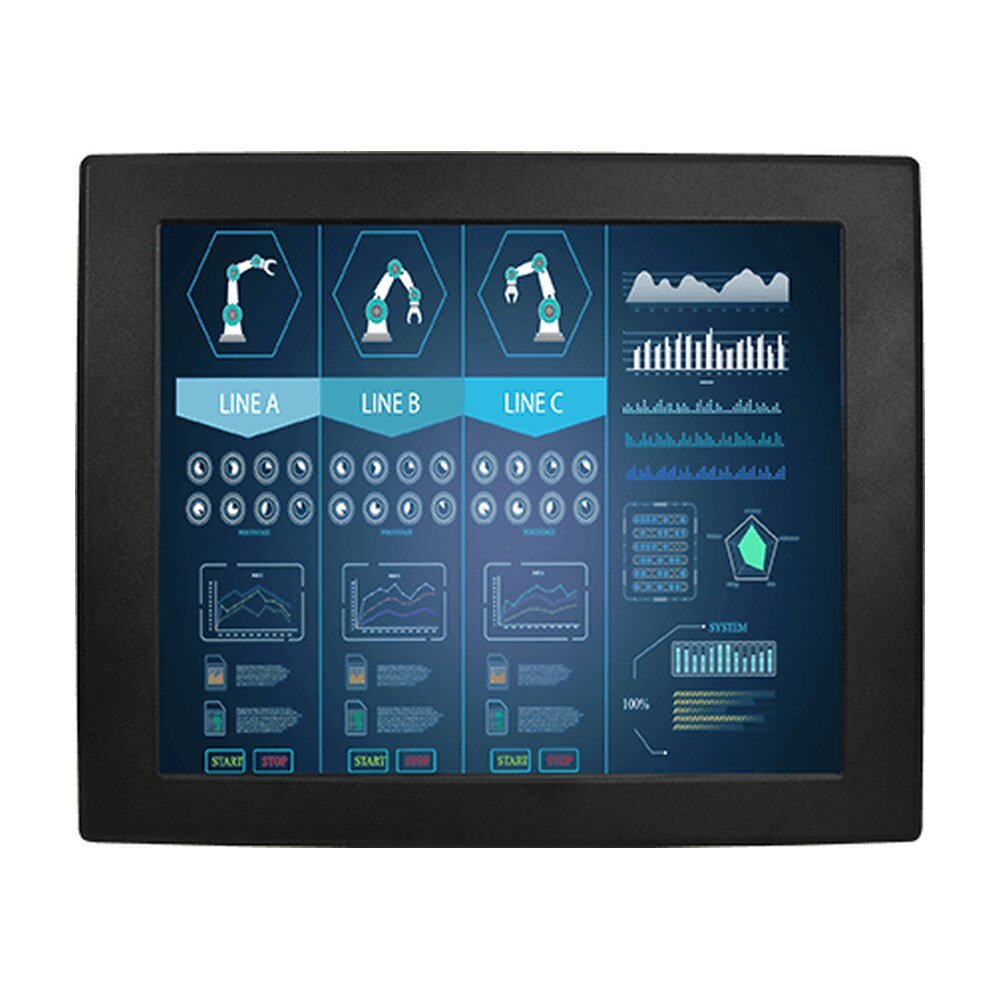

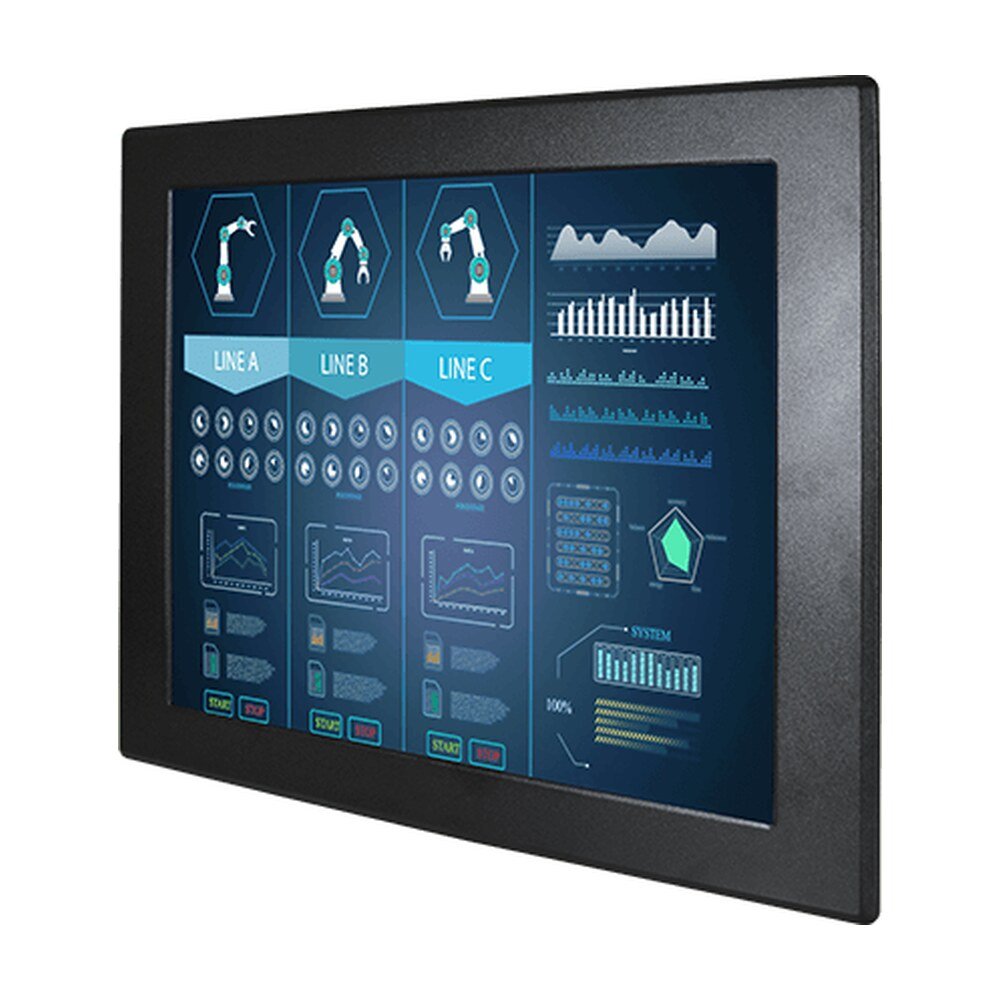

Explore Winmate R19L300-IPM1, an industrial display featuring 19-inch display with 1280x1024 resolution, IP65 for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R19L300-IPM1, an industrial display featuring 19-inch display with 1280x1024 resolution, IP65 for industrial visualization and control rooms.
Winmate's Front IP65 Series Display built for wet and dusty applications; it is rated to IP65 and supports water and dust resistance while keeping a compact and narrow bezel design, suitable for use in wet and dusty environments such as factory automation, outdoor kiosks, swimming pool and SPA kiosk, and others.
For the convenience of the operators working in the industrial environment, the Front IP65 Display Series offers flexible surface options such as cover glass (when touch is not required) and resistive touch screen to meet different specifications.
For easy integration to all embedded boards and systems, the Front IP65 Series Display comes with VGA, HDMI signal interfaces. Both interfaces are easy to use and support most of the industrial and commercial applications.
The Front IP65 Series Display has a unique rubber (O-ring) on the front bezel's rear. This design allows sealing the front bezel and the customer's fixture to prevent water and dust from entering the enclosure. Moreover, the display is easy to install inside a cabinet or a rack for various applications.
When embedded in an enclosure, the Front IP65 Series Display is suitable for use in wet and dusty industrial environments. When installed correctly, the display rated IP65 from the front side withstands rigors of outdoors - water, humidity, cold, heat, sunlight, airborne particles – making it suitable for outdoor kiosks in parking, gas stations, swimming pools, and other locations.
| Display | |
|---|---|
| Size | 19.0 inches |
| Touch / Glass | Resistive Touch Screen (Default), Protection Glass w/o Touch Function (Optional), SAW Touch (Surface Acoustic Wave) (Optional) |
| Resolution | 1280x1024 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Display Color | 16.7M Colors |
| Active Area | 376.32x301.06 mm |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Mechanical | |
| Dimension | 474 x 384 x 63 mm |
| Cut out | 446 x 356 mm |
| Weight | 6.7 kg |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power | |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R19L300-IPM1 |
| Series | Front IP65 Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R19L300-IPM1 |
|---|---|
| Category | Front IP65, Industrial Display, Winmate |
| Size | 19.0 inches |
| Touch / Glass | Resistive Touch Screen (Default), Protection Glass w/o Touch Function (Optional), SAW Touch (Surface Acoustic Wave) (Optional) |
| Resolution | 1280x1024 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,80,80 |
| Display Color | 16.7M Colors |
| Active Area | 376.32x301.06 mm |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Dimension | 474 x 384 x 63 mm |
| Cut out | 446 x 356 mm |
| Weight | 6.7 kg |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | R19L300-IPM1 |
| Series | Front IP65 Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
