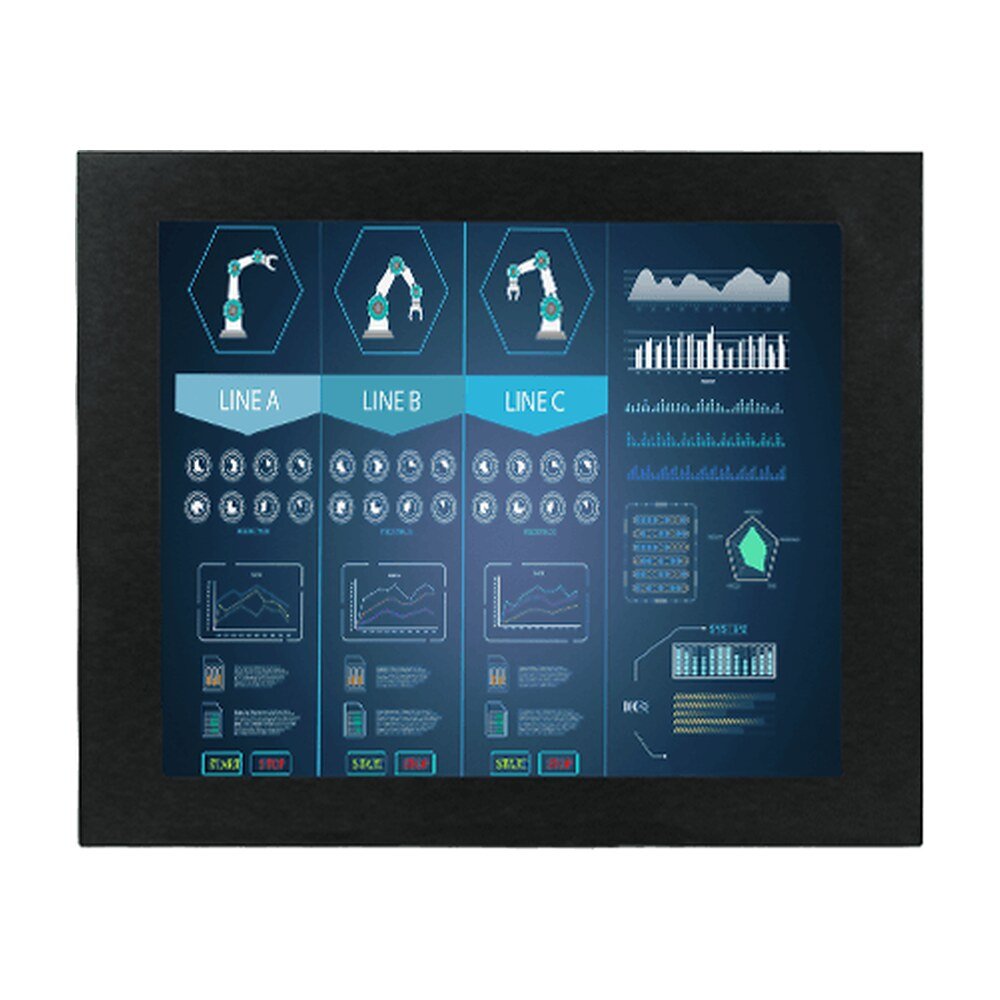

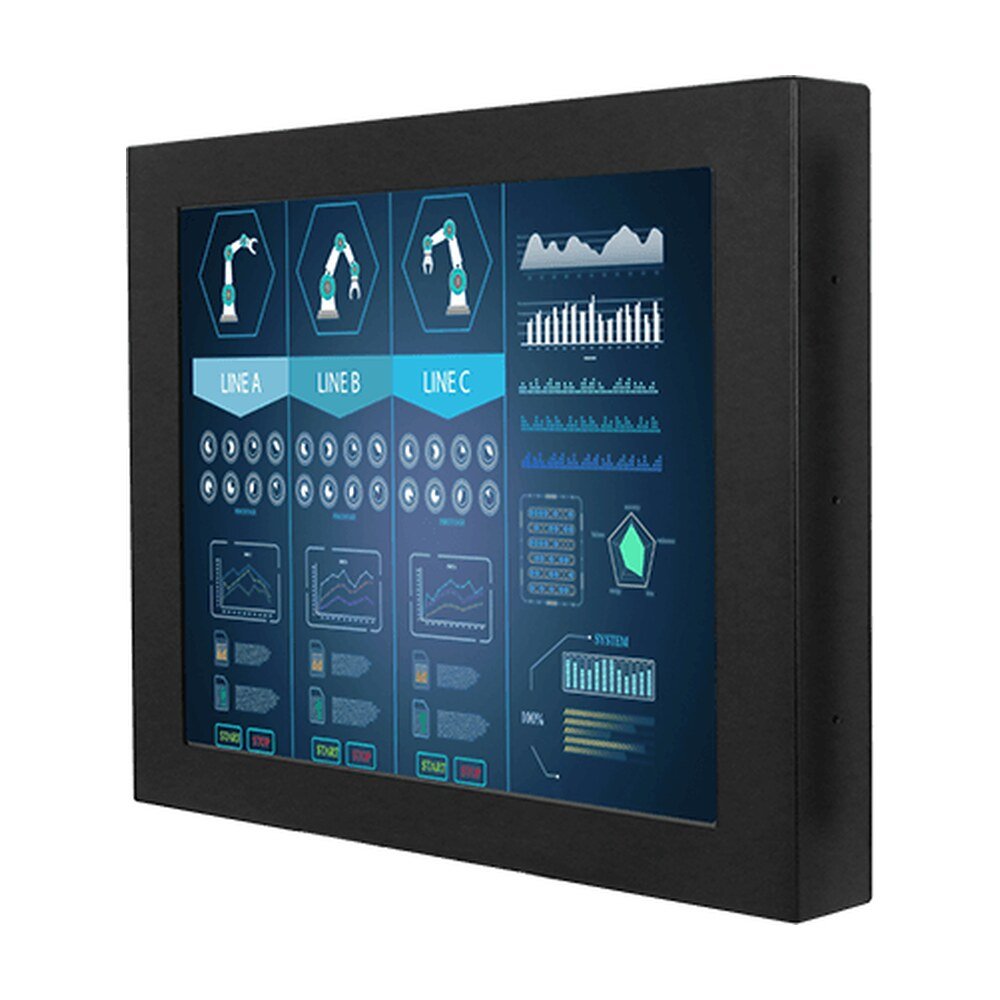

Explore Winmate R19L300-RMM2, an industrial display featuring 19-inch display with 1280x1024 resolution for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R19L300-RMM2, an industrial display featuring 19-inch display with 1280x1024 resolution for industrial visualization and control rooms.
Addressing key drivers such as performance, durability, the Winmate Rear Mount Displays are well suited for both industrial and OEM applications. Suitable for factory automation, console or control center, self-service kiosks, ATM, and other industrial and commercial applications.
For the convenience of the operators working in the industrial environment, the Rear Mount Display Series offers flexible surface options such as cover glass (when touch is not required) and resistive touch screen to meet different specifications.
For easy integration to all embedded boards and systems, the Front IP65 Series Display comes with VGA, HDMI signal interfaces. Both interfaces are easy to use and support most industrial and commercial applications.

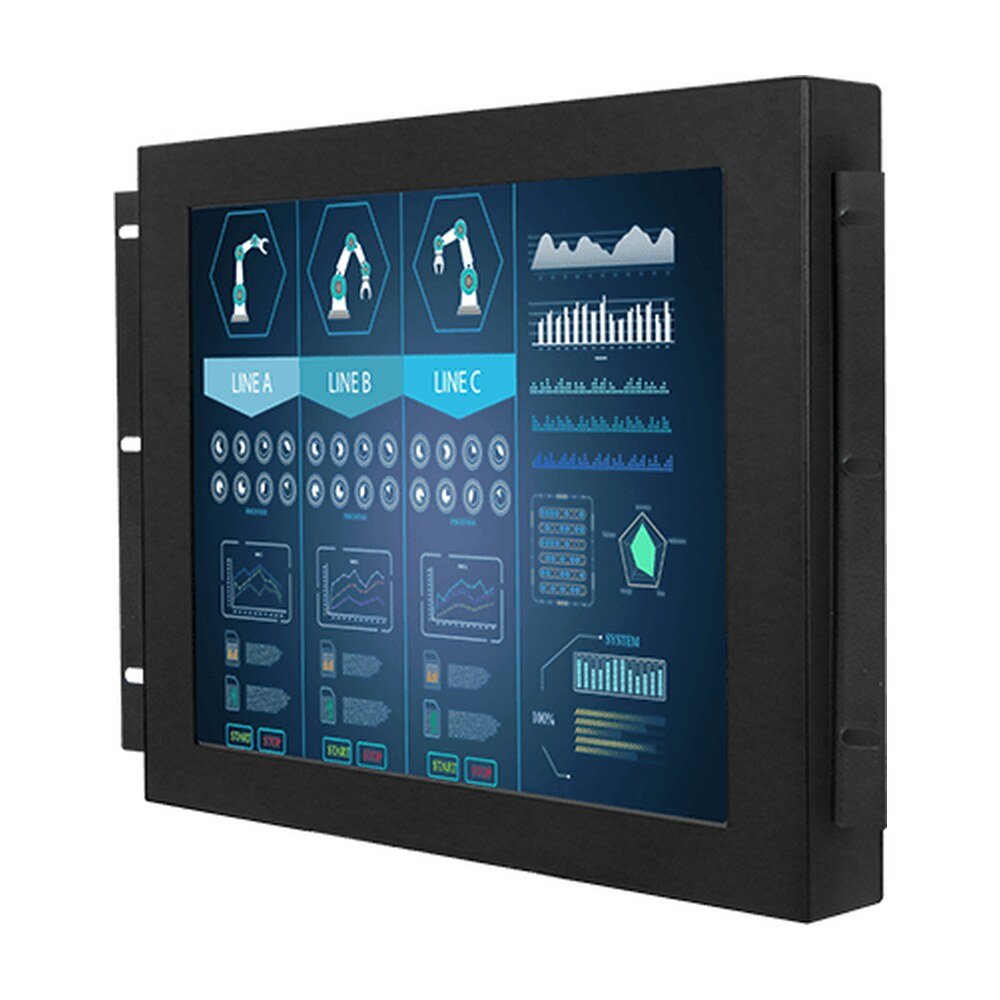

The Rear Mount Series Display is suitable to be fully enclosed and fixed from the back in the console or cabinet. Moreover, the display is easy to fit inside a cabinet or a rack for various applications. Supports VESA mount for a combination with a desktop stand during installation.
Winmate's industrial Rear Mount Display designed to be fully enclosed and fixed from the back. The display is secured from the rear side and leaves no sides of the panel outside — an uncompromisable solution for your industrial automation needs.
| Display | |
|---|---|
| Size | 19.0 inches |
| Touch / Glass | Resistive Touch Screen (Default), Protection Glass w/o Touch Function (Optional), SAW Touch (Surface Acoustic Wave) (Optional) |
| Resolution | 1280x1024 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 376.32x301.06 mm |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Mechanical | |
| Dimension | 450 x 390 x 62 mm |
| Weight | 8.5 kg |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power | |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R19L300-RMM2 |
| Series | Rear Mount Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R19L300-RMM2 |
|---|---|
| Category | Industrial Display, Rear Mount, Winmate |
| Size | 19.0 inches |
| Touch / Glass | Resistive Touch Screen (Default), Protection Glass w/o Touch Function (Optional), SAW Touch (Surface Acoustic Wave) (Optional) |
| Resolution | 1280x1024 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 376.32x301.06 mm |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional), 2 x Speaker (Optional) |
| Dimension | 450 x 390 x 62 mm |
| Weight | 8.5 kg |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | R19L300-RMM2 |
| Series | Rear Mount Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
