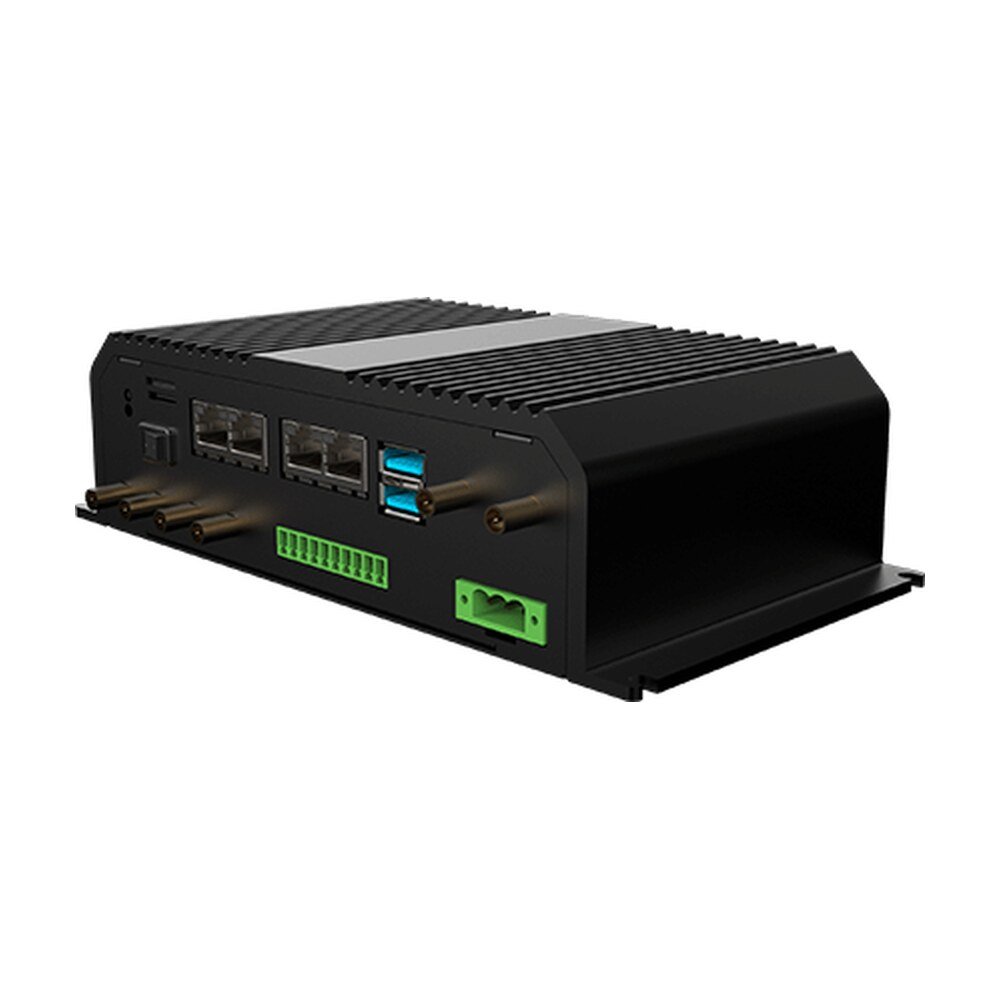

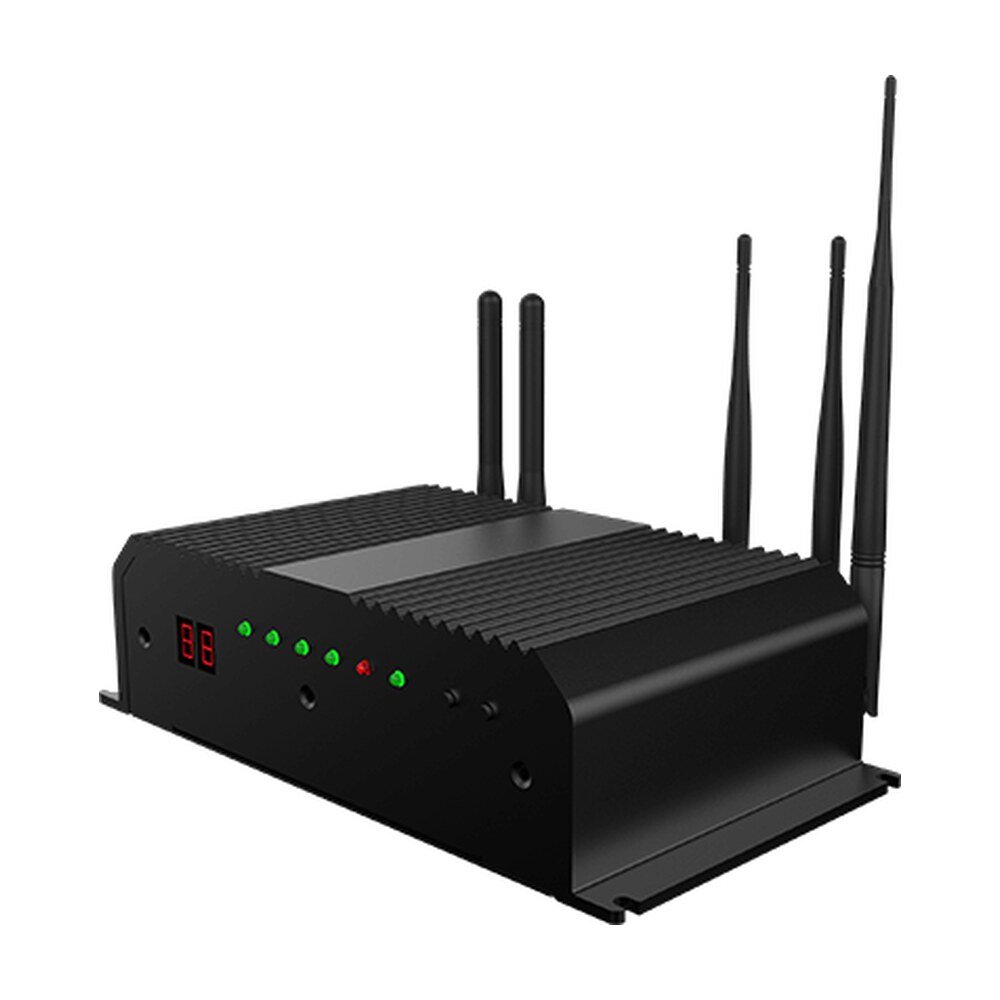

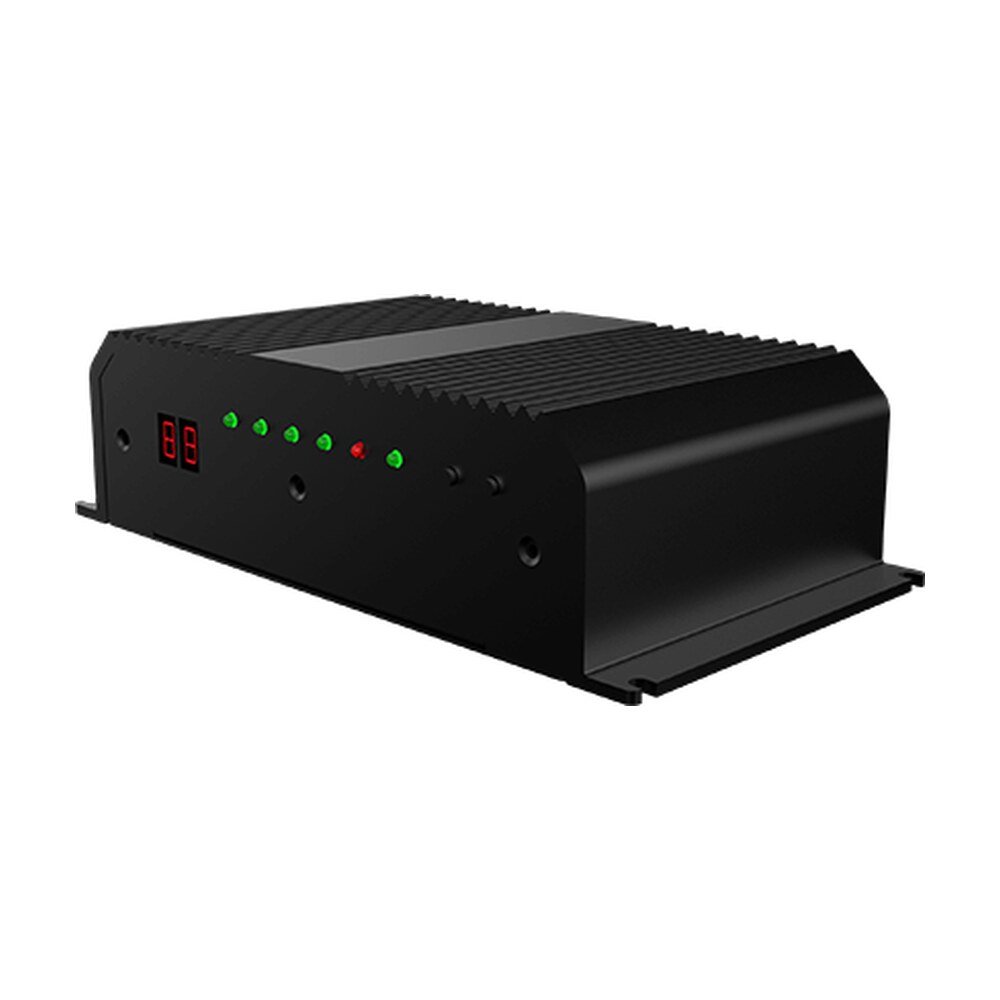

Explore Winmate RG100, an industrial computer solution featuring Wireless Connection(4G/ WLAN) Radio Gateway, Secured Recording(Inbox/ Larzio Cloud) for…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate RG100, an industrial computer solution featuring Wireless Connection(4G/ WLAN) Radio Gateway, Secured Recording(Inbox/ Larzio Cloud) for…
With Larzio and RG100 RoIP Gateway, the events hosting staff can contact the team with high efficiency and flexibility. With radios and Smartphones (Apps,) the team members can react promptly to any situation.
Winmate solves interoperability challenges with RG100 with voice and radio interoperability in a single tiny box. By connecting up to two donor radios directly to the RG100, users can instantly bridge the gap between disparate radio networks, endpoints, or frequencies, allowing seamless communications between organizations.
If the radio signal is not working well at the rescuing site, you can use RG100 on the ambulance/fire engines to transmit your radio signal through Larzio Server, then to the staff and command in other offices with radios and smartphones (App.)
| Router Management | |
|---|---|
| Router Management | Web Based Configuration , HTTPS, Web Software Upgrade , Configuration Backup and Restore , Reset to Default Button , |
| IP Network Spec | |
| Network Security Specifications | HTTPS, |
| WAN | Static IP, DHCP |
| Network Protocol Support | SIP Client, NTP Client, DNS Client, Web Server,DHCP Server, SSH Server |
| IPv4 | Support |
| IO Ports | |
| USB Port | 2 x USB 3.0 |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM card slot |
| Indicator | Radio, WAN, LAN, Register, Alarm, Power |
| DIDO | DIDO (4XDI ; 4XDO) |
| RJ-45 | 1 x WAN, 1 x LAN, 2 x Radio |
| Certification | |
| Certification | CE, FCC |
| Power | |
| Power Rating | 9~36V DC input(Terminal Block) |
| System Specification | |
| Memory | 4GB RAM |
| Storage | 64GB SSD |
| Operating System | Ubuntu |
| RF Spec | |
| Frequency Range | VHF：134~174MHz or UHF：400~470 MHz |
| LTE Band | B1/B3/B5/B7/B8/B20/B28/B32 |
| WLAN | Support |
| Mechanical | |
| Dimension | 205 x 110 x 55 mm |
| Mounting | VESA Mount |
| Enclosure | Metal |
| Transmitter Spec | |
| TX Power | 4W |
| RX Sensibility | ≤-121dBm |
| Channel Spacing | Analog: 12.5KHz / 25kHz , Digital: 12.5KHz |
| Environment | |
| Operating Temperature | 0~60°C |
| Vibration | MIL-STD-810G Method 514.6 |
| Control | |
| Button | 1 x Power Switch (On/ Off), 2 x Button (Change Channels) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | RG100 |
| Series | Radio Gateway |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | RG100 |
|---|---|
| Category | Embedded Computing, IoT Gateway / Radio Gateway, Winmate |
| Router Management | Web Based Configuration , HTTPS, Web Software Upgrade , Configuration Backup and Restore , Reset to Default Button , |
| Network Security Specifications | HTTPS, |
| WAN | Static IP, DHCP |
| Network Protocol Support | SIP Client, NTP Client, DNS Client, Web Server,DHCP Server, SSH Server |
| USB Port | 2 x USB 3.0 |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM card slot |
| Indicator | Radio, WAN, LAN, Register, Alarm, Power |
| DIDO | DIDO (4XDI ; 4XDO) |
| Certification | CE, FCC |
| Power Rating | 9~36V DC input(Terminal Block) |
| Memory | 4GB RAM |
| Storage | 64GB SSD |
| Operating System | Ubuntu |
| Frequency Range | VHF: 134~174MHz or UHF: 400~470 MHz |
| LTE Band | B1/B3/B5/B7/B8/B20/B28/B32 |
| WLAN | Support |
| Dimension | 205 x 110 x 55 mm |
| Mounting | VESA Mount |
| Enclosure | Metal |
| TX Power | 4W |
| RX Sensibility | ≤-121dBm |
| Channel Spacing | Analog: 12.5KHz / 25kHz , Digital: 12.5KHz |
| Operating Temperature | 0~60°C |
| Vibration | MIL-STD-810G Method 514.6 |
| Button | 1 x Power Switch (On/ Off), 2 x Button (Change Channels) |
| Brand | Winmate |
| Manufacturer part number | RG100 |
| Series | Radio Gateway |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
