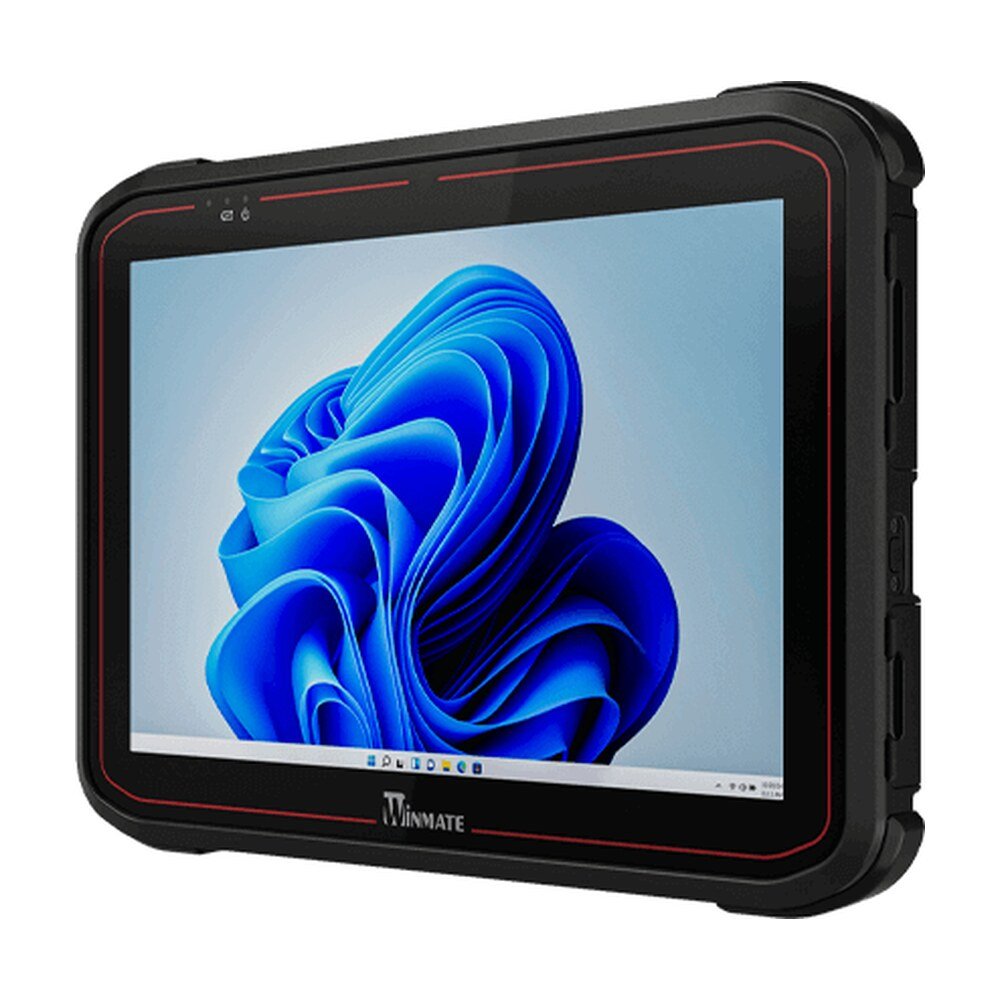

Explore Winmate S101MT, a rugged tablet PC featuring Intel® Core™ Ultra 5, 10.1-inch display with 1920x1200 resolution, IP65…
The S101MT runs on the 14th Gen Intel® Meteor Lake processor, delivering exceptional performance and energy efficiency for data-heavy applications. It features an integrated AI engine for intelligent edge computing and a leap in graphics performance with optimal power use. This advanced platform ensures smooth multitasking and real-time responsiveness in demanding environments.
The S101MT rugged tablet features a 10.1-inch WUXGA (1920 x 1200) display with projected capacitive multi-touch for sharp and responsive interaction, even with gloves. Its high-brightness panel combined with an anti-glare solution ensures excellent visibility in bright outdoor environments. This makes it ideal for professionals who rely on clear data in the field. Whether used indoors or outdoors, the display consistently delivers clarity and ease of use.
The S101MT is equipped with a removable battery, giving users the flexibility to extend operating time as needed. For uninterrupted workflow, an optional hot-swap functionality is available, enabling battery replacement without shutting down the system. This feature is ideal for long shifts in remote environments where constant uptime is critical. Designed for mobility, the power system supports full-day productivity in the field.
The S101MT is IP65 rated for protection against dust and water ingress, and it is MIL-STD-810H compliant to withstand drops, shocks, and vibrations. Its rugged housing shields the tablet from the rigors of industrial and field environments. This makes it a reliable choice for demanding outdoor and mission-critical applications.
| Display | |
|---|---|
| Size | 10.1 inches |
| Resolution | 1920x1200 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand/Rain, Stylus, Glove Mode |
| System Specification | |
| Processor | Intel Ultra 5 processor 125U 2.1 GHz (up to 4.3 GHz) |
| Memory | 8GB (Default), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD, Additional storage available with micro SDXC card slot (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB SSD (Optional), 2TB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default), Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional), 5G (Optional) |
| GNSS | GPS, GLONASS |
| Sensors | Light sensor/ G-sensor / Gyro |
| Camera | |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
| Mechanical | |
| Dimension | 272 x 192 x 25 mm |
| Weight | 1.1 kg |
| Cooling System | Fan Design |
| IO Ports | |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In & ALT) |
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Video | 1 x Micro HDMI (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out), Dual Mic Built-in Microphone, Single Speaker |
| SD Card Slot | 1 x Micro SDXC slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Expansion Port | 1 x Expansion Connector for USB3.0 / UART (Optional) |
| Indicator | 2x LED Indicator for Power, Battery |
| Docking Connector | 1 x 19-pin docking connector |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
| Control | |
| Button | 1 x Power, 2 x Programmable function Keys |
| Power | |
| Battery | 11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P), 11.4V, typ. 4750 mAh Li-Ion Re-chargeable Battery (3S1P) (Optional), Hot-Swap (Optional) |
| Battery Operating Time | Standard. Battery: 10.4 hours, High Capacity Battery: 14.8 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | |
| Accessory | Adapter and Power Cord, Standard Battery |
| Optional Accessory | Vehicle Charger (Optional), Vehicle Dock (Optional), Desk Dock (Optional), Battery Charger (Optional), Hand Strap (Optional), Shoulder Strap (Optional), Carry Bag (Optional), Stylus (Optional) |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | S101MT |
| Series | S101 Series Windows Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
