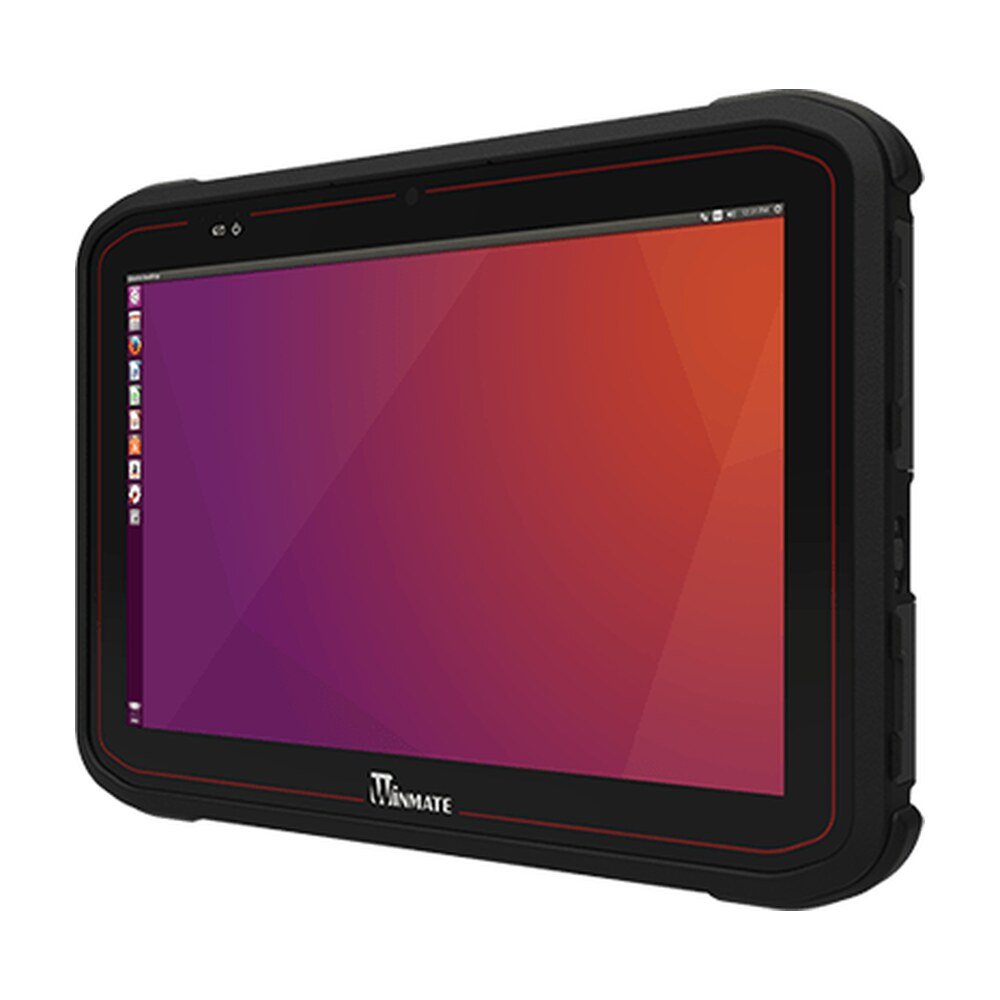

Explore Winmate S101NT, an edge AI computer featuring NVIDIA Jetson Orin Nano The S101NT is a premium 10, 10.1-inch display with 1920x1200 resolution, IP65…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate S101NT, an edge AI computer featuring NVIDIA Jetson Orin Nano The S101NT is a premium 10, 10.1-inch display with 1920x1200 resolution, IP65…
Driven by the NVIDIA Jetson Orin Nano, S101NT delivers exceptional real-time AI inference and deep learning capabilities, making it the ideal controller for next-generation robotics, autonomous systems, and industrial automation.

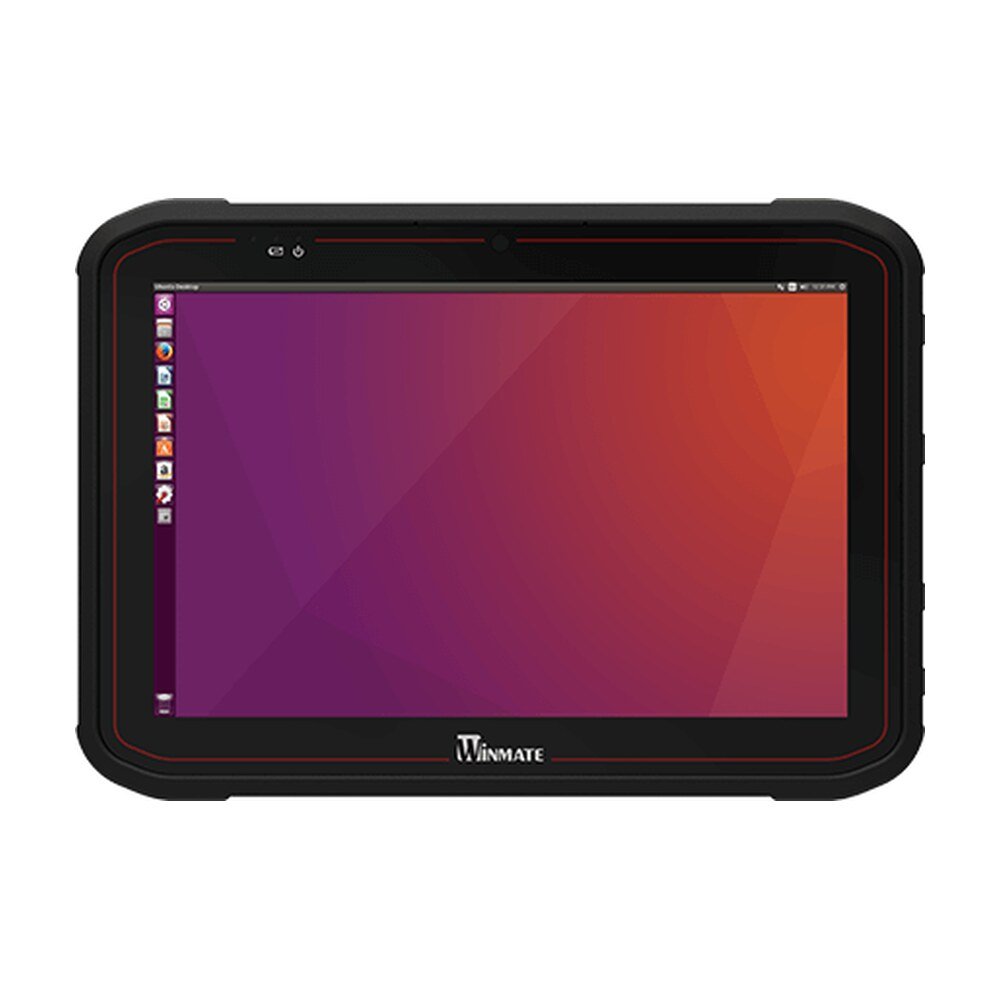

The S101NT rugged tablet features a 10.1-inch WUXGA (1920 x 1200) display with projected capacitive multi-touch for sharp and responsive interaction, even with gloves. Its high-brightness panel combined with an anti-glare solution ensures excellent visibility in bright outdoor environments. This makes it ideal for professionals who rely on clear data in the field. Whether used indoors or outdoors, the display consistently delivers clarity and ease of use.

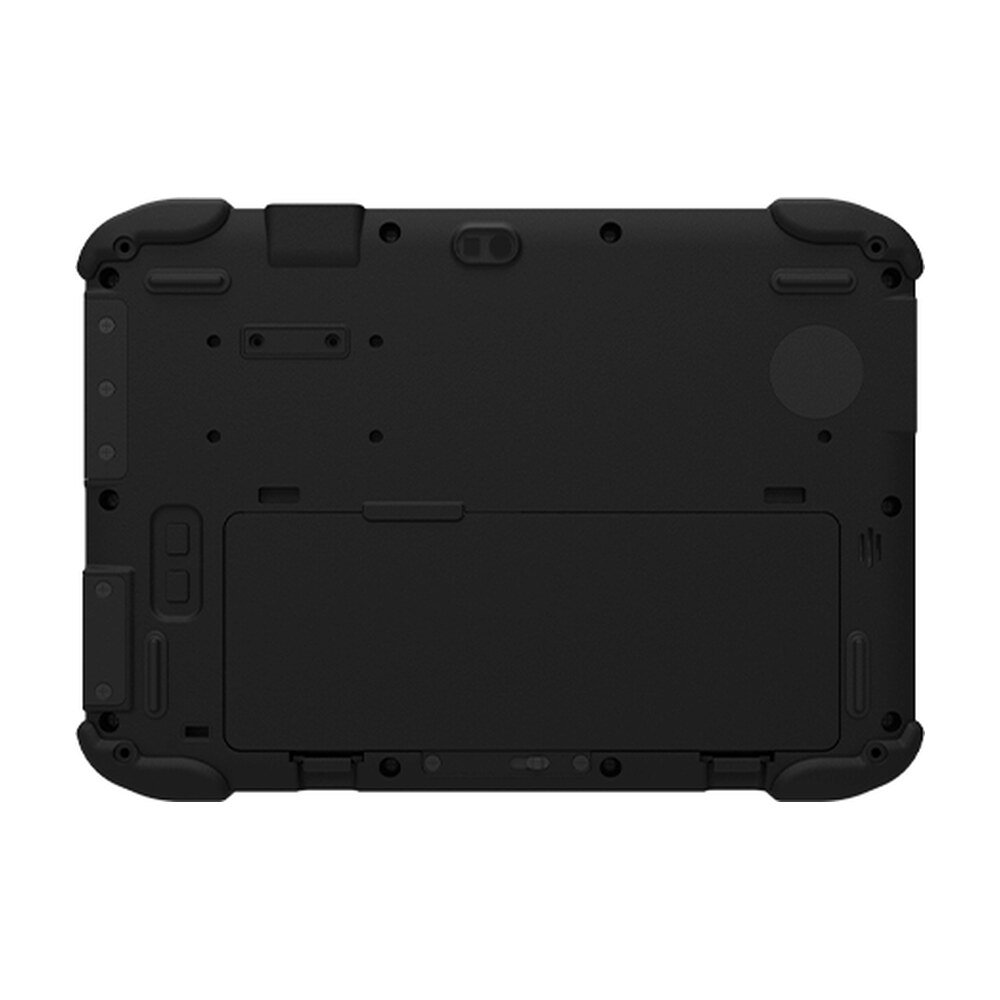

The S101NT is equipped with a removable battery, giving users the flexibility to extend operating time as needed. For uninterrupted workflow, a hot-swap functionality is available, enabling battery replacement without shutting down the system. This feature is ideal for long shifts in remote environments where constant uptime is critical. Designed for mobility, the power system supports full-day productivity in the field.
The S101NT is IP65 rated for protection against dust and water ingress, and it is MIL-STD-810H compliant to withstand drops, shocks, and vibrations. Its rugged housing shields the tablet from the rigors of industrial and field environments. This makes it a reliable choice for demanding outdoor and mission-critical applications.
| Display | |
|---|---|
| Size | 10.1 inches |
| Resolution | 1920x1200 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand/Rain, Stylus, Glove Mode |
| System Specification | |
| Processor | NVIDIA Jetson Orin Nano 8GB |
| Memory | 8GB on Orin Nano SOM |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB SSD (Optional), 2TB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Jetpack 6.2 Operating System |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional), 5G (Optional) |
| GNSS | GPS, GLONASS |
| Sensors | Light sensor/ G-sensor / Gyro |
| Camera | |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera |
| Mechanical | |
| Dimension | 272 x 192 x 25 mm |
| Weight | 1.1 kg |
| Cooling System | Fan Design |
| IO Ports | |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In) |
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Audio | 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out), Dual Mic Built-in Microphone, Single Speaker |
| SD Card Slot | 1 x Micro SDXC slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Expansion Port | 1 x Expansion Connector for USB3.0 / UART (Optional) |
| Indicator | 2x LED Indicator for Power, Battery |
| Docking Connector | 1 x 19-pin docking connector |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
| Control | |
| Button | 1 x Power, 2 x Programmable function Keys |
| Power | |
| Battery | Hot-swappable 11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P), 11.4V, typ. 4750 mAh Li-Ion Re-chargeable Battery (3S1P) (Optional) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | |
| Accessory | Adapter and Power Cord, Standard Battery |
| Optional Accessory | Vehicle Charger (Optional), Vehicle Dock (Optional), Desk Dock (Optional), Battery Charger (Optional), Hand Strap (Optional), Shoulder Strap (Optional), Carry Bag (Optional), Stylus (Optional) |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | S101NT |
| Series | S101 Serie Edge AI Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | S101NT |
|---|---|
| Category | Edge AI Mobility, Enterprise Mobility, Winmate |
| Size | 10.1 inches |
| Resolution | 1920x1200 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand/Rain, Stylus, Glove Mode |
| Processor | NVIDIA Jetson Orin Nano 8GB |
| Memory | 8GB on Orin Nano SOM |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB SSD (Optional), 2TB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Jetpack 6.2 Operating System |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional), 5G (Optional) |
| GNSS | GPS, GLONASS |
| Sensors | Light sensor/ G-sensor / Gyro |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera |
| Dimension | 272 x 192 x 25 mm |
| Weight | 1.1 kg |
| Cooling System | Fan Design |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In) |
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Audio | 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out), Dual Mic Built-in Microphone, Single Speaker |
| SD Card Slot | 1 x Micro SDXC slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Expansion Port | 1 x Expansion Connector for USB3.0 / UART (Optional) |
| Indicator | 2x LED Indicator for Power, Battery |
| Docking Connector | 1 x 19-pin docking connector |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | CE, FCC |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
| Button | 1 x Power, 2 x Programmable function Keys |
| Battery | Hot-swappable 11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P), 11.4V, typ. 4750 mAh Li-Ion Re-chargeable Battery (3S1P) (Optional) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | Adapter and Power Cord, Standard Battery |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Brand | Winmate |
| Manufacturer part number | S101NT |
| Series | S101 Serie Edge AI Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
