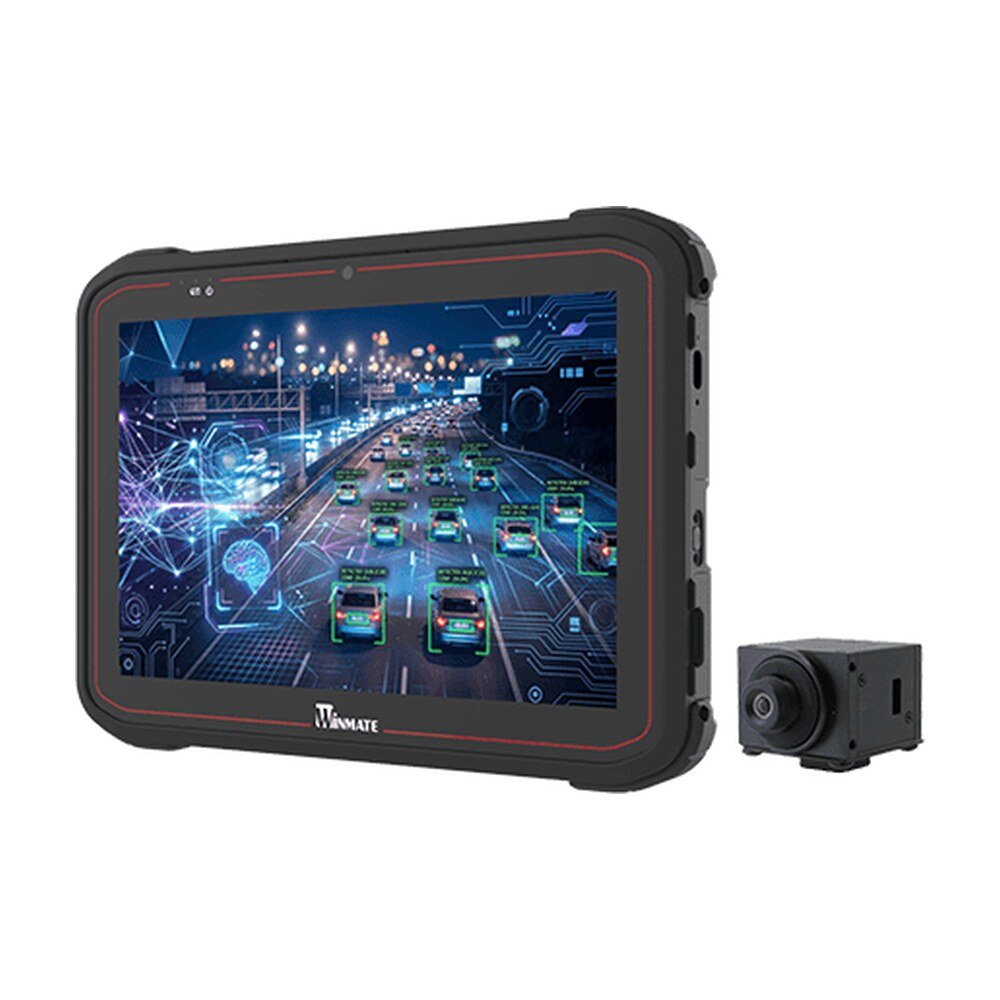

Winmate S101NT-ALPR is a rugged Edge AI tablet powered by NVIDIA Jetson Orin Nano for real-time ALPR, dual-camera capture, and demanding field operations.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Winmate S101NT-ALPR is a rugged Edge AI tablet powered by NVIDIA Jetson Orin Nano for real-time ALPR, dual-camera capture, and demanding field operations.
Comes out-of-the-box with Winmate's proprietary ALPR application paired with an external 3.1MP USB 3.0 global shutter camera, ensuring sharp, blur-free license plate capture even on fast-moving vehicles.
Driven by the NVIDIA Jetson Orin Nano, it delivers exceptional real-time AI inference and deep learning capabilities, making it the ideal controller for next-generation robotics, autonomous systems, and industrial automation.
Supports dual external USB cameras equipped with a lockable Type-C connection, ensuring ultra-reliable data transmission and versatile camera positioning for various mobile and vehicular setups.
The S101NT-ALPR is IP65 rated for protection against dust and water ingress, and it is MIL-STD-810H compliant to withstand drops, shocks, and vibrations. Its rugged housing shields the tablet from the rigors of industrial and field environments. This makes it a reliable choice for demanding outdoor and mission-critical applications.
| Display | |
|---|---|
| Size | 10.1 inches |
| Resolution | 1920x1200 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand/Rain, Stylus, Glove Mode |
| System Specification | |
| Processor | NVIDIA Jetson Orin Nano 8GB, 10/15/20W (Three Mode) |
| Memory | 8GB on Orin Nano SOM |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB SSD (Optional), 2TB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Jetpack 6.2 Operating System |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional), 5G (Optional) |
| GNSS | GPS, GLONASS |
| Sensors | Light sensor/ G-sensor / Gyro |
| Mechanical | |
| Dimension | 272 x 192 x 25mm |
| Weight | 1.1 kg |
| Cooling System | Fan Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8 Procedure IV, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB 3.0 (Type-C support Power Delivery 20V In), 1 x USB 3.0 (Type A) (when lockable I/O plate be removed) |
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Audio | 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out) (when lockable I/O plate be removed), Dual Mic Built-in Microphone, Single Speaker |
| SD Card Slot | 1 x Micro SDXC slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Expansion Port | 1 x Expansion Connector for USB3.0 / UART (Optional) |
| Indicator | 2x LED Indicator for Power, Battery |
| Docking Connector | 1 x 19-pin docking connector |
| Control | |
| Button | 1 x Power, 2 x Programmable function Keys |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
| Camera | |
| Front Camera | 2MP Front Camera (Optional) |
| Rear Camera | 8MP Rear Camera (Optional) |
| Accessory | |
| Accessory | Adapter and Power Cord, Standard Battery |
| Optional Accessory | Vehicle Charger (Optional), Vehicle Dock (Optional), Desk Dock (Optional), Battery Charger (Optional), Hand Strap (Optional), Shoulder Strap (Optional), Carry Bag (Optional), Stylus (Optional) |
| Power | |
| Battery | Hot-swappable 11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P), 11.4V, typ. 4750 mAh Li-Ion Re-chargeable Battery (3S1P) (Optional) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Consumption | 10/15/20W (Three Mode) |
| Edge AI Kit | |
| Interface | Camera: USB3.0 |
| Dimension | Camera: 51.1 x 39.5 x 29 mm |
| Resolution | Camera: 3M (2048x1536) |
| Shutter | Camera: Global Shutter |
| Accessory | 1 x USB 3.0 Lockable Type-C cable |
| Winmate IoT Application | Automatic License Plate Recognition App |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | S101NT-ALPR |
| Series | S101 Serie Edge AI Rugged Tablet |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | S101NT-ALPR |
|---|---|
| Category | AI Computer, Edge AI Mobility, Winmate |
| Size | 10.1 inches |
| Resolution | 1920x1200 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand/Rain, Stylus, Glove Mode |
| Processor | NVIDIA Jetson Orin Nano 8GB, 10/15/20W (Three Mode) |
| Memory | 8GB on Orin Nano SOM |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB SSD (Optional), 2TB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0, Kensington Lock |
| Operating System | Jetpack 6.2 Operating System |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional), 5G (Optional) |
| GNSS | GPS, GLONASS |
| Sensors | Light sensor/ G-sensor / Gyro |
| Dimension | 272 x 192 x 25mm |
| Weight | 1.1 kg |
| Cooling System | Fan Design |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8 Procedure IV, 4 ft |
| IP rating | IP65 |
| Certification | CE, FCC |
| USB Port | 1 x USB 3.0 (Type-C support Power Delivery 20V In), 1 x USB 3.0 (Type A) (when lockable I/O plate be removed) |
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Audio | 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out) (when lockable I/O plate be removed), Dual Mic Built-in Microphone, Single Speaker |
| SD Card Slot | 1 x Micro SDXC slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Expansion Port | 1 x Expansion Connector for USB3.0 / UART (Optional) |
| Indicator | 2x LED Indicator for Power, Battery |
| Docking Connector | 1 x 19-pin docking connector |
| Button | 1 x Power, 2 x Programmable function Keys |
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
| Front Camera | 2MP Front Camera (Optional) |
| Rear Camera | 8MP Rear Camera (Optional) |
| Accessory | Adapter and Power Cord, Standard Battery |
| Battery | Hot-swappable 11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P), 11.4V, typ. 4750 mAh Li-Ion Re-chargeable Battery (3S1P) (Optional) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Consumption | 10/15/20W (Three Mode) |
| Interface | Camera: USB3.0 |
| Shutter | Camera: Global Shutter |
| Winmate IoT Application | Automatic License Plate Recognition App |
| Brand | Winmate |
| Manufacturer part number | S101NT-ALPR |
| Series | S101 Serie Edge AI Rugged Tablet |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
