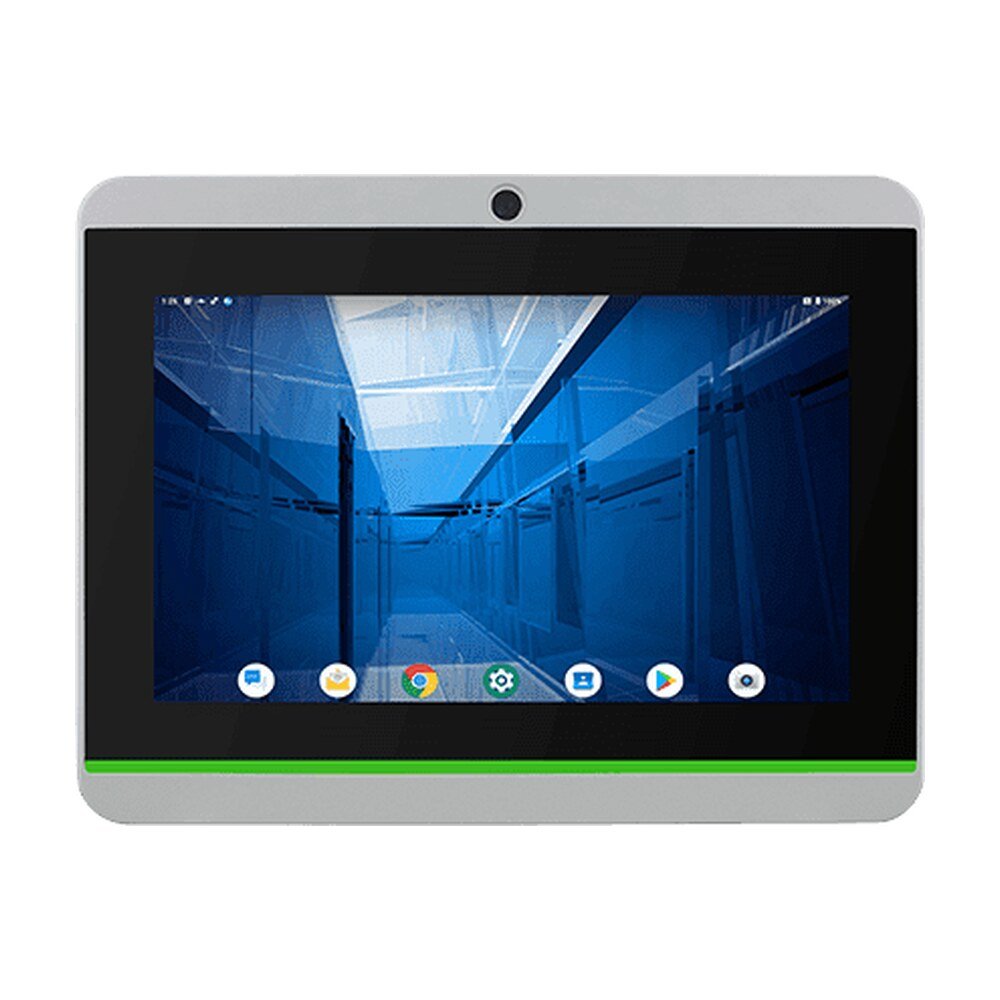

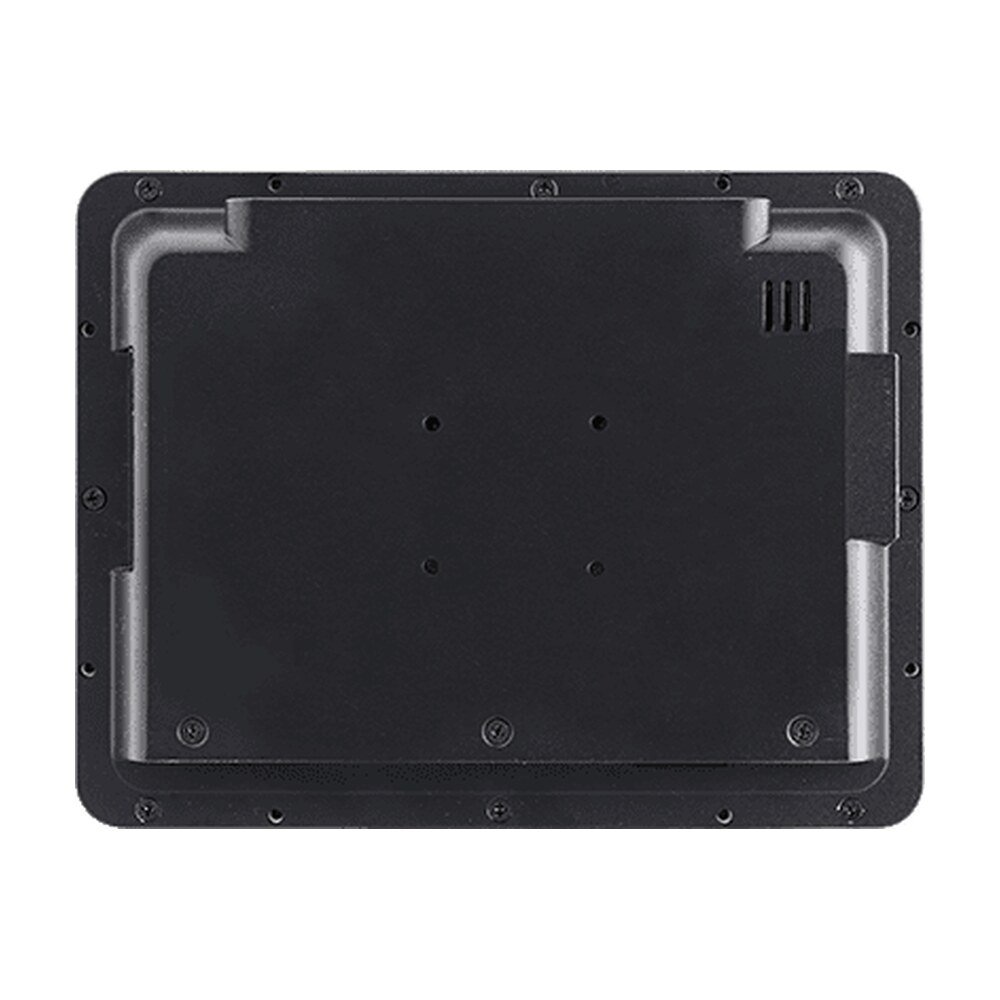

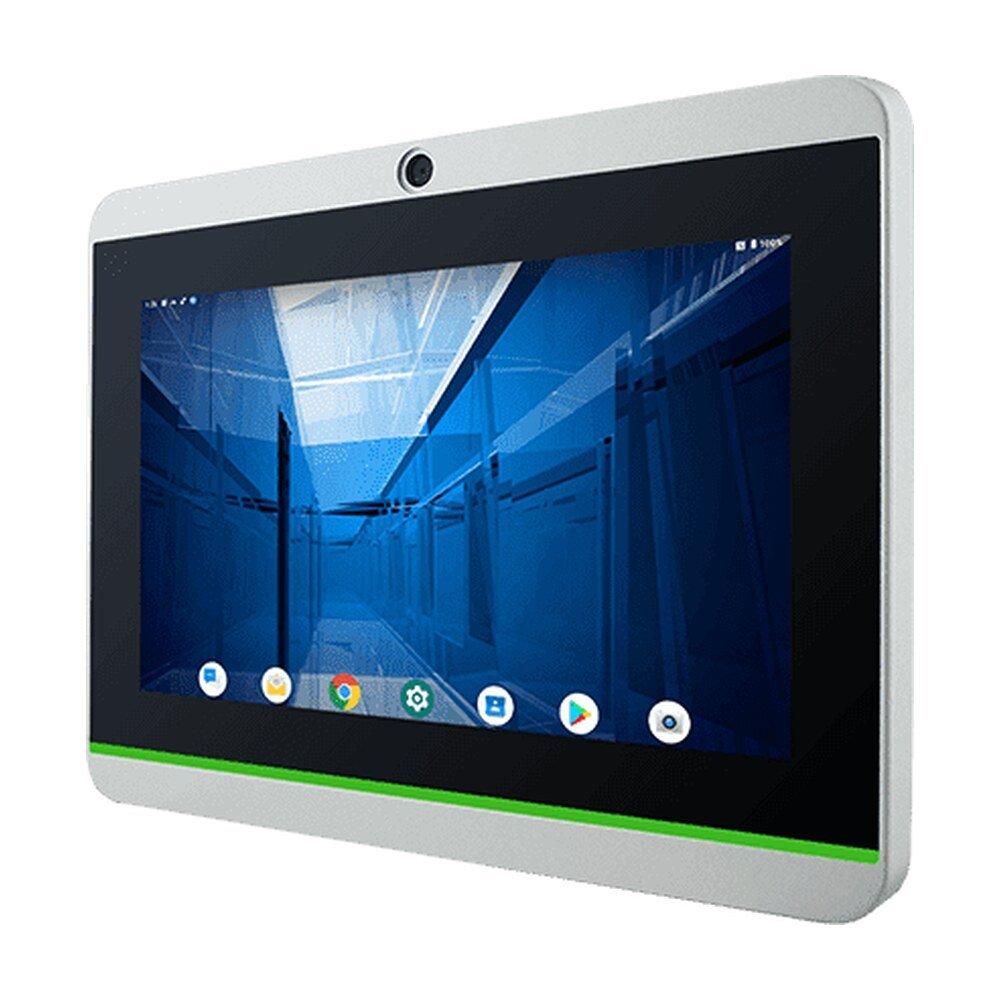

Explore Winmate W07MG3S-PCT1AC-POE, an HMI panel PC featuring 7-inch display with 1024x600 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W07MG3S-PCT1AC-POE, an HMI panel PC featuring 7-inch display with 1024x600 resolution, IP65 for machine control and factory automation.
Winmate S-series with PCAP (Projected Capacitive) touchscreens seamlessly bridge the gap between human interaction and technology. With intuitive finger movements, users engage in a seamless 4-point multi-touch experience. The responsiveness, clarity, and durability empower us across various industries.
Featuring fanless cooling technology, the Winmate S Series HMI utilizes heat sinks and vapor chambers instead of traditional fans to efficiently regulate temperatures while operating silently and conserving energy. Suited for panel PCs and industrial settings, it offers a harmonious balance between performance and quiet operation.
The Built-in RGB LED Light Bar Indicator seamlessly integrates into S series panel pc, providing both functional status updates and an appealing visual element. The settings are easily programmable according to your preferences. Choose one of the colors to send valuable messages based on your settings. Additionally, S series panel pc has HF RFID and NFC as well, it use radio frequency signals for communication and data transfer, each with specific advantages in different applications.
The Winamte S Series HMI panel pc confidently faces water challenges. Its rugged design ensures it can withstand water splashes without missing a beat. Whether you are caught in a rainstorm or dealing with accidental spills, this tablet remains resilient and operational.
Power over Ethernet (PoE) seamlessly combines power and data transmission via a single ethernet cable. It simplifies installations for devices like wireless access points and network cameras, enables remote placement in challenging environments, reduces costs, and integrates effortlessly with other PoE-enabled devices. This versatility makes PoE an efficient and practical choice for industrial applications.
| Display | |
|---|---|
| Size | 7.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x600 |
| Panel Brightness | 320.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 75,75,75,70 |
| Active Area | 153.6x90 mm |
| System Specification | |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
| Light Bar | Built-in RGB LED Status Light Bar |
| Mechanical | |
| Dimension | 189.4 x 145.4 x 40 mm |
| Cut out | 175.5x131.5mm |
| Weight | 1.0 kg |
| Mounting | Panel mount, VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB 2.0 Type A , 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 1 x Speaker |
| SD Card Slot | 1 x Micro SD card slot |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable, Open Wire Cable with terminal block connector, VESA screws |
| Power | |
| Power Rating | 12V DC with Terminal Block |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
| Camera | |
| Front Camera | 2MP Camera (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W07MG3S-PCT1AC-POE |
| Series | S Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W07MG3S-PCT1AC-POE |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 7.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x600 |
| Panel Brightness | 320.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 75,75,75,70 |
| Active Area | 153.6x90 mm |
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
| Light Bar | Built-in RGB LED Status Light Bar |
| Dimension | 189.4 x 145.4 x 40 mm |
| Cut out | 175.5x131.5mm |
| Weight | 1.0 kg |
| Mounting | Panel mount, VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB 2.0 Type A , 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 1 x Speaker |
| SD Card Slot | 1 x Micro SD card slot |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable, Open Wire Cable with terminal block connector, VESA screws |
| Power Rating | 12V DC with Terminal Block |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
| Front Camera | 2MP Camera (Optional) |
| Brand | Winmate |
| Manufacturer part number | W07MG3S-PCT1AC-POE |
| Series | S Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
