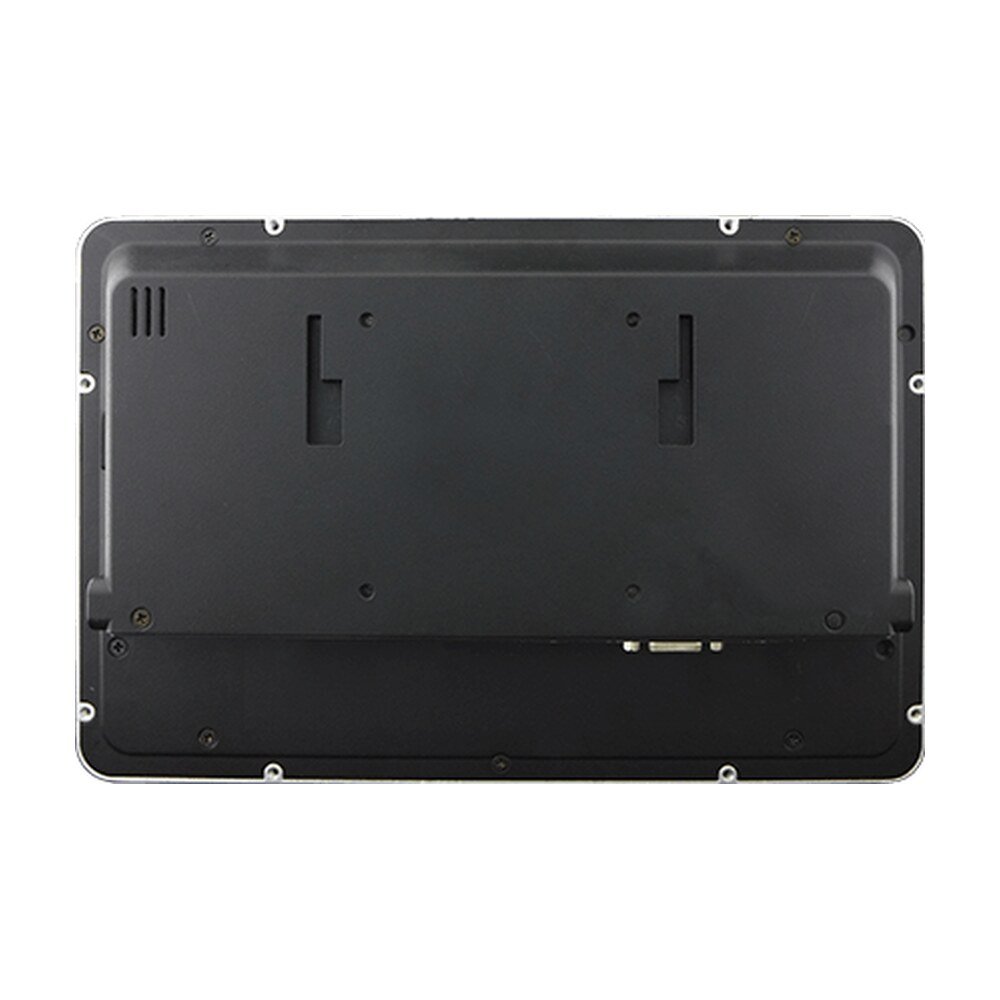

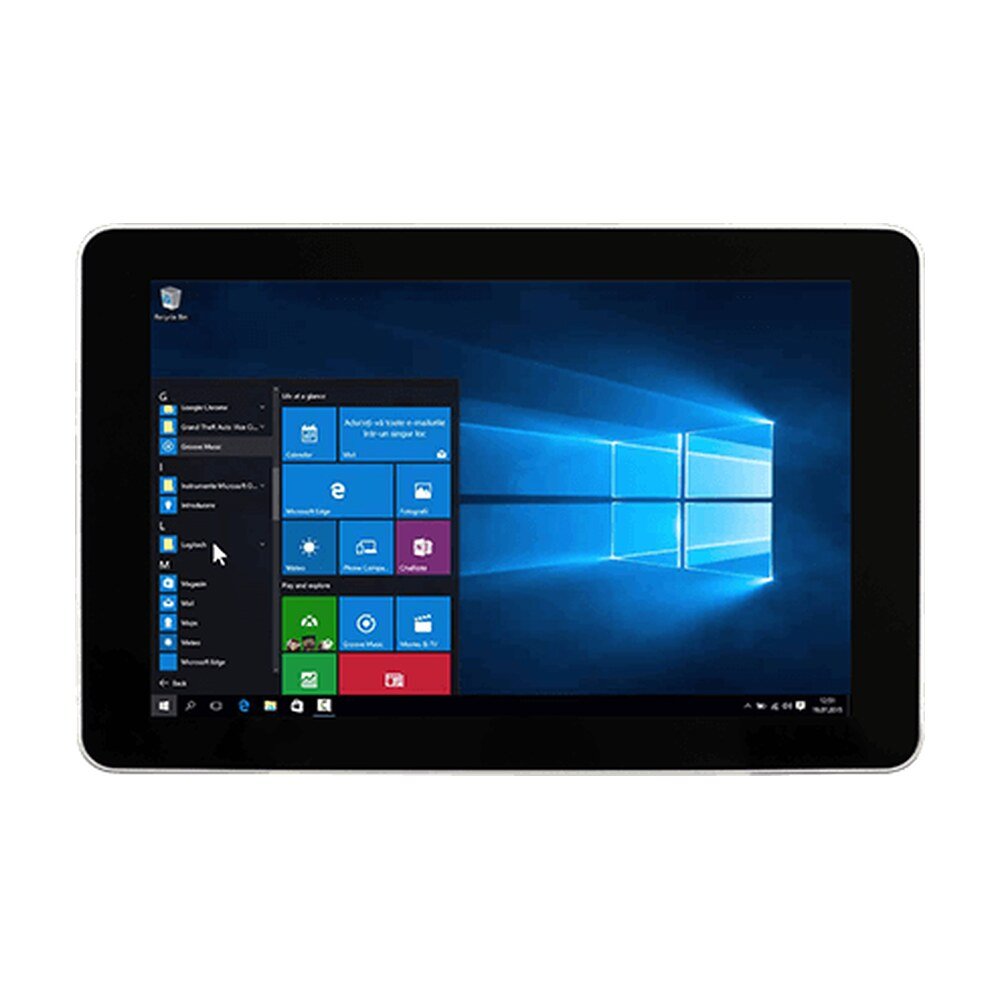

Explore Winmate W10IE3S-PCH2AC-POE, an HMI panel PC featuring Intel® Celeron® N6211, 10.1-inch display with 1280x800 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W10IE3S-PCH2AC-POE, an HMI panel PC featuring Intel® Celeron® N6211, 10.1-inch display with 1280x800 resolution…
Winmate’s S Series HMI incorporates Power over Ethernet (PoE) support, offering a streamlined connectivity solution. PoE efficiently reduces cable clutter by transmitting both data and power over a single cable. This infrastructure facilitates centralized power management, making it a cost-effective choice for applications such as access control, home automation, and industrial processes.
Winmate's S Series HMI boasts a sleek profile, being 35% slimmer than conventional Panel PCs. This slim design not only enhances aesthetics, but also offers practicality. The true flat surface not only contributes to a stylish appearance but also simplifies maintenance and cleaning.
Winmate S Series HMI is equipped with P-CAP touch technology, ensuring an enhanced user experience. The glass cover lens not only offers excellent protection against scratches but also enables seamless control with 4-point multi-touch functionality. Easily navigable by fingers, this technology enhances device convenience, allowing users to enjoy every touch interaction.

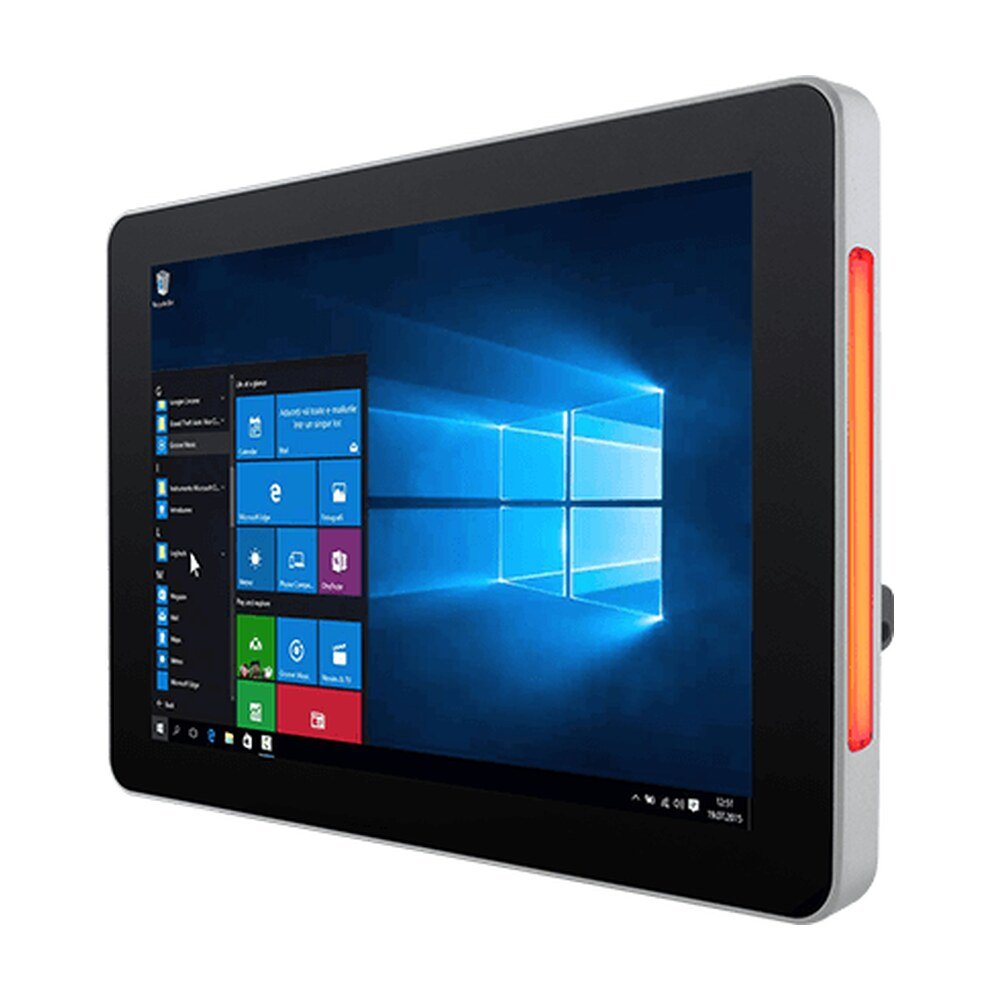

Winmate S Series HMI features an innovative LED Light Bar designed to remotely monitor running processes while conserving energy by keeping the display turned off. The light bar mode, easily programmable to your preferences, offers four color choices. Additionally, the HF RFID/NFC functionality provides restricted access, ensuring only authorized personnel can operate the system.
Winmate S Series HMI is sealed with IP65 on the front side, safeguarding it against potential damage from external dust and water splashes. This protective feature ensures the device's resilience in challenging environments, maintaining optimal functionality and longevity.
| Display | |
|---|---|
| Size | 10.1 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1280x800 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Active Area | 216.96x135.6 mm |
| System Specification | |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
| Light Bar | Built-in RGB LED Status Light Bar, on both sides |
| Mechanical | |
| Dimension | 263.48 x 172 x 35.7 mm |
| Cut out | 250x159mm |
| Weight | 1.2 kg |
| Mounting | Wall mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector, One with PoE(PD, 802.3at, 25W)(Optional) |
| Audio | 1 x Speaker |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Power Input | 1 x 12V DC, 3-Pin Terminal Block |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable, Open Wire Cable with terminal block connector, VESA screws |
| Optional Accessory | VESA Desk Stand (99KK00A0000E or 9B0000000412 or 9B0000000128) (Optional), Front Side Wall Mount Kit (99KK00A0000C) (Optional), Glass Wall Mount Kit (Right side-99KN00A00010, Left side-99KN00A00011) (Optional), VESA bracket mounting kit (IB/IP/IE-98K000A0009L, FA-98K000A000AJ) (Optional) |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W10IE3S-PCH2AC-POE |
| Series | S Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W10IE3S-PCH2AC-POE |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 10.1 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1280x800 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Active Area | 216.96x135.6 mm |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
| Light Bar | Built-in RGB LED Status Light Bar, on both sides |
| Dimension | 263.48 x 172 x 35.7 mm |
| Cut out | 250x159mm |
| Weight | 1.2 kg |
| Mounting | Wall mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector, One with PoE(PD, 802.3at, 25W)(Optional) |
| Audio | 1 x Speaker |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Power Input | 1 x 12V DC, 3-Pin Terminal Block |
| Accessory | 100~240V AC to DC Adapter, Power Cord, Terminal Block to 2.5Ø Female Adapter Cable, Open Wire Cable with terminal block connector, VESA screws |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
| Brand | Winmate |
| Manufacturer part number | W10IE3S-PCH2AC-POE |
| Series | S Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
