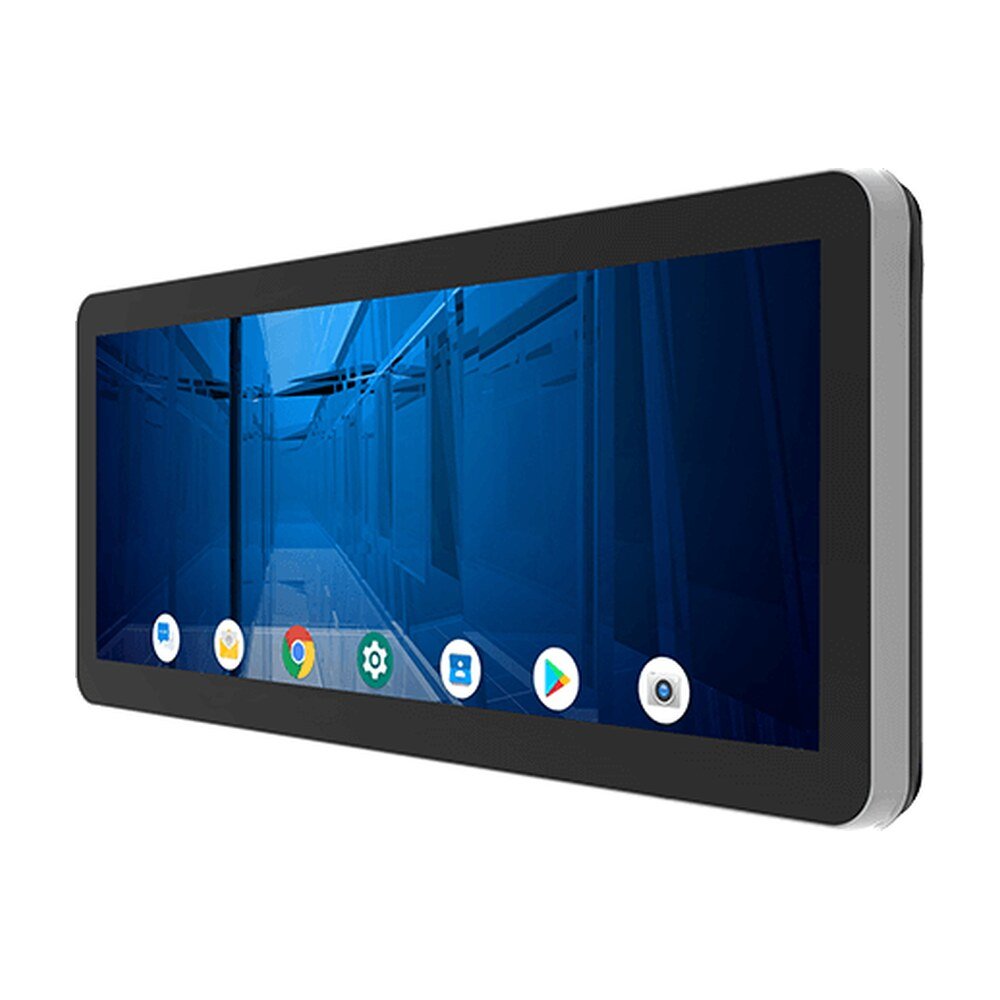

Explore Winmate W12IM3S-GCB1, an industrial panel PC featuring 12.3-inch display with 1920x720 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W12IM3S-GCB1, an industrial panel PC featuring 12.3-inch display with 1920x720 resolution, IP65 for machine control and factory automation.
Industrial panel PCs are versatile computing solutions that support Android or Linux operating systems. This flexibility allows users to choose the operating system that best suits their specific requirements and application needs. Android provides a familiar interface, extensive app support, and ease of use, making it suitable for interactive applications and multimedia purposes. Linux, on the other hand, offers robust customization options, stability, and reliability, making it ideal for industrial control, automation, and monitoring applications. With support for Android or Linux, Industrial Panel PCs offer a wide range of possibilities for various industrial settings, enabling efficient and tailored computing solutions.
The Industrial HMI panel PC is equipped with a front IP65 water and dust-proof rating, making it highly resilient in harsh environments. This level of protection ensures that the HMI is safeguarded against water splashes, dust particles, and other contaminants that could potentially disrupt its operation. With the front IP65 rating, operators can confidently use the HMI in demanding industrial settings without concerns about damage caused by moisture or dust. This feature enhances the reliability and longevity of the HMI, allowing it to effectively support critical industrial processes with optimal performance and durability.
The ARM A53 Quad Core 2.0GHz CPU is a processing unit commonly used in various electronic devices, including smartphones, tablets, and embedded systems. The A53 architecture is part of the ARMv8-A instruction set, designed to offer a balance between performance and power efficiency. With its quad-core configuration, the CPU features four independent processing cores that can handle multiple tasks simultaneously, providing improved multitasking capabilities. Each core operates at a clock speed of 2.0GHz, which determines the rate at which instructions are executed.

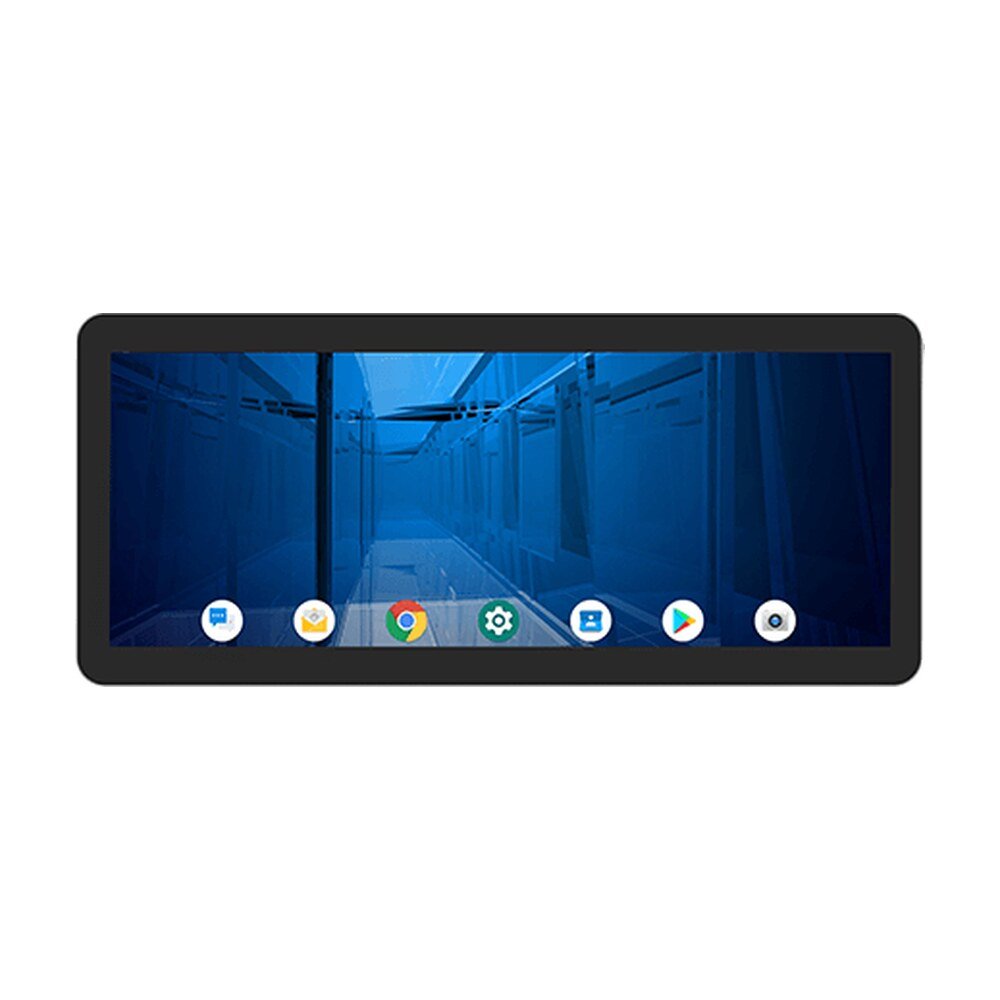

The Industrial Panel PC features a modern design with a true flat, easy-to-clean front surface and an edge-to-edge display. The true flat design eliminates any bezels or gaps, providing a sleek and seamless look. The edge-to-edge display maximizes the screen area, offering a larger viewing area and an immersive visual experience. This design not only enhances the aesthetic appeal of the Panel PC but also facilitates easy cleaning, as there are no edges or crevices for dirt or liquids to accumulate. The Industrial Panel PC's stylish design and practical features make it an ideal choice for industrial environments where cleanliness and visual aesthetics are important considerations.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 292.92×110.22 mm |
| System Specification | |
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Upgradeable to Android 13) (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu Server 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 325.02 x 146.5 x 45 mm |

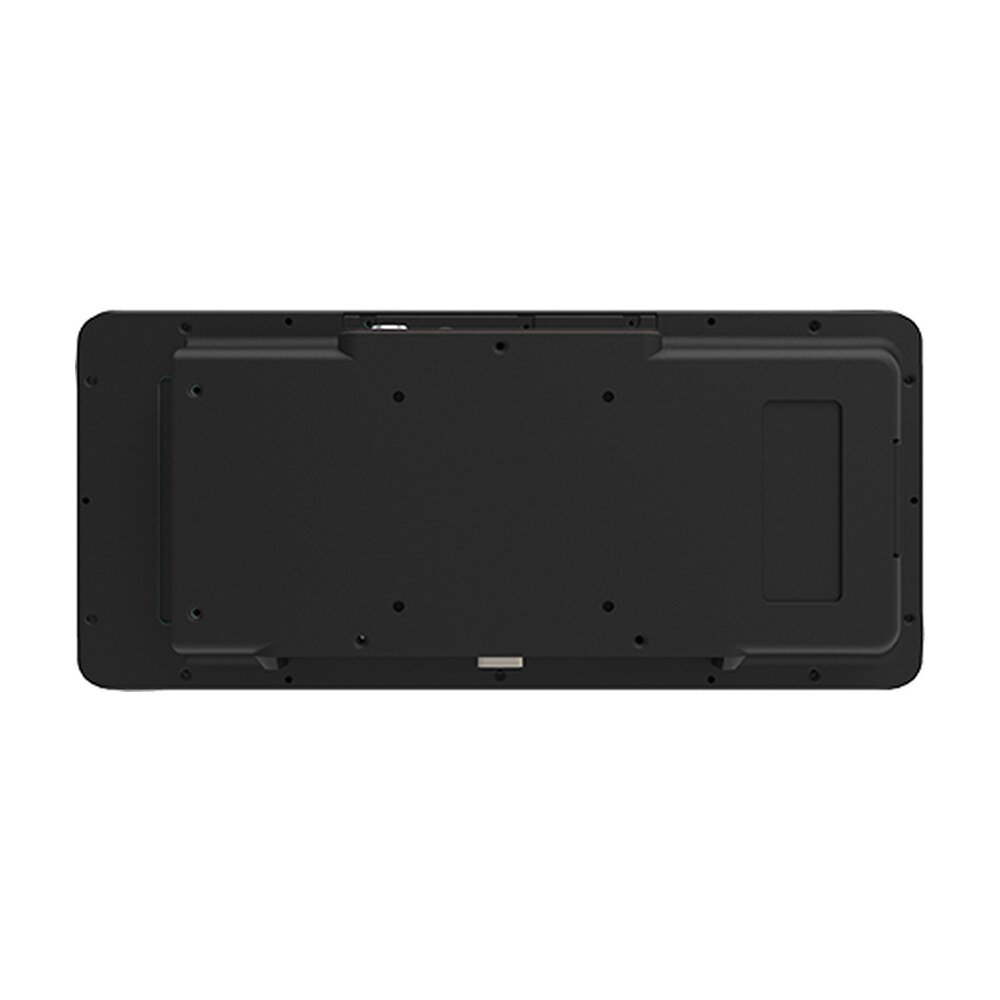

| Mounting | VESA mount |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 2 x USB 2.0 Type A , 1 x Micro USB 2.0 OTG |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 2 x Speaker (Optional) |
| SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Power Button (Optional) |
| Power | |
| Power Rating | 12V DC with Terminal Block |
| Adapter | 12V 50W |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/50W, Power Cord, 3 Pin Terminal Block to DC Jack |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W12IM3S-GCB1 |
| Series | G-WIN GC Series Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W12IM3S-GCB1 |
|---|---|
| Category | G-WIN Series / IP67 Design, Industrial Panel PC and HMI, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 12.3 inches |
| Resolution | 1920x720 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 292.92×110.22 mm |
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Upgradeable to Android 13) (Default), Linux Yocto 5.15.47 with QT 5.15 (Optional), Linux Ubuntu Server 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 325.02 x 146.5 x 45 mm |
| Mounting | VESA mount |
| Cooling System | Fanless Design |
| USB Port | 2 x USB 2.0 Type A , 1 x Micro USB 2.0 OTG |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 2 x Speaker (Optional) |
| SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| Button | 1 x Power Button (Optional) |
| Power Rating | 12V DC with Terminal Block |
| Adapter | 12V 50W |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/50W, Power Cord, 3 Pin Terminal Block to DC Jack |
| Brand | Winmate |
| Manufacturer part number | W12IM3S-GCB1 |
| Series | G-WIN GC Series Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
