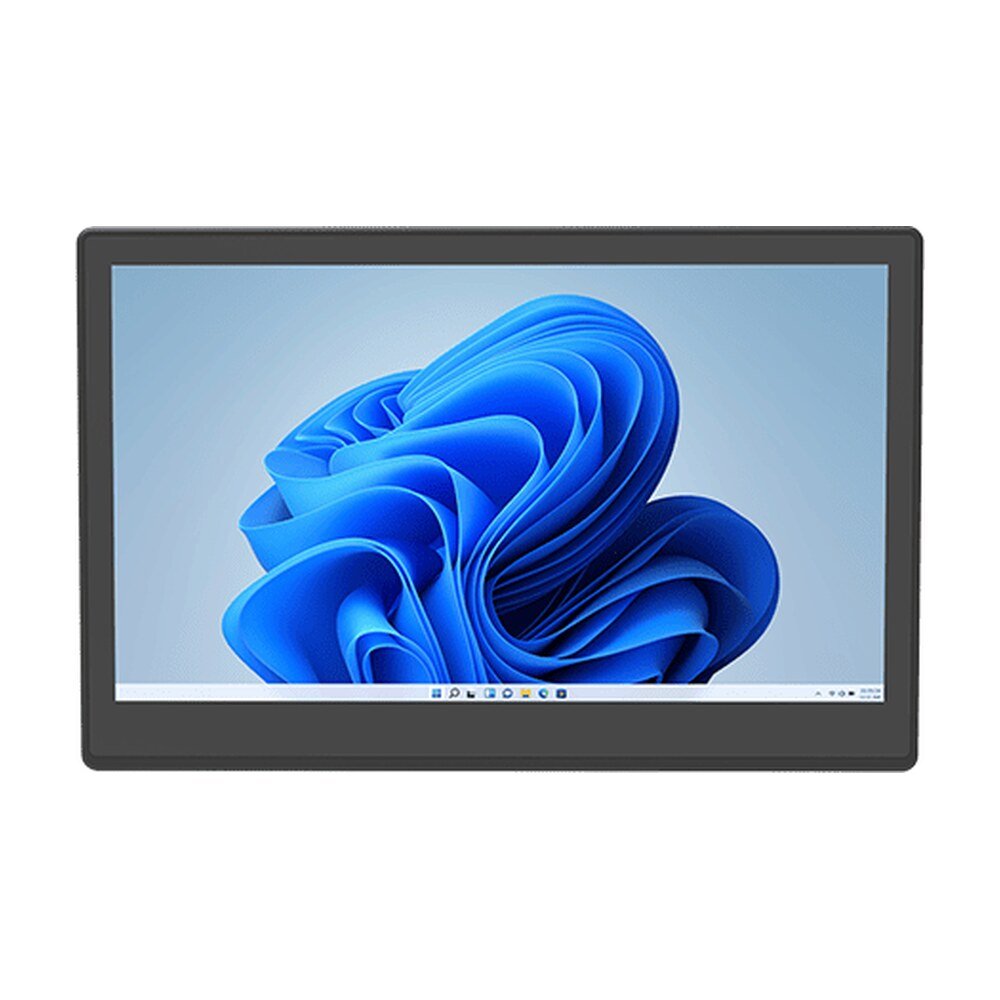

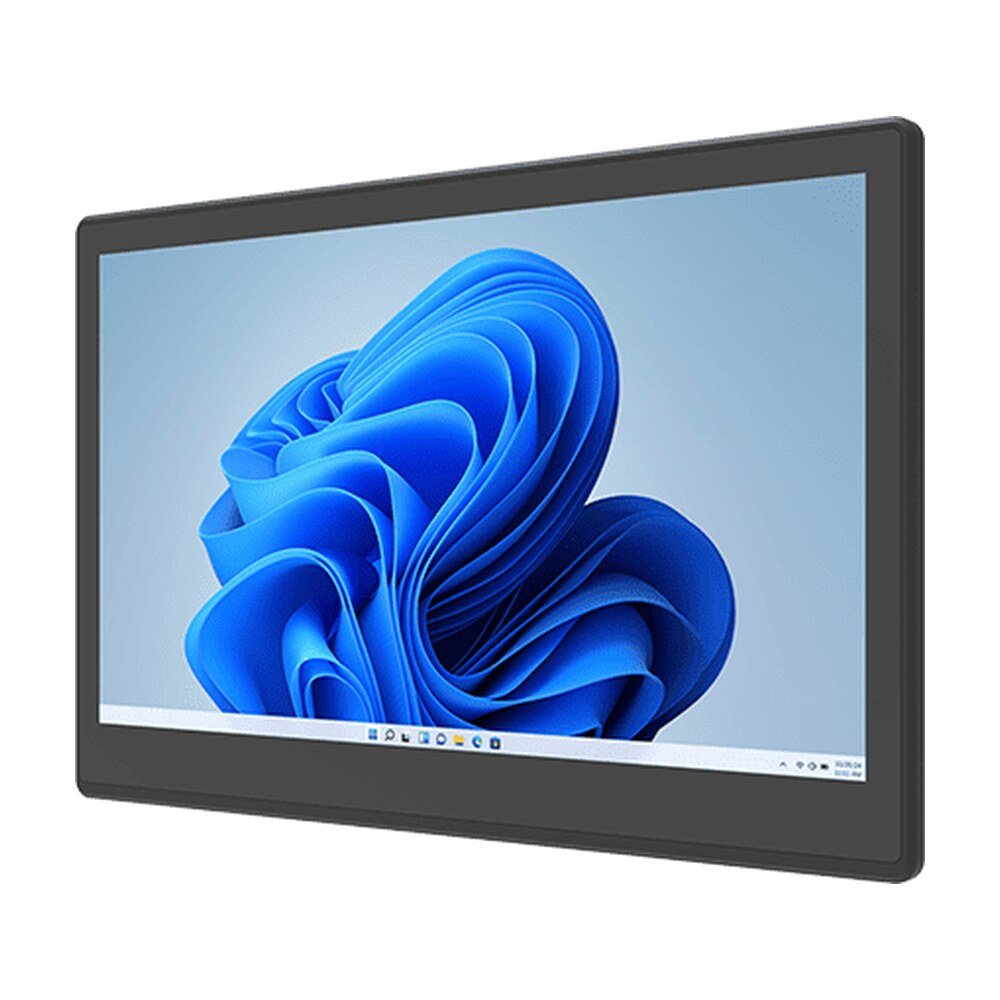

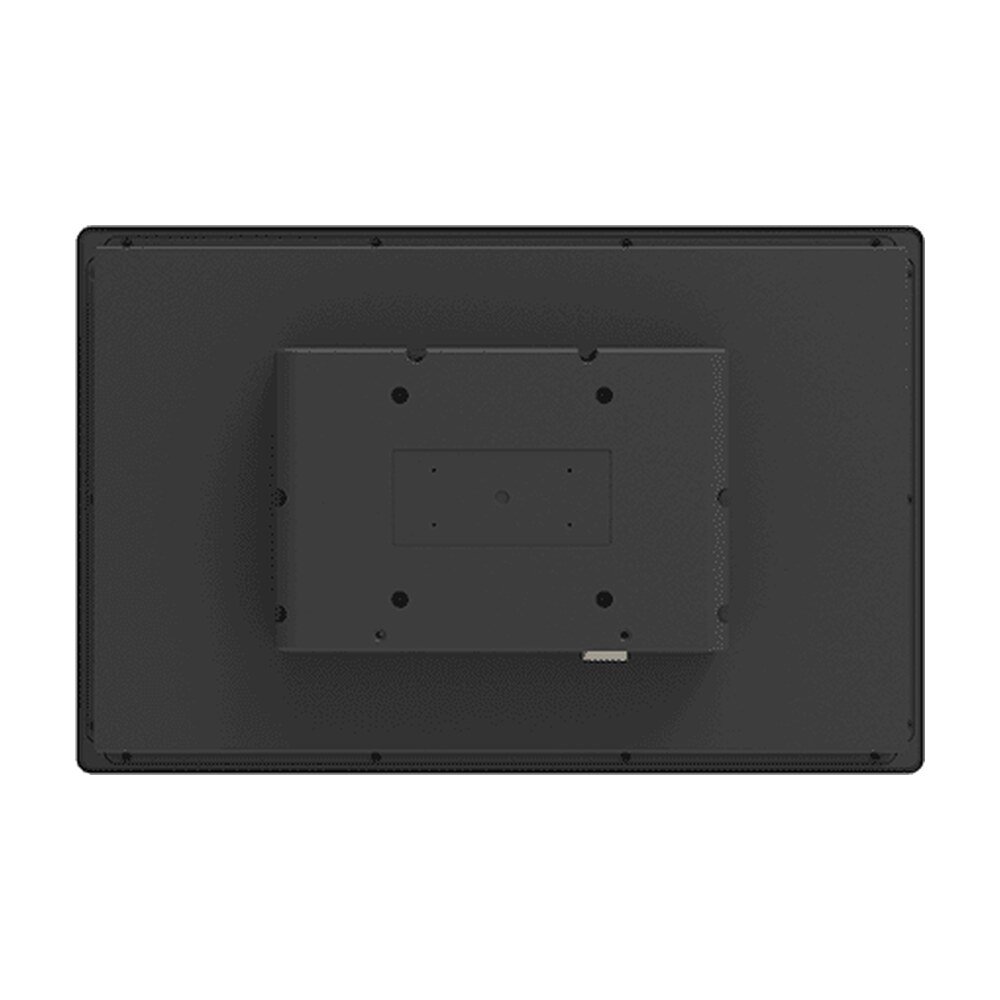

Explore Winmate W14IAN3S-EHA1, an HMI panel PC featuring Intel® Processor N150, 14-inch display with 1920x1080 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W14IAN3S-EHA1, an HMI panel PC featuring Intel® Processor N150, 14-inch display with 1920x1080 resolution…
Powered by the Intel® Processor N100 with 6M Cache and up to 3.40 GHz, the E-Series Panel PC handles mission-critical tasks with ease. Its responsive performance ensures smooth operation for control systems, monitoring dashboards, and automation applications.
Designed with a fanless architecture and ultra-low power draw, the Winmate E-Series Panel PC reduces noise, minimizes dust accumulation, and lowers maintenance costs. Its energy-efficient design ensures dependable, silent operation for continuous use.
The E-Series Panel PC features an IP65-rated front panel with a Projected Capacitive (PCAP) touchscreen, combining rugged protection with a modern, responsive interface. This ensures accurate multi-touch control even in industrial settings, with excellent durability against water splashes and dust ingress.
Engineered with dual Gigabit Ethernet ports, the Winmate E-Series Panel PC provides high-speed data transfer and network redundancy. This configuration boosts stability and security for industrial automation, remote device management, and edge computing environments.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 14.0 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 1200:1 |
| View Angles | 89,89,89,89 |
| Active Area | 309.312x173.988 mm |
| System Specification | |
| Processor | Intel® Processor N150 6M Cache, up to 3.60 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 340 x 220 x 62 mm |
| Cut out | 318.6 x 198.6 mm |
| Weight | 2 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing & ABS+PC |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A), 1 x USB 3.2 Gen 2x1 Type C connector,support DP Alt. mode |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b, Max resolution up to, 4096x2160@60Hz (Optional) |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x M.2 2230 E-Key Slot (for AI Acceleration Card, Only available when NVME SSD is not present) |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W14IAN3S-EHA1 |
| Series | E Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W14IAN3S-EHA1 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 14.0 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 700.0 nits |
| Contrast Ratio | 1200:1 |
| View Angles | 89,89,89,89 |
| Active Area | 309.312x173.988 mm |
| Processor | Intel® Processor N150 6M Cache, up to 3.60 GHz |
| Memory | 8GB (Default), 16GB (Optional) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 340 x 220 x 62 mm |
| Cut out | 318.6 x 198.6 mm |
| Weight | 2 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing & ABS+PC |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A), 1 x USB 3.2 Gen 2x1 Type C connector,support DP Alt. mode |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b, Max resolution up to, 4096x2160@60Hz (Optional) |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x M.2 2230 E-Key Slot (for AI Acceleration Card, Only available when NVME SSD is not present) |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| Brand | Winmate |
| Manufacturer part number | W14IAN3S-EHA1 |
| Series | E Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
