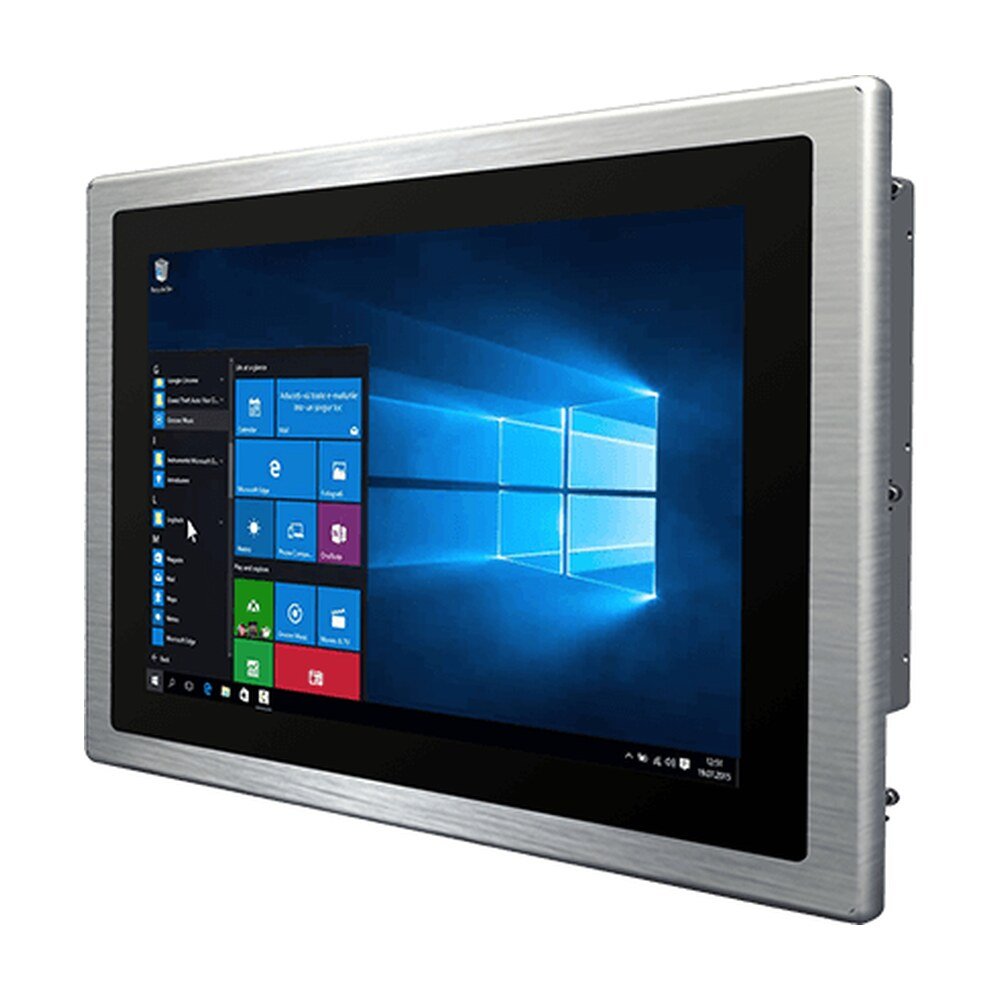

Explore Winmate W15IAD3S-PPA4, an HMI panel PC featuring Intel® Core™ i5-1235U, 15.6-inch display with 1920x1080 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W15IAD3S-PPA4, an HMI panel PC featuring Intel® Core™ i5-1235U, 15.6-inch display with 1920x1080 resolution…
Winmate PP Series HMI Panel PC boast an elegant and slim design, along with a true-flat design that seamlessly fits into industrial applications, meeting the increasing demand for control devices with a sleek profile. The truly flat surface of PP Series HMI Panel PC ensures easy maintenance and cleaning, eliminating dust buildup along the edges.
Winmate PP Series HMI Panel PC deliver an unparalleled touch experience through a projected capacitive (PCAP) multitouch screen. This technology ensures a seamless touch interface, enhancing device usability and, consequently, elevating the overall customer experience.
Winmate PP Series HMI is sealed with IP65 on the front side, safeguarding it against potential damage from external dust and water splashes. This protective feature ensures the device's resilience in challenging environments, maintaining optimal functionality and longevity.
Achieving high performance and facilitating innovative Industrial IoT solutions, Winmate PP Series HMI Panel PC boast a rich I/O interface. This interface includes serial ports, USB ports, LAN, video, and audio ports, providing extensive connectivity options. With a user-friendly design for easy installation, Winmate Panel PC ensure outstanding performance for various vertical applications.
The durable aluminum die-cast housing of the Winmate PP Series HMI Panel PC provides excellent corrosion resistance and durability. This feature makes these Panel PC highly suitable for a diverse array of industrial and factory applications, especially those with challenging environmental conditions.
| Display | |
|---|---|
| Size | 15.6 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Active Area | 344.16x193.59 mm |
| System Specification | |
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 8GB(Default), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 415 x 275 x 71 mm |
| Cut out | 374.5 x 240 mm |
| Weight | 3.9 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0 (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-KeySlot (for Wi-Fi Module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 120W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W15IAD3S-PPA4 |
| Series | PP Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
