Explore Winmate W15IE3S-MRB1FP, a marine panel PC featuring Intel® Pentium® N6415, 14.9-inch display with 1920x720 resolution for marine bridge systems and…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W15IE3S-MRB1FP, a marine panel PC featuring Intel® Pentium® N6415, 14.9-inch display with 1920x720 resolution for marine bridge systems and…

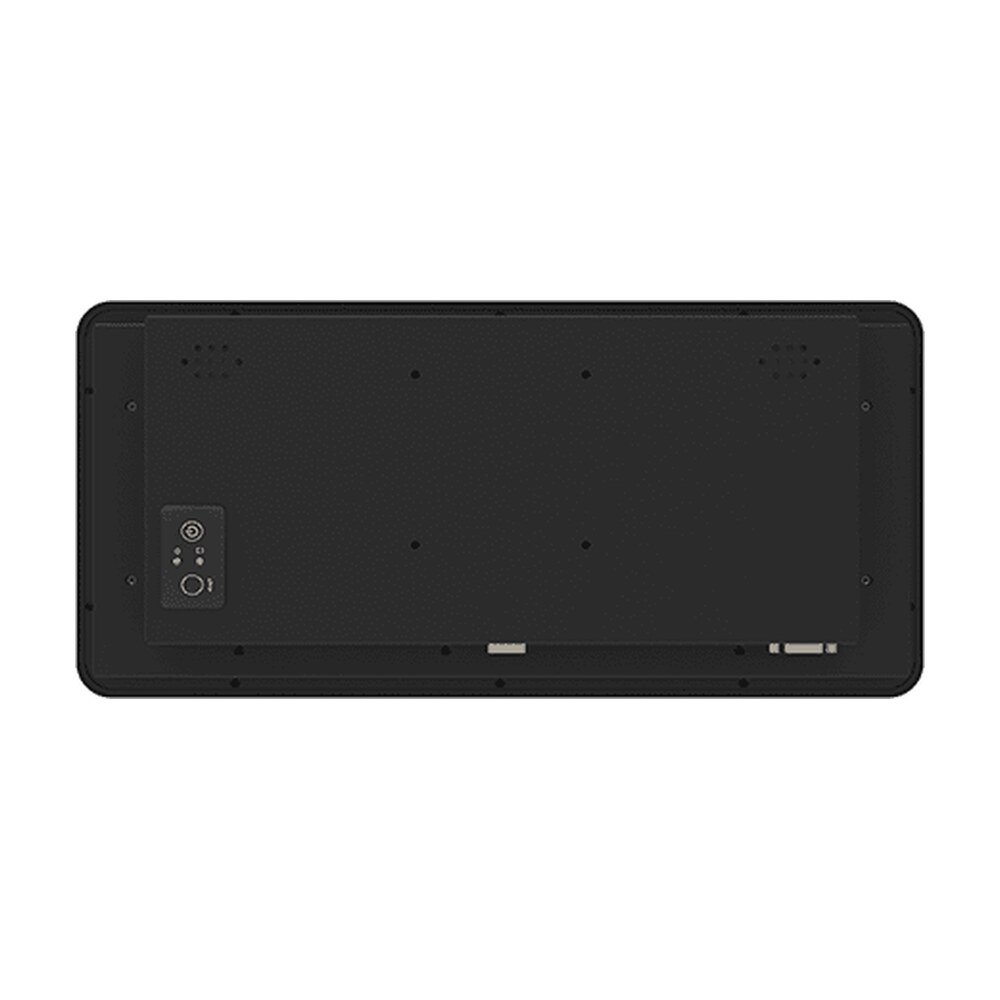

Winmate 14.9" Marine Panel PC featuring a high-resolution 1920 x 720 display with a wide viewing angle and PCAP touch technology. This rugged panel PC is designed to meet the demanding requirements of marine environments, ensuring reliable performance even in harsh conditions. With its durable construction and marine-specific certifications, it offers excellent resistance to water, moisture, vibration, and extreme temperatures. The PCAP touch technology provides intuitive and responsive touch control, enhancing usability and efficiency. Whether for navigation, monitoring, or control applications, the Winmate 14.9" Marine Panel PC is a reliable choice for marine professionals.
The Winmate 14.9" Marine Panel PC is equipped with a versatile 9~36V DC power input, making it compatible with a wide range of marine power systems. This feature ensures seamless integration and reliable operation in diverse marine environments. Whether it's on a boat, ship, or offshore platform, the panel PC can handle varying voltage levels without compromising performance. With its flexible power input capabilities, the Winmate 14.9" Marine Panel PC offers convenience and adaptability for marine professionals seeking a reliable computing solution on their vessels.
The Winmate 14.9" Marine Panel PC is equipped with the powerful Intel® Elkhart Lake Pentium® N6415 Processor, making it an efficient and reliable computing solution. Designed specifically for marine environments, this Dash panel PC delivers exceptional performance and meets the demanding requirements of marine applications. Whether it's for navigation, monitoring, or control purposes, the Winmate 14.9" Marine Panel PC provides a robust and responsive user experience. With its rugged construction and advanced processing capabilities, it is an ideal choice for marine professionals seeking a high-performance computing solution for their dash panel needs.
Winmate 14.9” marine panel pc features a PCAP (Projected Capacitive) multi-touch screen, providing a responsive and intuitive user interface. The PCAP technology allows for accurate touch detection and supports multi-touch gestures, enabling users to interact with the marine panel pc effortlessly. The multi-touch functionality allows for zooming, panning, and gesture-based controls, enhancing the user experience and improving productivity. With the PCAP multi-touch screen, operators can easily navigate through complex interfaces, input data, and access information with a simple touch, making the marine panel pc an ideal choice for industrial applications that require intuitive and efficient human-machine interaction.
| Display | |
|---|---|
| Size | 14.9 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1920x720 |
| Panel Brightness | 950.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,85,85 |
| Active Area | 355.68×133.38 mm |
| System Specification | |
| Processor | Intel®Pentium® N6415 (1.5M Cache, up to 3.0GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 256GB (Default), 512GB (Optional) |
| Ethernet controller | 2 x 2.5 Giga LAN RJ45 Connector |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional) |
| Environment | |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| IP rating | IP66 (Front Side) |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 2 x RS232(Default)/422/485 |
| LAN | 2 x RJ45-10/100/1000 Mbps |
| Video | 1 x HDMI 2.0 (Optional) |
| Mechanical | |
| Dimension | 400.1 x 187.6 x 59 mm |
| Weight | 4.8 kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | Driver CD & User Manual, AC to DC Adapter 12V/ 50W, Power Cord, 3 pin Terminal Block to DC Jack |
| Power | |
| Power Rating | 9V~36V DC In Terminal Block |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W15IE3S-MRB1FP |
| Series | Marine Dashboard Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W15IE3S-MRB1FP |
|---|---|
| Category | Marine Grade, Marine Panel PCs, Winmate |
| Size | 14.9 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1920x720 |
| Panel Brightness | 950.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85,85,85,85 |
| Active Area | 355.68×133.38 mm |
| Processor | Intel®Pentium® N6415 (1.5M Cache, up to 3.0GHz) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional) |
| Storage | 256GB (Default), 512GB (Optional) |
| Ethernet controller | 2 x 2.5 Giga LAN RJ45 Connector |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional) |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| IP rating | IP66 (Front Side) |
| Certification | CE, FCC |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 2 x RS232(Default)/422/485 |
| LAN | 2 x RJ45-10/100/1000 Mbps |
| Video | 1 x HDMI 2.0 (Optional) |
| Dimension | 400.1 x 187.6 x 59 mm |
| Weight | 4.8 kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | Driver CD & User Manual, AC to DC Adapter 12V/ 50W, Power Cord, 3 pin Terminal Block to DC Jack |
| Power Rating | 9V~36V DC In Terminal Block |
| Brand | Winmate |
| Manufacturer part number | W15IE3S-MRB1FP |
| Series | Marine Dashboard Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
