Explore Winmate W18IT3S-MLA3FP, a rackmount panel PC featuring Intel® Core™ i5-1135G7, 18.5-inch display, MIL-STD-810G, MIL-STD-461 for defense operations and…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W18IT3S-MLA3FP, a rackmount panel PC featuring Intel® Core™ i5-1135G7, 18.5-inch display, MIL-STD-810G, MIL-STD-461 for defense operations and…

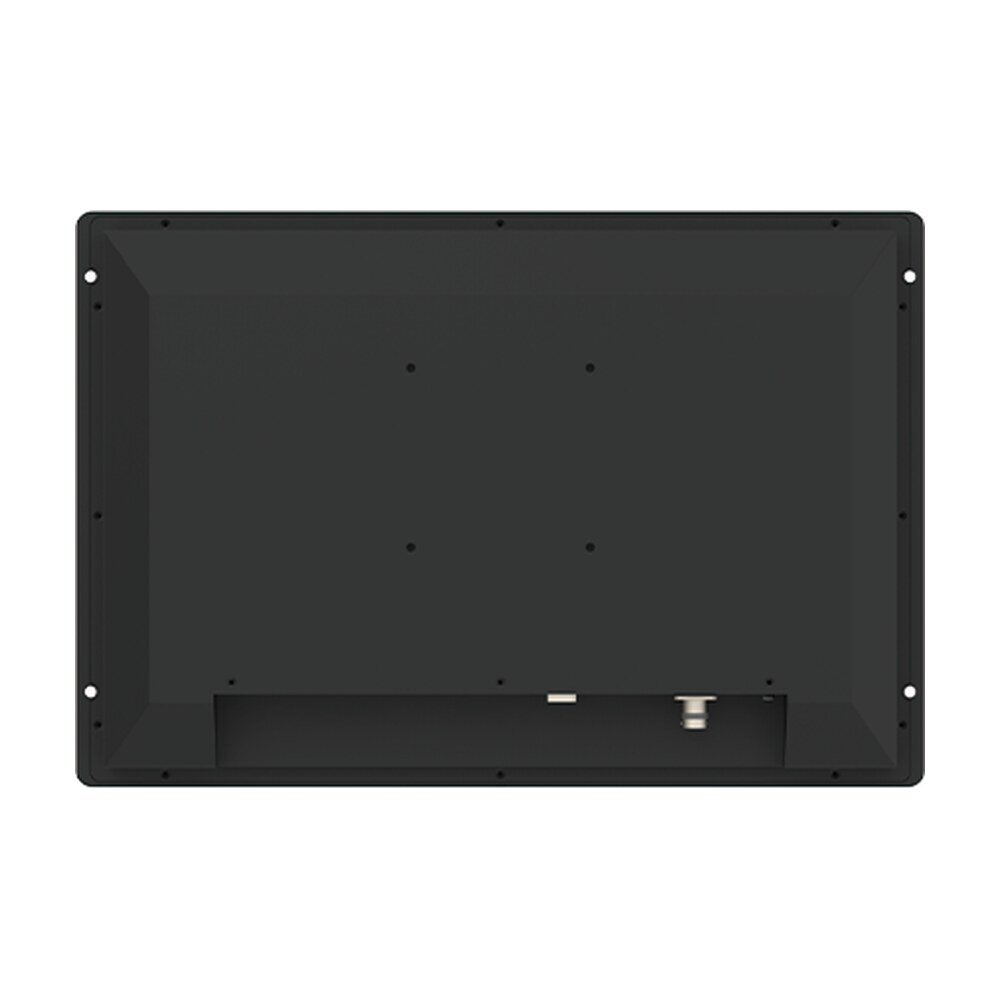

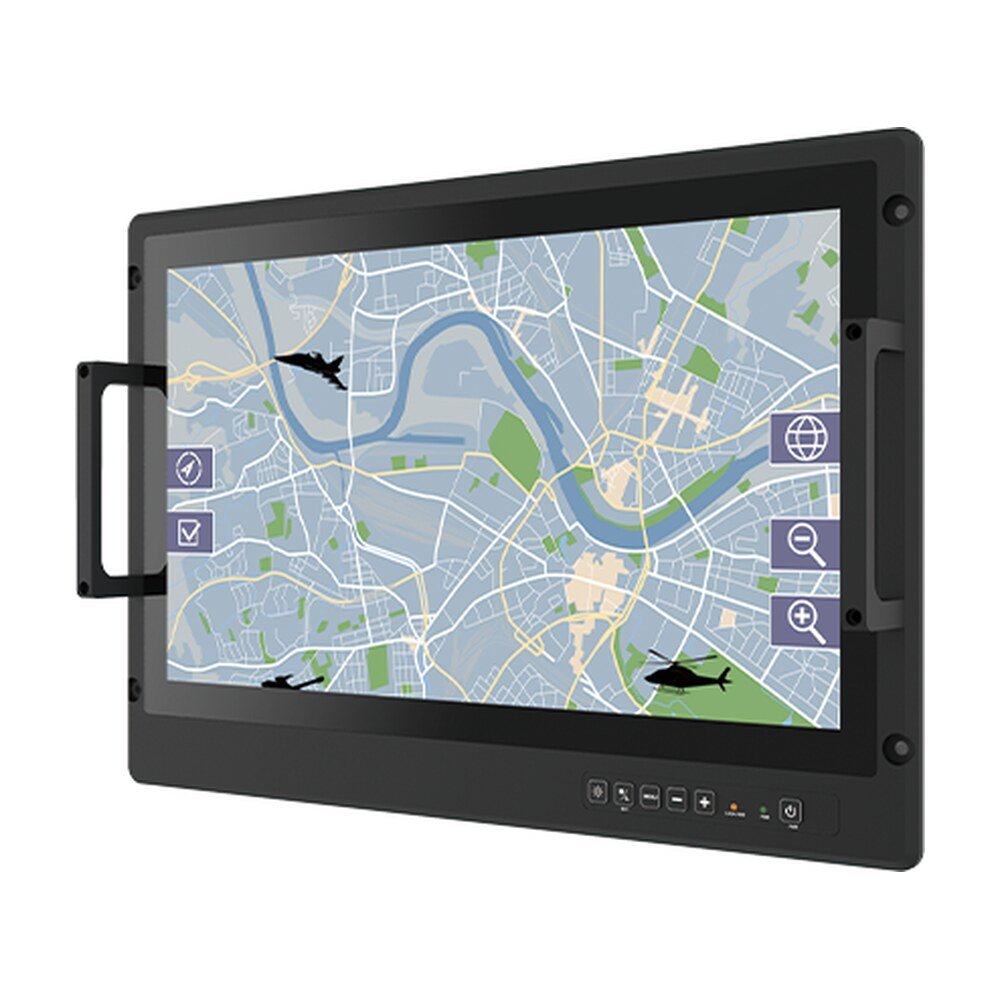

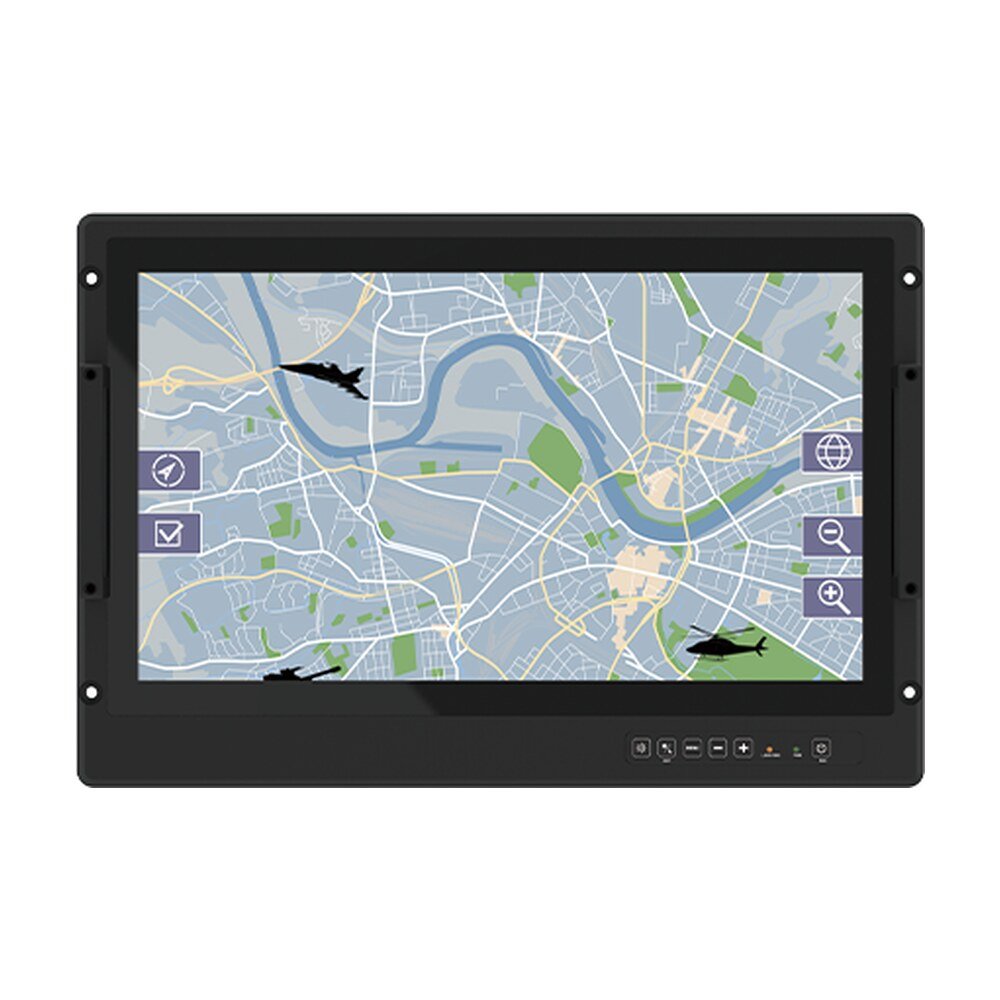

The 18" Defence Console Rack Panel PC boasts a sleek flush rack/rack mount mechanical design, occupying just 8U of space. This compact form factor is optimized for space-constrained environments, allowing for efficient use of limited rack space. Its robust construction and secure mounting system ensure stability during transportation and operation.
Designed for user convenience, this panel PC comes equipped with on-screen display controls. Users can easily access and adjust various settings directly on the screen, eliminating the need for external peripherals. This intuitive interface enhances operational efficiency and streamlines user interaction, ultimately improving overall performance.
Meeting the MIL-STD-461E/F standard, this panel PC ensures electromagnetic compatibility, effectively reducing electromagnetic interference and susceptibility. This feature is vital in scenarios where electronic equipment must coexist without hindering each other's performance, guaranteeing reliable communication and data integrity.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), PCAP with With ITO Film (Optional) |
| Size | 18.5 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 408.96x230.04 mm |
| System Specification | |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) (Default), Intel Core i5-1145G7 2.6GHz (up to 4.4GHz) (Optional) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB, up to 2TB |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20~60°C |
| Storage Temperature | -30°C~70°C |
| Vibration | USA: MIL-STD-810H Method 514.8 – Procedure I, , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP, 401–Procedure I (optional) |
| Drop | USA: MILSTD810H Method 516.8 , , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 404– Procedure II (Optional) |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| Compliance | |
| MIL-STD 461G | USA: MIL-STD-461G: CE101, CE102, RE101, RE102, CS118 (default), CS101, CS114, CS115, CS116, RS101, RS103 (optional), , , NATO: STANAG 4370/AECTP-501: NCE01, NCE02, NRE01, NRE02, NCS12 (default), NCS01, NCS07, NCS08, NCS09, NRS01, NRS02 (optional) |
| MIL-STD 810H | USA: MIL-STD-810H (default): Vibration Method 514.8, Humidity Method 507.6, Transit Drop Method516.8, , NATO (optional): Vibration Test STANAG 4370/AECTP-401, Shock STANAG 4370/AECTP-402 Procedure I, Drop and Topple Test STANAG 4370/AECTP-404 |
| Certification | |
| Certification | CE, FCC |
| Accessory | |
| Accessory | 1 x Manual(Hardcopy), 1 x Driver CD, 1 x Power Cord (MIL-DTL-38999/1) |
| Mechanical | |
| Dimension | 465 x 327 x 75 mm |
| Mounting | VESA mount/Rack mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 2 x USB 3.2 Gen 1 |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x RJ-45 |
| Video | 1 x HDMI 2.0 (Optional) |
| Power | |
| Power Rating | AC 100~240V, Universal, ±10% (Default), DC 9~36V, ±10% (Optional) |
| Control | |
| Button | 6 Key OSD Control Pad:, Power/ Brightness DOWN, Brightness UP/, Night, Day/ Exit, Auto/ Menu |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W18IT3S-MLA3FP |
| Series | Defence Console Rack Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W18IT3S-MLA3FP |
|---|---|
| Category | Defence Grade, Defence Panel PCs, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), PCAP with With ITO Film (Optional) |
| Size | 18.5 inches |
| Resolution | 1920x1080 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 408.96x230.04 mm |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) (Default), Intel Core i5-1145G7 2.6GHz (up to 4.4GHz) (Optional) |
| Memory | 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB, up to 2TB |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -20~60°C |
| Storage Temperature | -30°C~70°C |
| Vibration | USA: MIL-STD-810H Method 514.8 – Procedure I, , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP, 401–Procedure I (optional) |
| Drop | USA: MILSTD810H Method 516.8 , , NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 404– Procedure II (Optional) |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| Certification | CE, FCC |
| Accessory | 1 x Manual(Hardcopy), 1 x Driver CD, 1 x Power Cord (MIL-DTL-38999/1) |
| Dimension | 465 x 327 x 75 mm |
| Mounting | VESA mount/Rack mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| USB Port | 2 x USB 3.2 Gen 1 |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x RJ-45 |
| Video | 1 x HDMI 2.0 (Optional) |
| Power Rating | AC 100~240V, Universal, ±10% (Default), DC 9~36V, ±10% (Optional) |
| Button | 6 Key OSD Control Pad:, Power/ Brightness DOWN, Brightness UP/, Night, Day/ Exit, Auto/ Menu |
| Brand | Winmate |
| Manufacturer part number | W18IT3S-MLA3FP |
| Series | Defence Console Rack Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
