Explore Winmate W22IE3S-SPA3-B, an industrial panel PC featuring 21.5-inch display, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W22IE3S-SPA3-B, an industrial panel PC featuring 21.5-inch display, IP65 for machine control and factory automation.
The Panel PC complies with IP65 water and dust resistance for regular cleanup processes and strict hygiene standards in the Food, Beverage, and Pharmaceutical industries.

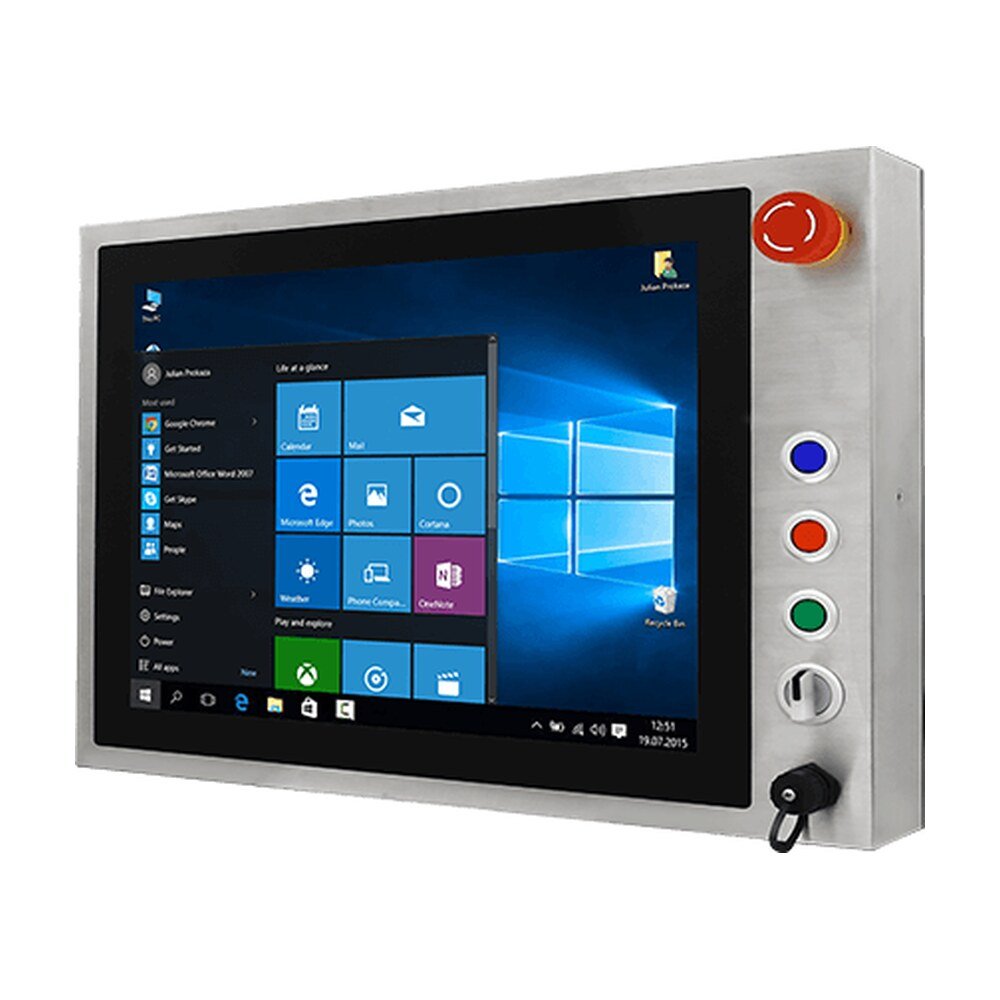

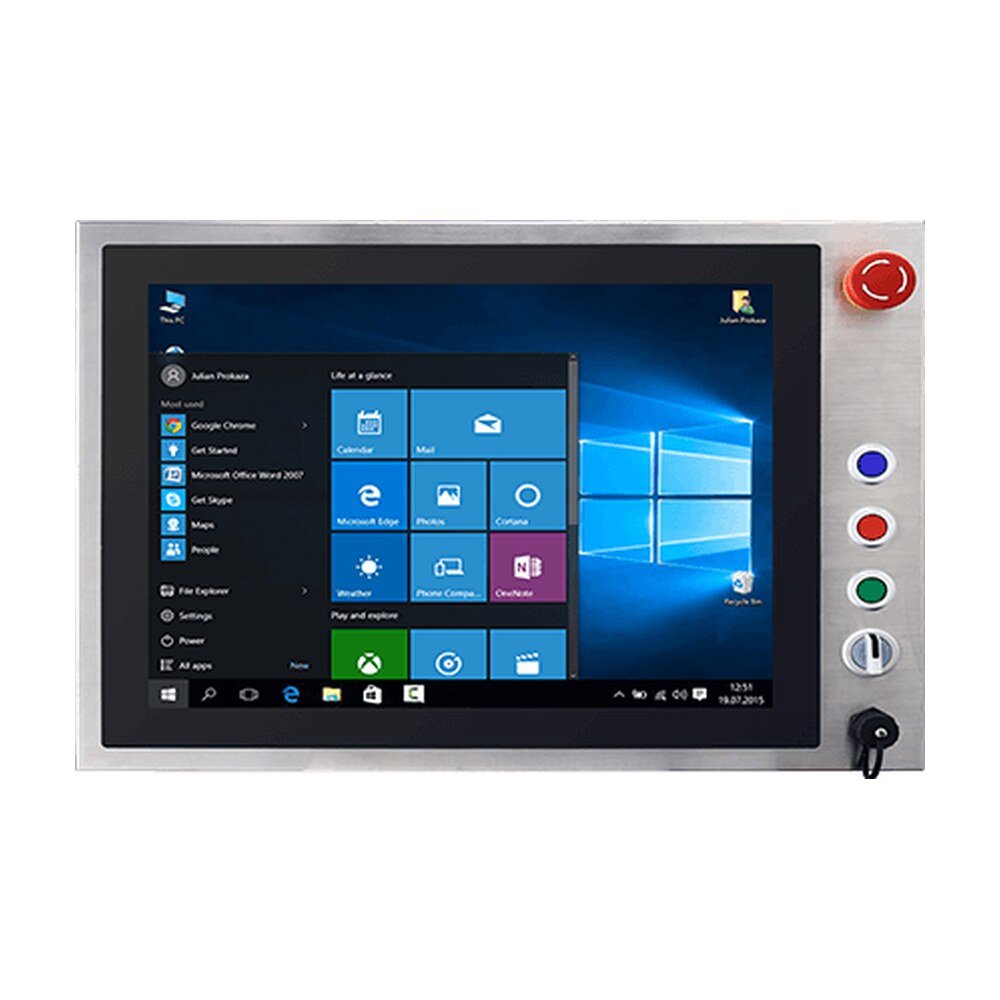

Push-buttons bring precise control directly to the work area, eliminating wasted movement and increasing productivity. Also, the physical buttons are especially useful for critical situations like emergency shutdowns.
When an emergency occurs, we don’t want to waste time navigating through HMI screens; hence a button offers a quick and simple way to shut down the process.
The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers. The rotary switch gives a simple, intuitive way to switch hand, rain, and glove modes.
| Display | |
|---|---|
| Size | 21.5 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 476.64x268.11 mm |
| System Specification | |
| Processor | Intel Atom® x6413E ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 595 x 337 x 69 mm |
| Mounting | VESA mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |

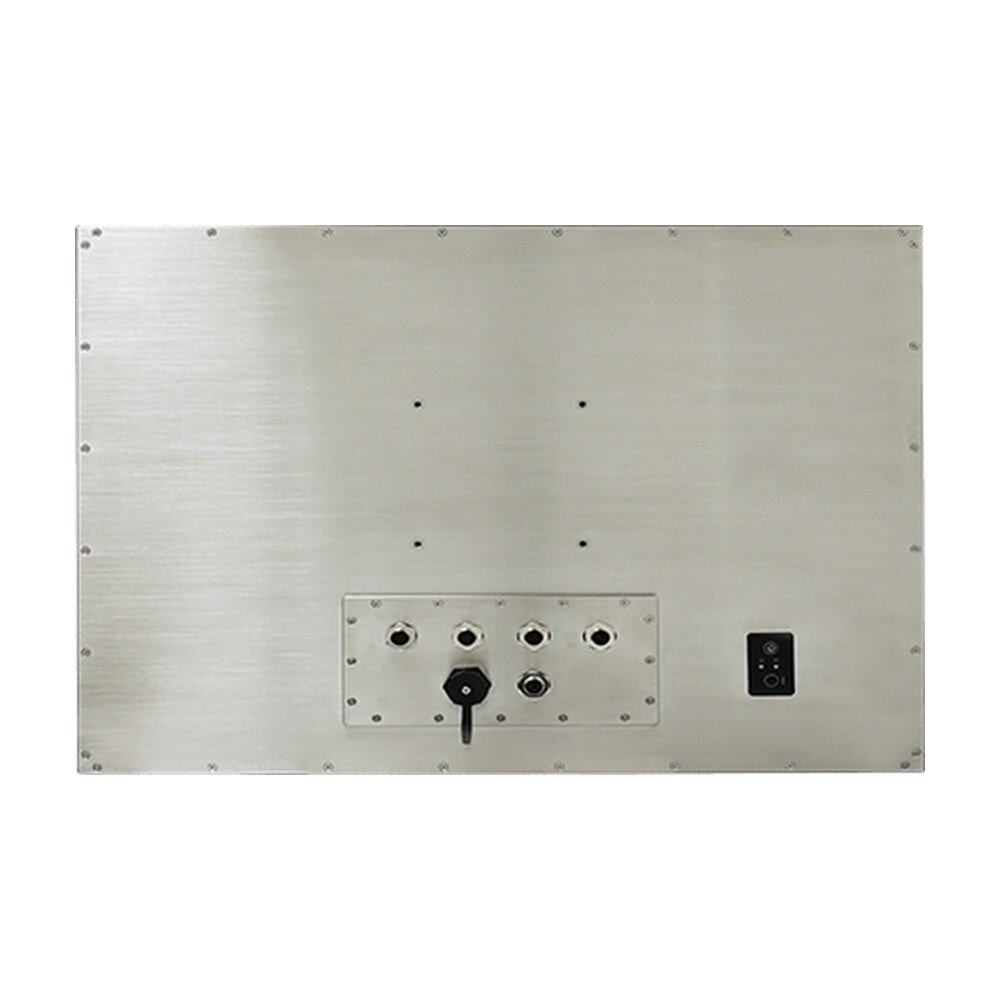

| USB Port | 1 x M12 waterproof connector for 2 x USB2.0, 1 x Front waterproof connector for USB2.0 type-A |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Expansion Port | CN1 and CN2 for front button control |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x M12 waterproof connector for 12V DC |
| Control | |
| Button | Rear side:, 1 x Power Button, 1 x Reset Button, Front side:, 1 x Emergency Button & 3 x Flat Button for CN1 & CN2 M12 connector, 1 x Rotary Switch for touch mode |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter with waterproof connector, Power Cord, External USB cable with waterproof connector, External COM cable with waterproof connector, External LAN cable with waterproof connector, External cables for CN1 & CN2 with waterproof connector, Waterproof caps, RJ45 female-female converter, VESA screws |
| Optional Accessory | 1 x Open wire cable for M12 connector |
| Power | |
| Power Rating | M12 Type: 12V DC (Default), 9~36V DC (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W22IE3S-SPA3-B |
| Series | IP65 Stainless B Series with Push Buttons |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W22IE3S-SPA3-B |
|---|---|
| Category | Industrial Panel PC and HMI, Stainless Panel PC, Winmate |
| Size | 21.5 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 476.64x268.11 mm |
| Processor | Intel Atom® x6413E ( up to 3.0GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 595 x 337 x 69 mm |
| Mounting | VESA mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP65 |
| Certification | CE, FCC |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0, 1 x Front waterproof connector for USB2.0 type-A |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Expansion Port | CN1 and CN2 for front button control |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x M12 waterproof connector for 12V DC |
| Optional Accessory | 1 x Open wire cable for M12 connector |
| Power Rating | M12 Type: 12V DC (Default), 9~36V DC (Optional) |
| Brand | Winmate |
| Manufacturer part number | W22IE3S-SPA3-B |
| Series | IP65 Stainless B Series with Push Buttons |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
