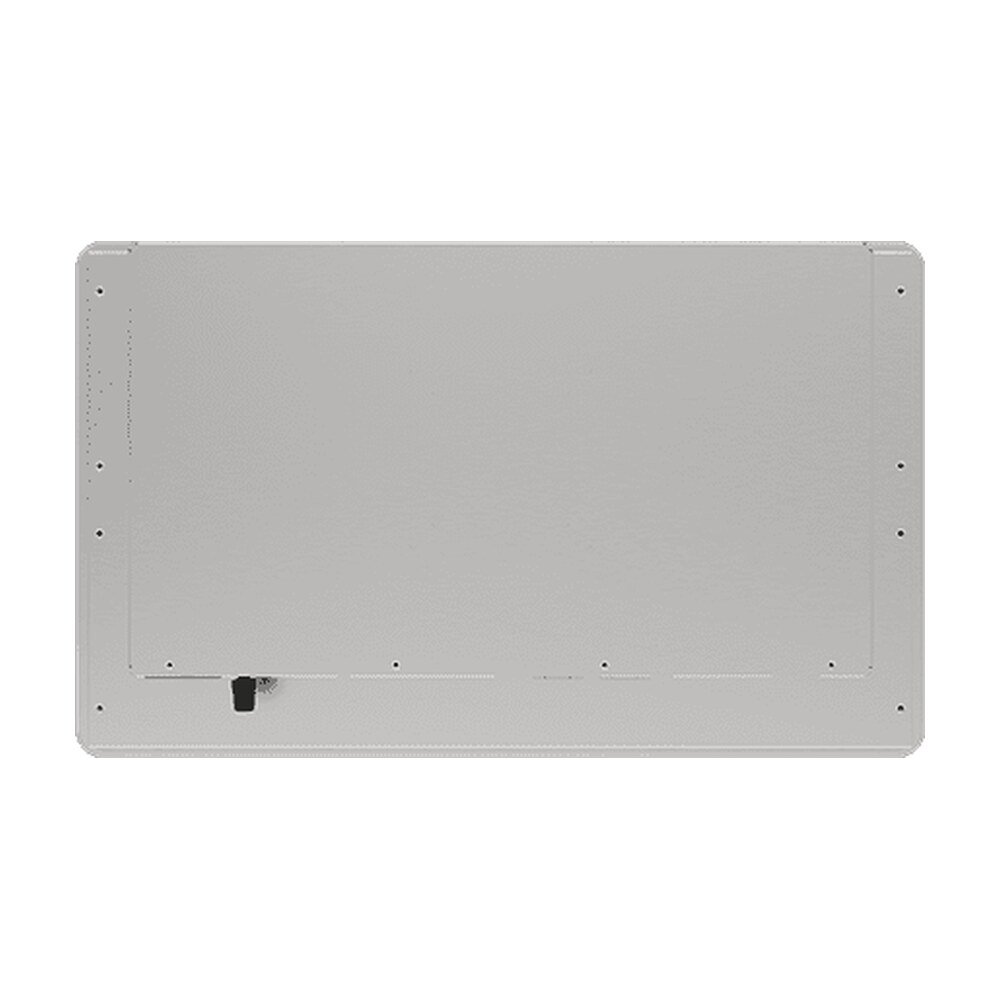

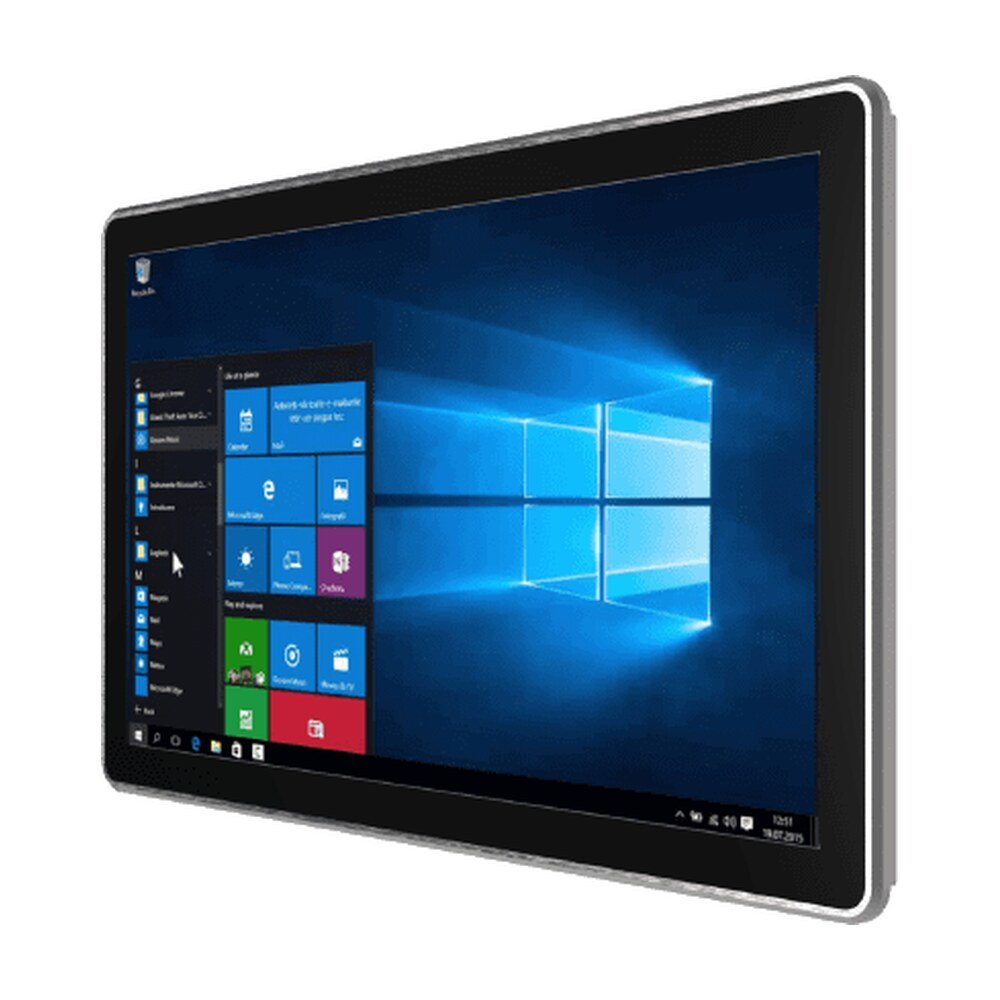

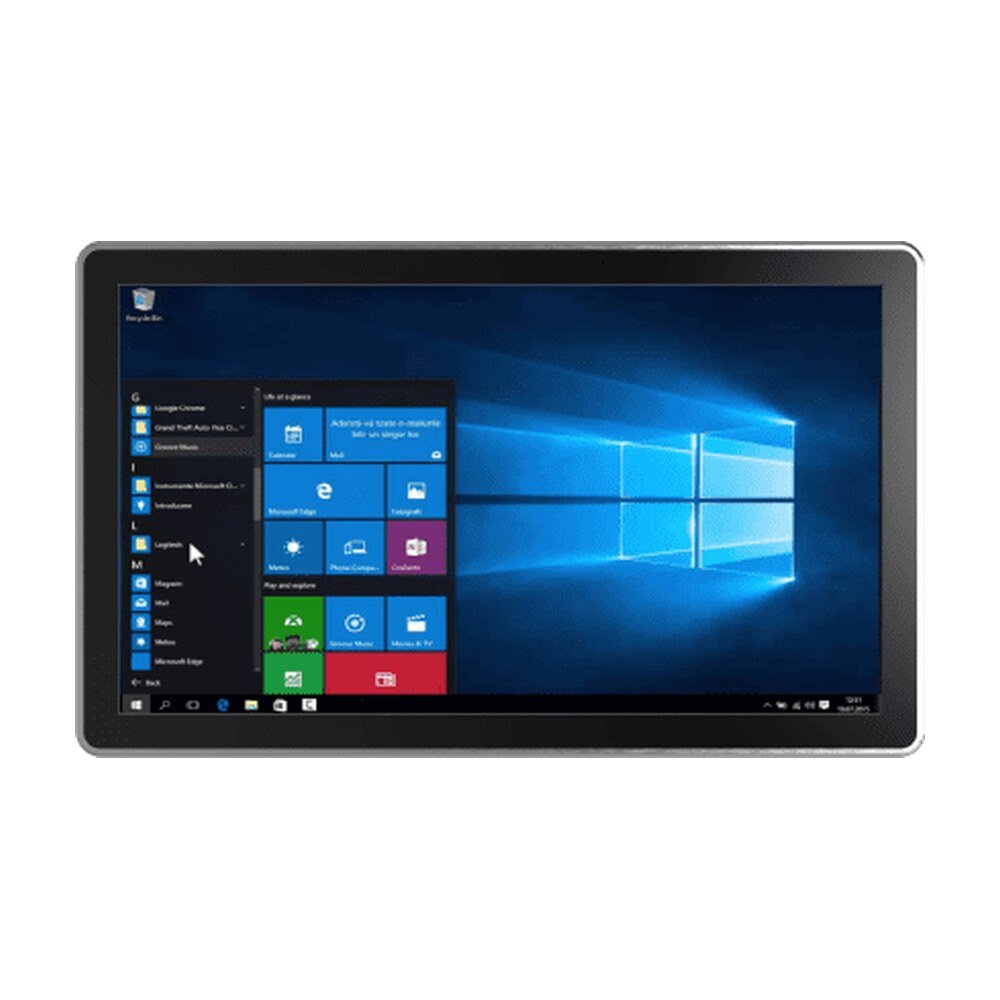

Explore Winmate W22IP7T-PPA3, an HMI panel PC featuring Intel® Pentium® N4200, 21.5-inch display with 1920x1080 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W22IP7T-PPA3, an HMI panel PC featuring Intel® Pentium® N4200, 21.5-inch display with 1920x1080 resolution…
The PP Series HMI panel PCs feature an elegant, slim design and true-flat design that works perfectly within industrial applications that satisfy the growing demand for control devices with a flat design. With a truly flat surface, PP Series HMI panel PCs are easy to maintain and clean, leaving no more clogged dust on the edges.
The PP Series HMI panel PCs offer an ultimate touch experience with a projected capacitive (PCAP) multitouch screen. This technology allows enjoying every touch and improving the convenience of using the device. Thus it helps to enhance the overall customer experience. Enjoy every touch!
The IP65 rating is utterly impervious to dust and protected against the splash of waters. The PP Series HMI panel PCs deliver outstanding processing, graphical, and media performance while operating in challenging conditions.
The PP Series HMI panel PCs feature high performance and a rich I/O interface for innovative industrial IoT solutions, including serial ports, USB ports, LAN, video, and audio ports. Connectivity options, high performance, and installation-friendly design deliver excellent performance for vertical applications.
Robust aluminum die-cast housing offers corrosion resistance and durability, making the PP Series HMI panel PCs suitable for a wide range of application possibilities in industrial and factory applications with challenging environments.
| Display | |
|---|---|
| Size | 21.5 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 476.64x268.11 mm |
| System Specification | |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | Dual-channel (non-ECC) SO-DIMM RAM.Up to 16GB |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB, 2 x SATA III for 2.5" SSD/HDD(Supprt RAIO) (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 533 x 324 x 78 mm |
| Cut out | 504 x 304 mm |
| Weight | 7.2 kg |
| Mounting | Panel mount (Default), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.2 (Default), 1 x HDMI 1.4 (Optional), 1 x VGA (Optional) |
| Audio | 1 x Mic in, 1 x Line out, 2 x Speaker |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 2.0 (x1) slot |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 84W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W22IP7T-PPA3 |
| Series | PP Series HMI |
| Availability | Please call for pricing and availability |
