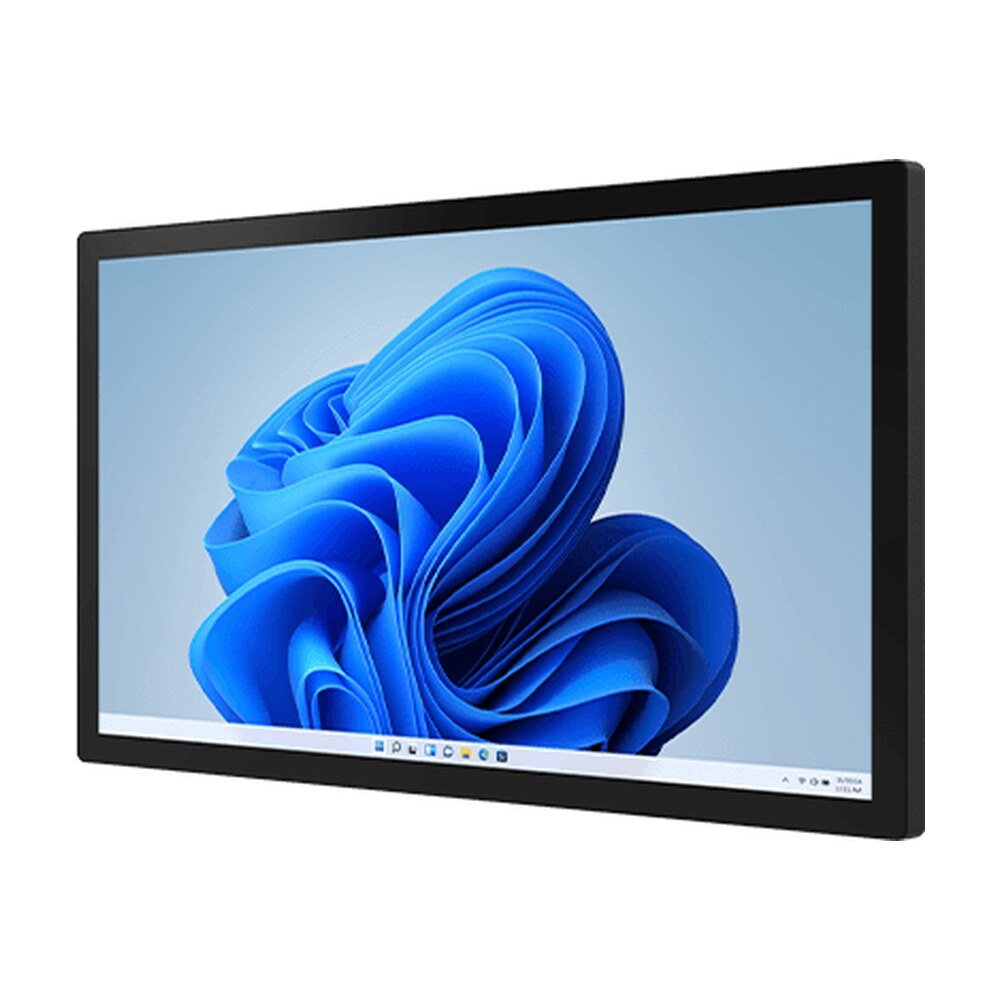

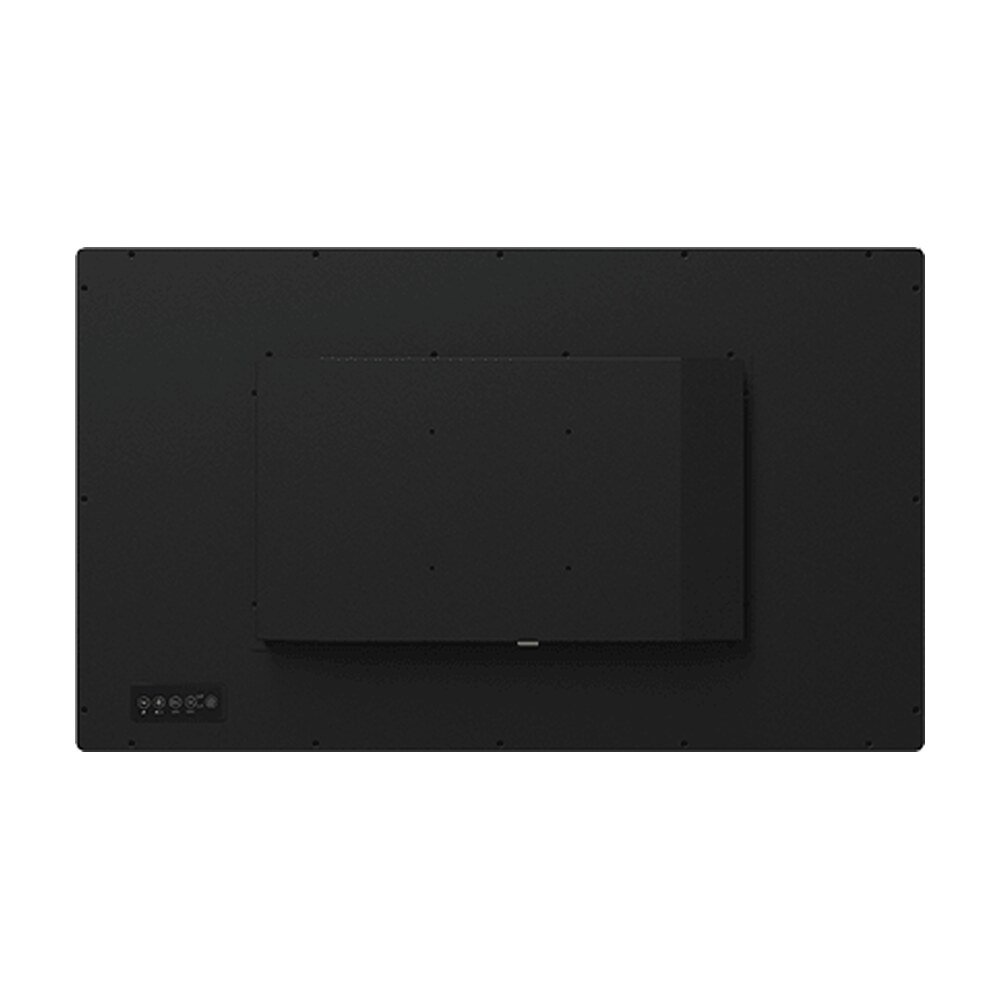

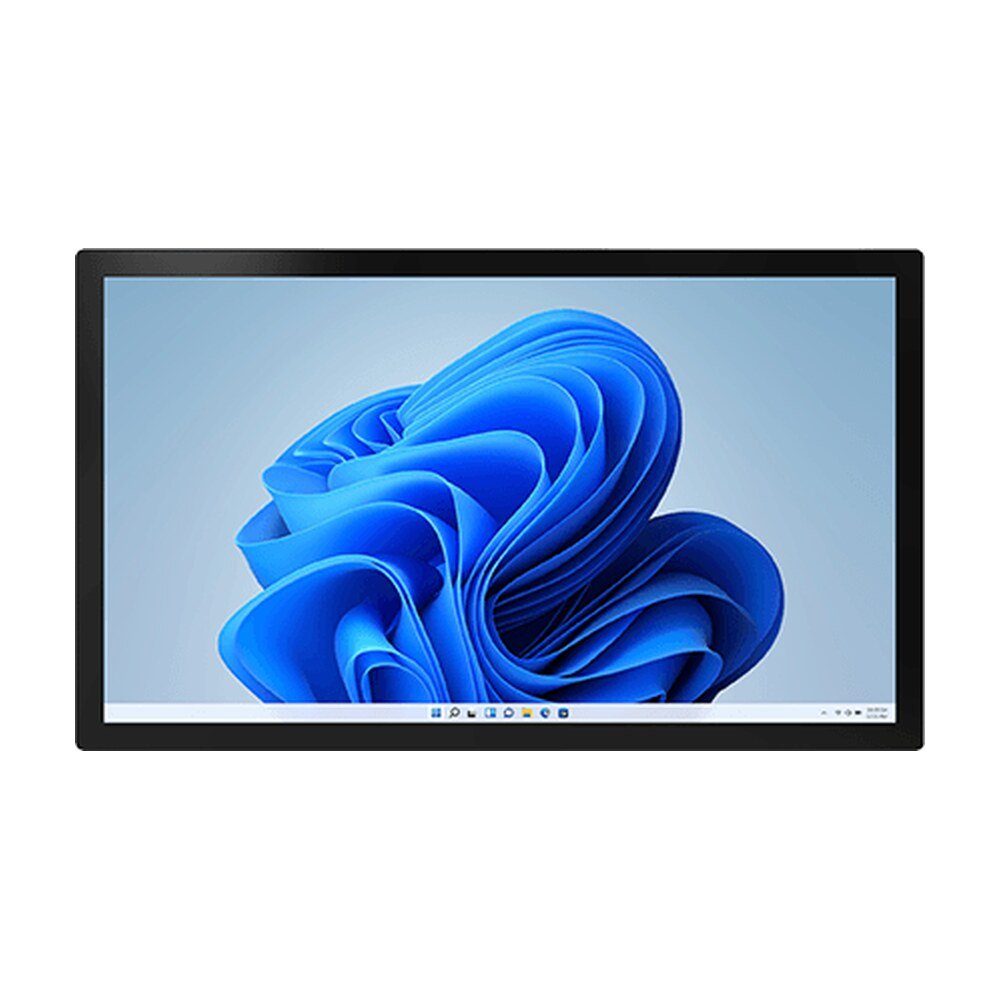

Discover the W27L100-GCA1, a 27" Full HD industrial touch display featuring PCAP multi-touch, front IP65 protection, and VGA/HDMI inputs for demanding automation environmet
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Discover the W27L100-GCA1, a 27" Full HD industrial touch display featuring PCAP multi-touch, front IP65 protection, and VGA/HDMI inputs for demanding automation environmet
Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The display is easy to clean, plus the screen is resistant to water and liquid droplets.
The dust and waterproof display comply with IP65 standards. Plus, the M12 connectors are waterproof for varying industrial environments.
The fanless design eliminates dust circulation for improved product longevity – especially in heavy-duty applications where dusty conditions are prevalent.
The G-Win series is as tough as it gets. The displays are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensures the screen and housing are both rugged to the max.
| Display | |
|---|---|
| Size | 27.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 597.6x336.15 mm |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Mechanical | |
| Dimension | 645 x 383 x 55 mm |
| Weight | 9.7kg |
| Mounting | VESA Mount, Front IP65 Panel Mount |
| Enclosure | Metal Housing with Plastic Bezel |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power | |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W27L100-GCA1 |
| Series | G-WIN GC Series Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W27L100-GCA1 |
|---|---|
| Category | G-WIN Series / IP67, Industrial Display, Winmate |
| Size | 27.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 597.6x336.15 mm |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional) |
| Dimension | 645 x 383 x 55 mm |
| Weight | 9.7kg |
| Mounting | VESA Mount, Front IP65 Panel Mount |
| Enclosure | Metal Housing with Plastic Bezel |
| Cooling System | Fanless Design |
| Accessory | 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power Rating | 12V DC in, 24V DC in (optional) |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | W27L100-GCA1 |
| Series | G-WIN GC Series Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
