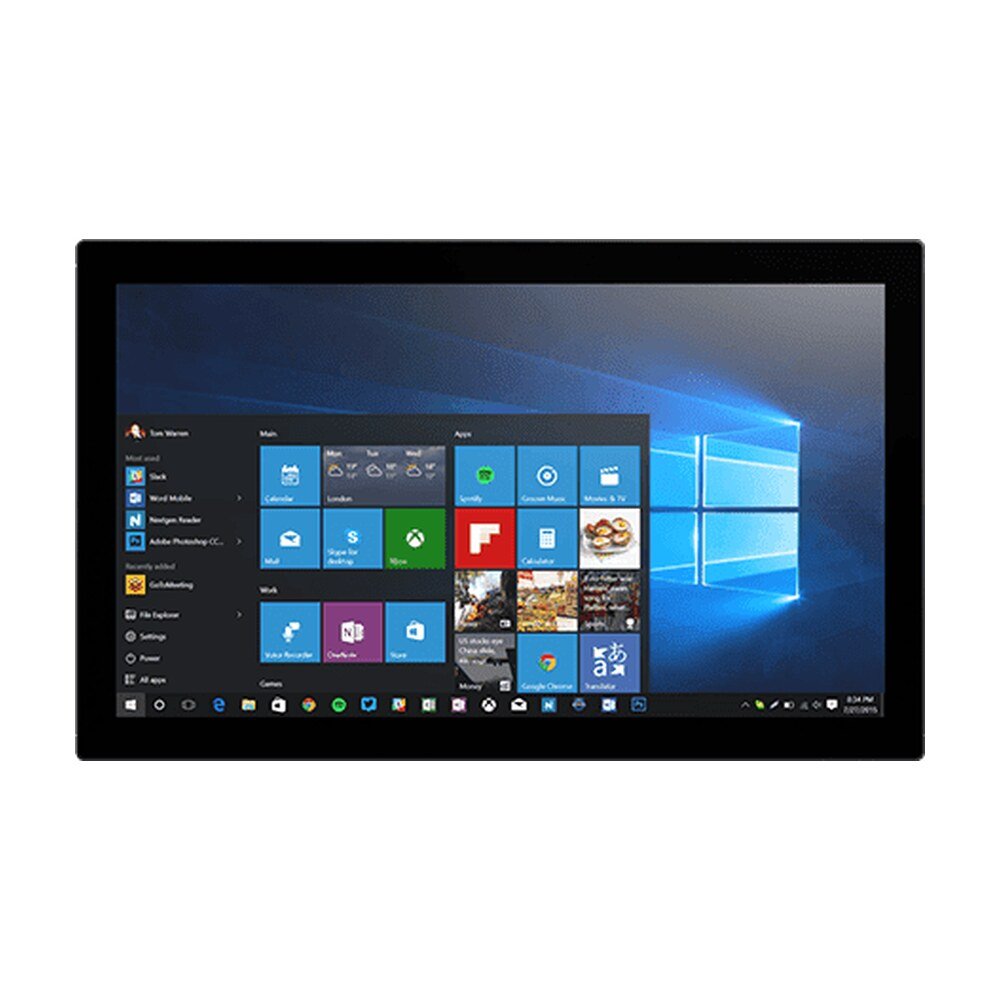

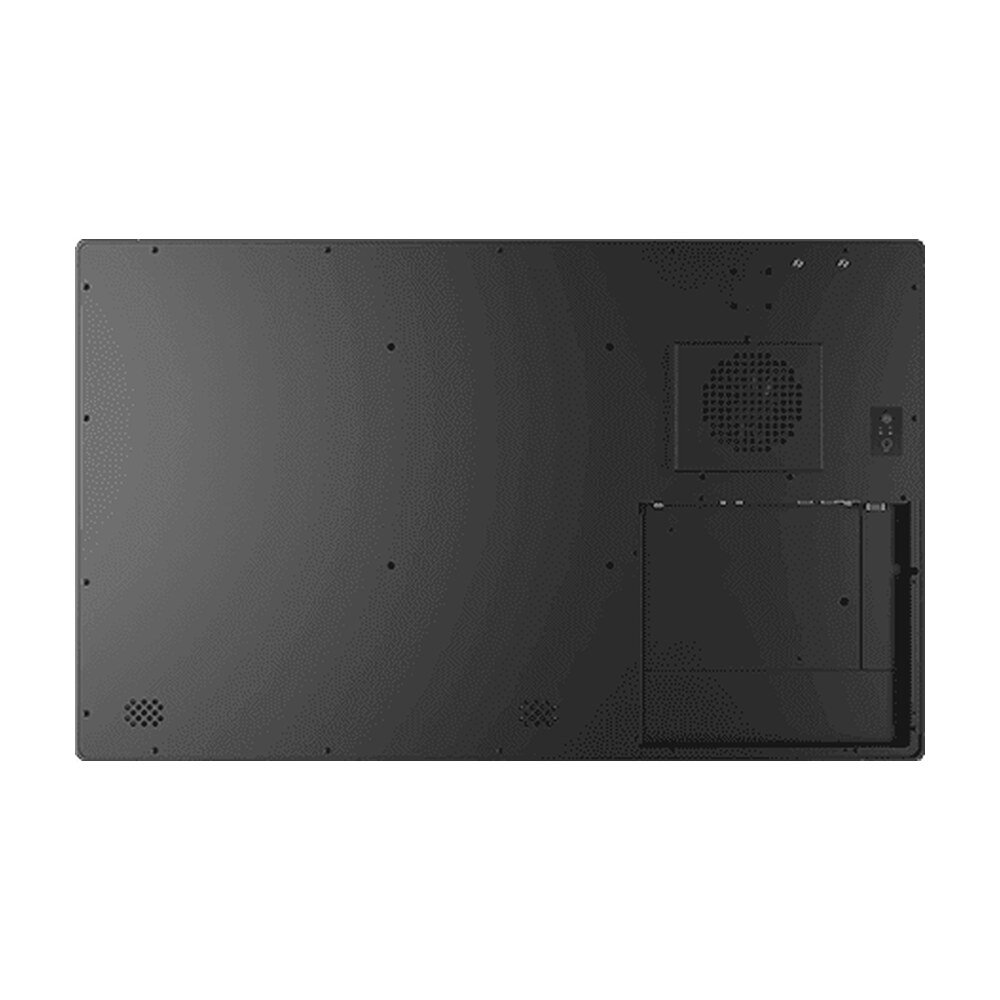

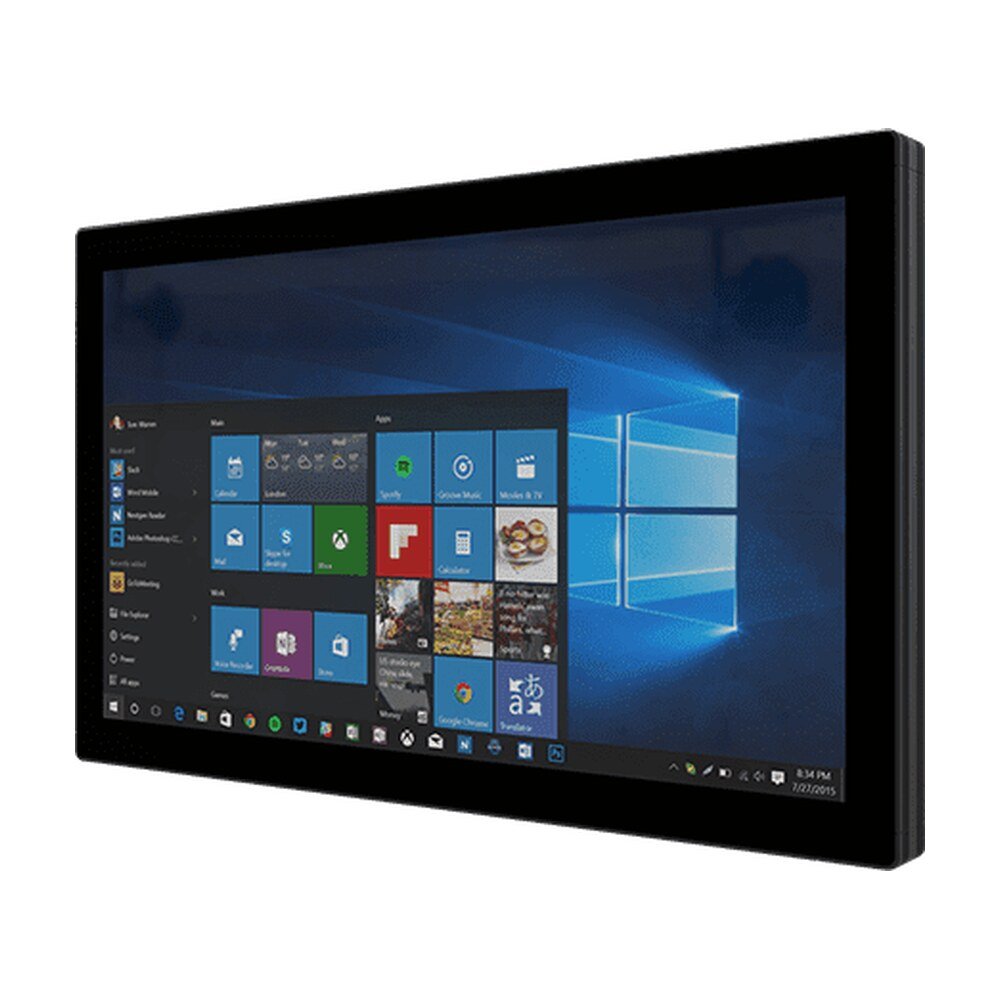

Explore Winmate W32IAD7T-PCA3, an HMI panel PC featuring Intel® Core™ i3/i5/i7/i9, 32-inch display, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W32IAD7T-PCA3, an HMI panel PC featuring Intel® Core™ i3/i5/i7/i9, 32-inch display, IP65 for machine control and factory automation.
Powered by 12th and 14th Generation Intel® Core™ i3/i5/i7/i9 processors (Alder Lake S / Raptor Lake S Refresh), this architecture delivers scalable, high-performance computing. It ensures exceptional multitasking capabilities perfectly suited for demanding industrial automation and edge applications.
The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.
This Panel PC is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.
Easy to connect to your equipment, this option is ideal for racks and consoles requiring touch screen capability. Convenient on-screen user control for the efficiency of the operator.
| System Specification | |
|---|---|
| Processor | Intel® Core™ i3-12100TE(up to 4.00GHz) (Default), Intel® Core™ i5-12500TE(up to 4.3GHz) (Optional), Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional), Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional), Intel® Core™ i3-14100T(up to 4.4GHz) (Optional), Intel® Core™ i5-14500T(up to 4.8GHz) (Optional), Intel® Core™ i7-14700T(up to 5.2GHz) (Optional), Intel® Core™ i9-14900T(up to 5.5GHz) (Optional) |
| Chipset | Intel® R680E |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| Display | |
| Size | 32.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 400.0 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 698.4x392.85 mm |
| Mechanical | |
| Dimension | 777.6 x 477.6 x 64.5 mm |
| Weight | 20 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fan Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz", 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | 1 x Mic in, 1 x Line out, 2 x Speaker |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 24V DC, Din4 pin connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power | |
| Power Rating | 24V DC (Lockable Power Jack) |
| Adapter | 24V 200W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W32IAD7T-PCA3 |
| Series | Standalone Panel PC (Big size & P-CAP) |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W32IAD7T-PCA3 |
|---|---|
| Category | Industrial Panel PC and HMI, Industrial Panel PCs (P-CAP Touch), Winmate |
| Chipset | Intel® R680E |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Size | 32.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 400.0 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 698.4x392.85 mm |
| Dimension | 777.6 x 477.6 x 64.5 mm |
| Weight | 20 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fan Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz", 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | 1 x Mic in, 1 x Line out, 2 x Speaker |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Power Input | 1 x 24V DC, Din4 pin connector |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power Rating | 24V DC (Lockable Power Jack) |
| Adapter | 24V 200W |
| Brand | Winmate |
| Manufacturer part number | W32IAD7T-PCA3 |
| Series | Standalone Panel PC (Big size & P-CAP) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
