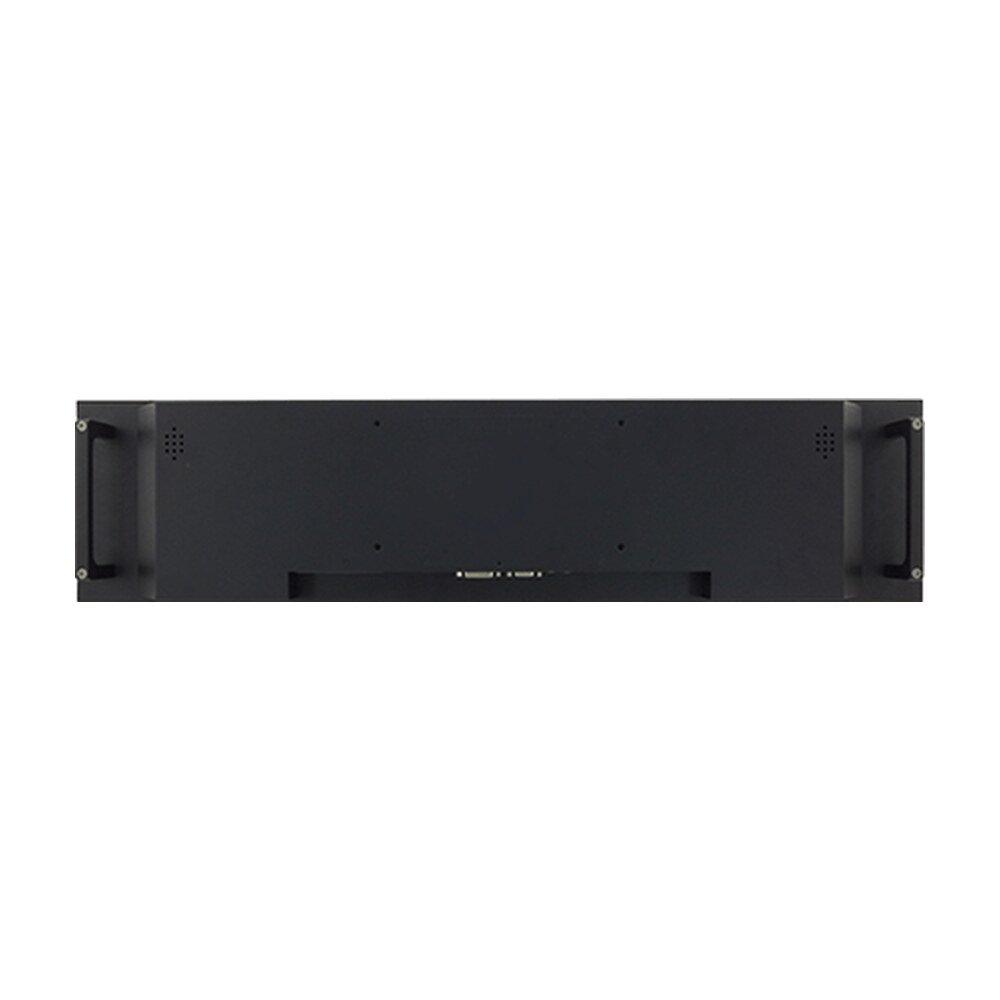

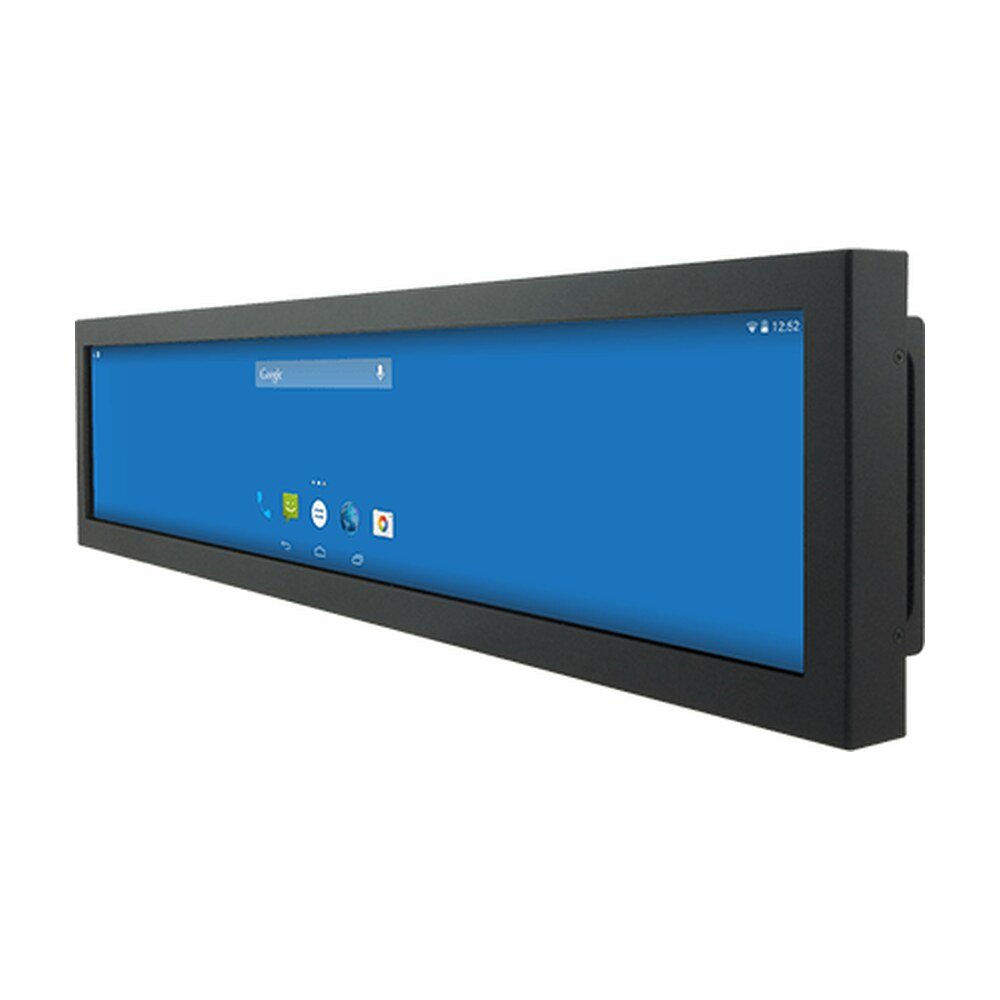

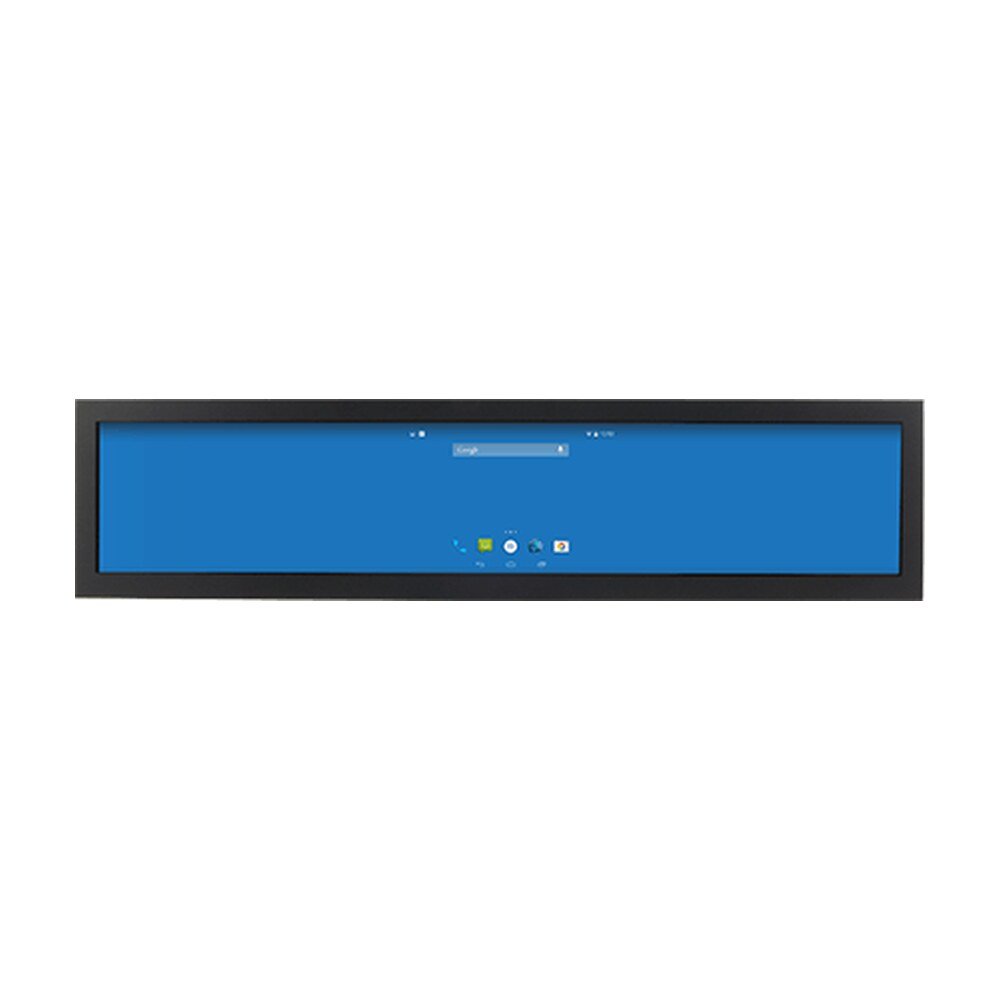

Explore Winmate W38FA3S-CHA1, an industrial panel PC featuring NXP i.MX6, 37-inch display with 1920x540 resolution for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W38FA3S-CHA1, an industrial panel PC featuring NXP i.MX6, 37-inch display with 1920x540 resolution for machine control and factory automation.
Experience clear viewability from almost every angle - this bar-type Panel PC is commonly installed in public areas for digital advertisements. The stretched display structure supports various inputs, whereas the display video and digital route map can be customized according to a client's specific CMS software.
This ultra-wide Panel PC can be operated from 0°C up to 50°C to overcome sweltering hot conditions and freezing temperatures. Plus, the fan-less design and cable-less set-up optimize thermal dissipation to make the device more durable in public areas.
At 1000 nits brightness, striking colors with enhanced optical clarity are present even in brightly lit environments - perfect for indoor and semi-outdoor applications.
With power-efficient processing capabilities, bleeding-edge 3D and 2D graphics, as well as high-definition video, the i.MX 6 series provides a new level of multimedia performance for an unparalleled user experience. This Panel PC is ideal for those requiring high performance in low power or thermally constrained cost-sensitive devices.
| Display | |
|---|---|
| Size | 37 inches |
| Touch / Glass | Protection Glass |
| Resolution | 1920x540 |
| Panel Brightness | 1000 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 904.32x254.34 mm |
| System Specification | |
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB (Default), 2GB (Optional) |
| Storage | eMMC: Onboard 16 GB (Default), eMMC: Onboard 32 GB (Optional) |
| Operating System | Linux Ubuntu 18.04 (Optional), Android 6.0 (Optional), Debian 7.0 (Optional), Linux 4.1.15 QT 5.5 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| Mechanical | |
| Dimension | 972.5 x 284.5 x 71.6 mm |
| Mounting | VESA Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |

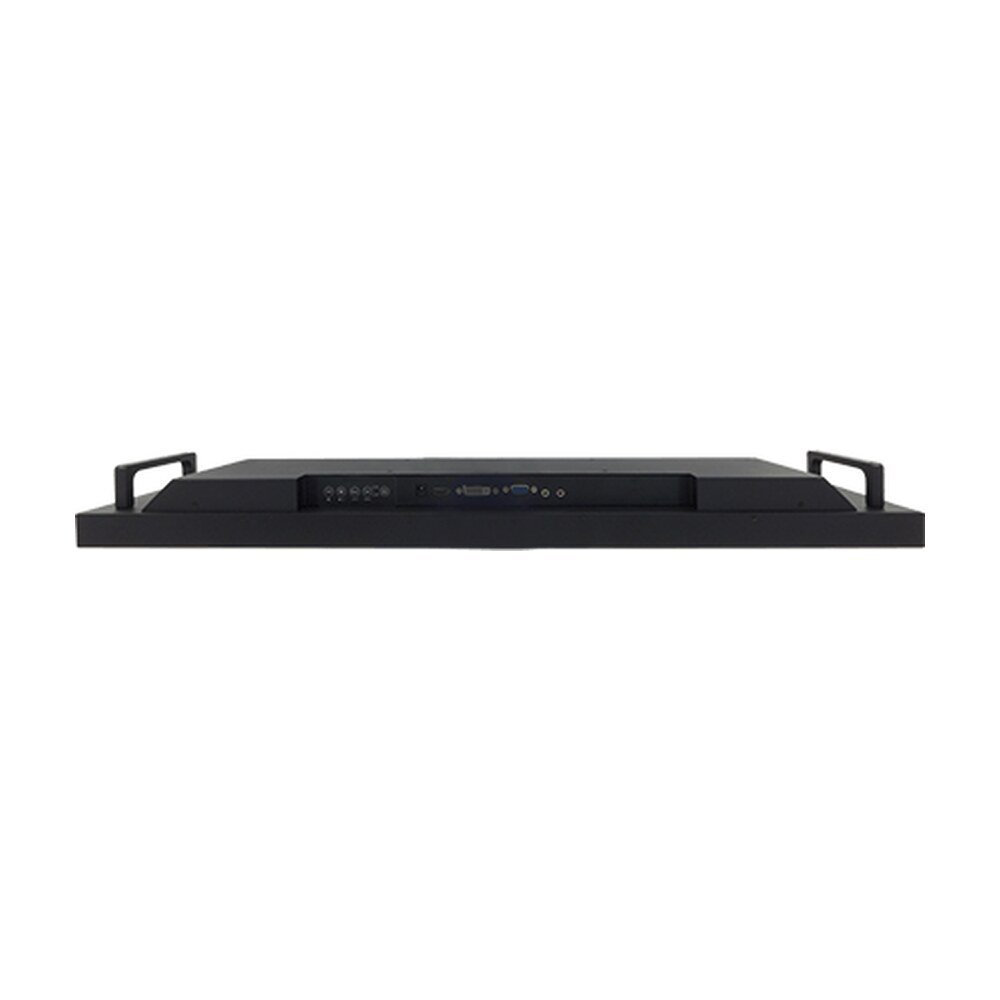

| IO Ports | |
| USB Port | 1 x USB 3.0, 1 x USB 2.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x RJ45-10/100/1000 Mbps |
| Video | 1 x HDMI (Optional) |
| Accessory | |
| Accessory | User Manual, Driver CD1 , Power Cord, AC Adapter, 2 pin Terminal Block, VESA Mount Screws, USB to Micro USB Cable |
| Power | |
| Power Rating | 9V~36V DC In Terminal Block |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W38FA3S-CHA1 |
| Series | ARM Bar Type Panel PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W38FA3S-CHA1 |
|---|---|
| Category | Bar Type Panel PCs, Industrial Panel PC and HMI, Winmate |
| Size | 37 inches |
| Touch / Glass | Protection Glass |
| Resolution | 1920x540 |
| Panel Brightness | 1000 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 904.32x254.34 mm |
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB (Default), 2GB (Optional) |
| Storage | eMMC: Onboard 16 GB (Default), eMMC: Onboard 32 GB (Optional) |
| Operating System | Linux Ubuntu 18.04 (Optional), Android 6.0 (Optional), Debian 7.0 (Optional), Linux 4.1.15 QT 5.5 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| Dimension | 972.5 x 284.5 x 71.6 mm |
| Mounting | VESA Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| USB Port | 1 x USB 3.0, 1 x USB 2.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x RJ45-10/100/1000 Mbps |
| Video | 1 x HDMI (Optional) |
| Accessory | User Manual, Driver CD1 , Power Cord, AC Adapter, 2 pin Terminal Block, VESA Mount Screws, USB to Micro USB Cable |
| Power Rating | 9V~36V DC In Terminal Block |
| Brand | Winmate |
| Manufacturer part number | W38FA3S-CHA1 |
| Series | ARM Bar Type Panel PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
