Old Part Number: DH-20-J02SX-01-001

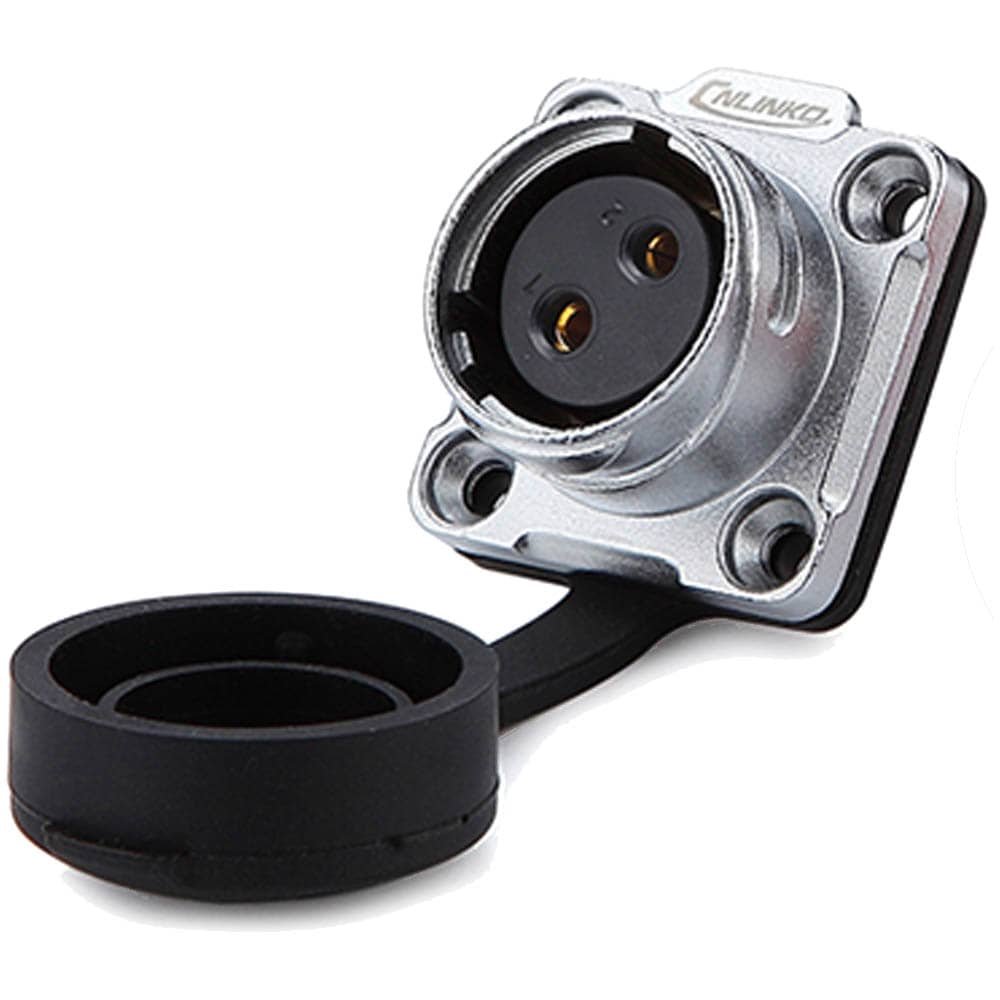

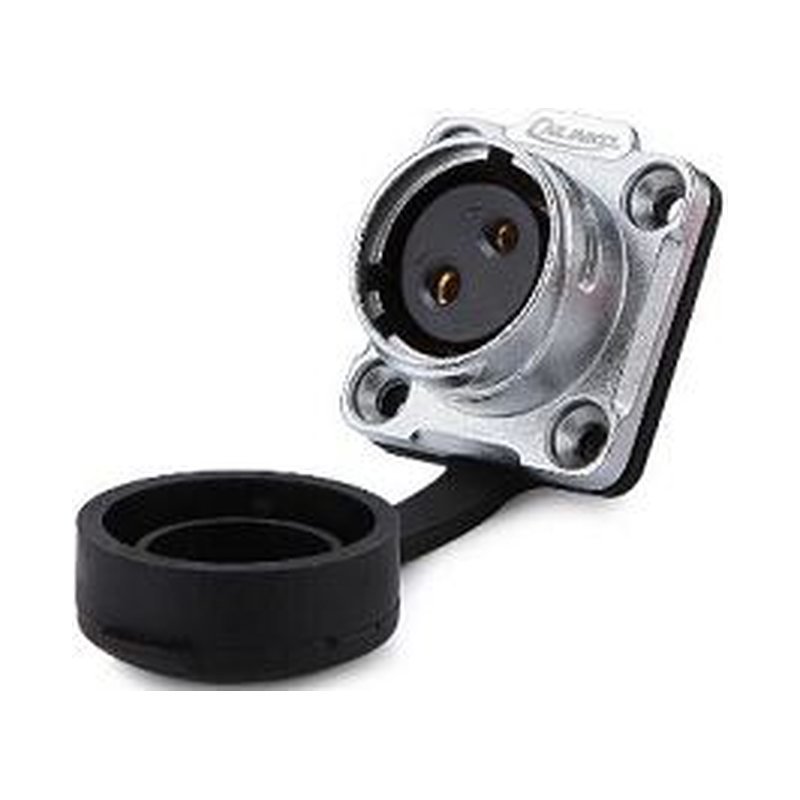

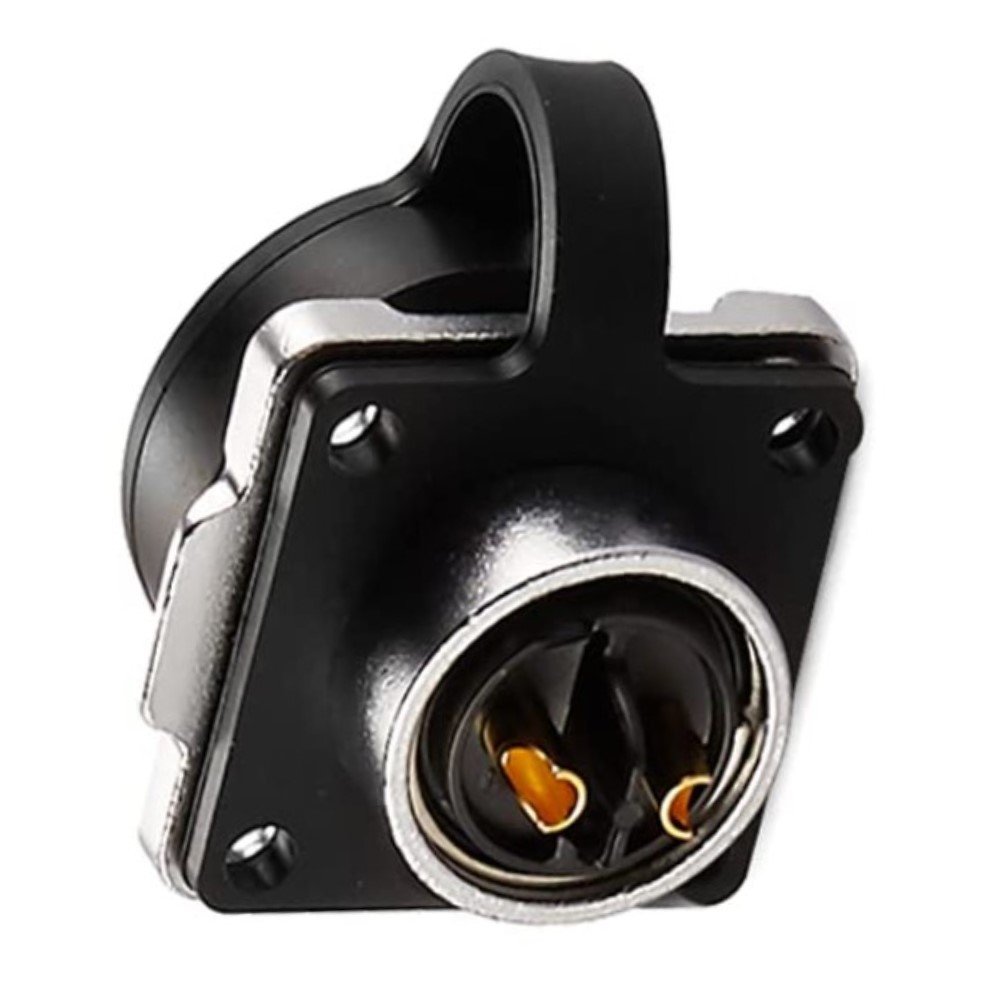

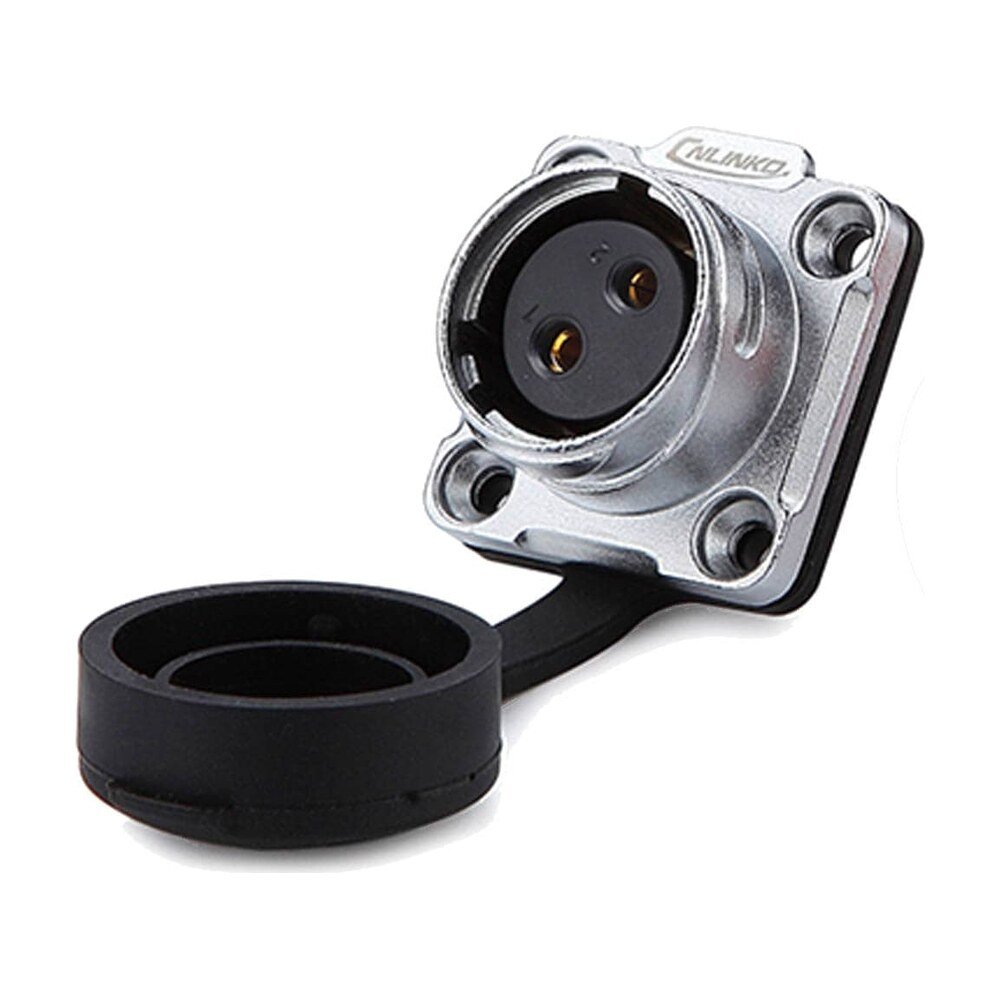

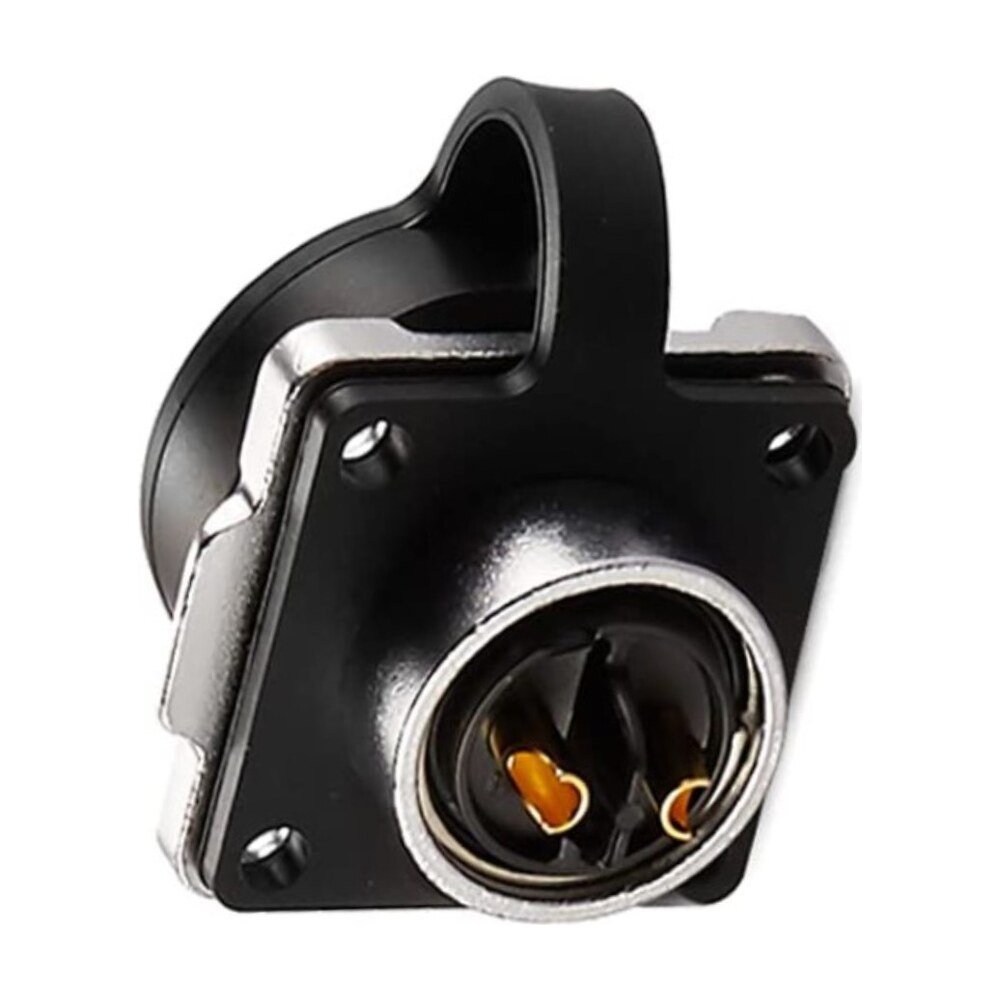

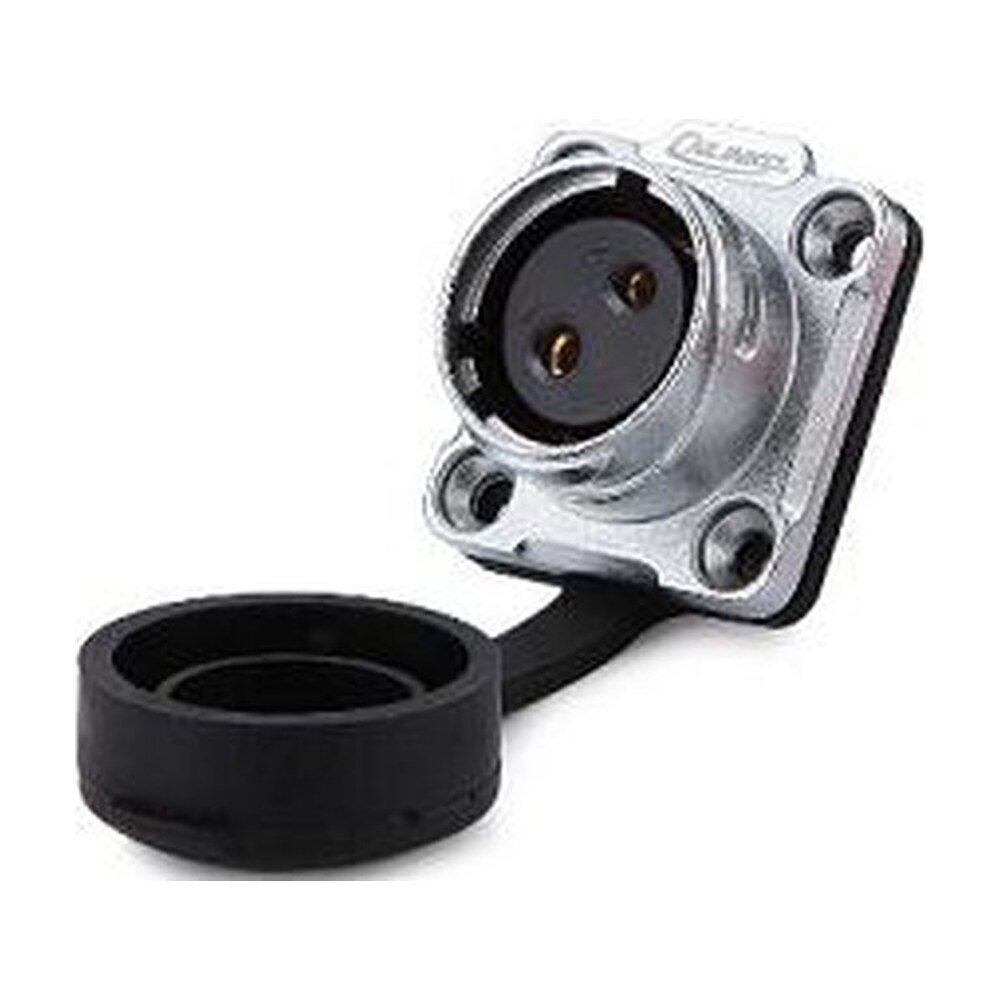

This message is providing information about the Cnlinko DH-20-J02SX-03-401, which is a 2 pin female socket designed for power applications. This socket can accommodate cable sizes of 14-12 AWG and is rated for 500V with a maximum current of 20 A. This high-quality socket features excellent performance and durability, making it ideal for use in a variety of applications, such as LED displays and stage lighting equipment. It is also worth noting that the Cnlinko DH-20-J02SX-03-401 is also referred to as DH-20-J02SX-01-001. This additional information confirms that you are purchasing the correct product and helps to avoid any confusion or incorrect orders. So, if you are looking for a reliable and high-performance 2 pin female socket for your power applications, the Cnlinko DH-20-J02SX-03-401 is an excellent choice!



Old part Number: DH-20-C02PE-01-001

2 pins female socket

  • Metal alloy housing
  • Screw tightening design
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Includes waterproof cover

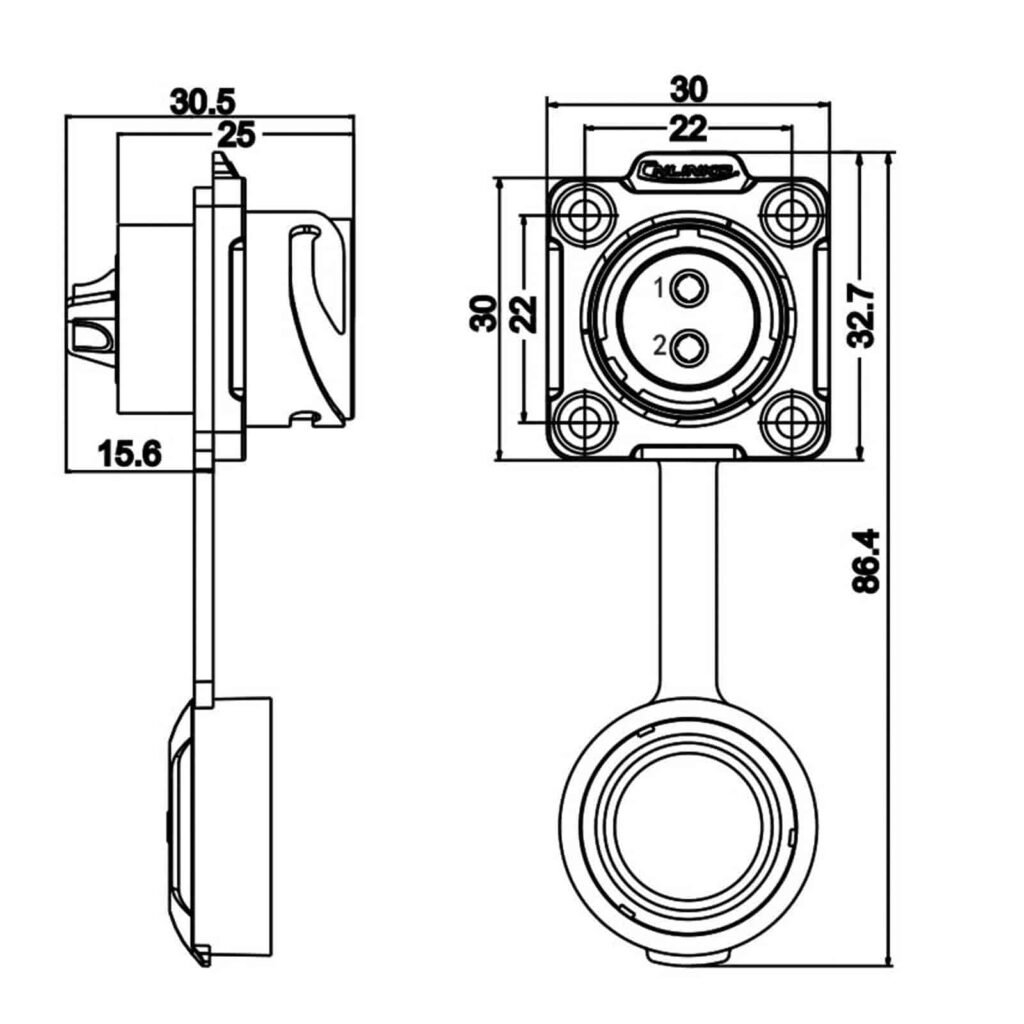

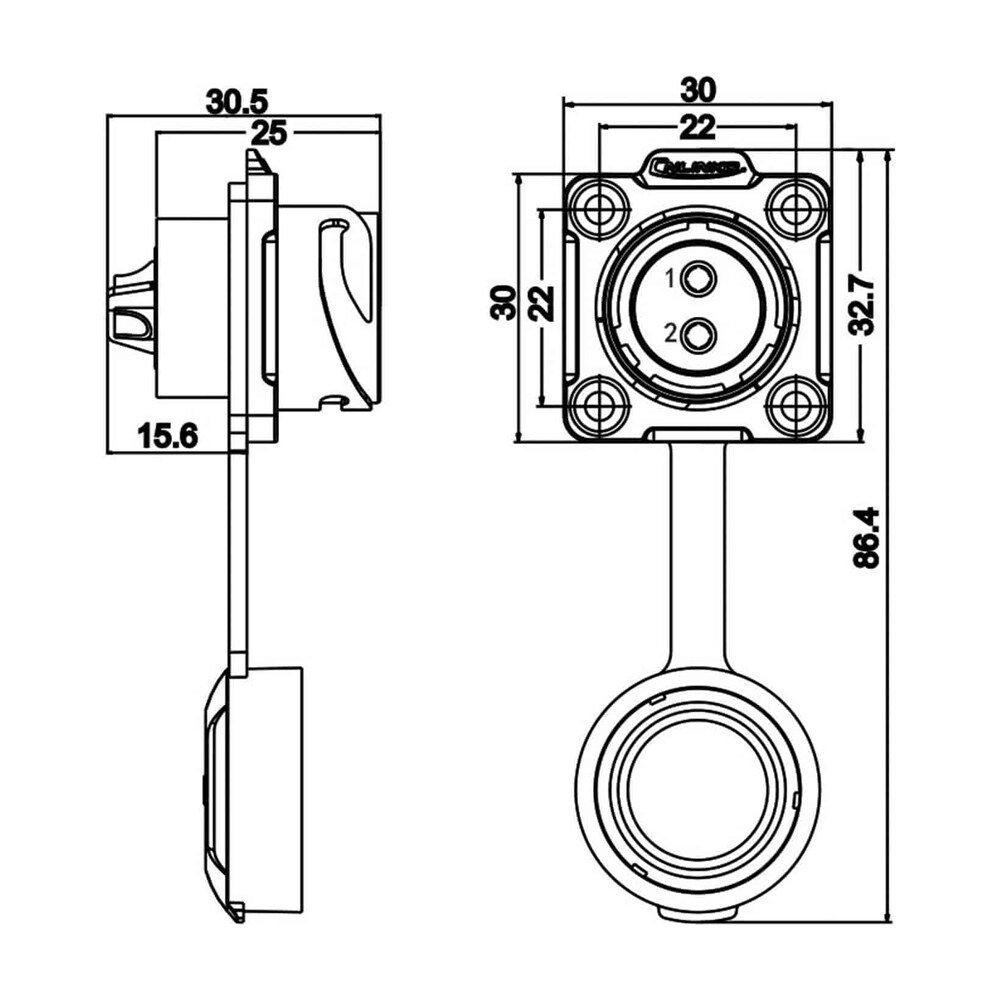

  • Dimensions (without cap)- 32.7 mm Height x 30 mm Width x 30.5 mm Depth (1.3″ x 1.18″ x 1.2″)
  • Number of Pins- 2
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 2.7mm
  • Rated Current- 20A
  • Operating Voltage- 500V
  • Contact Resistance- < 1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001


There are no reviews yet.

Be the first to review “DH-20-C02PE-03-001”

Your email address will not be published. Required fields are marked *

SKU DH-20-J02SX-03-401 Category


Available on backorder

Quantity Discount
Quantity Discount Discounted price
1 - 25 - $9.57
26 - 50 1% $9.47
51 - 75 1.5% $9.43
76 - 100 2% $9.38
Bulk pricing will be applied to package:
