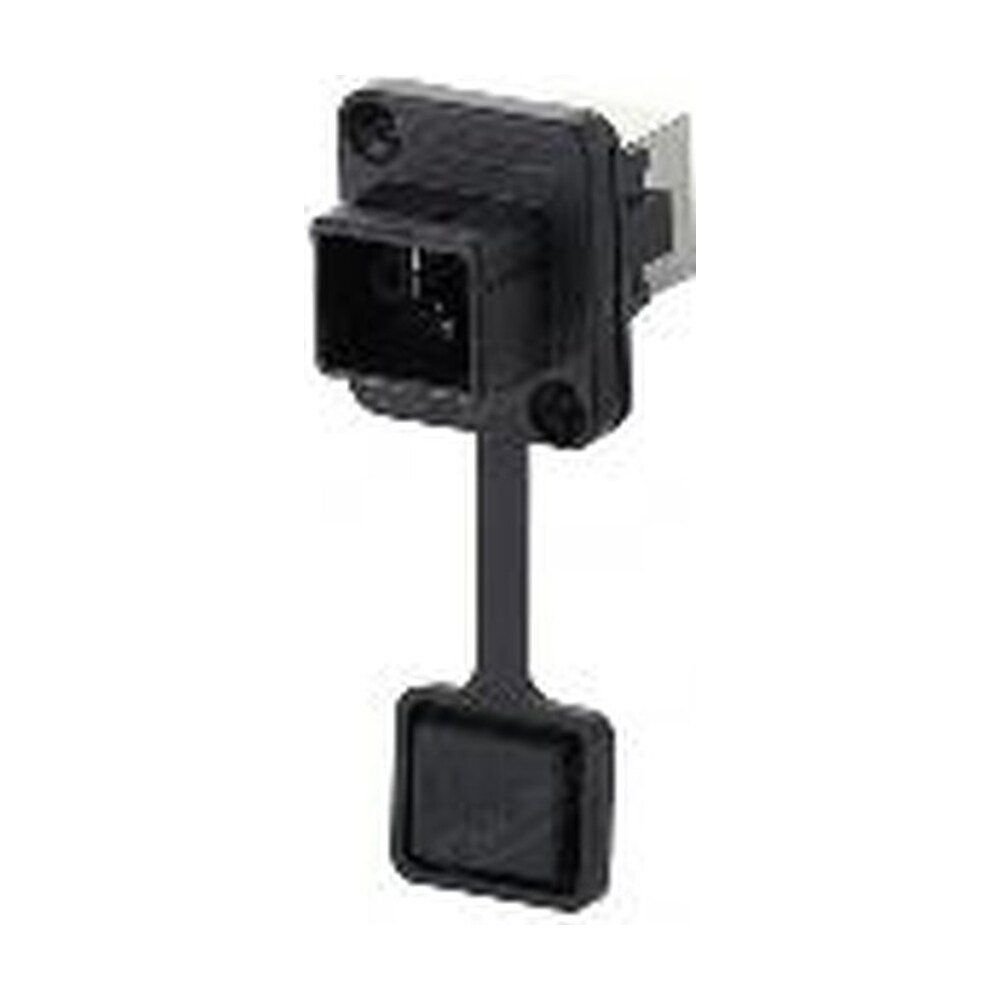

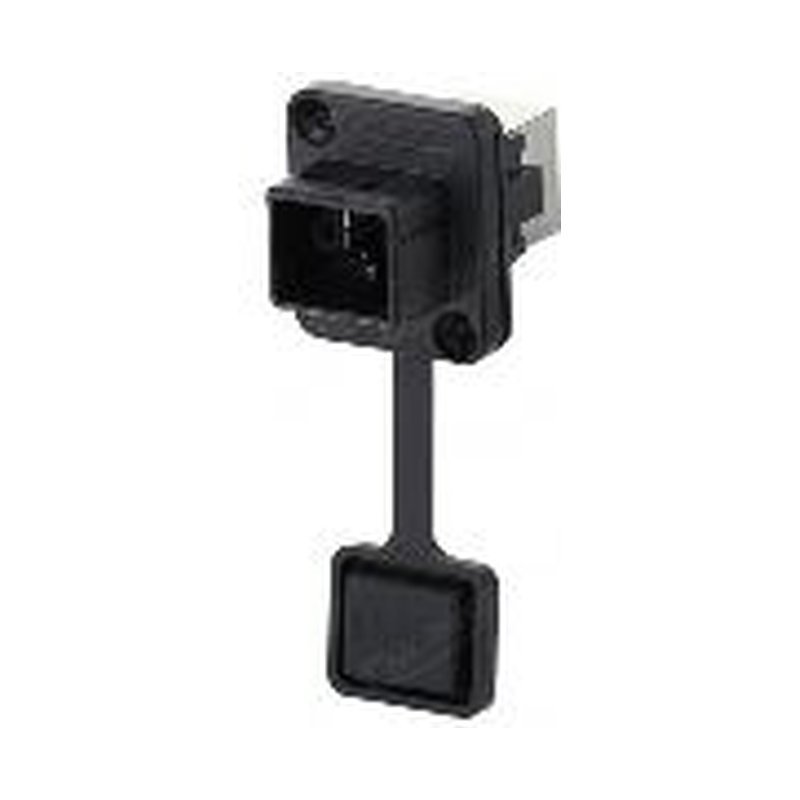

The YT-RJ45-JSX-05-002 is a rugged female RJ45 socket with dual Ethernet ports, designed for industrial networking applications. It supports 10GB/s data transfer, is Cat5e compatible, and offers IP65/67 protection for durability in harsh environments. With a temperature range of -40°C to 80°C, 1.5A and 1000V rating, and 500+ mating cycles, it ensures reliable, long-lasting performance. The connector includes a protective cap for added protection against dust and debris.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Please call for lead-time - typically Please call for lead-time
Specifications
| Part Number (SKU) | YT-RJ45-JSX-05-002 |
|---|---|
| Category | YT-RJ45 Series |
| Dimensions (without cap) | 32 mm Height x 28 mm Width x 40.4 mm Length (1.26″ x 1.1″ x 1.6″) |
| Number of Contacts | 8 |
| Wire Gauge | 26-24 AWG |
| Diameter Range | 5.5-7mm |
| Rated Voltage | 1000V |
| Rated Current | 1.5A |
| Contact Resistance | <30 mOhm |
| Insulation Resistance | >500 MOhm |
| Durability | > 500 times |
| Working Temperature | -40 C to 80 C (-40 F to 176 F) |
| Ingress Protection | IP65/67 when mated |
| Housing Material | High Performance Engineering Plastic |
| Flammability Rating | UL94-V0 |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
