RJ45 male plug (plastic)
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Please call for lead-time

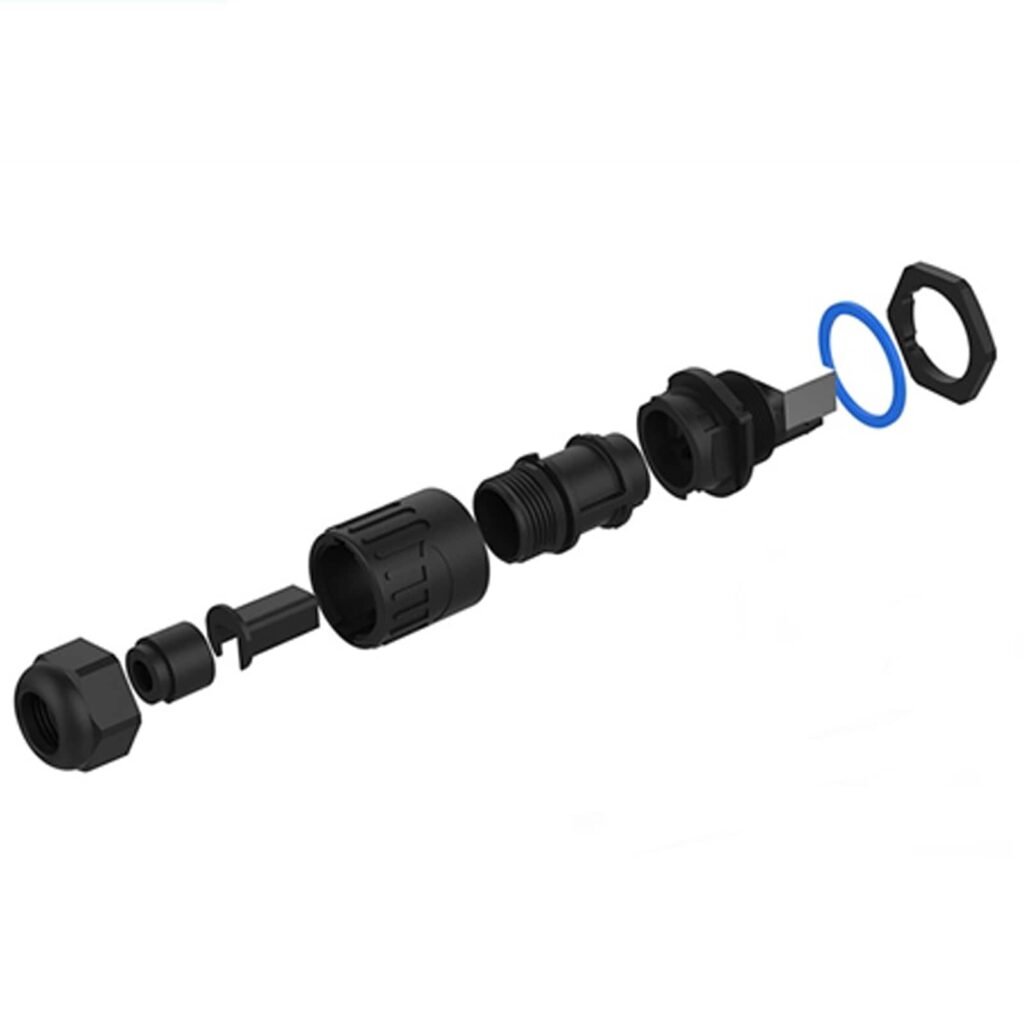

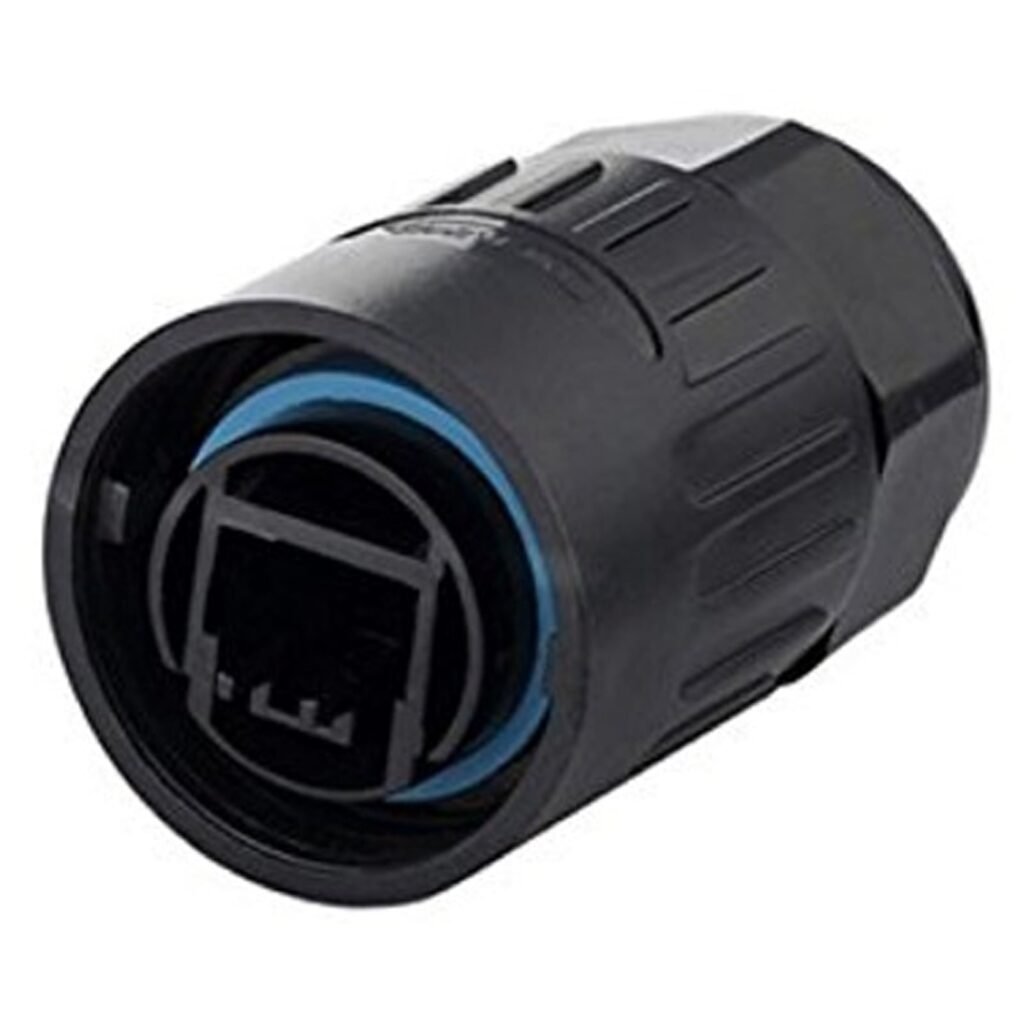

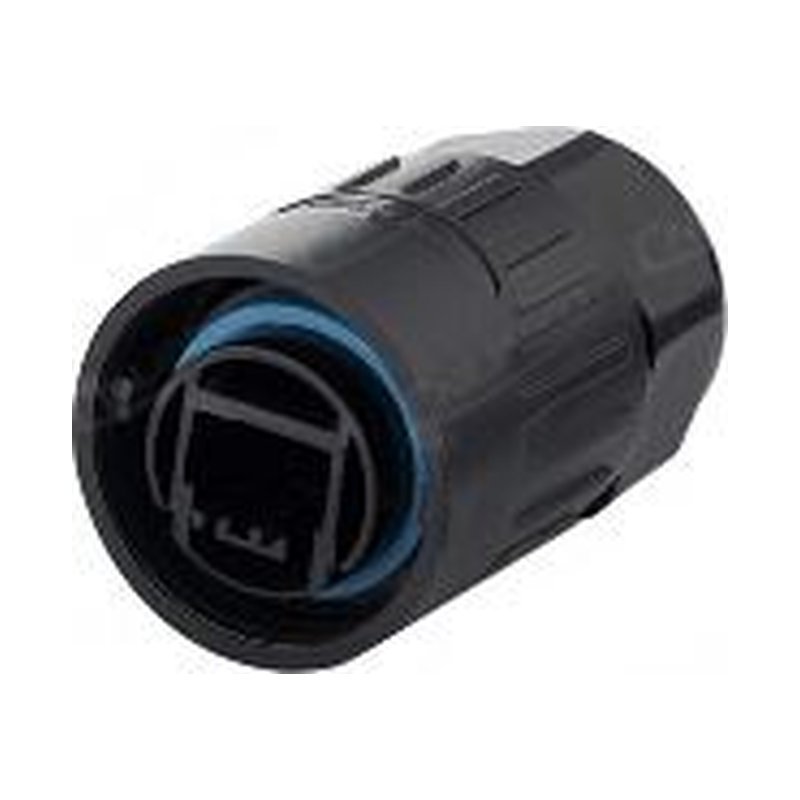

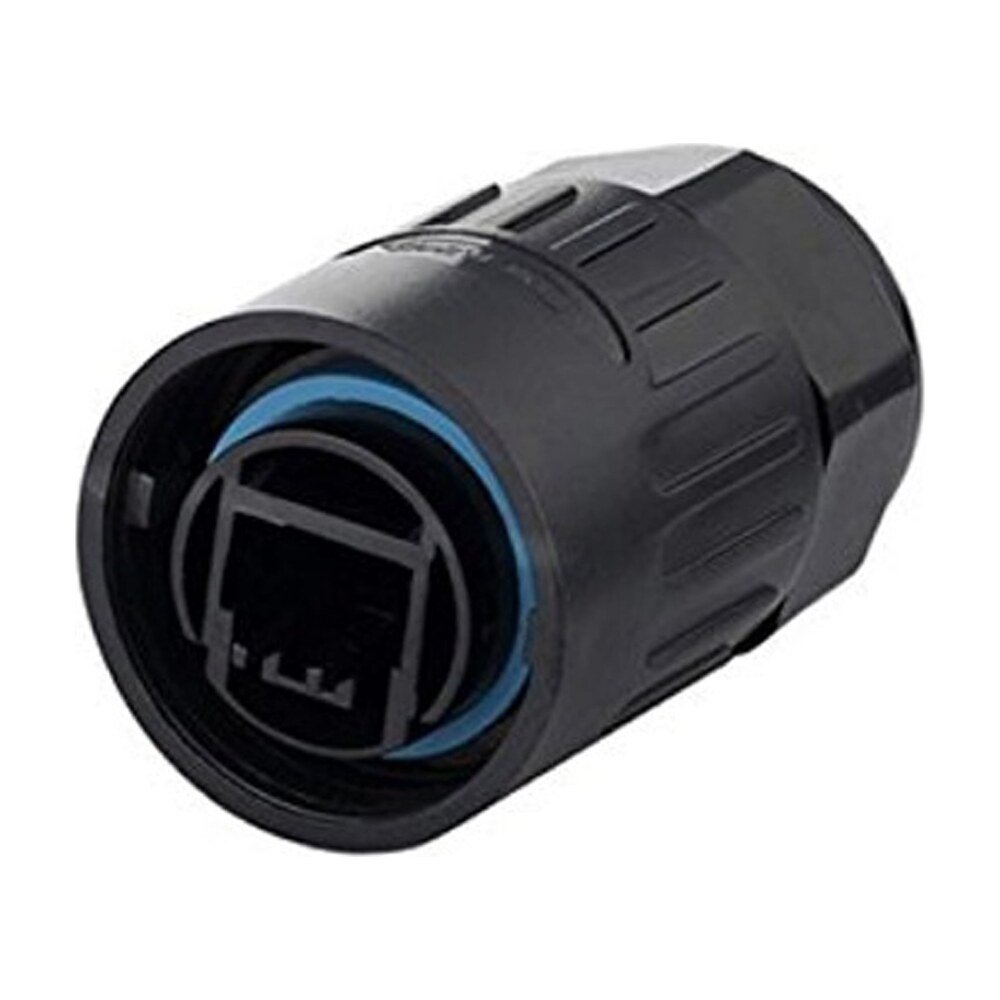

The Cnlinko YT-RJ45-CPE-01-001 is a male RJ45 plug for signal applications. Accommodates 26-24 AWG cable. Rated for 1000V and 1.5 A. It has a 1/4 bayonet connection and is used for industrial Ethernet in audio equipment, stage equipment, DMX lighting, and other networking applications.
Specifications
| Part Number (SKU) | YT-RJ45-CPE-01-001 |
|---|---|
| Category | Circular Connectors, YT-RJ45 Series |
| Weight | 0.2 lbs |

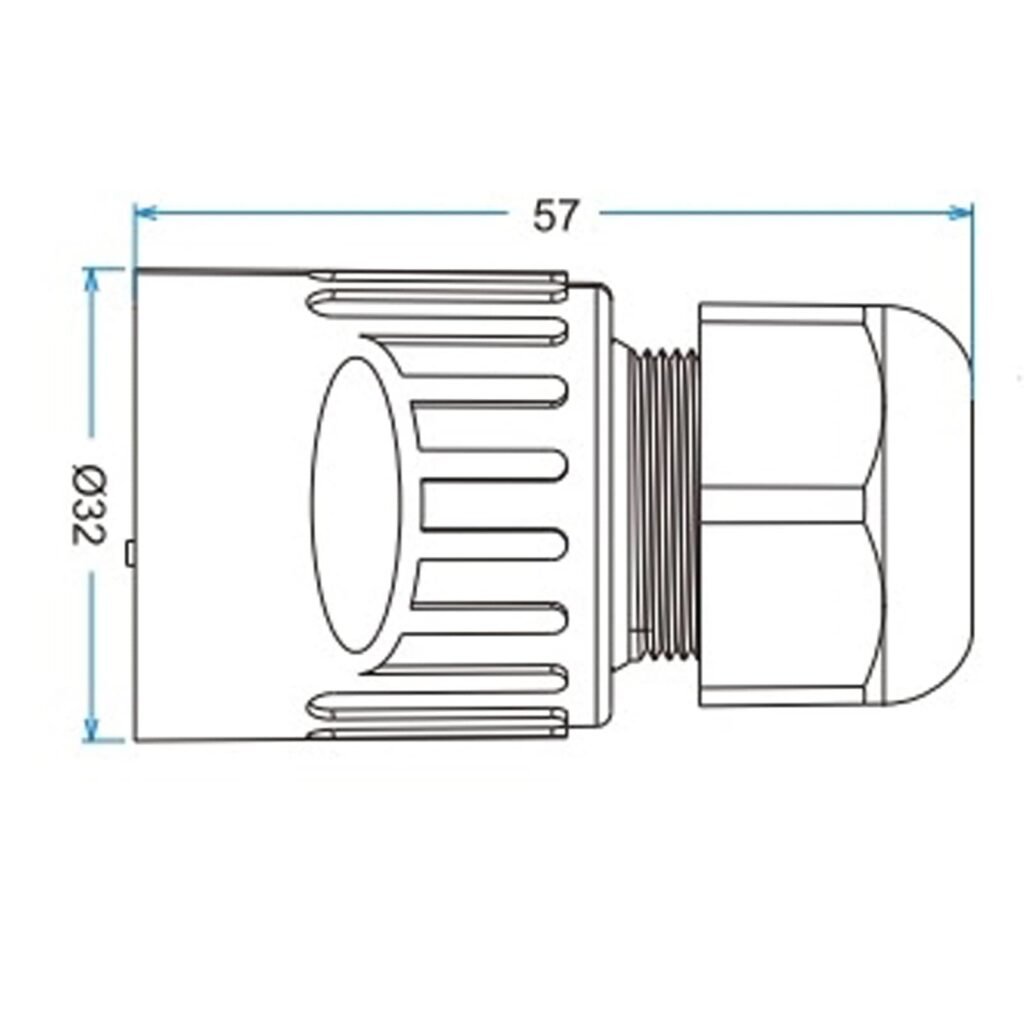

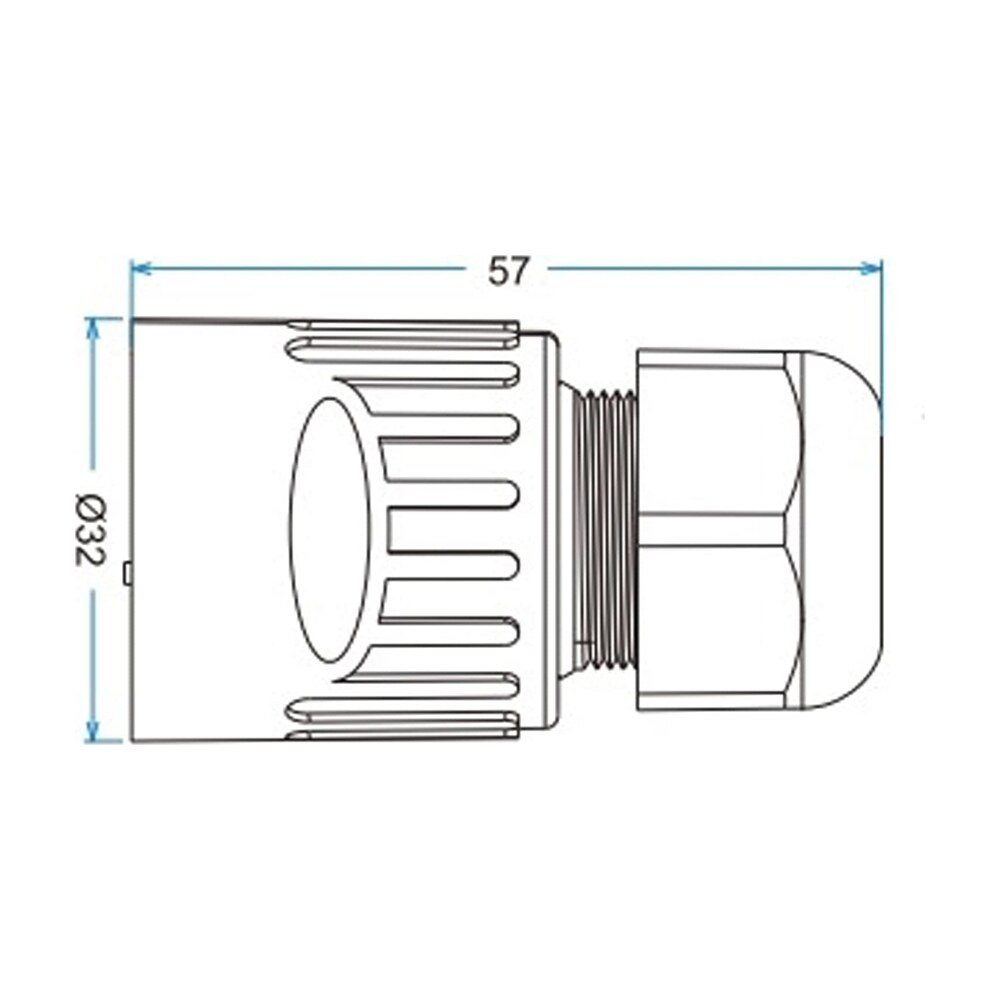

| Dimensions | 2.24 × 1.26 × 1.26 in |
| Number of Contacts | 8 |
| Wire Gauge | 26-24 AWG |
| Diameter Range | 5.5-7mm |
| Rated Current | 1.5A |
| Operating Voltage | 1000V |
| Contact Resistance | <30mOhm |
| Insulation Resistance | > 500MOhm |
| Ingress Protection | IP65/67 |
| Durability | > 500 times |
| Operating Temperature | -40 C to 80 C (-40 F to 176 F) |
| Housing Material | High Performance Plastic |
| Flammability Rating | UL94-V0 |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
